OME OMEAB001 air bag kit for parabolic springs - Toyota Hilux

Old Man Emu air bags for parabolic leaf springs are not an accessory to the suspension but part of it – with a parabolic spring the manufacturer requires them. The idea is simple: the spring handles the permanent, everyday weight of the vehicle, and the bags handle the variable weight you add for a particular trip. The new design with an internal hydraulic bump stop lets you drive with the bag empty and inflate it only when you are actually carrying something.

Key features

• Internal hydraulic bump stop – the bag can be run with no pressure
• Even at 4 psi and with no extra load the bags improve ride comfort
• Up to 600 kg of variable weight: 300 kg per bag, at 0 to 45 psi
• Purpose-designed vent control system – operated manually by a valve
• Can be extended with the ARB LINX controller operated from a phone app (ordered separately)
• The mounting brackets supplied are vehicle-specific

Fitment

The importer lists this kit specifically for the PB004R, PB005R and PB006R parabolic leaf springs, that is for the Toyota Hilux from 2015 (and, in the Old Man Emu chart, the Rogue / GR versions from 2023). The Old Man Emu suspension application chart describes this part number as an air bag kit that is mandatory with parabolic leaf springs.

The mounting brackets supplied are matched to a specific vehicle, so the kit cannot be moved between models. For other vehicles Old Man Emu provides dedicated air bag kits – we will confirm the choice from the model, year and spring part number.

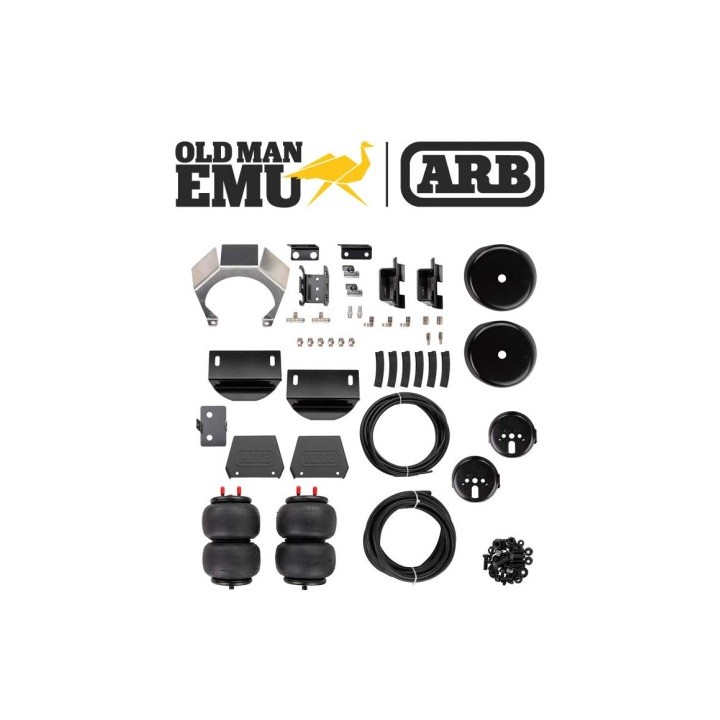

What is in the box

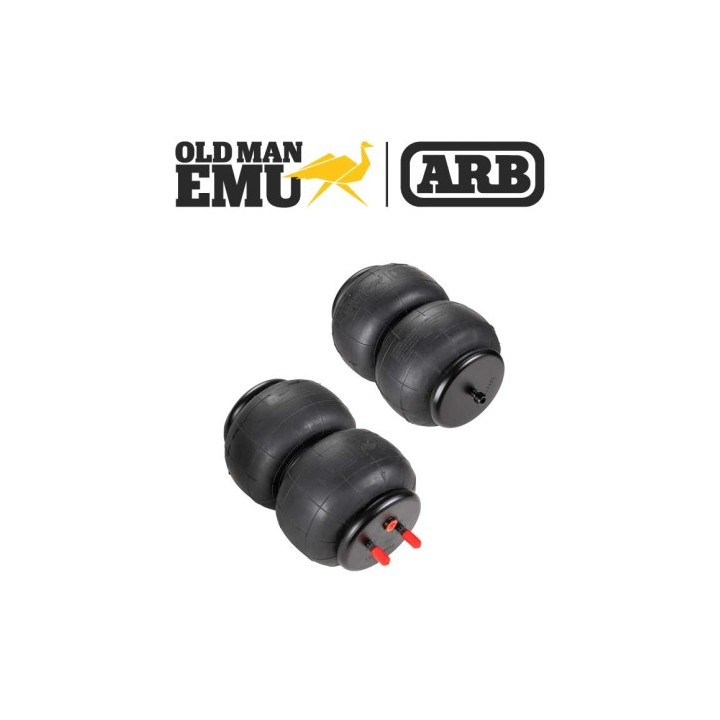

• 2 x air bags for OME parabolic leaf springs
• Vehicle-specific mounting brackets
• 2 x air lines
• 2 x Schrader valves
• 2 x vent valves
• Exhaust heat shield
• Air fittings
• Vent filters
• Fitting instructions

Installation notes

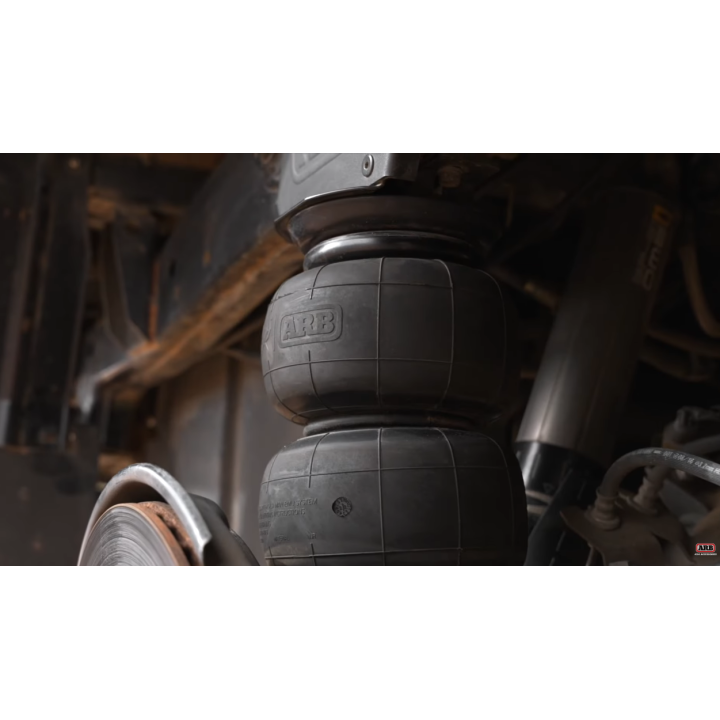

The kit is fitted together with the parabolic leaf springs, with the vehicle on a hoist and the axle supported. Route the air lines away from heat sources – an exhaust heat shield is included. Pressure is set for the current load: empty means 0 psi, the maximum is 45 psi. If you want to control pressure from the cab or from a phone, order the ARB LINX controller as well.

Szekla4x4.pl is an online shop, a walk-in store and a workshop specialising in off-road and overlanding. If you would like us to fit this for you or match the rest of the setup, get in touch.

Frequently asked questions

Are the air bags mandatory with parabolic leaf springs?

Yes. Both the importer and the Old Man Emu suspension application chart state this.

Can I drive with the bags empty?

Yes. The internal travel limiter allows the bag to be run with no pressure and inflated only when the vehicle is loaded.

How much load do the bags add?

Up to 600 kg of variable weight, that is 300 kg per bag, at pressures up to 45 psi.

Is the ARB LINX controller included?

No. ARB LINX is a separate item, ordered in addition. Without it, pressure is set manually with the valve.

Buying parabolic leaf springs for a Hilux? Add this kit straight away – the manufacturer treats it as part of the system, not as an accessory. Get in touch and we will put the springs, air bags, shocks and shackles together in one order.
