OME OMEAB003 air bag kit - LandCruiser 79 / 78 parabolic springs

Old Man Emu air bags for parabolic leaf springs do one thing, and they do it well: they take the variable load, the weight you add for a particular trip rather than carry every day. The spring handles the permanent weight. The new design with an internal hydraulic bump stop lets you drive with the bag empty and inflate it only when the vehicle is loaded – even at 4 psi with no extra load the difference in comfort is noticeable.

Key features

• Internal hydraulic bump stop – the bag can be run with no pressure
• Even at 4 psi and with no extra load the bags improve ride comfort
• Up to 600 kg of variable weight: 300 kg per bag, at 0 to 45 psi
• Purpose-designed vent control system, operated manually by a valve
• Can be extended with the ARB LINX controller operated from a phone app (ordered separately)
• The mounting brackets supplied are vehicle-specific

Fitment

The importer lists this kit specifically for the PB007R, PB008R, PB009R and PB010R parabolic leaf springs, that is for the Toyota LandCruiser 79 and 78. The mounting brackets supplied are matched to a specific vehicle, so the kit cannot be moved between models.

Part number OMEAB003 does not appear in the Old Man Emu suspension application chart available to us – for the 70-series LandCruiser the chart lists a different air bag kit number. Before dispatch we confirm availability and fitment to your vehicle and to your spring part number with the supplier.

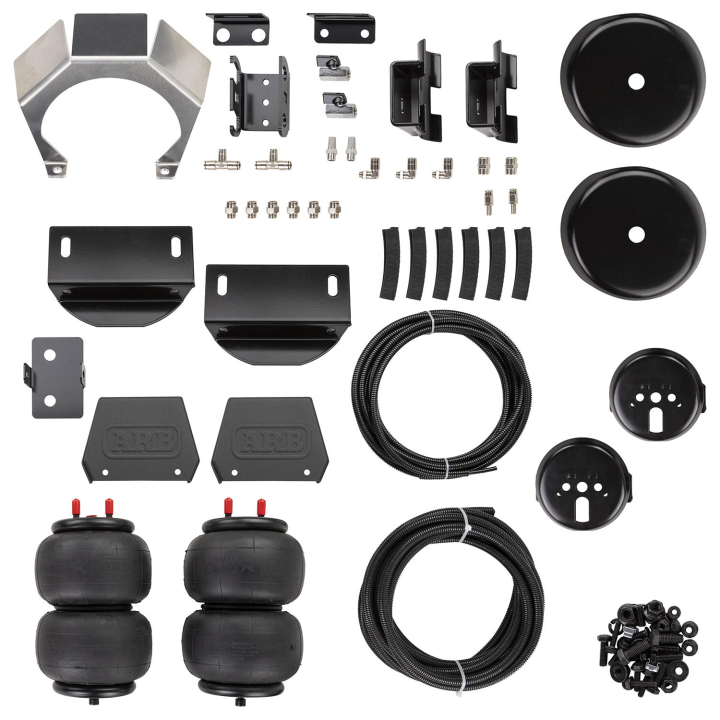

What is in the box

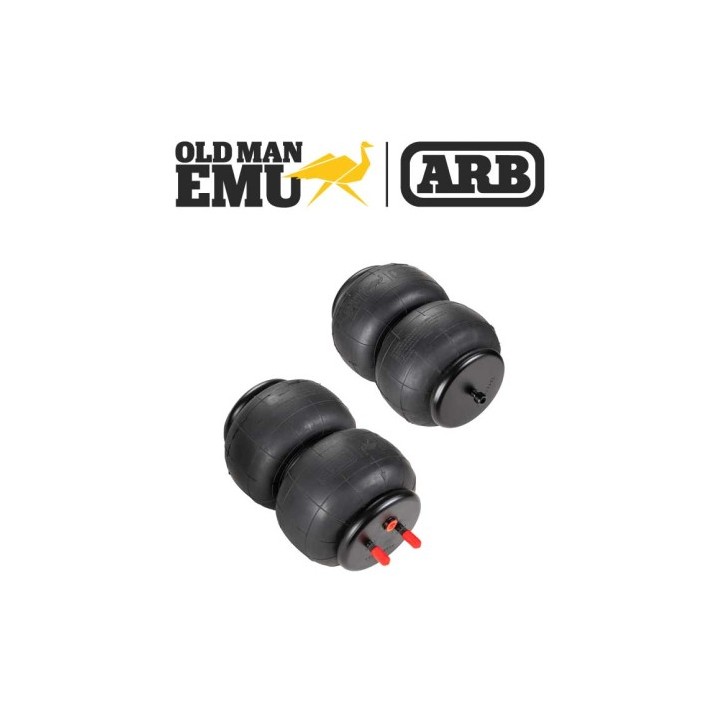

• 2 x air bags for OME parabolic leaf springs

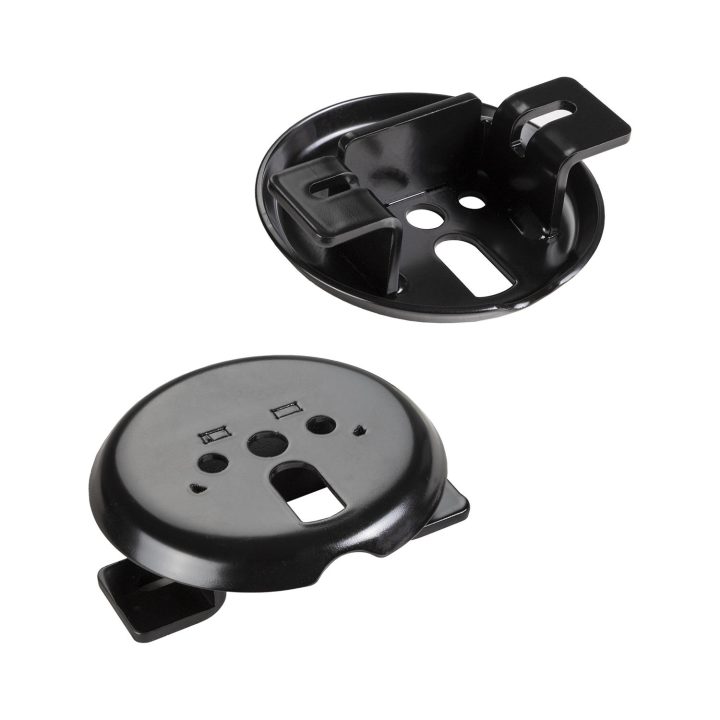

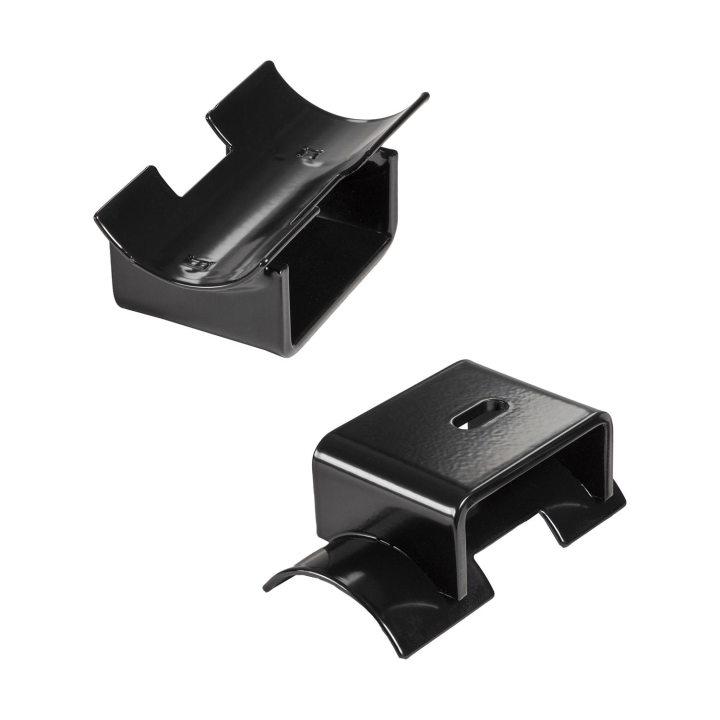

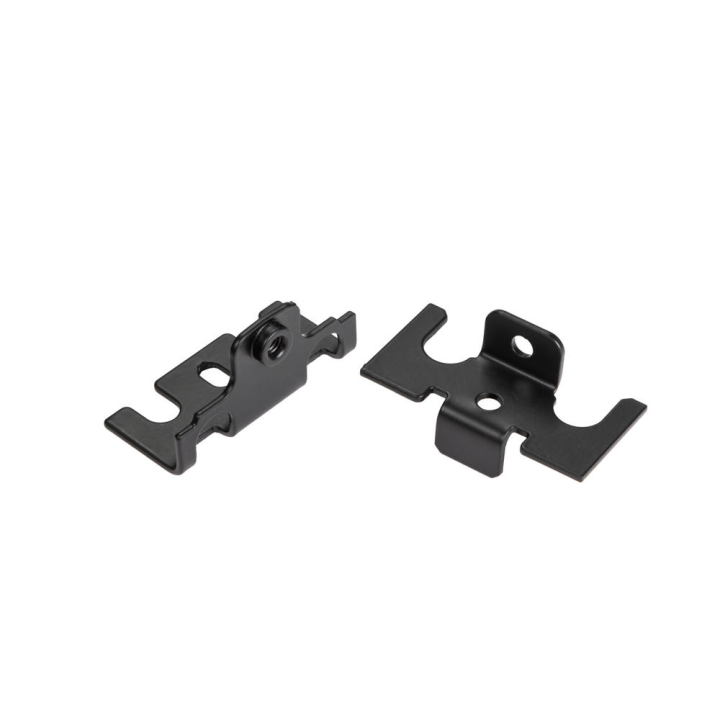

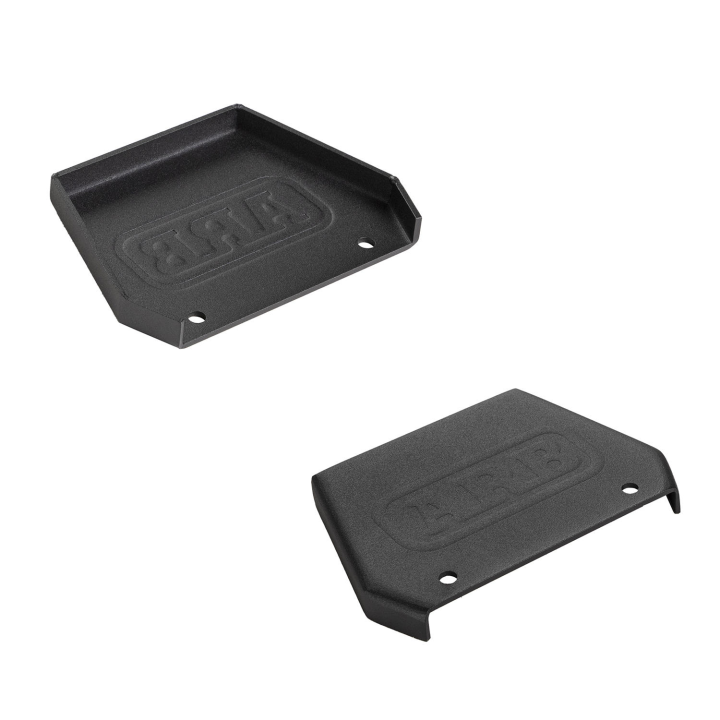

• Vehicle-specific mounting brackets
• 2 x air lines
• 2 x Schrader valves

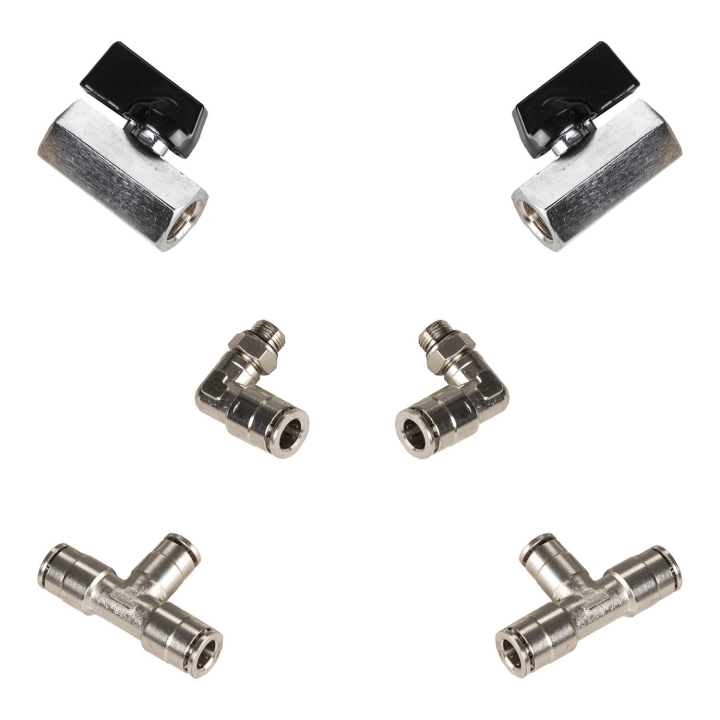

• 2 x vent valves

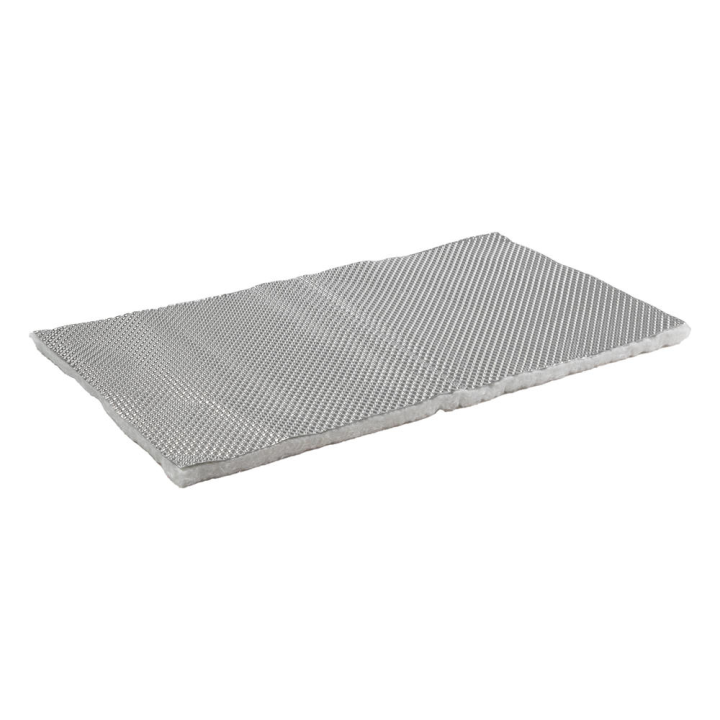

• Exhaust heat shield

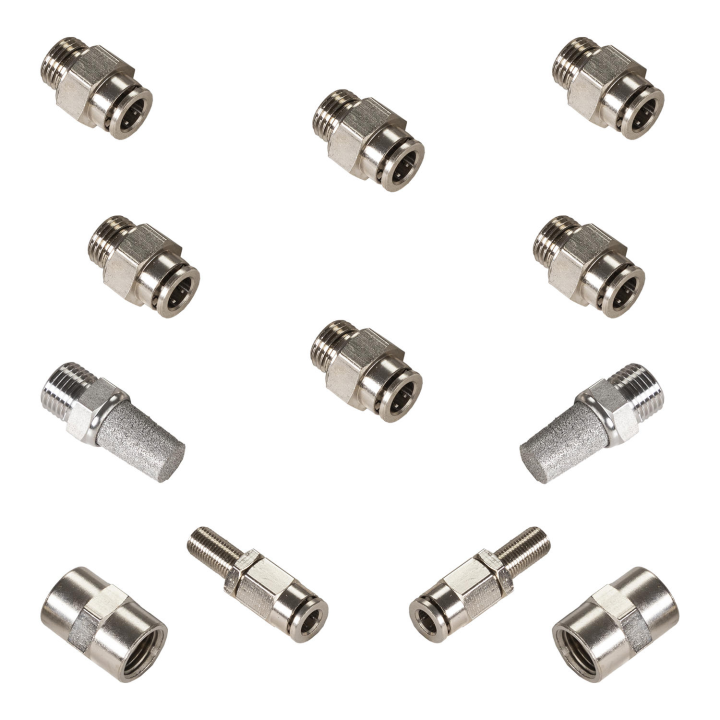

• Air fittings
• Vent filters
• Fitting instructions

Installation notes

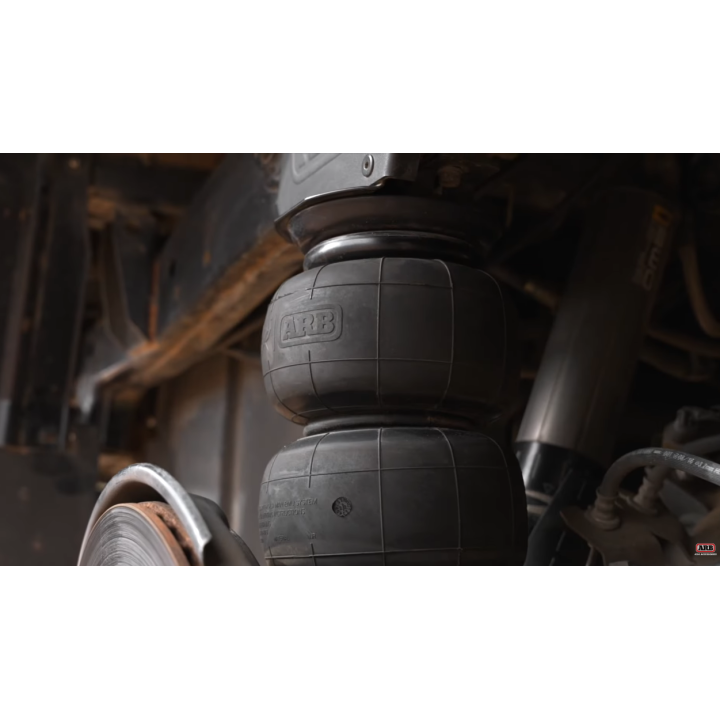

The kit is fitted together with the parabolic leaf springs, with the vehicle on a hoist and the axle supported. Route the air lines away from heat sources – an exhaust heat shield is included. Pressure is set for the current load: empty is 0 psi, the maximum is 45 psi. If you want to control pressure from the cab or from a phone, add the ARB LINX controller.

Szekla4x4.pl is an online shop, a walk-in store and a workshop specialising in off-road and overlanding. If you would like us to fit this for you or match the rest of the setup, get in touch.

Frequently asked questions

Which springs does this kit suit?

The importer lists the PB007R, PB008R, PB009R and PB010R parabolic leaf springs.

Can I drive with the bags empty?

Yes. The internal travel limiter allows the bag to be run with no pressure and inflated only when the vehicle is loaded.

How much load do the bags add?

Up to 600 kg of variable weight, that is 300 kg per bag, at pressures up to 45 psi.

Is the ARB LINX controller included?

No. ARB LINX is ordered separately. Without it, pressure is set manually with the valve.

Why buy it

• Without air bags a parabolic spring cannot handle variable load – they are part of the system
• Driving with the bag empty does the design no harm
• Adjust for a particular trip instead of a compromise set for the whole year
• We can supply springs, air bags, shocks and shackles in one order

Buying parabolic leaf springs for a LandCruiser 79 or 78? Add this kit straight away. Send us the spring part number and the vehicle year – we will confirm fitment with the supplier and put the whole set together.
