ARB Night Hawk 28 inch behind-grille light bar - Suzuki Jimny

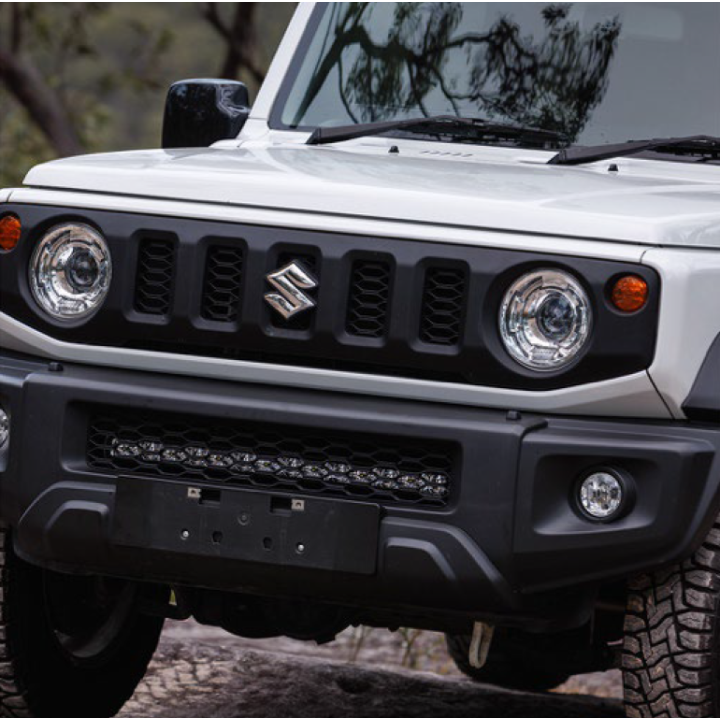

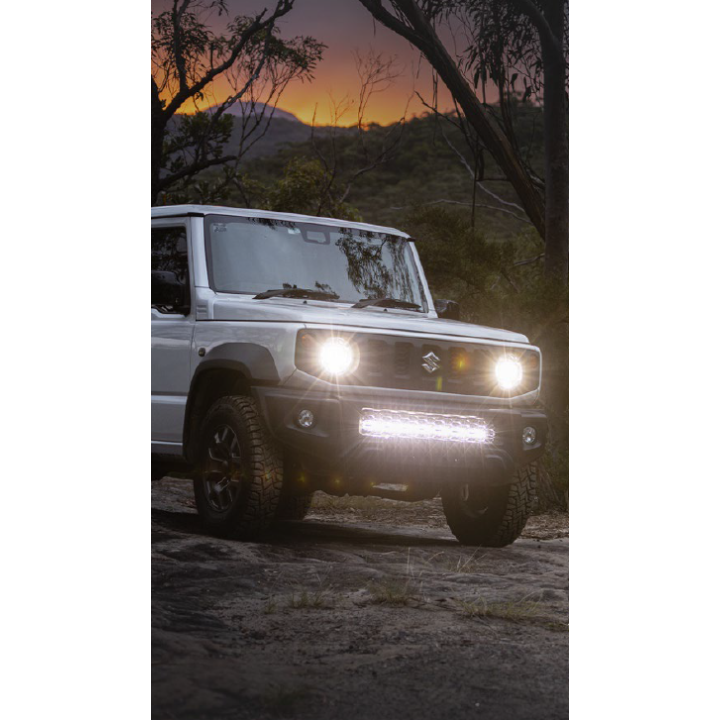

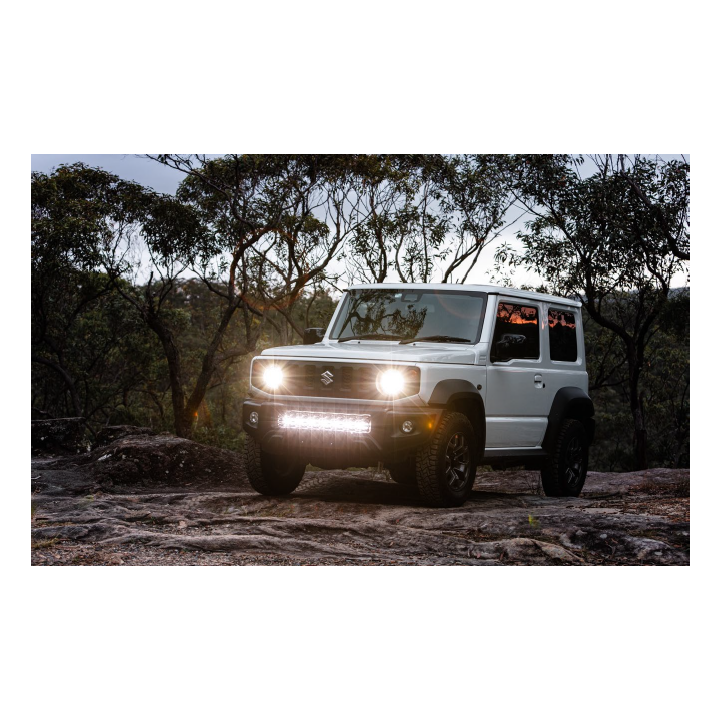

The Jimny is small, light and very good off road – but its factory high beams are exactly what you would expect from a car that size. The Night Hawk Behind-Grille kit solves that without changing the shape of the vehicle: a 28 inch light bar hides behind the lower grille, and the only thing visible from outside is the light. No bull bar, no brackets sticking up over the bumper.

Key features

• Hidden mounting behind the lower grille – a factory look with no bull bar and no protruding brackets
• Plug and play wiring loom combined with an OEM-style switch
• Powder coated and e-coated steel brackets – high corrosion resistance
• Brackets bolt directly to the body – isolated from road vibration, longer service life
• A complete kit: light bar, loom, brackets and hardware in one box
• Better lighting than the factory high beams, with no change to the vehicle's styling
• Fitting requires only slight trimming of the plastic lower grille

Fitment

The kit is designed specifically for the Suzuki Jimny JB74 and JC74. The brackets bolt directly to the body, and fitting requires only slight trimming of the plastic lower grille.

The 28 inch bar gives the kind of reach that works for off-road exploration and night driving on country roads.

Specifications

• Bar supplied: Night Hawk NHT280VLI, 28 inch
• Power: 90 W
• Current draw: 6.3 A at 14.4 V
• Operating voltage: 10–30 V DC
• LEDs: 21 x OSRAM
• Effective luminous flux: 7360 lm (without covers)
• Beam distance at 1 lux: 755 m without covers, 334 m with the flood cover
• Beam width: 40–105 m depending on the cover
• Colour temperature: 5700 K (72 CRI)
• Sealing: IP67 and IP69K
• Housing: 6061 aircraft grade aluminium with cast alloy mounting feet
• Lens: polycarbonate, UV stable powder coat finish
• Connector: Deutsch DT
• Control: built-in transistor switching (no relay needed) and PWM dimming
• An Active Temperature Control system watching LED temperature
• Bar length: 717 mm, weight 2.10 kg
• Certification: CE, UNECE R10, RoHS, SAE J575 (shock and vibration)
• Manufacturer warranty on the bar: five years

What is in the box

• 1 x Night Hawk 28 inch light bar
• 1 x wiring loom
• 1 x Jimny bracket set with hardware
• 1 x headlight adapter
• 1 x OEM switch

Installation notes

The brackets bolt directly to the vehicle body, isolating the bar from road vibration and extending its life. The only change to the vehicle is slight trimming of the plastic lower grille. The loom is plug and play and works with the supplied OEM switch.

We can fit this in our own workshop – with behind-grille kits the accuracy of that trim matters, because it is the one thing that cannot be undone.

Szekla4x4.pl is an online shop, a walk-in store and a workshop specialising in off-road and overlanding. If you would like us to fit this for you or match the rest of the setup, get in touch.

Frequently asked questions

Is the bar visible from outside?

The bar is hidden behind the lower grille. The kit needs no bull bar and no external brackets.

Does anything have to be trimmed?

Yes, fitting requires slight trimming of the plastic lower grille.

Is a switch included?

Yes. The kit includes an OEM switch, the wiring loom, the Jimny brackets with hardware and a headlight adapter.

Why buy it

• Strong light with no change to the Jimny’s shape
• Everything in one box – bar, loom, brackets, switch
• Brackets bolt to the body, not to plastic
• We can fit and wire it in our own workshop

Want to see what it does on your Jimny? Call in or get in touch – we will show you the kit, advise on the choice and fit it in the workshop.
