ARB Night Hawk 28 inch behind-grille bar - LandCruiser 300

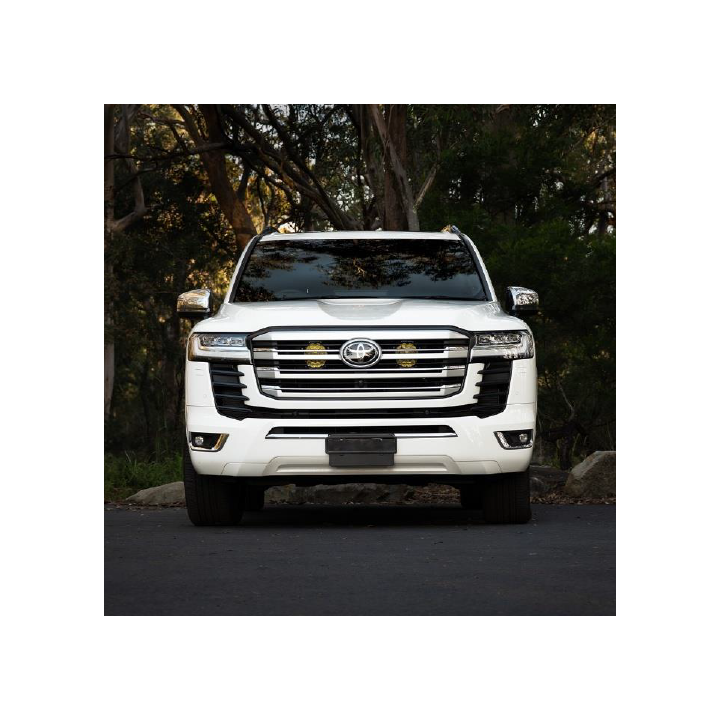

A LandCruiser 300 is a car you drive far in, and often after dark – and after dark is exactly where the limits of factory lighting show first. The Night Hawk Behind Grille kit adds a 28 inch bar hidden behind the grille: nothing changes on the outside, and the manufacturer claims up to three times the brightness of the factory high beams. The brackets use the factory mounting points, so not one new hole appears in the bodywork.

Key features

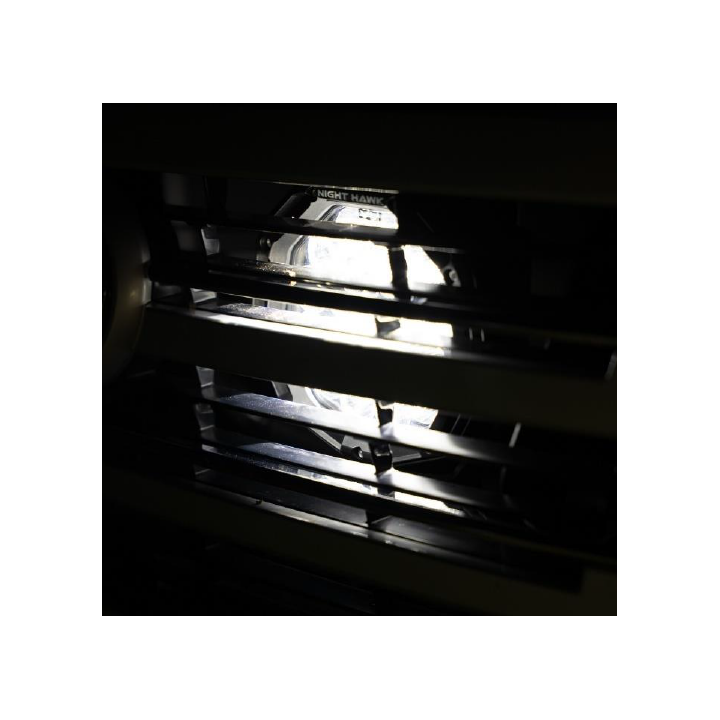

• Hidden mounting behind the lower grille – a factory look with no bull bar and no protruding brackets
• Plug and play wiring loom combined with an OEM-style switch
• Powder coated and e-coated steel brackets – high corrosion resistance
• Brackets bolt directly to the body – isolated from road vibration, longer service life
• A complete kit: light bar, loom, brackets and hardware in one box

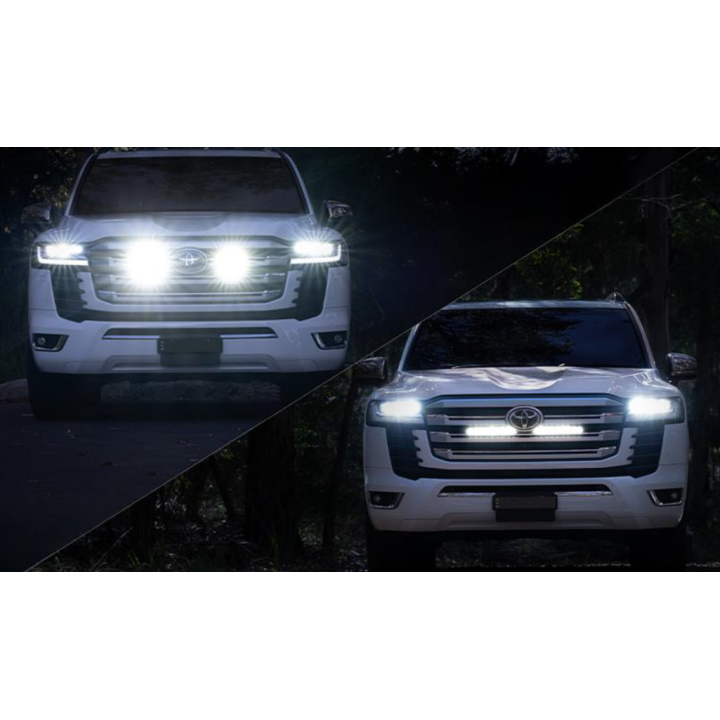

• Up to three times the brightness of the factory high beams
• Brackets use the factory mounting points – no drilling and no cutting
• Black powder coated brackets that suit the vehicle's styling
• Designed and developed in Australia

Fitment

The kit is for the Toyota LandCruiser 300. The powder coated steel brackets use the factory mounting points and bolt directly to the body, isolating them from road vibration.

A CAN-bus adapter is required

To connect the bar to the high beam circuit a CANbus adapter is required – ARB parts CANDEC and 3525050. We say so plainly, because it is a condition of the kit working on this vehicle and the adapter is ordered separately. Get in touch before you buy and we will put the whole set together.

ARB offers this kit in two variants: two 7 inch driving lights or a 28 inch light bar. This listing is the light bar variant.

Specifications

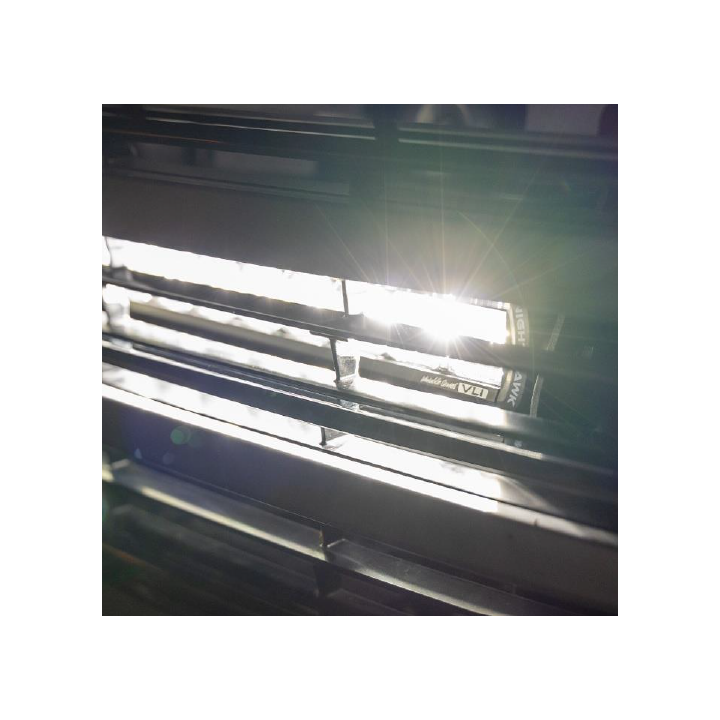

• Bar supplied: Night Hawk NHT280VLI, 28 inch
• Power: 90 W
• Current draw: 6.3 A at 14.4 V
• Operating voltage: 10–30 V DC
• LEDs: 21 x OSRAM
• Effective luminous flux: 7360 lm (without covers)
• Beam distance at 1 lux: 755 m without covers, 334 m with the flood cover
• Beam width: 40–105 m depending on the cover
• Colour temperature: 5700 K (72 CRI)
• Sealing: IP67 and IP69K
• Housing: 6061 aircraft grade aluminium with cast alloy mounting feet
• Lens: polycarbonate, UV stable powder coat finish
• Connector: Deutsch DT
• Control: built-in transistor switching (no relay needed) and PWM dimming
• An Active Temperature Control system watching LED temperature
• Bar length: 717 mm, weight 2.10 kg
• Certification: CE, UNECE R10, RoHS, SAE J575 (shock and vibration)
• Manufacturer warranty on the bar: five years

What is in the box

• 1 x Night Hawk 28 inch light bar
• 1 x wiring loom
• 1 x LC300 bracket set with hardware
• 1 x OEM-style switch

Installation notes

The brackets go into the factory mounting points and bolt straight to the body – nothing has to be drilled or cut. Connecting to the high beam circuit requires a CANbus adapter (ARB CANDEC and 3525050), ordered separately.

We carry out fitting and setup in our own workshop.

Szekla4x4.pl is an online shop, a walk-in store and a workshop specialising in off-road and overlanding. If you would like us to fit this for you or match the rest of the setup, get in touch.

Frequently asked questions

Do I need a CAN-bus adapter?

Yes. The manufacturer states that connecting to the high beam circuit requires a CANbus adapter – ARB parts CANDEC and 3525050.

Does the bodywork have to be drilled?

No. The brackets use the factory mounting points, with no drilling or cutting.

How much brighter than factory?

The manufacturer quotes up to three times the brightness of the factory high beams for the 28 inch bar.

Why buy it

• Up to three times brighter than the factory high beams
• Mounts on the factory points – no drilling in a new Cruiser
• A hidden bar and a factory look
• We can supply the kit together with the required CAN-bus adapter

Before you buy, get in touch. This kit also needs a CAN-bus adapter – we will put the whole set together and fit it in the workshop.
