ARB
Reference: ARB-3540021
Lifters

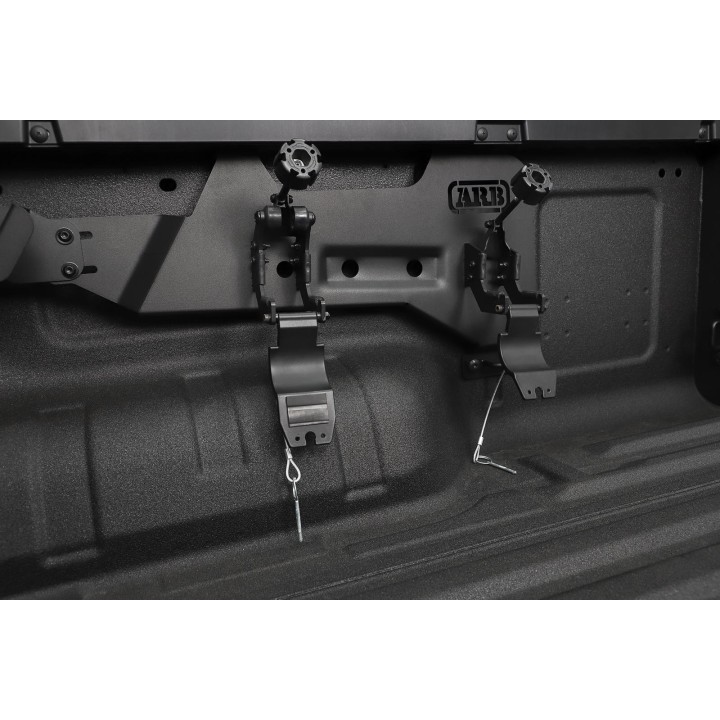

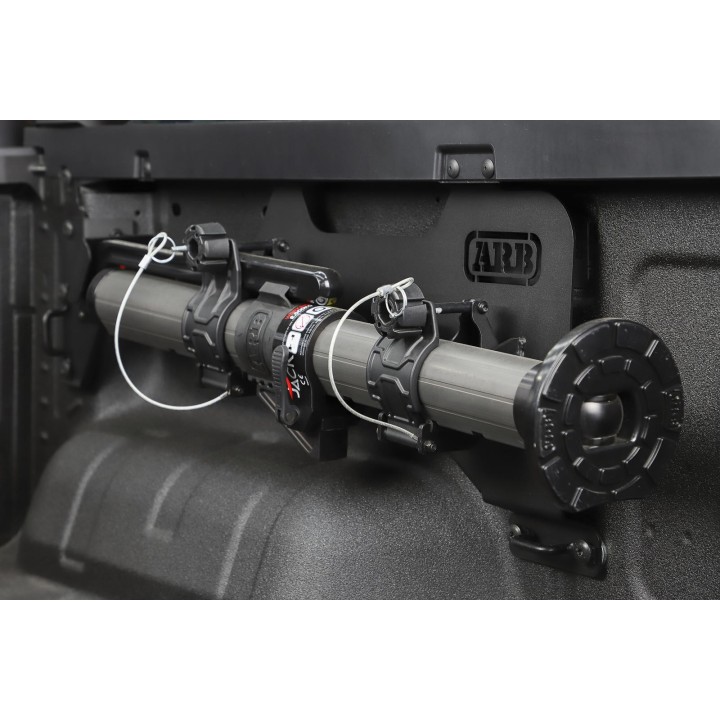

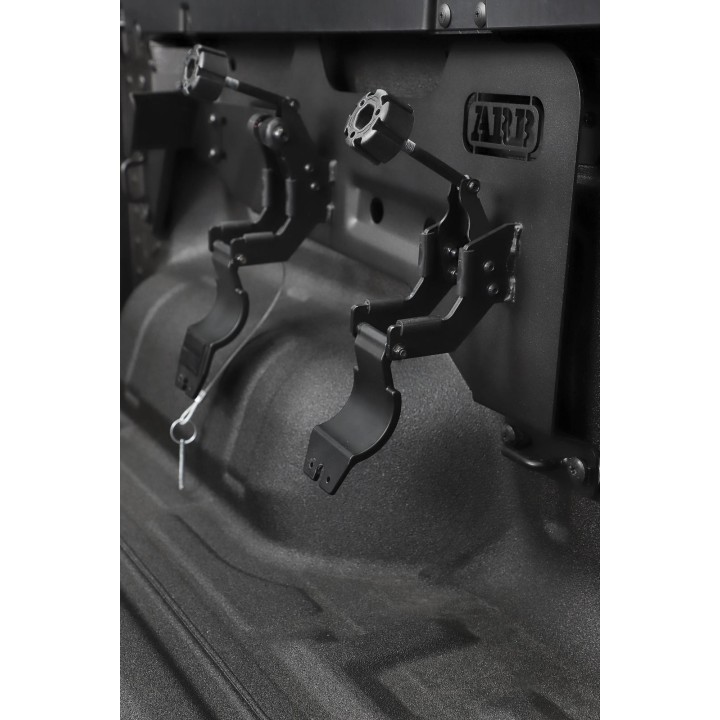

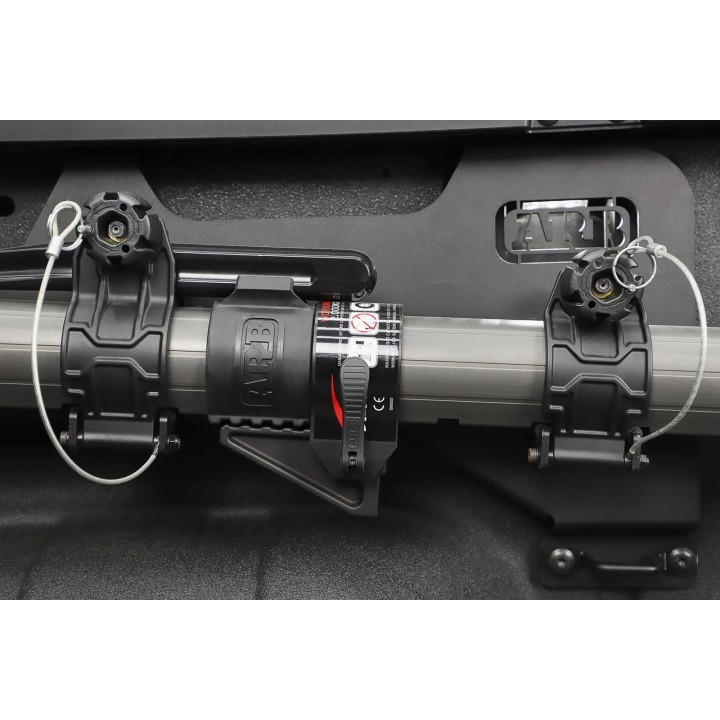

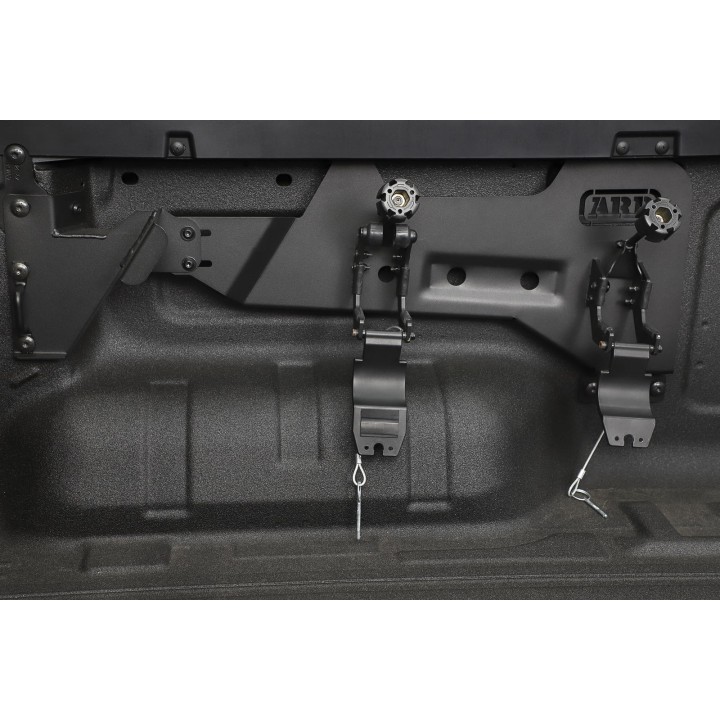

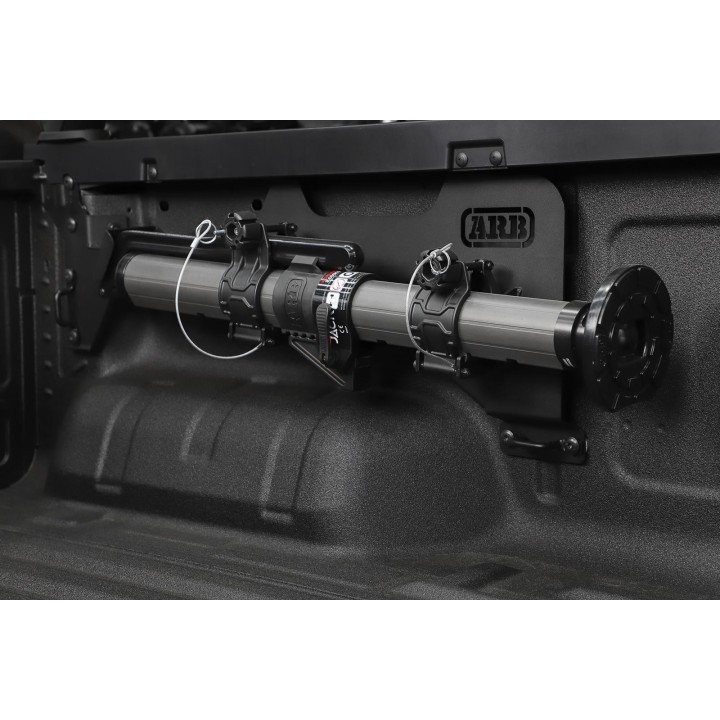

ARB Jack tray mount - Ford Ranger 2022+, VW Amarok 2023+
A mount that holds the ARB Jack hydraulic jack on the inner right-hand side of the tray in the Ford Ranger (2022 on) and Volkswagen Amarok (2023 on). Made from hot rolled steel, 3 mm and 5 mm thick, it fits using existing factory holes and bolts. It has a clamp plus a backup snap pin that will also take a padlock.
ARB Jack tray mount
A hydraulic jack is heavy and long, so loose in the tray it is simply dangerous – under braking it becomes a battering ram. This mount stands it up against the right-hand side, where it takes no floor area, and stops it moving in any direction. The manufacturer allowed for a padlock, and the ARB logo lets the tray light shine through.
Material 3 mm and 5 mm steel | Fitting factory holes and bolts | Security clamp, pin, padlock provision |
Key features
- Uses existing factory holes and mounting bolts
- Holds the ARB Jack securely while keeping it easy to reach

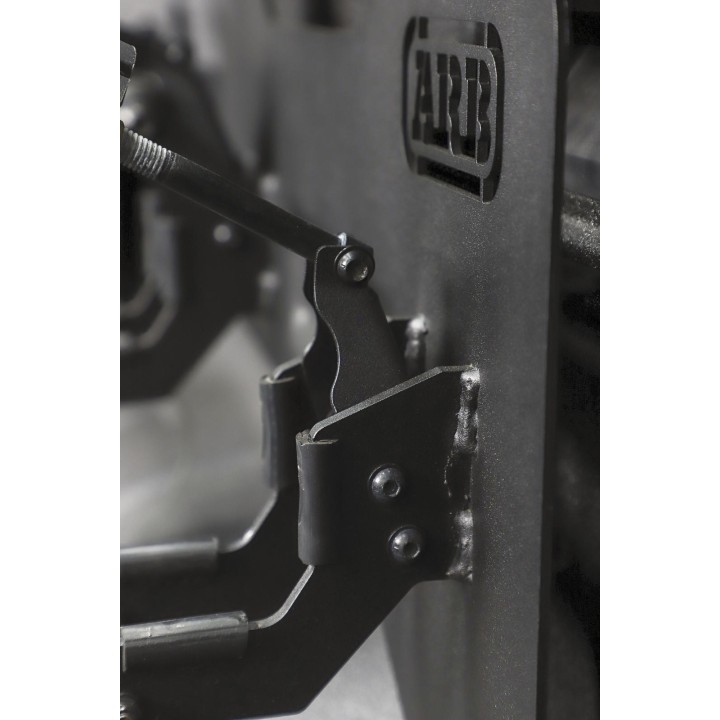

- A clamping method plus a backup snap pin that will take a padlock
- Lets the tray light shine through the ARB logo
- Hot rolled steel, 3 mm and 5 mm thick
- A protective EPPR base coat
- Textured black powder coated finish
Fitment

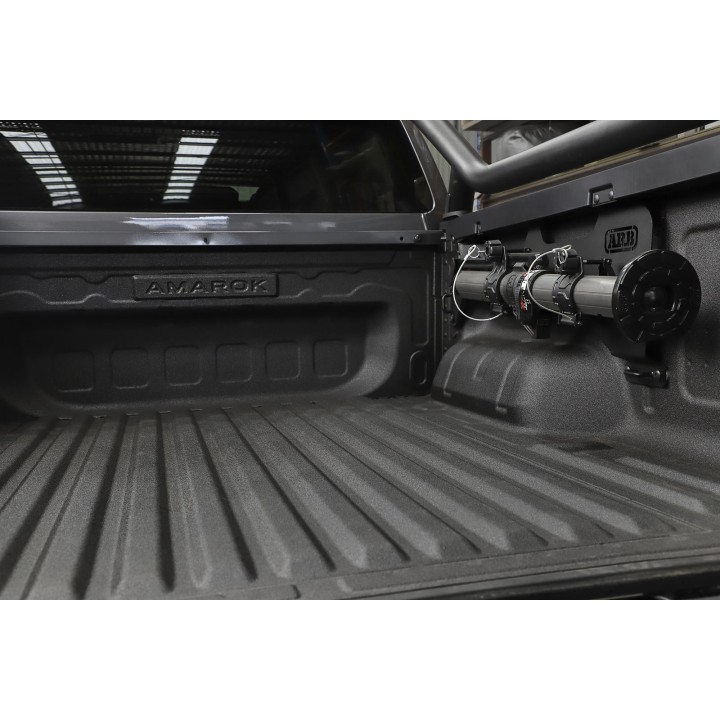

The mount is intended for the Ford Ranger (2022 on) and Volkswagen Amarok (2023 on), on the inner right-hand side of the tray.
The ARB Jack itself is not part of the kit – it is a separate product.
Szekla4x4.pl is an online shop, a walk-in store and a workshop specialising in off-road and overlanding. If you would like us to fit this for you or match the rest of the setup, get in touch.
Frequently asked questions
Is the jack included?
No, this is the mounting bracket alone.
Is drilling needed?
The manufacturer states that the mount uses existing factory holes and bolts.
Can the jack be secured against theft?
The mount has a snap pin that will accept a padlock.
Have an ARB Jack, or planning one? Get in touch – we will match the mount and lay out the tray together with the rest of your recovery gear.
