METALCLOAK
Reference: MC7364
Service parts

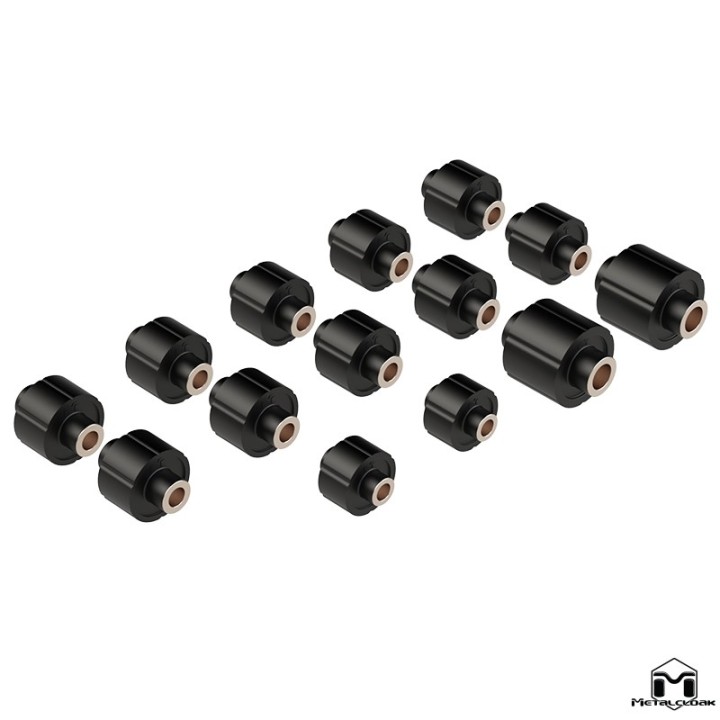

MetalCloak Duroflex Bushing Kit, TJ/LJ Lock-N-Load Long Arm
A set of 14 replacement Duroflex inserts with Kevlar for MetalCloak Lock-N-Load Long Arm control arms, Jeep Wrangler TJ/LJ. Replace every bushing in the arms in one go and bring the joints back to full condition without buying new arms.
MetalCloak Duroflex Bushing Kit, TJ/LJ Lock-N-Load Long Arm (part no. 7364)
After years of driving, the joints in MetalCloak control arms can be rebuilt without replacing the arms. This kit contains every Duroflex insert needed for Lock-N-Load Long Arm control arms, Jeep Wrangler TJ/LJ — one set instead of hunting for individual sizes.
Inserts 14 pcs | Material Elastomer with DuPont Kevlar fibre | For MetalCloak Lock-N-Load Long Arm control arms, Jeep Wrangler TJ/LJ |
What is in the box
- 2 pcs – SS-1032, 2.25D x 2.0L x .50ID
- 2 pcs – SS-3025, 3.0D x 3.26L x .79ID
- 10 pcs – SS-1031, 2.63D x 2.62L x .57ID
Important notes from MetalCloak
- The kit replaces all bushings in MetalCloak control arms. Axle bushings are not included — if you have a MetalCloak axle bushing kit, order those separately.
- The warranty is valid only if Duroflex joints are installed on both ends of the control arm.
- MetalCloak recommends having a suspension specialist align the vehicle after installation.
- MetalCloak does not supply written instructions with this kit.
Key benefits of the Duroflex joint
- Vibration damping. MetalCloak claims an OEM-quality ride and better damping than rubber Clevite-style bushings. In practice, less axle vibration reaches the body.
- High misalignment. The joint lets the arm work at an angle without binding, which means freer axle articulation off road.
- Self-centering. Once unloaded, the arm returns to its neutral position.
- Absorbs micro-movements. The elastomer takes up the small rotational movements of daily driving that gradually wear out conventional ball-type flex joints.
- Bearing-like outer surface. At large angles the outer surface of the insert rotates in the housing instead of binding the arm.
- Kevlar in the compound. MetalCloak's proprietary elastomer is reinforced with DuPont Kevlar fibre. Kevlar inserts carry an "M" logo on the outer surface.
- Easy to rebuild. The joint does not need parts replaced every year; when it is time, you pull the insert, clean it, grease it and reassemble.
Installation and maintenance
- Rebuild according to MetalCloak: pull the insert, clean it, apply fresh Teflon-impregnated synthetic silicone grease (MetalCloak uses Superlube) and reassemble the joint.
- Our Szekla4x4.pl workshop can do the replacement or rebuild for you.
- MetalCloak marks the products on its website as intended for off-road use.
Frequently asked questions
Does the kit include axle bushings?
No. It replaces the control arm bushings; axle bushings are ordered separately.
Does it fit other makers' arms?
No. Duroflex inserts are designed for MetalCloak housings.
Do I need an alignment afterwards?
MetalCloak recommends a specialist alignment after suspension installation.
Which grease should I use?
MetalCloak uses Superlube for Duroflex inserts.
Why choose it
- Genuine MetalCloak part.
- Every size in one order.
- Bought from an authorised MetalCloak dealer with an in-house workshop.
If you are not sure which size fits your suspension, contact us before ordering, ideally with the part number of your control arm.
