METALCLOAK
Reference: MCC0003
Axle shafts
Carbon Front Dana 30 27 Spline One Piece Conversion Kit, Wrangler YJ, Cherokee XJ

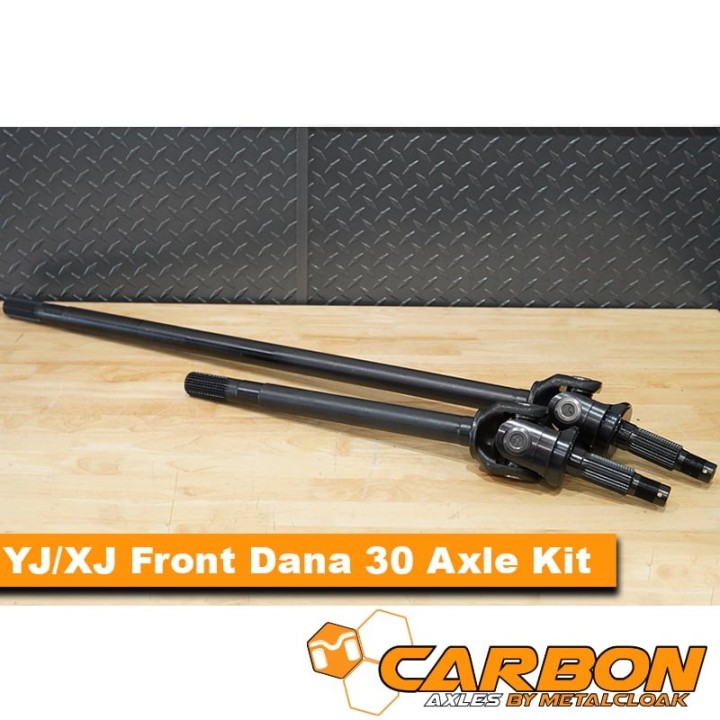

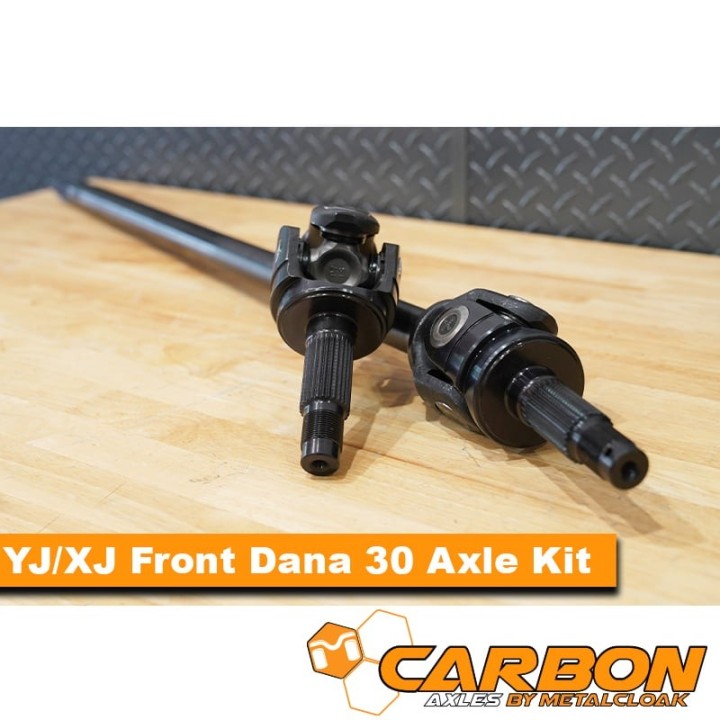

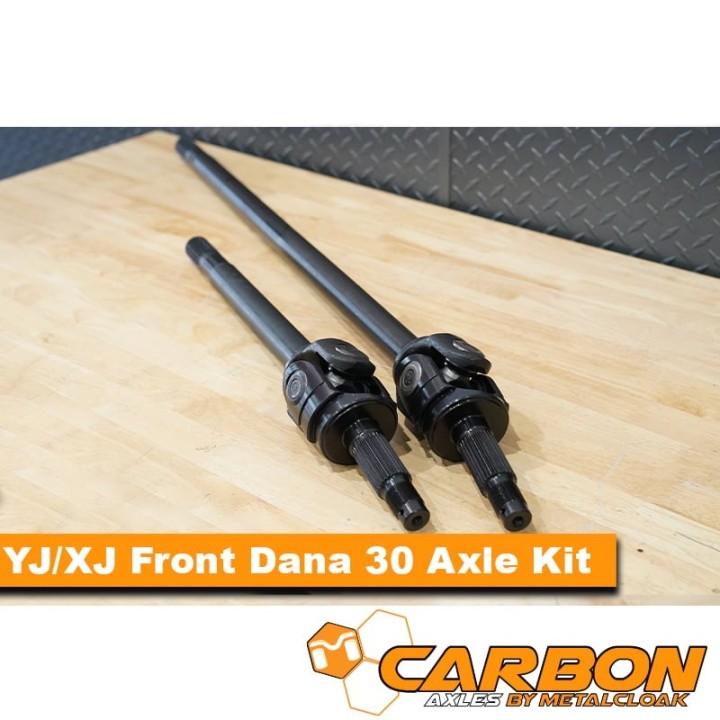

A pair of Carbon Offroad (MetalCloak) front axle shafts for the Dana 30 27 spline axle, made of dual heat-treated 4340 chromoly steel, with factory-fitted Spicer 5-760X series U-joints. Includes a CAD block-off plate. Fits: Jeep Wrangler YJ (1987–1995), Jeep Cherokee XJ (1987–2001).
Carbon Front Dana 30 27 Spline One Piece Conversion Kit, Wrangler YJ, Cherokee XJ (Carbon Offroad, part no. C0003)
The front shaft and its joint take the most punishment with the wheels turned under load. Carbon Offroad (MetalCloak's axle brand) front shafts are 4340 chromoly steel, dual heat treated, with large Spicer 5-760X series U-joints.
MetalCloak states they are over 50% stronger than stock. The kit includes both the left and right shafts.
Axle Dana 30, 27 spline | Material 4340 chromoly steel, dual heat treated | Fits Jeep Wrangler YJ (1987–1995), Jeep Cherokee XJ (1987–2001) |
Key benefits
- 4340 chromoly, dual heat treated — over 50% stronger than stock according to MetalCloak.

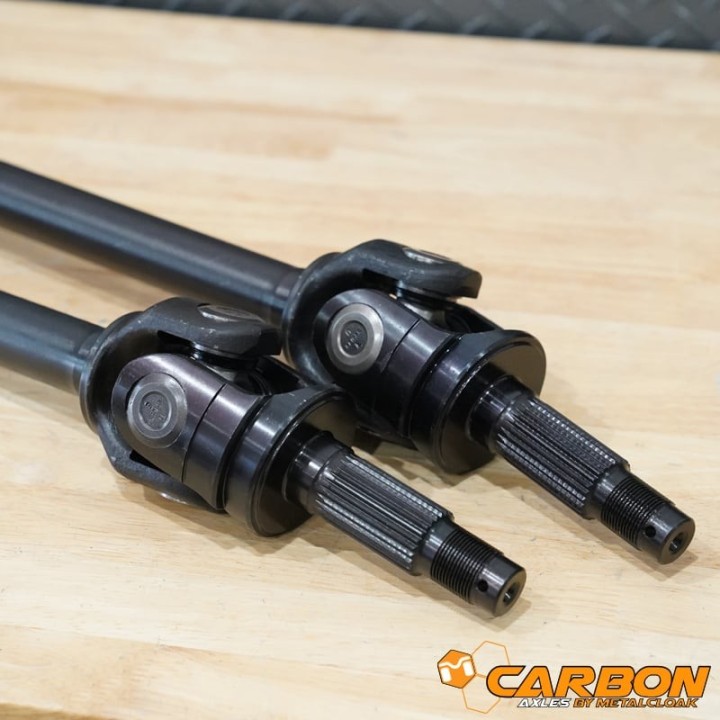

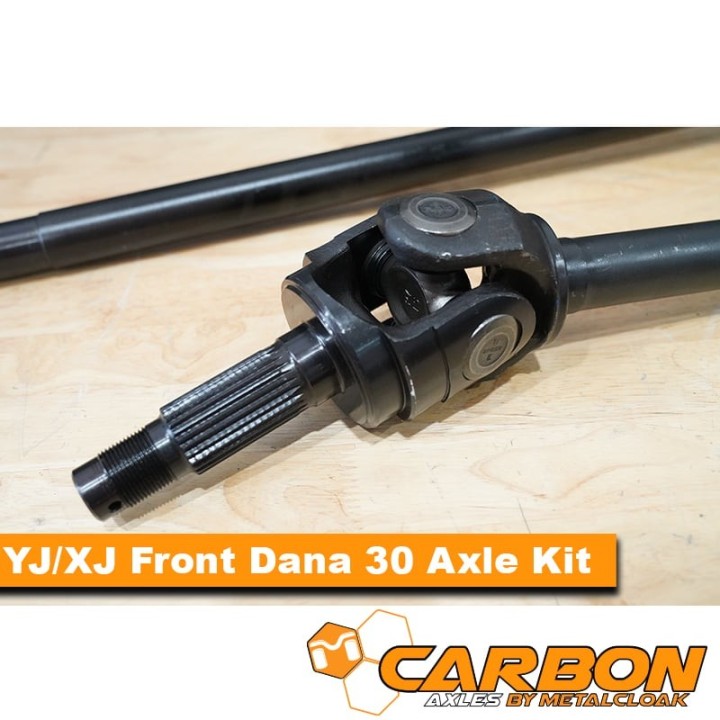

- Spicer 5-760X U-joints: cold-formed body, heat-treated bearing cups, precision ground, multi-lip seal.
- U-joints come assembled with standard clips, ready to install.
- The block-off plate replaces the vacuum-actuated CAD fork housing, converting the axle to a one-piece shaft design.
What is in the box
- Left and right shafts with Spicer 5-760X U-joints
- CAD block-off plate
- Two seals on the long side: near the carrier and at the disconnect box (per MetalCloak's answer)
Technical data
- Brand: Carbon Offroad (MetalCloak)
- Manufacturer part number: C0003
- Axle: Dana 30, 27 spline
- Position: front
- Material: 4340 chromoly steel, dual heat treated
- Fits: Jeep Wrangler YJ (1987–1995), Jeep Cherokee XJ (1987–2001)
- U-joints: Spicer 5-760X
Before you order
- This kit is for axles with a CAD disconnect. MetalCloak says a 2001 XJ without CAD uses TJ-style shafts — then MCC0004 is correct.
- US-imported vehicles may have a different axle configuration than the model suggests — check the axle tag / VIN or ask us first.
Installation
- Our Szekla4x4.pl workshop can install the shafts.
Frequently asked questions
Are the U-joints included?
Yes, Spicer 5-760X U-joints come factory fitted.
MCC0003 or MCC0004?
MCC0003 is for axles with a CAD disconnect and deletes it. MCC0004 is for axles without CAD (according to MetalCloak, e.g. a 2001 XJ).
Why choose it
- 4340 chromoly, dual heat treated — stated over 50% stronger than stock.
- Left and right shafts in one order.
- Authorised MetalCloak dealer with an in-house workshop.
Not sure about your axle or version? Contact us before ordering.
