METALCLOAK
Reference: MCR74120
Roof Racks and Accessories

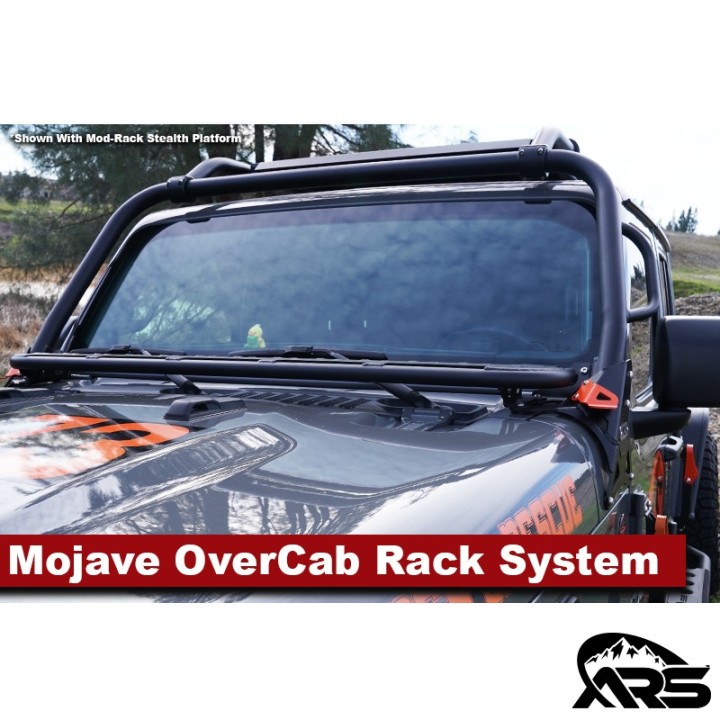

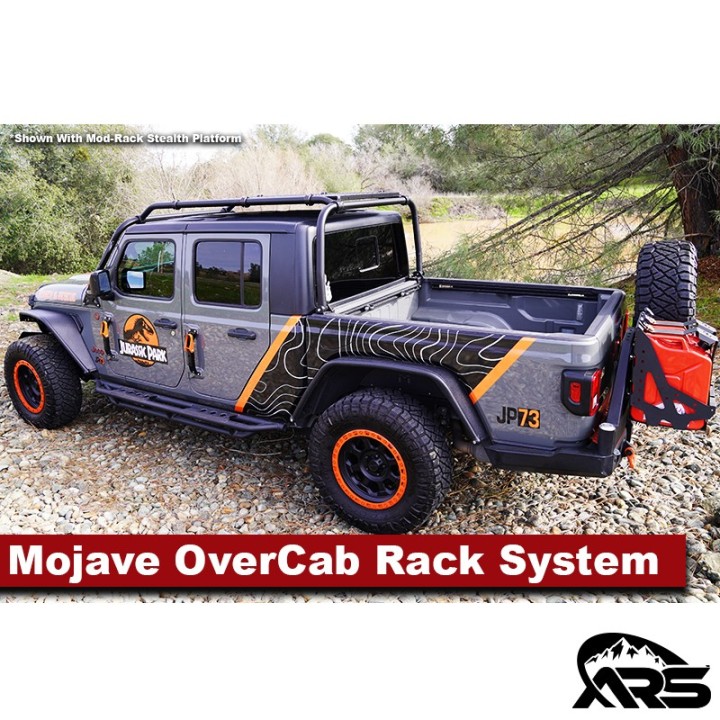

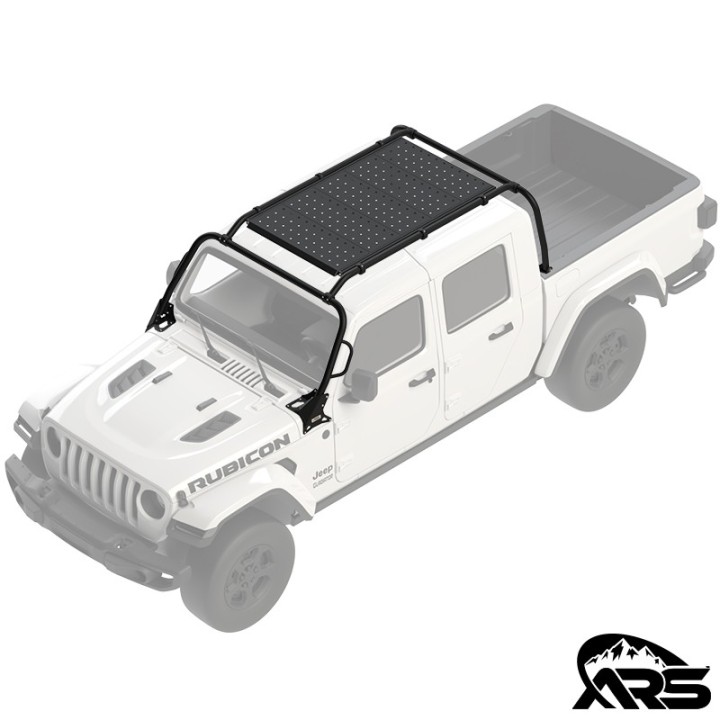

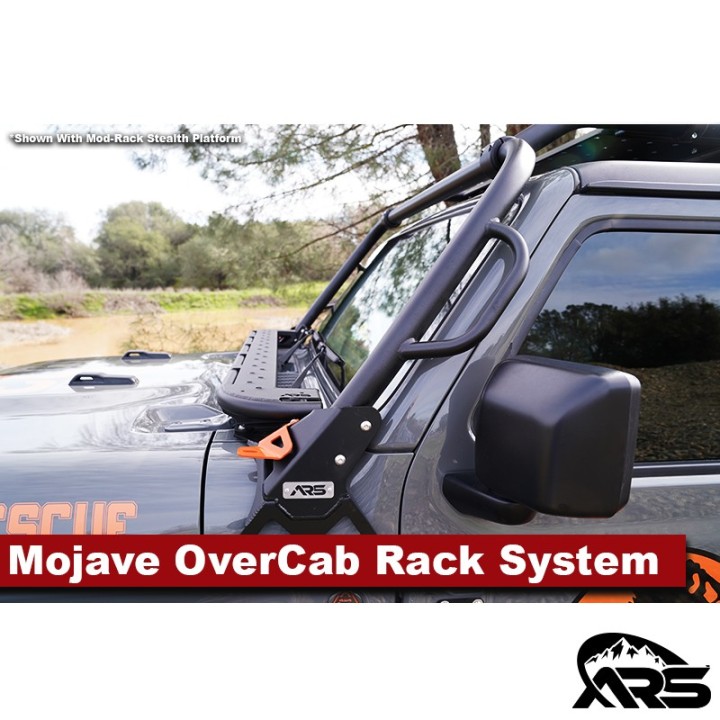

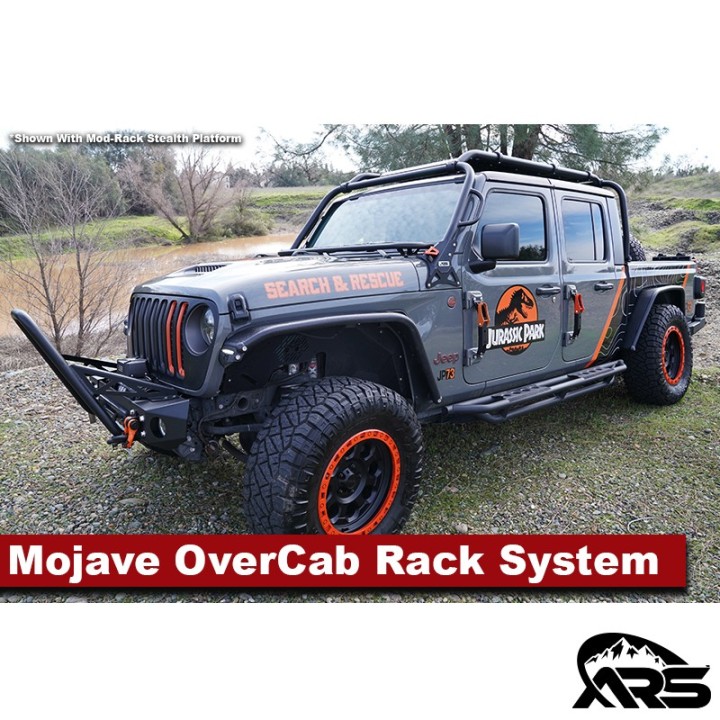

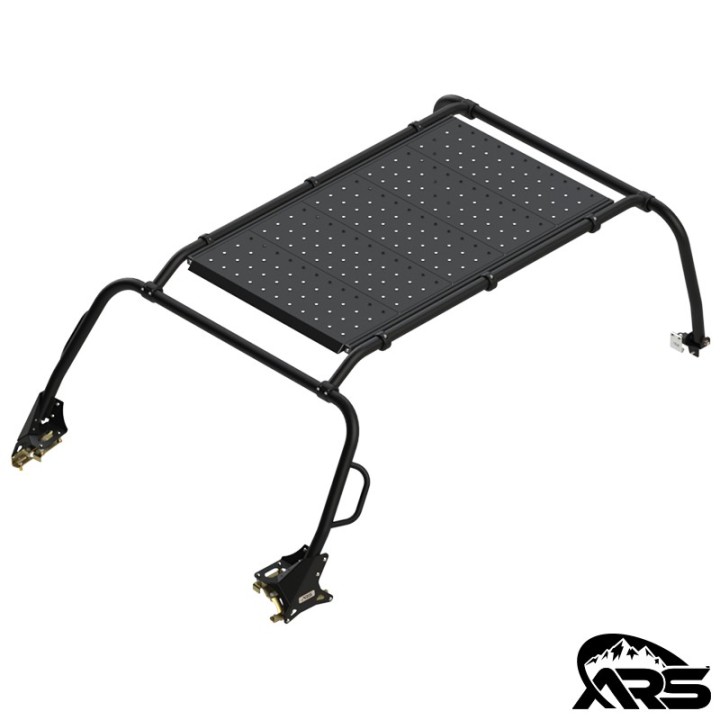

MetalCloak ARS OverCab Stealth Rack System, Jeep JT Gladiator
ARS OverCab Stealth Rack System, Jeep JT Gladiator — a genuine MetalCloak Adventure Rack System (ARS) part, no. R74120. Fitment according to MetalCloak: 2019 + JT Gladiator.
MetalCloak ARS OverCab Stealth Rack System, Jeep JT Gladiator (ARS, part no. R74120)
A roof tent, luggage, jerry cans and gear on the roof quickly outgrow the factory mounting points. ARS rack systems build a separate load-bearing structure over the vehicle, spreading the load onto both the body and the frame.
Fitment 2019 + JT Gladiator | Material 2" X .120 Wall Steel Tube | Coating Front Hoop Brackets - Gold Zinc |
What is in the box
- Front hoop
- Pier plates
- Roof trusses
- Rear hoop
- Flexural footings
- NVH urethane bushings
- Stealth rack
- All required hardware
Technical data
- Brand: MetalCloak / ARS
- Manufacturer part number: R74120
- Compatibility: 2019 + JT Gladiator
- Front hoop: 2" X .120 Wall Steel Tube
- Front hoop pier plates: 3/16" Hot Rolled Steel
- Integrated handle: 1" X .120 Wall Steel Tube
- Roof trusses: 2" X .120 Wall Steel Tube
- Clamps: 3" X .50 Wall Mild Carbon Steel
- Rear hoop: 2" X .120 Wall Steel Tube
- Rear hoop brackets: 3/16" Hot Rolled Steel
- Stealth rack: 1/8" Aluminum
- Coating: Front Hoop Brackets - Gold Zinc
Important notes from MetalCloak
- Wind noise: racks and exterior accessories may increase wind noise, especially on soft-top and Sky-top models.
- Model: does NOT fit the JT Mojave.
- Pod light mounts: upper (R75011) and lower (R75012) pod light mounts are sold separately.
- Kat Walk: the optional Kat Walk (R75080) is available separately.
Installation
- Installation difficulty: easy
- Body modification: some cutting and drilling
- Installation time according to MetalCloak: 2 - 3 Hours
- Our Szekla4x4.pl workshop can fit it for you.
Frequently asked questions
Is this a genuine MetalCloak part?
Yes. It is a MetalCloak Adventure Rack System (ARS) part, number R74120.
Does installation need body modification?
According to MetalCloak: some cutting and drilling.
Can you help me complete the system?
Yes. Tell us your model and roof type and we will put together the hoops, beams and accessories.
Why choose it
- A genuine ARS part that fits the rest of the system without modification.
- Steel with a black powder coat, built for outdoor use.
- Authorised MetalCloak dealer with an in-house workshop.
Not sure which parts make a complete system? Contact us and we will specify it for your vehicle.
