MetalCloak Lock-N-Load Radius Arm Suspension Lift Kit 3.5", RAM 2500 Diesel 2014-2018
Lock-N-Load Radius Arm Suspension Lift Kit 3.5", RAM 2500 Diesel 2014-2018 — a genuine MetalCloak part, no. 8051. Fitment according to MetalCloak: RAM 2500 Diesel, 2014–2018. Coating: gold zinc.
MetalCloak Lock-N-Load Radius Arm Suspension Lift Kit 3.5", RAM 2500 Diesel 2014-2018 (part no. 8051)
A RAM 2500 on its factory radius arm suspension is composed on tarmac, but off-road it runs out of travel and traction quickly. The complete MetalCloak system replaces the arms, coils, track bars and bump stops with one tuned package designed to keep the truck civilised for daily driving.
Fitment RAM 2500 Diesel, 2014–2018 | Coating gold zinc | Part number 8051 |

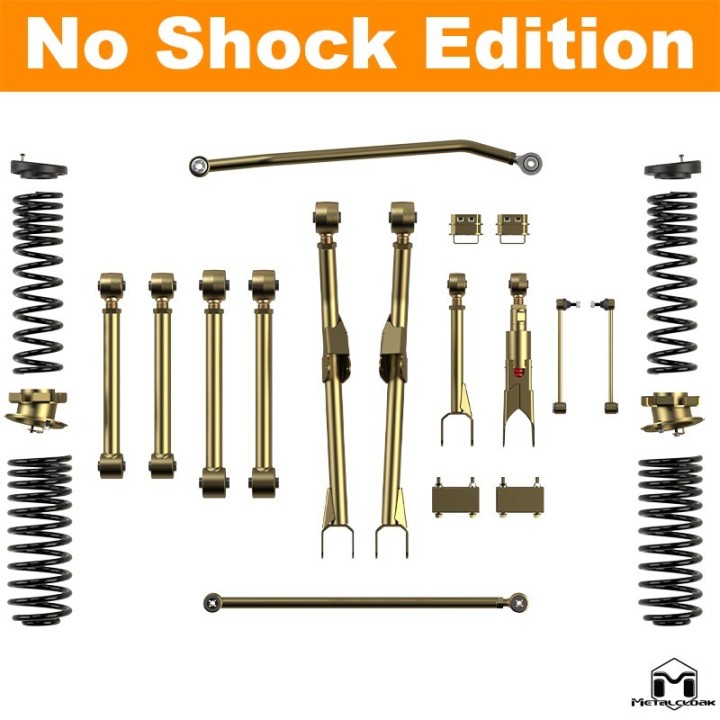

What is in the kit

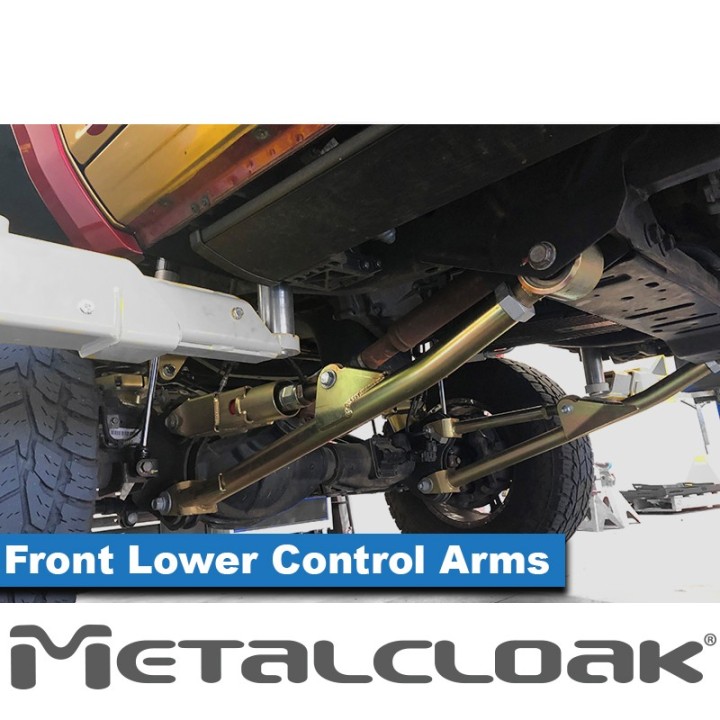

- Front lower long arms

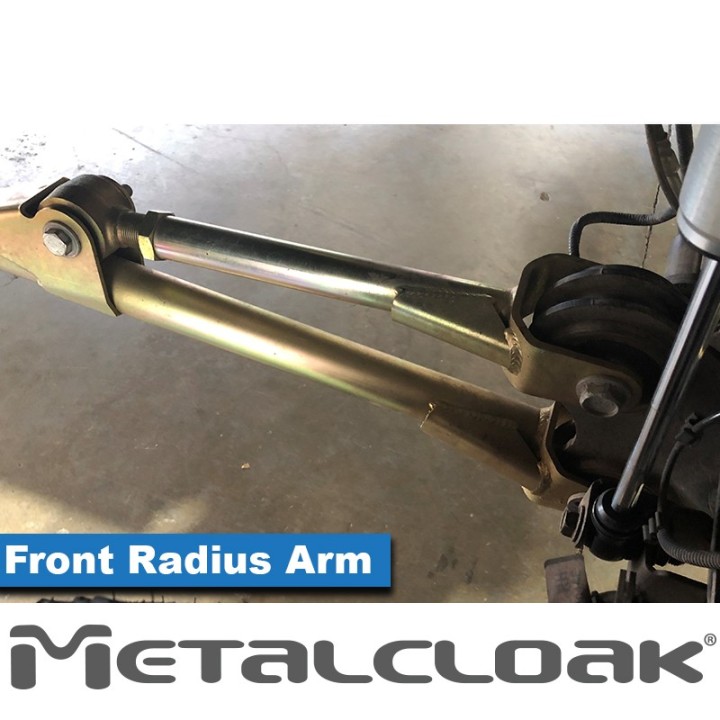

- Front upper radius arm components with optional Lock-N-Load

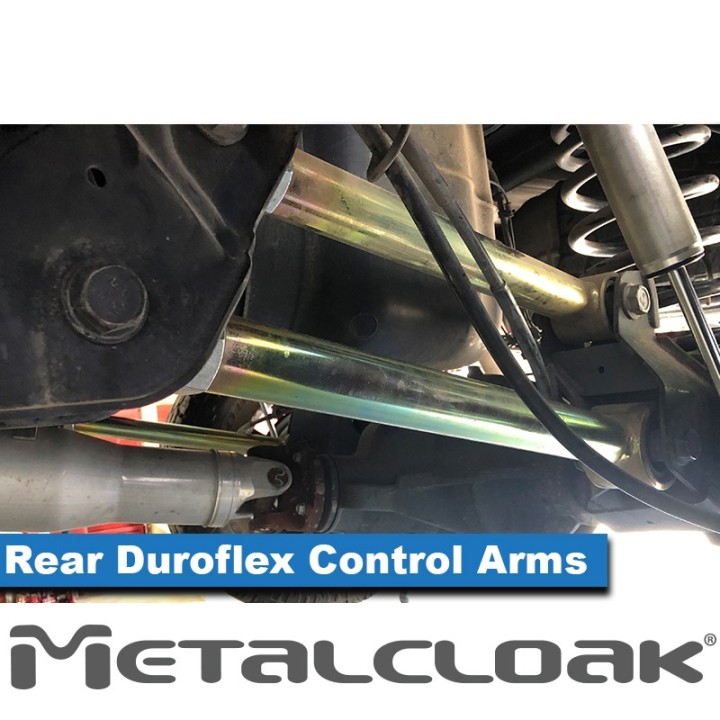

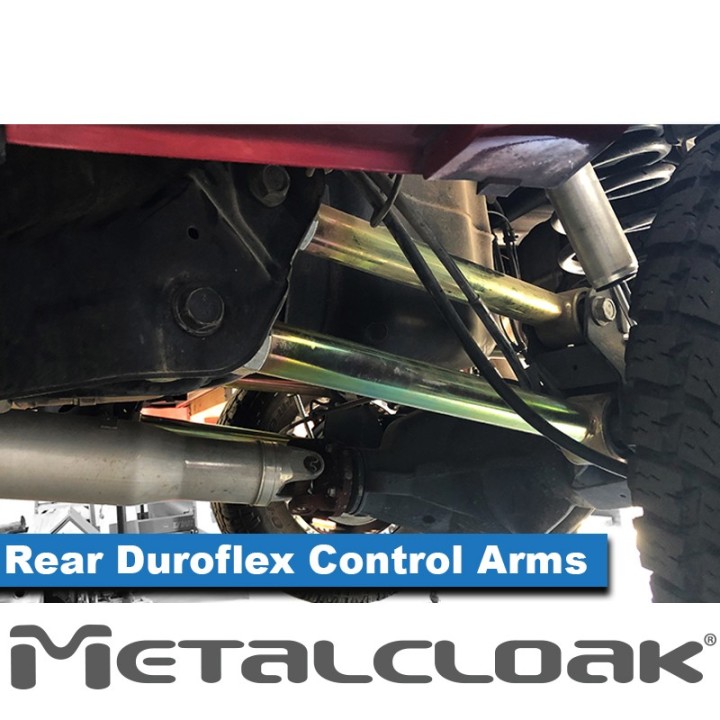

- Rear Duroflex control arms
- Front True Dual Rate coils
- Rear True Dual Rate coils or Max Payload option
- Front coil perches
- Front Durotrak track bar
- Rear Durotrak track bar
- Front bump stop towers
- Rear bump stop towers
- Front sway bar links
Options offered by MetalCloak
This listing is the base configuration. MetalCloak offers paid options for it — contact us for a quote if you need one of them:
- Shock type — stock shocks with the extension kit, RockSport BLACK reservoir shocks

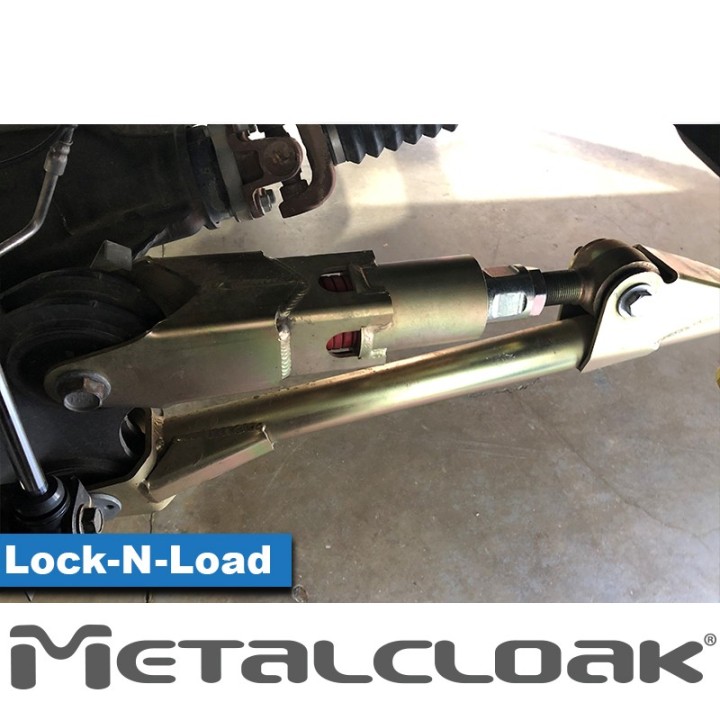

- Front upper arm — Lock-N-Load disconnecting arm instead of the standard one
Duroflex joint with Kevlar fibre
Duroflex is a patented joint made from a proprietary vulcanized elastomer with DuPont Kevlar fibre compounded into it. It combines the behaviour of a rubber bush and a spherical joint: it damps vibration and self-centres, while giving — according to MetalCloak — over 34 degrees of misalignment per joint, i.e. over 68 degrees per control arm. The outer surface of the bushing works as a bearing, so the arm does not bind at full articulation. The joint is maintenance-free and rebuildable, so after years it is the insert that gets replaced, not the whole arm. Kevlar bushings are marked with an "M" on the outer surface.
True Dual Rate coils
True Dual Rate coils have one of the longest free lengths on the market, which keeps the wheel on the ground longer during articulation. The dual-rate design solves the classic lift problem: a single low-rate spring would be too soft and every load would change ride height. Here the first part of the travel is soft and the rate rises as the spring compresses. The coils that close up form a "virtual bucket" that lowers the spring seat and limits buckling.
Durotrak bushing
Durotrak is a patented two-piece NVH bushing made from a proprietary elastomer. The two halves thread together, so no press is needed to fit it. The bushing damps vibration reaching the steering wheel and sharpens steering response. The bar itself is solid 4130 chromoly, shaped to clear the axle at both full compression and full droop.
Technical data from MetalCloak
| Front lower long arms | 2" OD x .310" Wall DOM Steel Tubing |
| Optional Lock-N-Load | 3" OD x .120" Wall DOM Steel Tubing |
| Control arms | Front Upper: 1.5" OD x .187" Wall DOM Steel Tubing • Rear Upper and Lower: 2" OD x .310" Wall DOM Steel Tubing |
| Duroflex joints | proprietary vulcanized elastomer with DuPont Kevlar fibre |
| Coils | high-tensile chrome steel |
| Front coil pads | 90A polyurethane |
| Front coil perches | 4.5" x .120" Wall Steel Tube • 3/16" Hot Rolled Steel Plate |
| Front track bar | solid 4130 chromoly steel |
| Rear track bar | solid 1.375" OD 4130 chromoly steel |
| Rear bump stop towers | 3" x 3" x .188" Wall Steel Tube |
| Sway bar links | 1/2"-13 x 12.25" Length |
| Coating | gold zinc |
Installation
- Installation difficulty: moderate
- Body modification: none, bolt-on
- Install time per MetalCloak: 15–18 hours
MetalCloak does not publish separate written instructions for this item — contact us if you have questions about fitting.
Manufacturer notes
- Diesel: this suspension system is intended for diesel RAM 2500 trucks.
- True Dual Rate coils: MetalCloak does not recommend powder coating the coils; see the installation instructions.
- Alignment: MetalCloak recommends having a suspension specialist align the vehicle once the suspension is installed.
- Complete system: MetalCloak supplies this kit only as the complete system shown. Components cannot be removed, replaced or customised, although every component is also available separately.
- Returns: MetalCloak does not accept returns of individual components taken out of a complete system.
The shipping weight shown here is our own estimate — MetalCloak does not publish a weight for this item. We confirm shipping cost before processing the order.
Frequently asked questions
Does the truck need an alignment afterwards?
Yes. MetalCloak recommends a professional alignment after fitting any of its suspension systems.
Does the kit fit a petrol truck?
No. MetalCloak specifies this system for diesel RAM 2500 trucks.
Are shocks included?
No. This listing is the no-shock version. MetalCloak offers stock shock extensions, RockSport and RockSport BLACK shocks for this kit — we will quote them separately.
Can I order the kit without some parts?
MetalCloak sells it only as a complete system, but every component is available separately — we can place a custom order.
