METALCLOAK
Reference: MC1675
Shocks
MetalCloak RockSport BLACK Adjustable Reservoir Shocks, Front, Pair, 3.5" Lift, RAM 2500 2014+
RockSport BLACK Adjustable Reservoir Shocks, Front, Pair, 3.5" Lift, RAM 2500 2014+ — a genuine MetalCloak part, no. 1675. Fitment according to MetalCloak: RAM 2500, 2014–current. Coating: HARD black anodize • gold zinc.
MetalCloak RockSport BLACK Adjustable Reservoir Shocks, Front, Pair, 3.5" Lift, RAM 2500 2014+ (part no. 1675)
A remote-reservoir shock holds its damping when the oil heats up — on a long fast gravel section, or with the truck loaded.
Fitment RAM 2500, 2014–current | Coating HARD black anodize • gold zinc | Part number 1675 |
What is in the kit

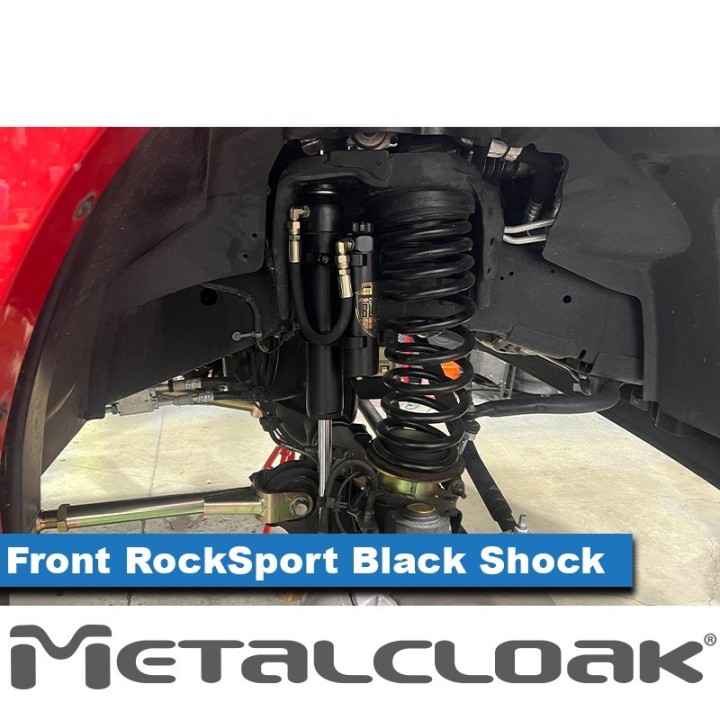

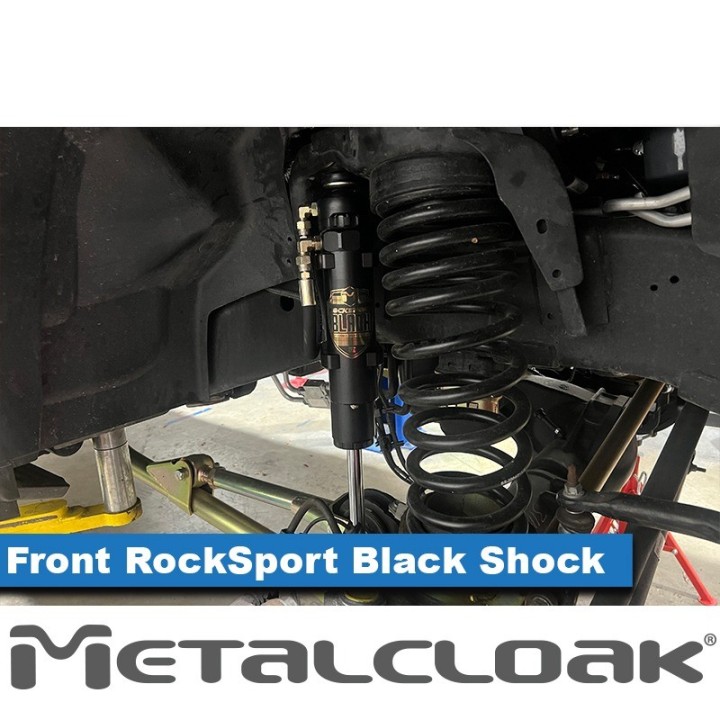

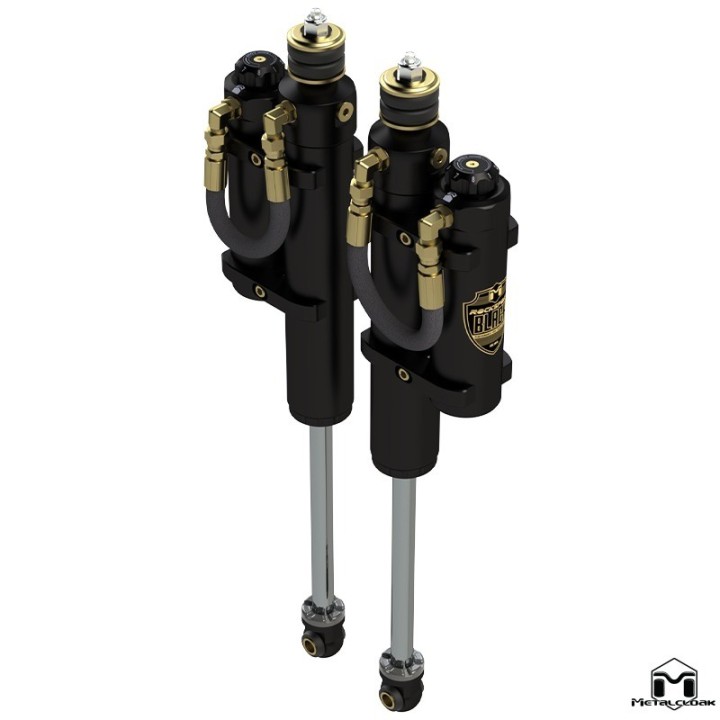

- RockSport reservoir shocks, front
RockSport BLACK shocks

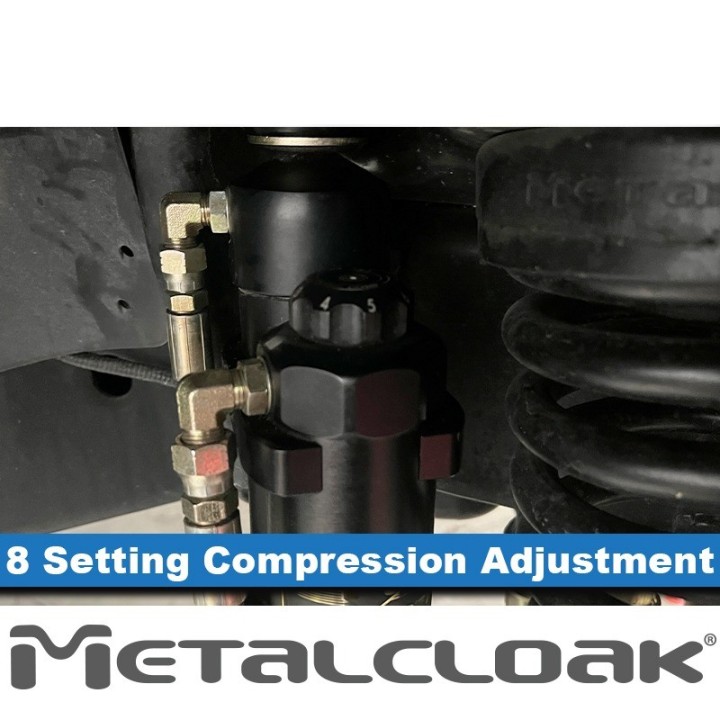

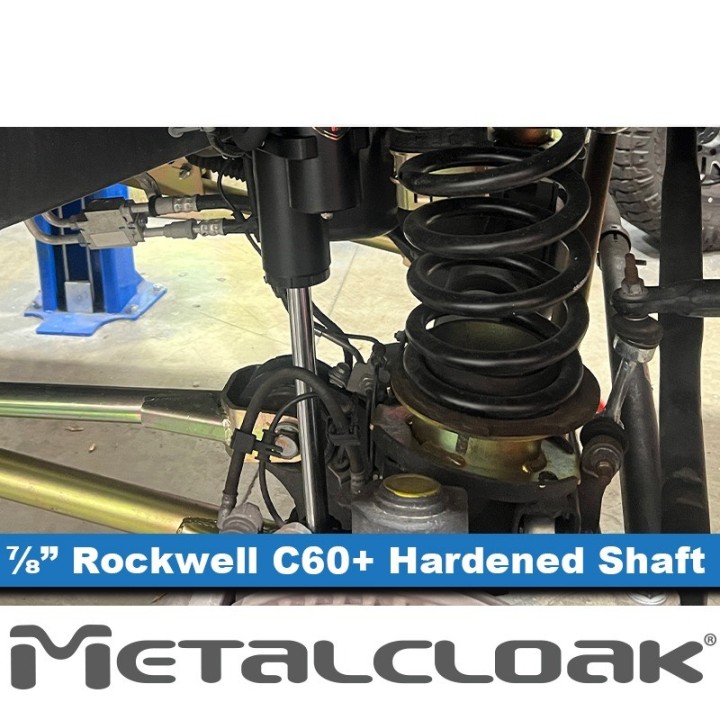

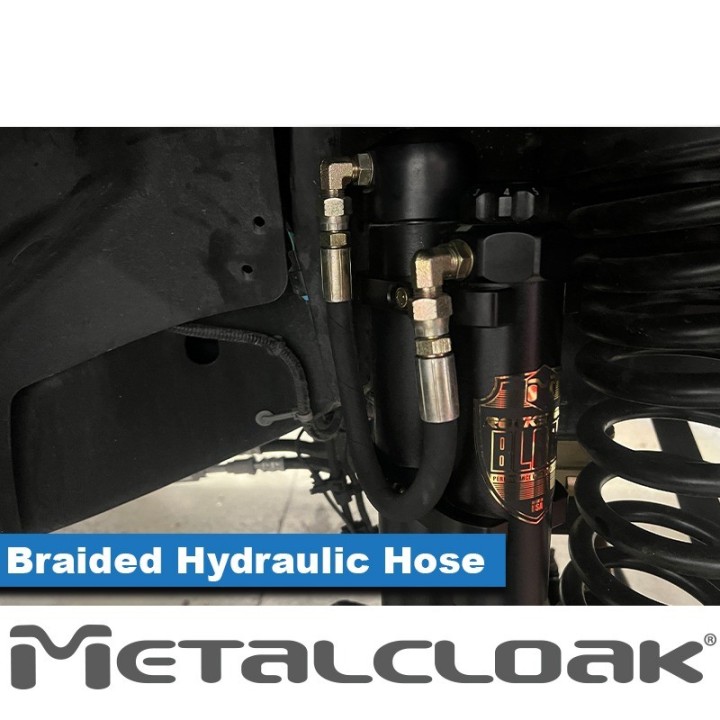

A 2.5" aluminium body with a 3/16" wall holds a large oil volume, which helps keep the damping consistent under sustained work. The 7/8" shaft is hardened past 60 HRC and chrome plated. Compression adjustment has eight positions — each click adds roughly 15% of compression force — on a knob large enough to turn with gloves on. The nine-port piston (six compression, three rebound) works with parabolic butterfly shims (patent pending #63/743,954) for resistance that varies with load. The remote reservoir is connected by a stainless-braided hydraulic hose.
Technical data from MetalCloak
| Shock body | 2.5" aluminium (3/16" wall) |
| Shaft | 7/8" Rockwell C 60+ hardened chrome shaft |
| Reservoir mount | 1/8" Hot Rolled Steel |
| Extended length | 26.4" |
| Collapsed length | 16.3" |
| Travel length | 10.1" |
| Shock mount | 3/16" Hot Rolled Steel |
| Coating | HARD black anodize • gold zinc |
Installation
- Installation difficulty: easy
- Body modification: none
- Install time per MetalCloak: 1–2 hours
Manufacturer installation instructions: open the instructions.
Manufacturer notes
- Alignment: MetalCloak recommends having a suspension specialist align the vehicle once the suspension is installed.
Frequently asked questions
Do 2.5" shocks need a fitment check?
Yes. With the model-specific RAM 2500 brackets they are a direct fit, but bump stops, wheel backspacing and brake caliper clearance need checking.
What does the adjuster do?
The knob changes compression force in eight steps of roughly 15% each, so the truck can be set up differently for the road and for the trail.
Szekla4x4 is an authorised MetalCloak dealer. We import this part directly from the manufacturer in the USA and confirm lead time when you order. Technical data and fitment are quoted from MetalCloak — if something is not listed here, it is because the manufacturer does not publish it.
