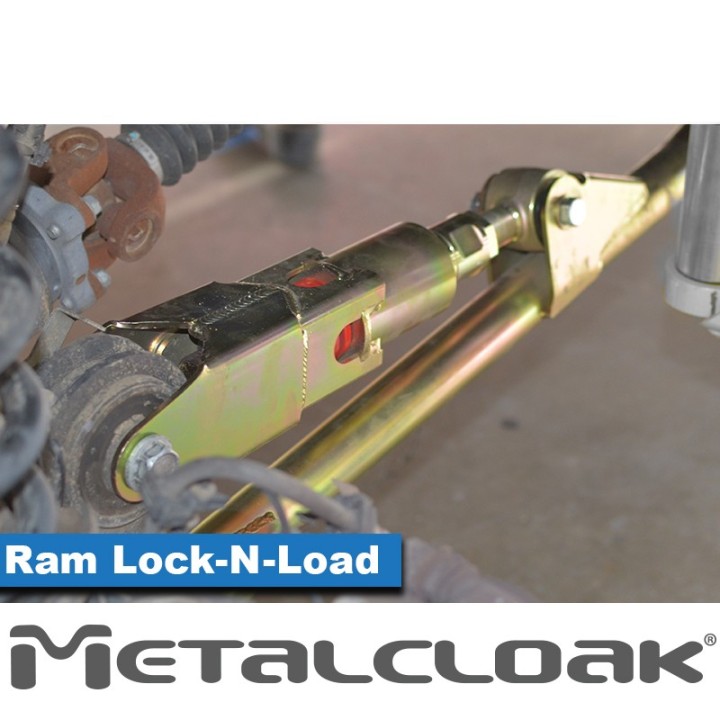

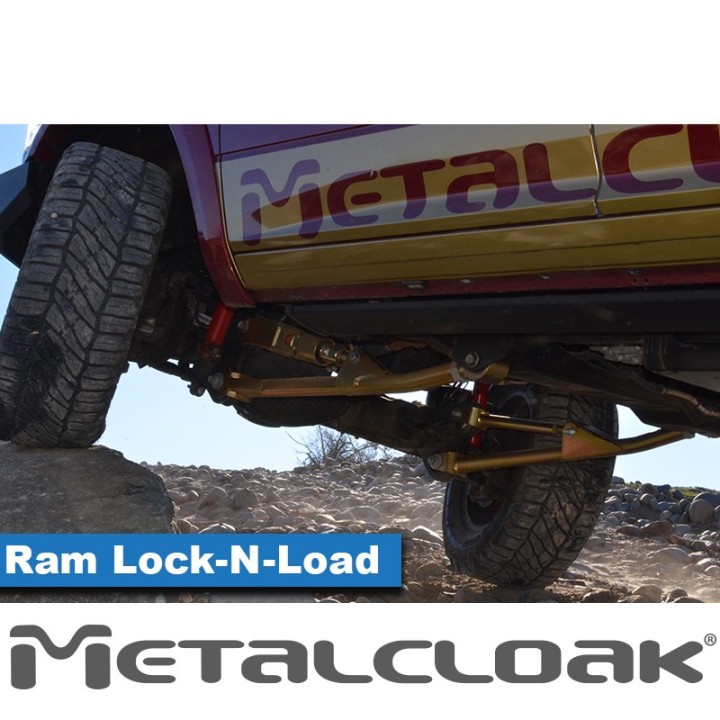

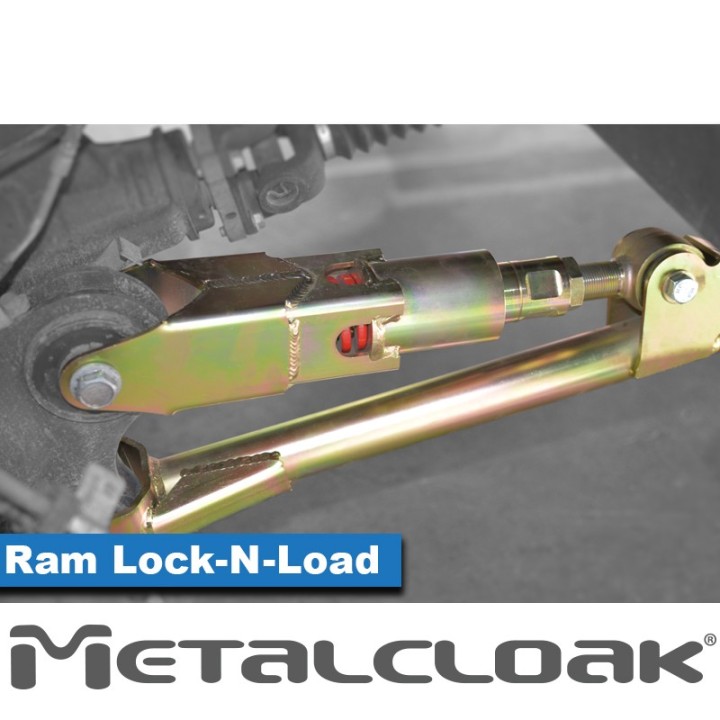

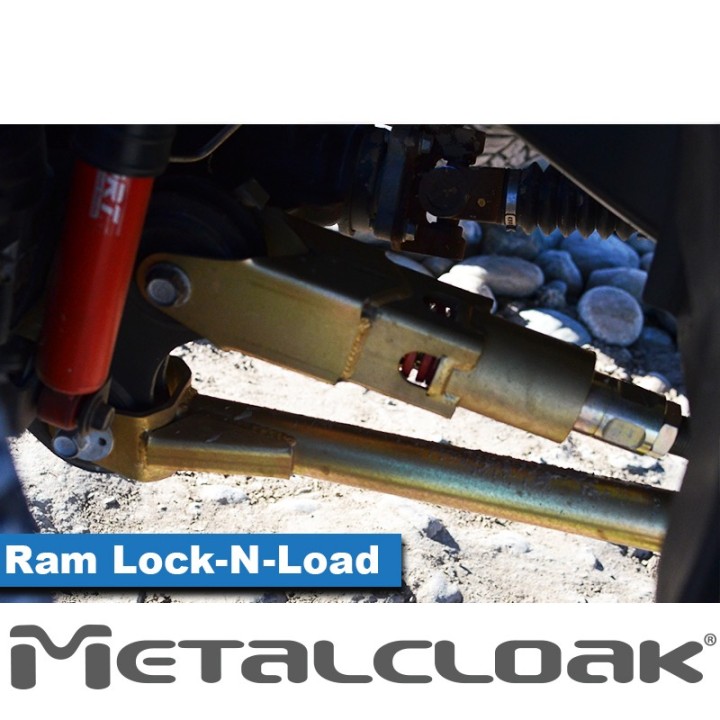

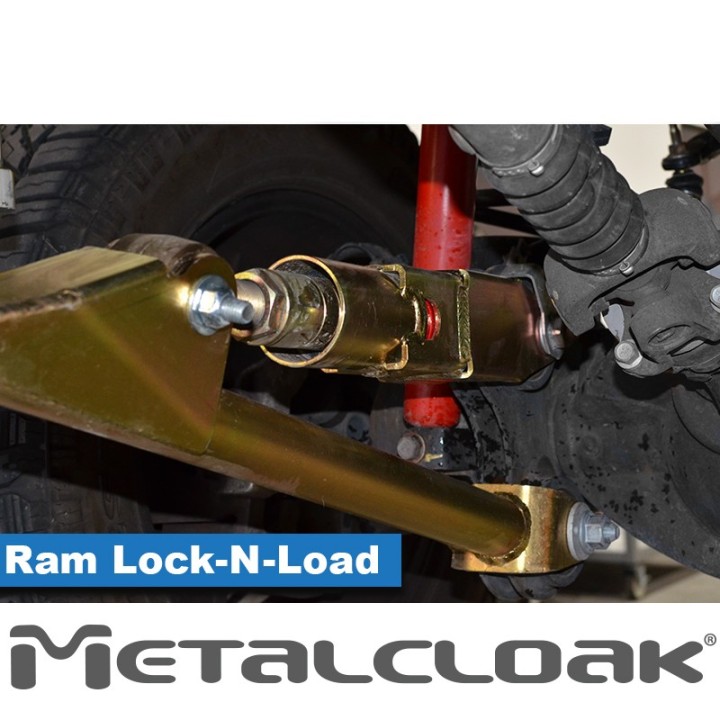

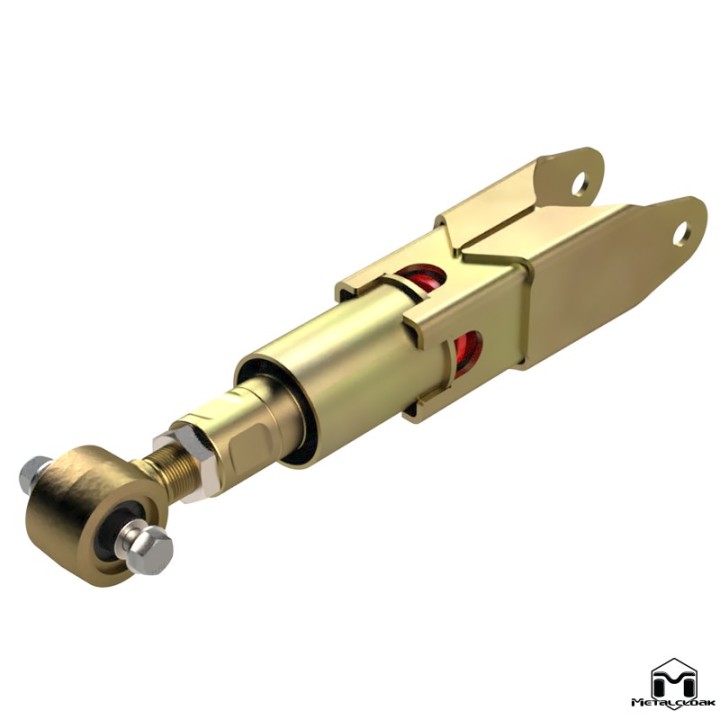

MetalCloak Lock-N-Load Replacement Upper Arm, RAM 2500/3500 2014+ (part no. 8022)

Lock-N-Load is a disconnectable upper arm: locked it behaves like a solid control arm, unlocked it lets the axle roll fore and aft, freeing up the suspension off-road.

What is in the kit

• Lock-N-Load
• All required hardware

How Lock-N-Load works

Lock-N-Load replaces only the passenger-side upper control arm; the driver-side arm stays as it is. Locked, it behaves like an ordinary solid arm and holds the geometry on the road. Unlocked, it lets the axle roll fore and aft, relieving the bushings and brackets and increasing articulation. Locking and unlocking does not change the length of the arm, so the geometry returns to where it was. It works only on a front linked radius arm suspension where the upper arm joins the lower arm with a joint and the axle end with a clevis.

Duroflex joint with Kevlar fibre

Duroflex is a patented joint made from a proprietary vulcanized elastomer with DuPont Kevlar fibre compounded into it. It combines the behaviour of a rubber bush and a spherical joint: it damps vibration and self-centres, while giving — according to MetalCloak — over 34 degrees of misalignment per joint, i.e. over 68 degrees per control arm. The outer surface of the bushing works as a bearing, so the arm does not bind at full articulation. The joint is maintenance-free and rebuildable, so after years it is the insert that gets replaced, not the whole arm. Kevlar bushings are marked with an "M" on the outer surface.

Technical data from MetalCloak

Installation

• Installation difficulty: easy
• Body modification: none
• Install time per MetalCloak: 1–2 hours

Manufacturer installation instructions: open the instructions.

Szekla4x4 is an authorised MetalCloak dealer. We import this part directly from the manufacturer in the USA and confirm lead time when you order. Technical data and fitment are quoted from MetalCloak — if something is not listed here, it is because the manufacturer does not publish it.
