METALCLOAK
Reference: MC7427
Track bars

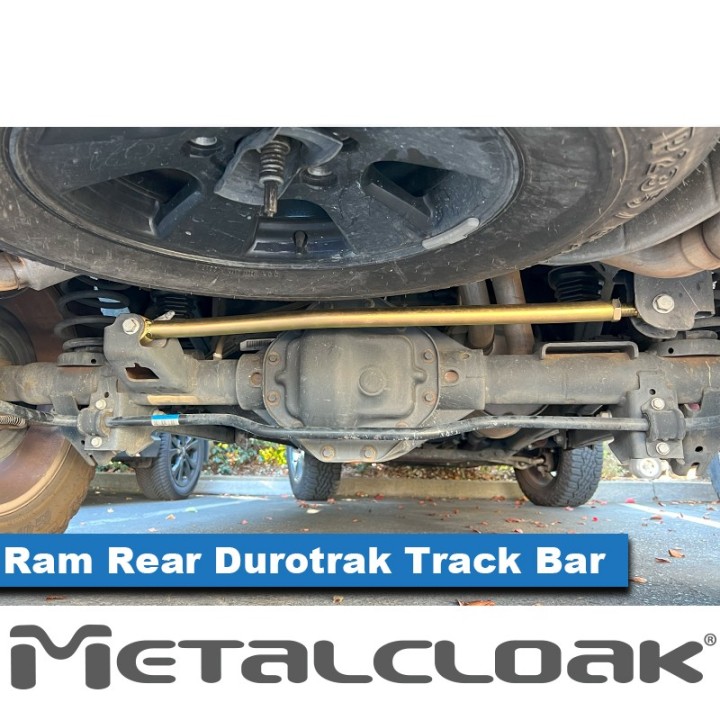

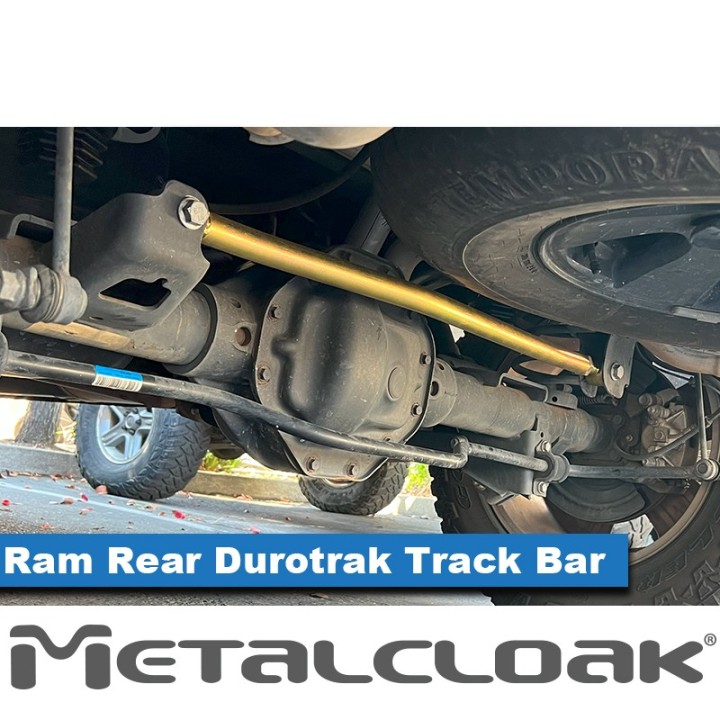

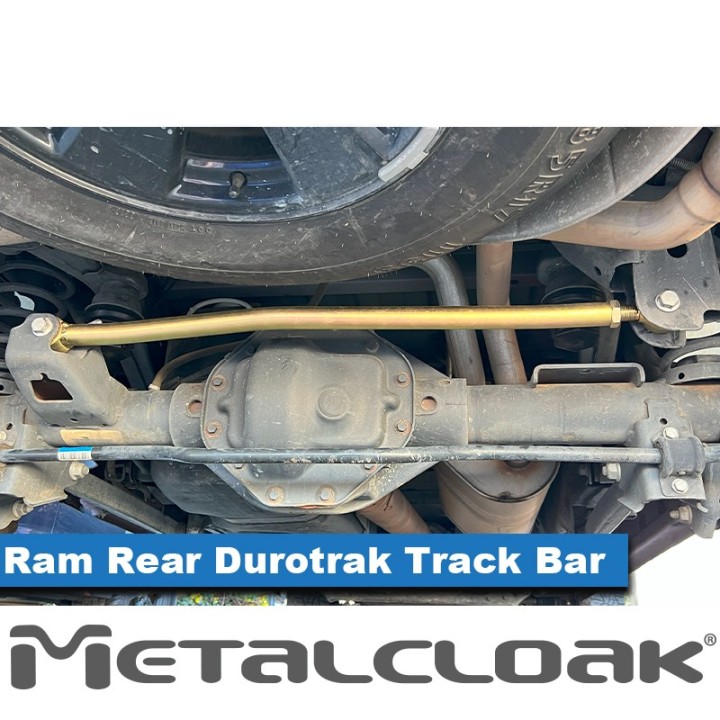

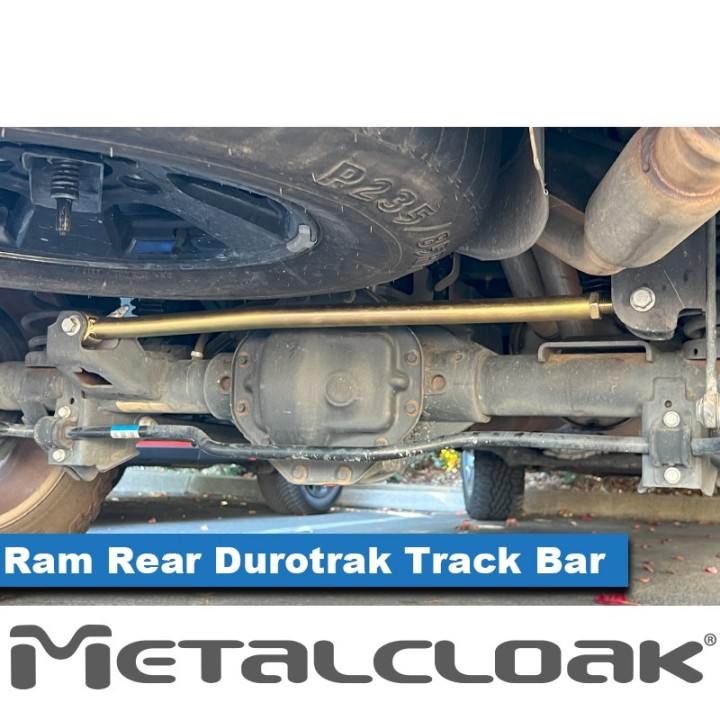

MetalCloak Rear Durotrak Track Bar, RAM 1500 2014+
Rear Durotrak Track Bar, RAM 1500 2014+ — a genuine MetalCloak part, no. 7427. Fitment according to MetalCloak: RAM 1500, 2014–current. Coating: gold zinc.
MetalCloak Rear Durotrak Track Bar, RAM 1500 2014+ (part no. 7427)
The track bar keeps the axle centred under the truck. After a lift the factory bar is effectively too short and the axle shifts sideways — the usual source of wandering steering and death wobble.
Fitment RAM 1500, 2014–current | Coating gold zinc | Part number 7427 |
What is in the kit

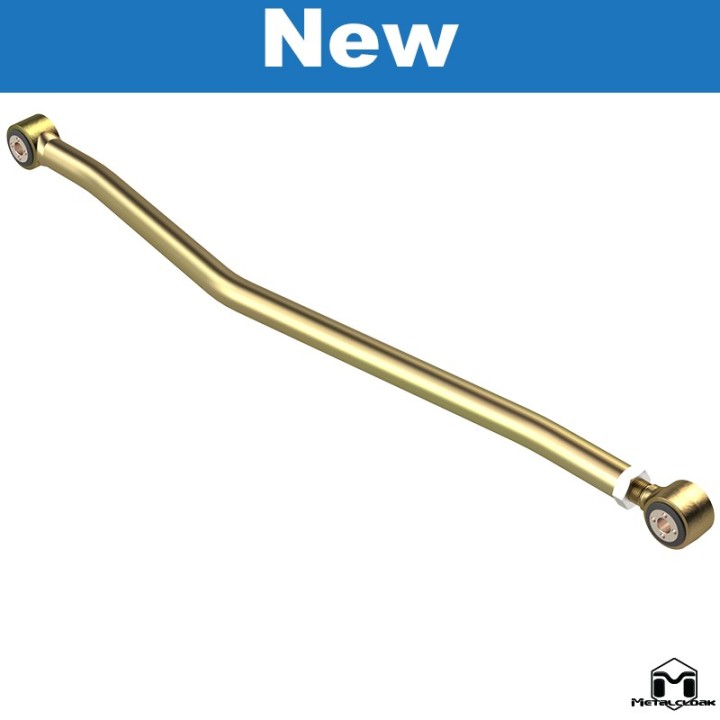

- Rear Durotrak track bar
Durotrak bushing
Durotrak is a patented two-piece NVH bushing made from a proprietary elastomer. The two halves thread together, so no press is needed to fit it. The bushing damps vibration reaching the steering wheel and sharpens steering response. The bar itself is solid 4130 chromoly, shaped to clear the axle at both full compression and full droop.
Technical data from MetalCloak
| Track bar | solid 4130 chromoly |
| Durotrak bushing | proprietary vulcanized elastomer |
| Coating | gold zinc |
Installation
- Installation difficulty: easy
- Body modification: none
- Install time per MetalCloak: 1–2 hours
MetalCloak does not publish separate written instructions for this item — contact us if you have questions about fitting.
Manufacturer notes
- Alignment: MetalCloak recommends having a suspension specialist align the vehicle once the suspension is installed.
Frequently asked questions
Is the bar alone enough after a lift?
For a small lift, yes. For a taller one the mounting angle also needs correcting with a track bar bracket.
Szekla4x4 is an authorised MetalCloak dealer. We import this part directly from the manufacturer in the USA and confirm lead time when you order. Technical data and fitment are quoted from MetalCloak — if something is not listed here, it is because the manufacturer does not publish it.
