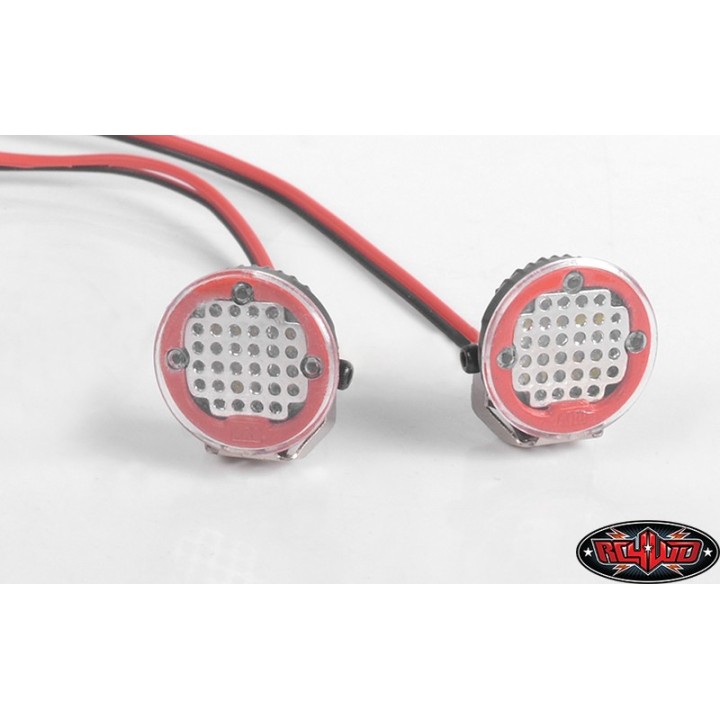

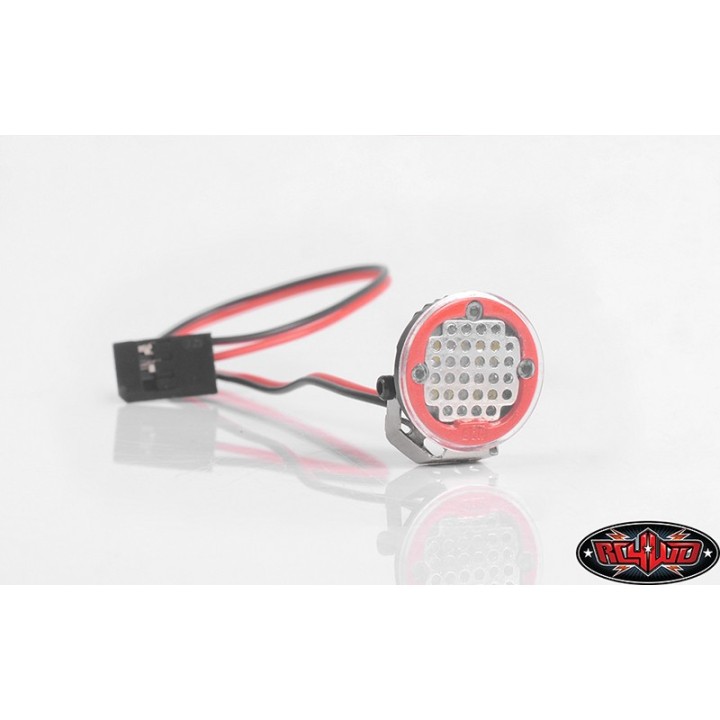

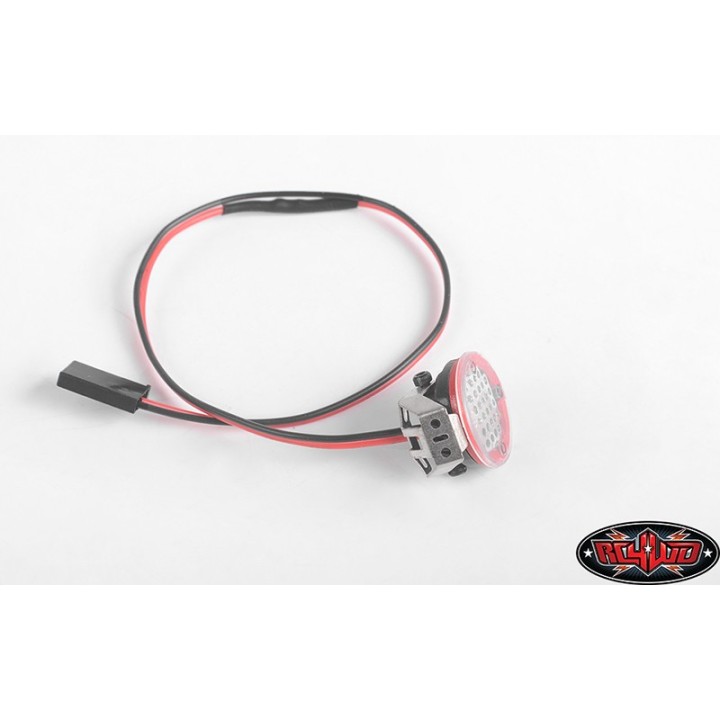

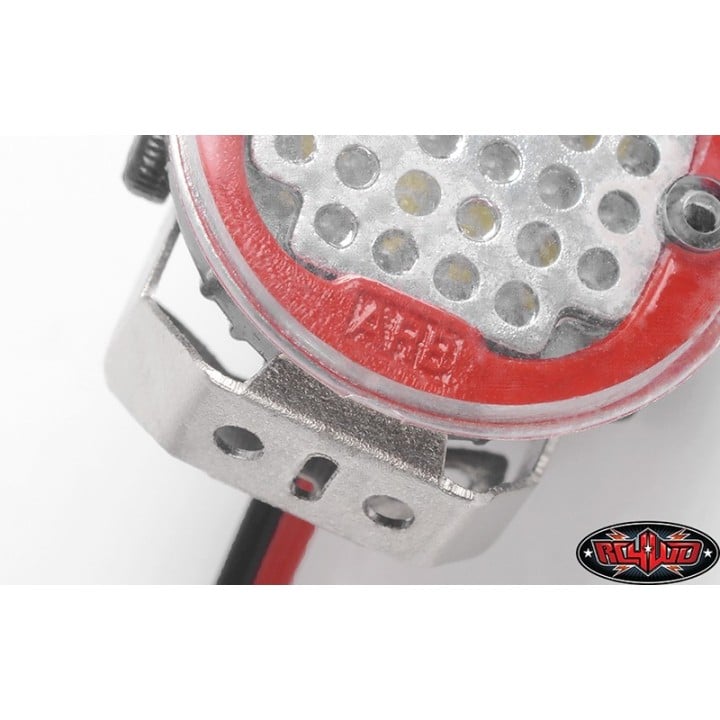

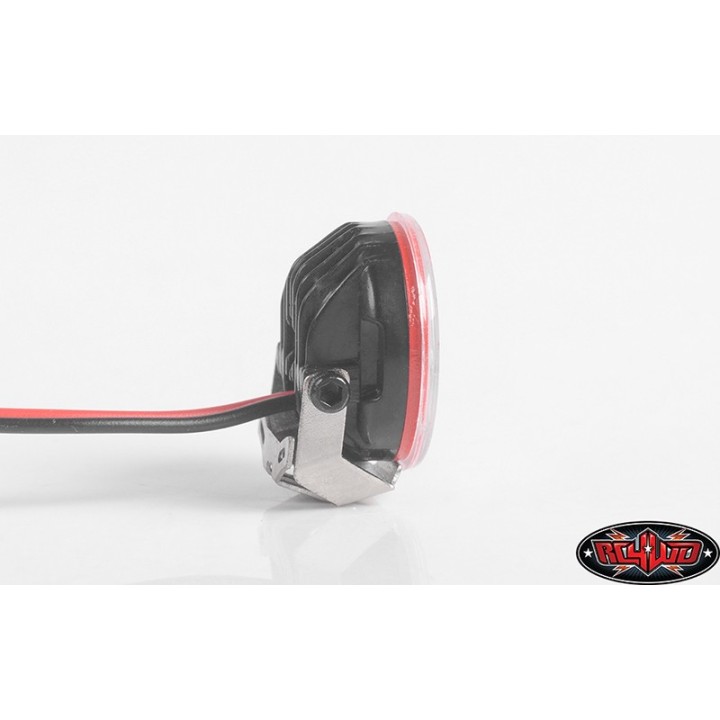

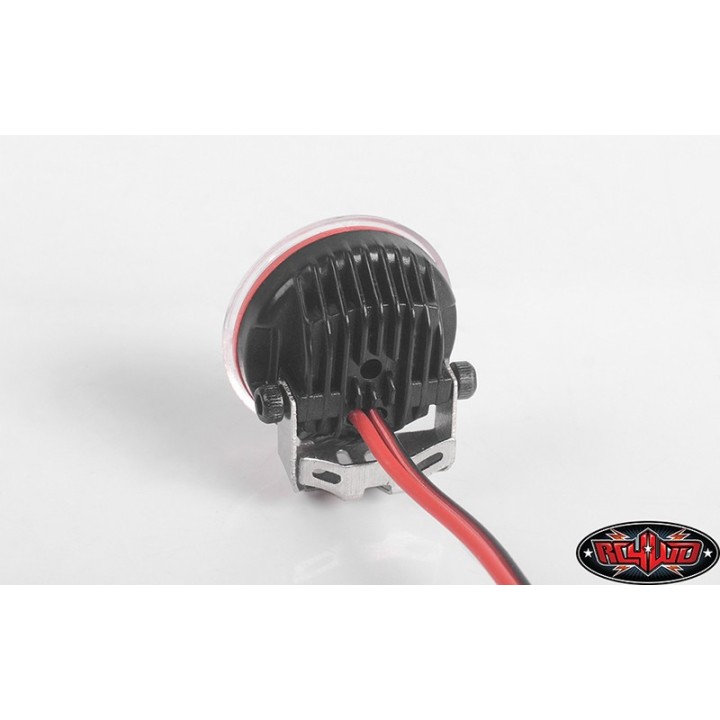

RC4WD Z-E0112 ARB Intensity 1/10 LED Light Set

Crawling after dark is a different game from daylight — provided the model has something to see with. The ARB Intensity in 1/10 scale actually lights the trail ahead rather than just posing on the bumper.

Key features

• ABS injection-moulded housing
• Very bright LEDs
• Tilt adjustment — aim the beam higher or lower
• Standard receiver plug, connects to a spare channel
• Voltage range 6–11.1 V
• 1.6 mm mounting holes, screws and nuts included

Technical data

• Part number: Z-E0112, manufacturer: RC4WD
• Scale: 1/10, officially licensed by ARB
• Operating voltage: 6–11.1 V
• Diameter: 19.5 mm, width: 22.1 mm, height: 11.6 mm
• Set weight: 8.2 g
• Mounting holes: 1.6 mm

What is in the box

• 1 × ARB Intensity 1/10 light set
• 4 × M1.6 × 6 mm socket head cap screws
• 4 × M1.6 nuts, black
• 1 × ARB decal sheet

Compatibility and notes

The lights can be mounted anywhere on the body and on most bumpers — the manufacturer notes that some positions require drilling a few small holes yourself. Listed optional extras are the RC4WD Mini ON/OFF switch (Z-E0081) and the strobe lighting unit (Z-S1573).

Who it is for

For modellers building scale crawlers and trail replicas where the detail matters as much as how the model drives. Part of the RC4WD catalogue, so it matches the rest of the brand’s hardware in both look and scale.

Why buy this one

• A genuine RC4WD part, not an unbranded copy.
• Detail rendered to scale — the model reads as a shrunken vehicle, not a toy.
• Shipped from Warsaw, with no transatlantic wait and no customs to handle.

Putting together the full kit for one build? Tell us what you are building and we will say which RC4WD parts in our range work together.

Frequently asked questions

Do the lights actually work?

Yes, they are working LEDs running on 6–11.1 V.

Can the beam be aimed?

Yes, the light tilts up and down.

Does the body need drilling?

In some positions yes — the manufacturer warns about a few small holes.
