Barracuda Parallel Connection Cable Set for Power Stations, 12 AWG 110 cm

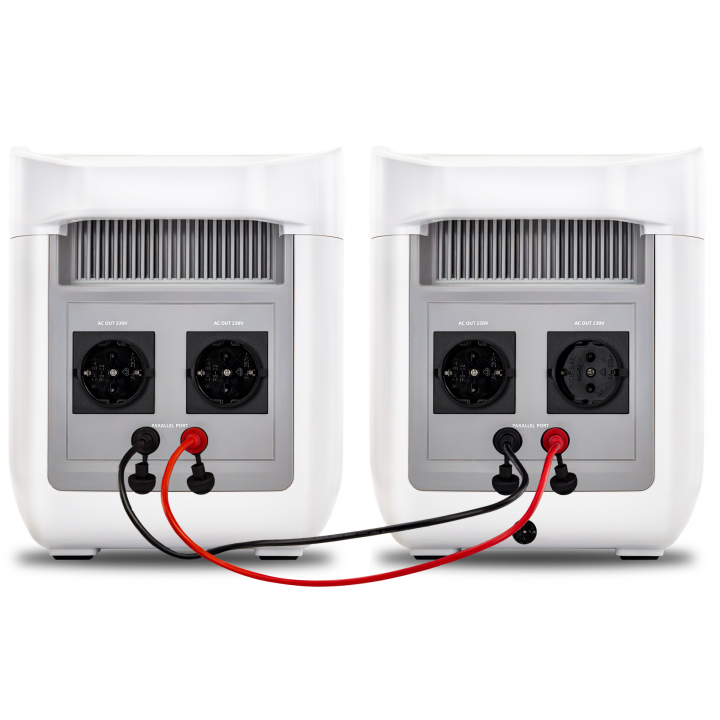

A pair of heavy leads for connecting two power stations with a Parallel Port — summing their power and capacity. 12 AWG copper and 600 V / 105°C insulation, so the cable is not the weak link.

Key features

• 12 AWG copper core (about 3.3 mm²) — no voltage drop or heating at high current
• UL1015 / VW-1 / FT1 insulation, 600 V, up to 105°C
• 4 mm banana plugs in insulated sleeves — protection against accidental shorts
• 110 cm long — stand the stations side by side or stacked
• Set of 2: red and black

Technical data

• Part number: PSPK, manufacturer: Barracuda
• Type: parallel connection kit for power stations
• Length: 110 cm
• Conductor: 12 AWG (about 3.3 mm²)
• Voltage and working temperature: 600 V / 105°C
• Insulation standard: UL1015 / VW-1 / FT1
• Connectors: 4 mm banana plugs with sleeves
• Contents: 2 leads (1 × red, 1 × black)

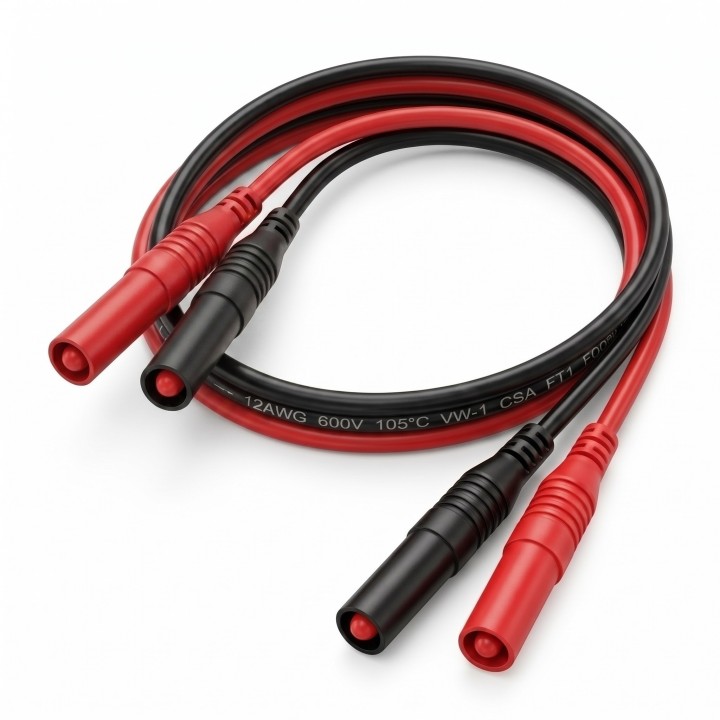

What is in the box

• 1 × red lead, 110 cm
• 1 × black lead, 110 cm

Compatibility and notes

The leads only work with stations that have a Parallel Port. In the Barracuda range that means the DPS1200 and DPS2400 — the smaller stations have nowhere to plug them in.

Who it is for

For camper and overland users and anyone who needs power where there is no socket — on a camp site, on a plot of land, in a field workshop — and as peace of mind at home when the grid goes down.

Why buy this one

• LiFePO4 cells — safer and longer-lived than ordinary lithium.
• Specifications taken from the manufacturer data sheet, not rounded by eye.
• We will help you match the panel and cables to your setup — tell us what you need to run.
• Shipped from Warsaw.

Frequently asked questions

Which stations do they fit?

Those with a Parallel Port — the Barracuda DPS1200 and DPS2400.

How many leads are in the set?

Two: red and black.

What gauge?

12 AWG, about 3.3 mm².
