Barracuda 4-in-1 Solar Adapter Cable MC4 / XT60 / DC, 12 AWG

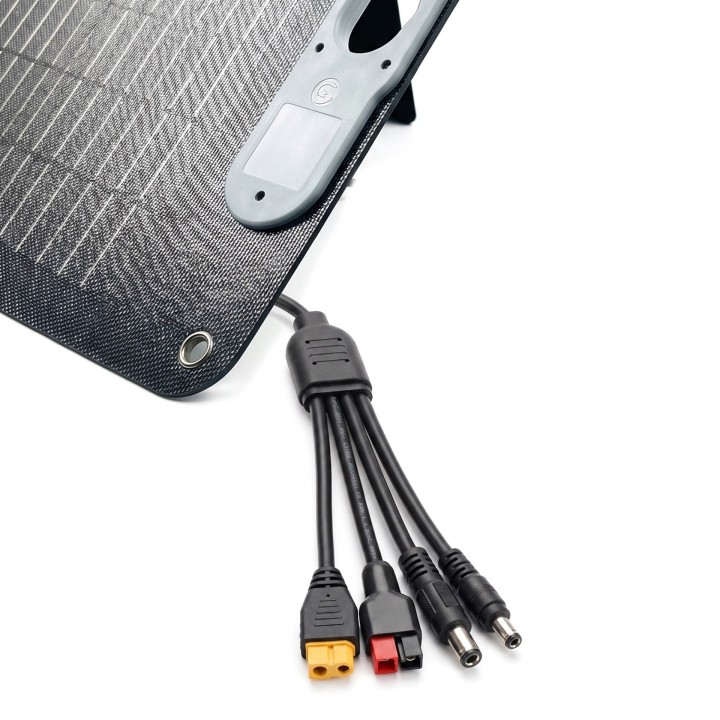

One lead instead of a box of adapters: a pair of MC4 connectors on the panel side and four different plugs on the other. The same panel then connects to a power station, a charge controller or straight to a battery.

Key features

• Four outputs on one lead — no chain of adapters
• Locking MC4 connectors on the panel side
• Copper core, PVC insulation resistant to UV and moisture
• Colour-coded polarity (red / black)
• Rated to 20 A, maximum 300 V

Technical data

• Part number: MC4in1, manufacturer: Barracuda
• Panel side: MC4 pair (male and female)

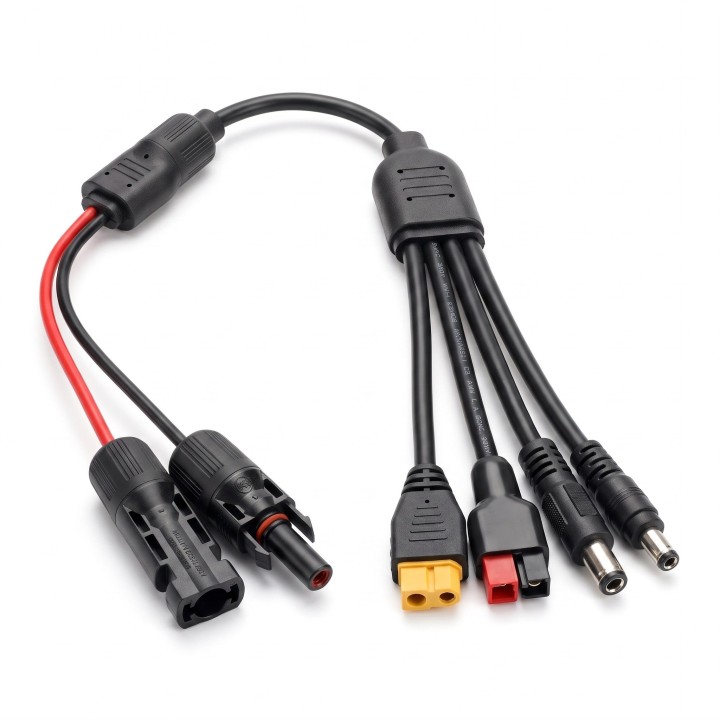

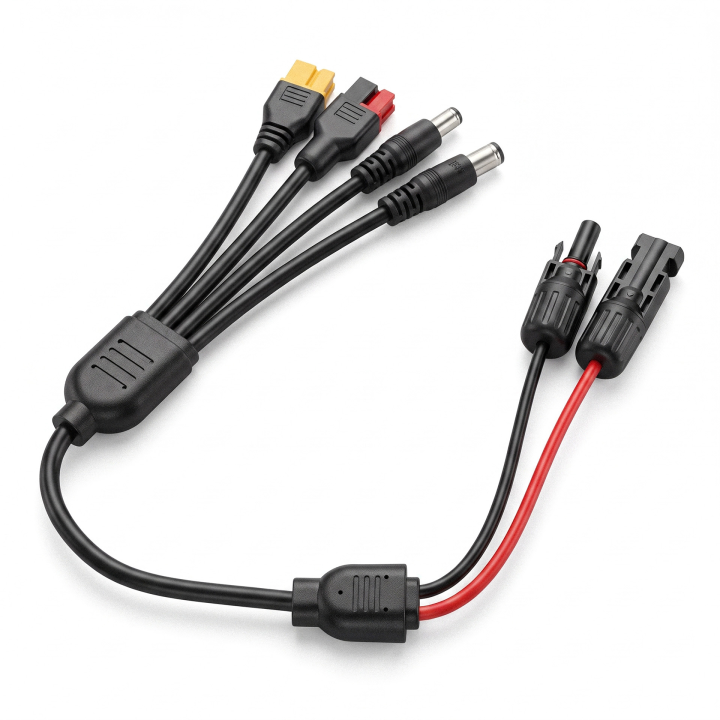

• Device side: XT60, a T-type plug and two DC barrel plugs (as shown in the manufacturer photos)
• Cable: copper, PVC insulation resistant to UV and moisture
• Colour: red and black (polarity marking)
• Rated current: up to 20 A
• Maximum voltage: 300 V
• EAN: 5906076910128

What is in the box

• 1 × MC4 → XT60 / T-plug / 2 × DC adapter lead

Compatibility and notes

Worth checking before you order. The manufacturer gives two different connector lists: the product name says XT60, DC5521 and DC7909, while the specification says MC4, XT60, Anderson Powerpole, DC 5.5 × 2.1 mm and DC 5.5 × 2.5 mm. The manufacturer photos show an MC4 pair plus four plugs: XT60, a red T-type plug and two DC barrel plugs of different sizes. If you need one specific DC size, contact us before ordering and we will confirm it with the supplier.

The lead fits panels and stations with MC4 / XT60 / DC connectors of any brand — just check that your system stays within 20 A and 300 V.

Who it is for

For camper and overland users and anyone who needs power where there is no socket — on a camp site, on a plot of land, in a field workshop — and as peace of mind at home when the pse-grid goes down.

Why buy this one

• LiFePO4 cells — safer and longer-lived than ordinary lithium.
• Specifications taken from the manufacturer data sheet, not rounded by eye.
• We will help you match the panel and cables to your setup — tell us what you need to run.
• Shipped from Warsaw.

Frequently asked questions

What is this lead for?

It connects an MC4 solar panel to a power station, a charge controller or a battery.

What current does it take?

The manufacturer states up to 20 A at a maximum of 300 V.

Does it fit other brands?

Yes, if they have an MC4, XT60 or a matching DC input.
