KC HiLiTES FLEX ERA 3 Spot - Two Light LED Kit, 40 W

On a straight stretch of gravel or in open desert one thing matters: how far you can see. The Spot version of the FLEX ERA 3 uses a precisely engineered optic that pulls the light into a narrow, tightly focused beam reaching 607 m - and it does it from a housing 3.5 inches tall.

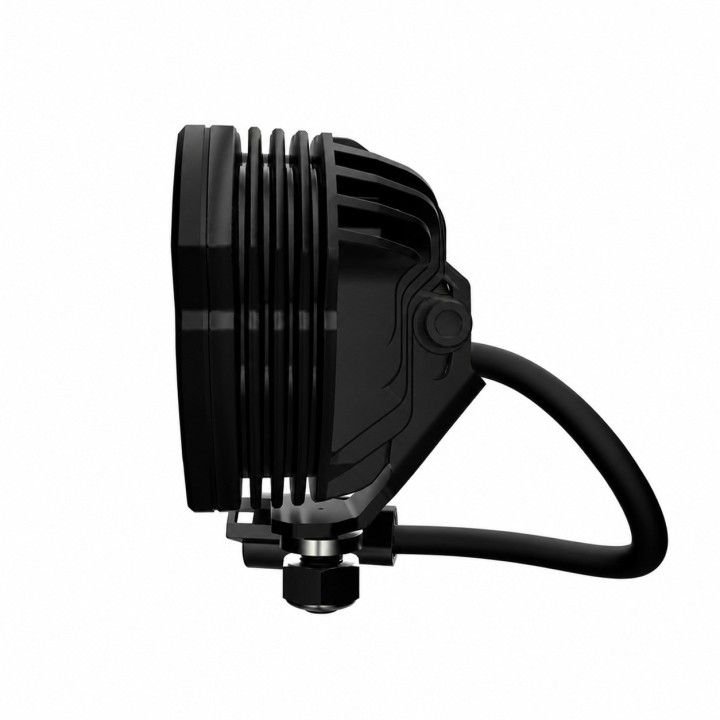

The whole thing sits in a cast aluminium alloy housing in a black finish, rated IP68. The kit holds two lights, covers, universal brackets, a wiring harness and a three position switch. The manufacturer declares no approval standard for this kit - neither the American SAE, nor European ECE, nor DOT compliance. These are auxiliary lights intended for off-road use.

Key benefits

• 607 m beam distance - the Spot version exists so you see the obstacle before you have to react to it.
• 3672 raw lumens per light at 5000 K - a colour close to daylight, without the yellow cast of halogens.
• 40 W per light, 80 W for the pair, drawing 3.4 A at 12 V per light.
• IP68 sealing and a cast housing - wading and mud are not a problem.
• A compact 3.5 inches tall - the light fits where a larger lamp will not.
• LED thermal protection guards the light during long stationary use.

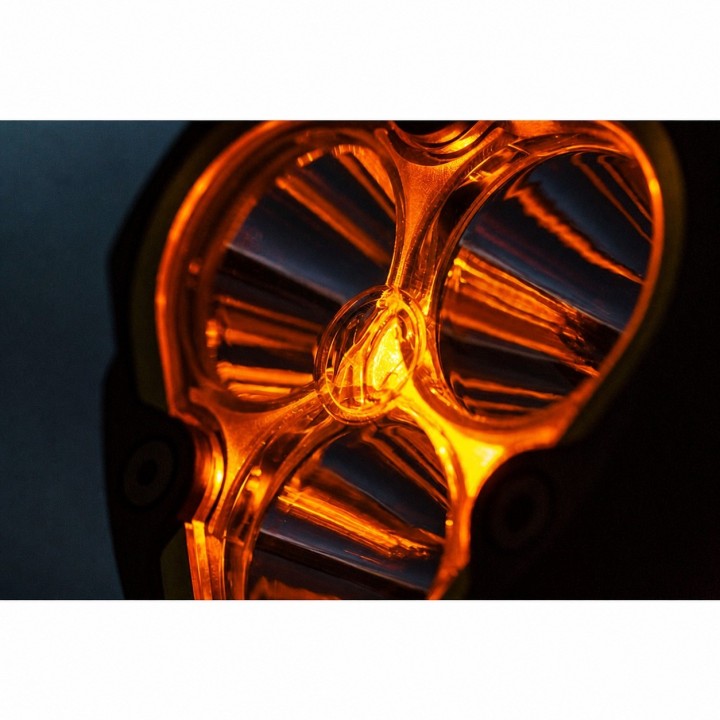

• An independent amber LED accent - a signature element of the FLEX ERA series.
• Configurable beam patterns, bezel colours and covers (sold separately) - the light can be rebuilt rather than replaced.

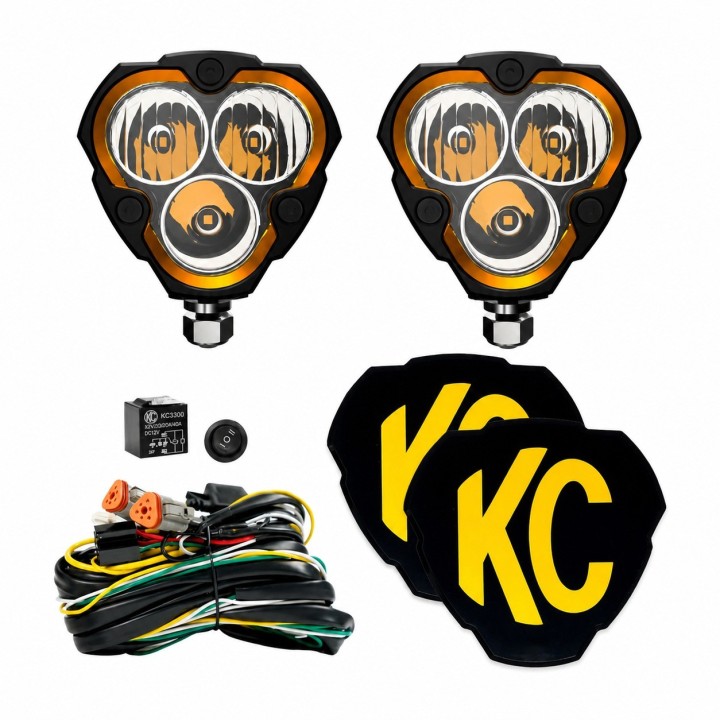

What is in the box

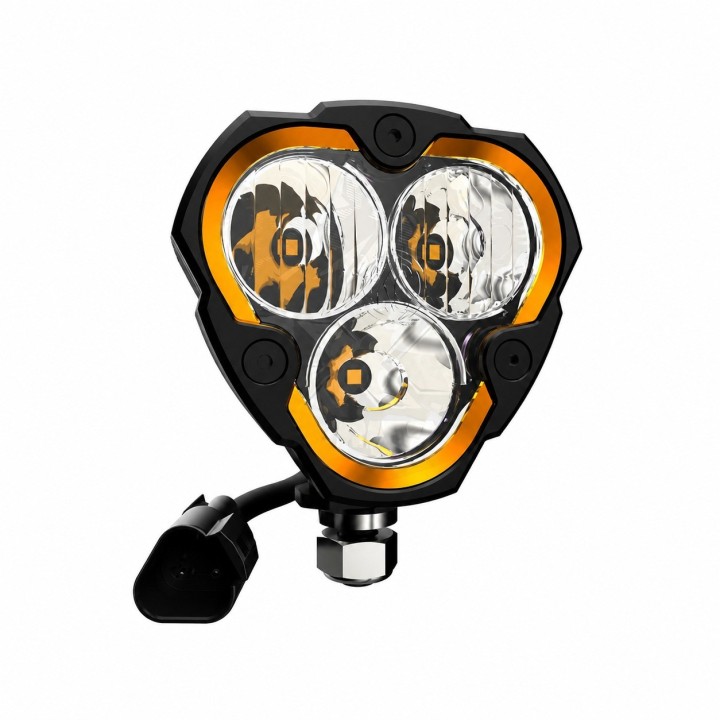

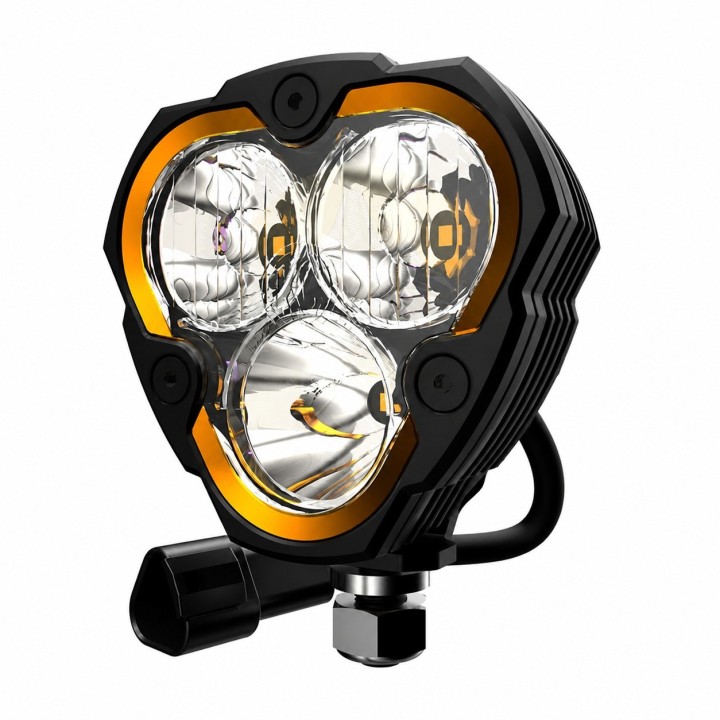

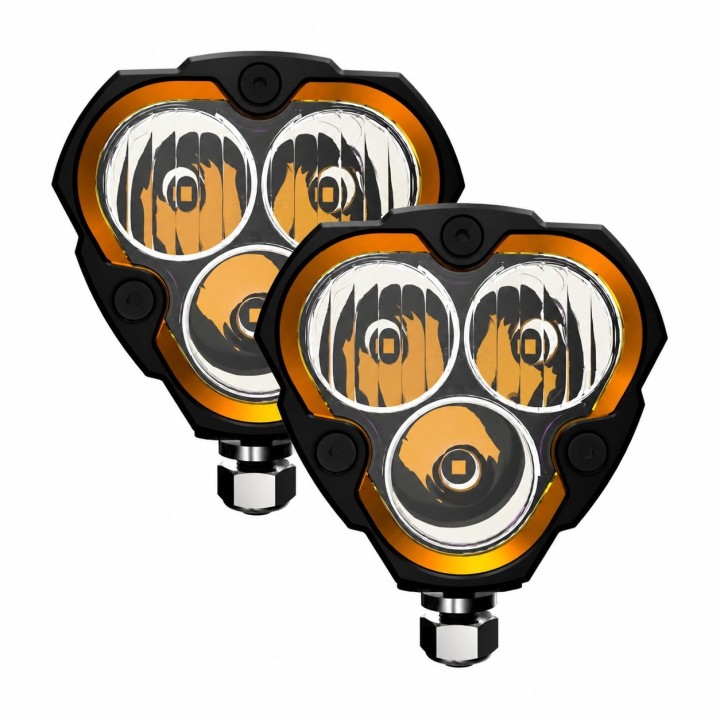

• 2 x KC FLEX ERA 3 LED light pod, 40 W
• 2 x light cover - black with the yellow KC logo
• 2 x universal mounting bracket
• 1 x wiring harness with weatherproof connectors
• 1 x three position switch

Technical data

• Our part number: KC 0282
• Series: FLEX ERA 3 (FE3 type)
• Size: 3.5 inch
• Light dimensions: W 3.6" x H 3.5" x D 2.6" (9.1 x 8.9 x 6.6 cm)
• Beam pattern: spot
• Raw lumens per light: 3672 lm
• Beam distance: 607 m
• Power: 40 W per light, 80 W for the pair
• Light source: CREE LEDs (per distributor data)
• Current draw: 3.4 A at 12 V per light
• Supply voltage: 9-16 V
• Colour temperature: 5000 K, white light, clear lens
• Material: aluminium alloy, black finish
• Ingress protection: IP68

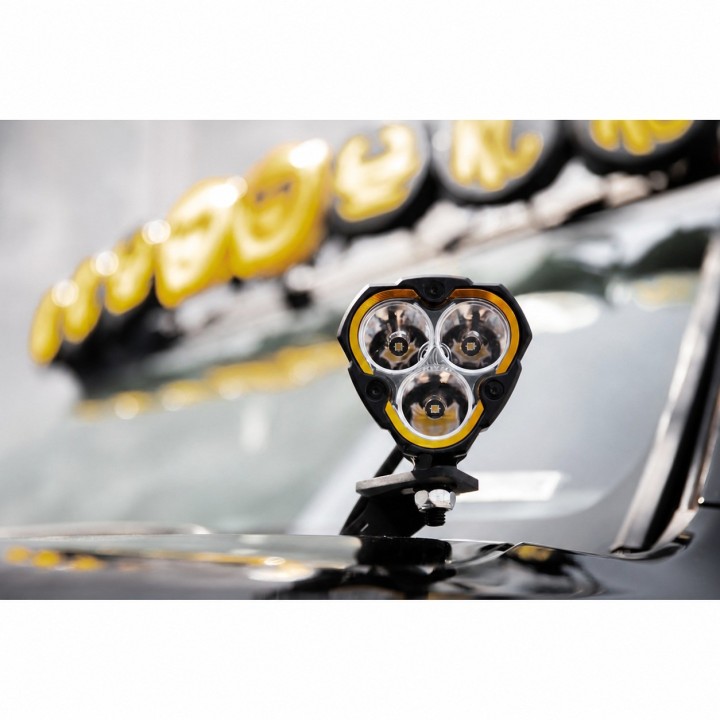

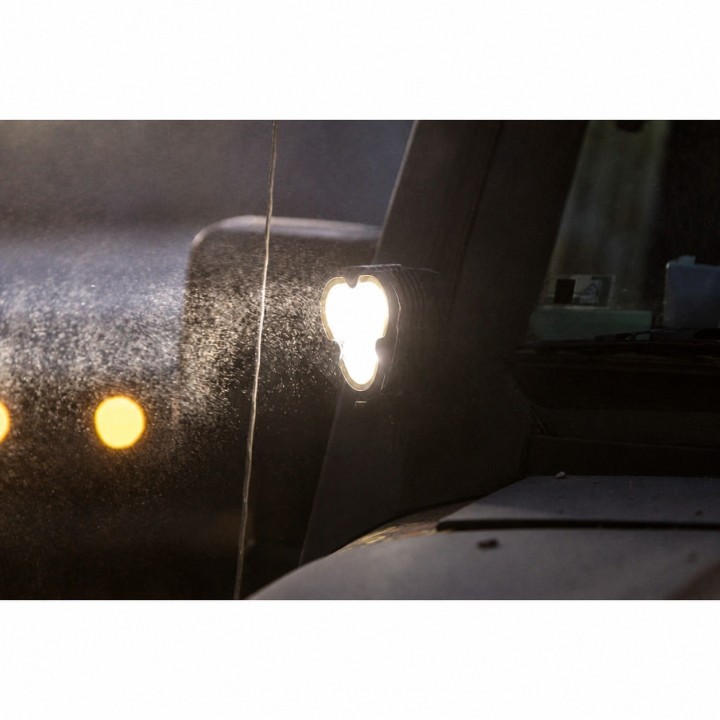

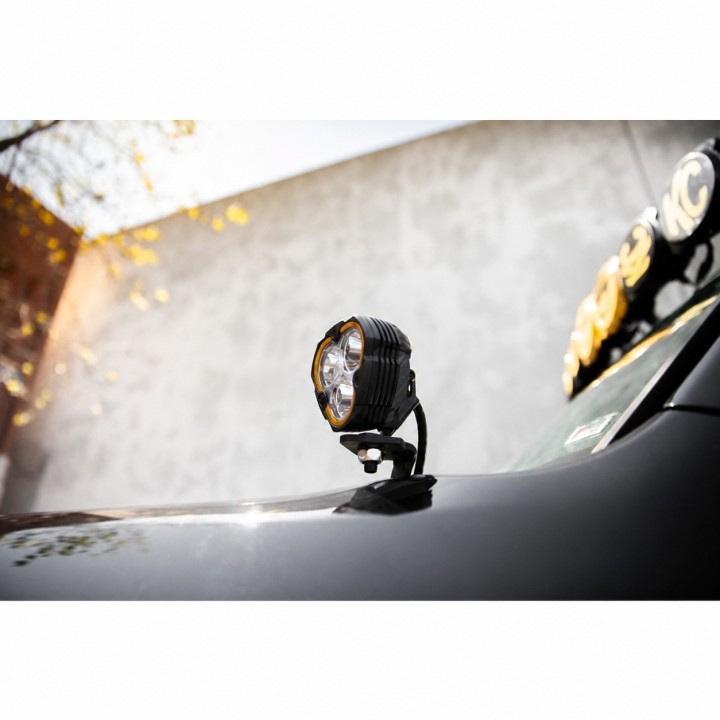

• Mounting location: A-pillar, windscreen, bumper
• Kit weight: 3.75 lbs (approx. 1.7 kg)
• Approval: the manufacturer declares neither SAE, nor ECE, nor DOT compliance

Who it is for

Spot is the choice for fast, open sections - gravel, desert straights, night runs where you need to spot a hole or an animal with plenty of margin. If part of your route is slow and technical, pair these with a flood beam or go for the Combo version (KC 0283). The compact 3.5 inch housing lets you fit them on the A-pillar, under the windscreen or in the bumper. Not sure whether Spot or Combo suits you better? Message us and we will match the beam to how you actually drive.

Installation and notes

The kit includes universal mounting brackets, a wiring harness with weatherproof connectors and a three position switch, so no extra control gear is needed to get the lights running. The stated 9-16 V supply range corresponds to a 12 V system. The manufacturer declares no approval standard for this kit - neither the American SAE, nor European ECE, nor DOT compliance. These are auxiliary lights intended for off-road use. KC HiLiTES covers its products under the Unlimited Lifetime Warranty programme. Per the manufacturer's terms the programme applies to purchases made after 31 August 2025, requires the product to be registered within 60 days of purchase and is fully transferable to the next owner. The manufacturer excludes, among other things, cosmetic damage, incorrect installation, neglect, normal wear and the effects of extreme events, and requires the purchase to come from an authorised sales channel. Statutory rights under Polish consumer law apply on top of the manufacturer's warranty. We can handle fitting and wiring in our off-road workshop.

Why it is worth it

• 607 m of beam distance from a light 3.5 inches tall.
• IP68 and a cast aluminium alloy housing instead of plastic compromises.
• Modular construction - optics, bezels and covers are swapped without replacing the whole light.

Frequently asked questions

How does the Spot version differ from Combo?

Spot has a tightly focused beam reaching 607 m and throws light mainly far ahead. Combo (KC 0283) blends two flood optics with one spot - it lights up wider, but its reach is 385 m.

Are these lights road approved?

No. The manufacturer states no approval standard for this series - neither SAE, nor ECE, nor DOT compliance. These are auxiliary lights for off-road use. If you are after a light with European road approval, get in touch - we stock KC models for which the manufacturer does declare it.

Are brackets and wiring included?

Yes. You get two universal mounting brackets, a wiring harness with weatherproof connectors and a three position switch.

Where can these lights be mounted?

The listed mounting locations are the A-pillar, the windscreen and the bumper. A single light measures 3.6 x 3.5 x 2.6 inches (9.1 x 8.9 x 6.6 cm), so it fits into tight spots.

Can the beam pattern be changed after purchase?

Yes. The FLEX ERA series is modular - optics, bezels and covers are interchangeable, but they are sold separately.
