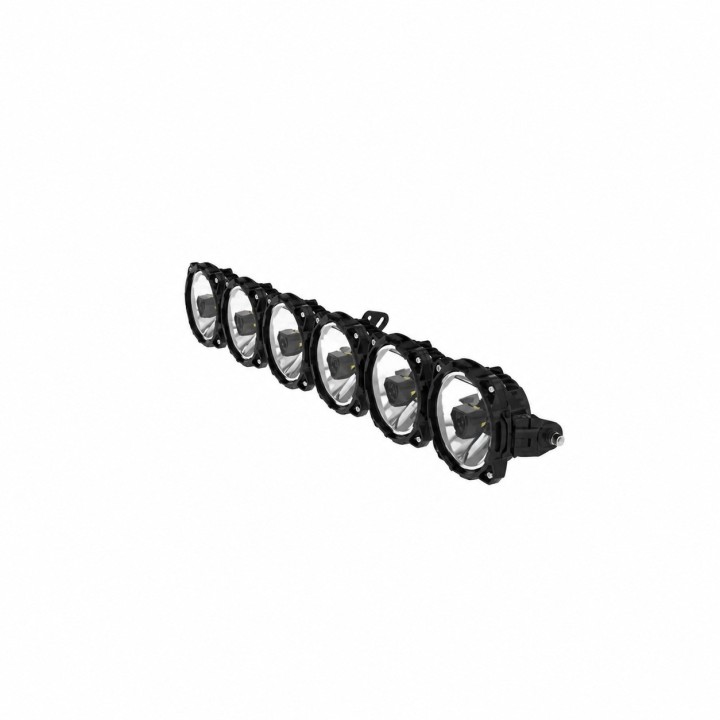

KC HiLiTES Gravity Titan 39" - 6-Light LED Bar

Run fast after dark and the factory headlights give up a few dozen metres ahead of the bonnet, so you slow down to the speed you can actually see. This 39-inch Gravity Titan bar changes the maths: six lights in a combo beam produce 17,832 lm and a manufacturer-quoted beam distance of 856 m.

Each light carries both white and amber LEDs, and a complete Plug-N-Play harness with a 3-position switch is in the box. The housing is rated IP68 and runs on 9-36 V, so it works on 12 V and 24 V systems alike. KC lists two mounting positions for this bar: bumper and overhead.

Key benefits

• 17,832 lm and 732,000 cd from six lights - the combo beam mixes long-throw spot with wide 40-degree coverage, so you do not need to pair two lights with different optics.
• 856 m beam distance as quoted by KC - far enough that you see an obstacle well before you reach it.
• White and amber LEDs - KC lists both LED colours for this bar, and a 3-position switch comes with the harness.
• IP68 sealing - water crossings, pressure washing and winter road salt are not an issue for the housing.
• 9-36 V supply - the bar runs on 12 V and 24 V systems, drawing 19.74 A at full output.
• Plug-N-Play wiring in the box - no separate harness or switch to source.

What is in the box

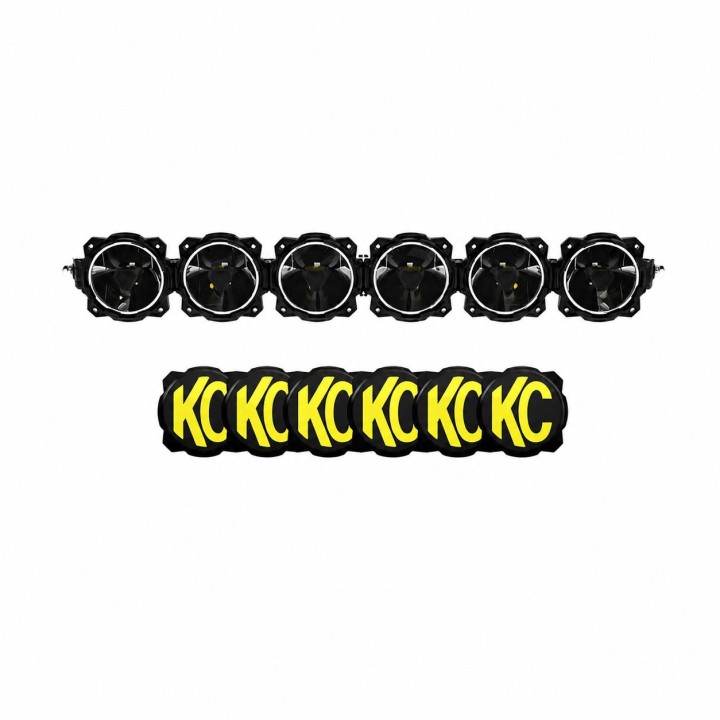

• 1 x Gravity Titan LED 39" light bar - 6-Light
• 6 x Gravity 6" light cover, black with yellow KC logo
• 1 x complete Plug-N-Play wiring harness with 3-position switch
• Mounting hardware

Technical data

• Manufacturer part number: 91416 (UPC 084709914165)
• Nominal length: 39" (99.1 cm)
• Number of lights: 6
• Beam pattern: combo
• Power: 39 W per light, 237 W total
• Luminous flux: 2,972 lm per light, 17,832 lm total
• Luminous intensity: 577,000 cd (spot) / 155,000 cd (Wide 40) per light, 732,000 cd total
• Illuminance: 5,772 lx (spot) / 1,550 lx (Wide 40) per light, 7,320 lx total
• Beam distance: 856 m
• Current draw: 3.29 A per light, 19.74 A total
• Supply voltage: 9-36 V
• Colour temperature: 5000 K
• LED colour: white and amber
• Lens: clear
• Ingress protection: IP68
• Weight: 32.4 lbs (14.7 kg)
• Mounting locations per KC: bumper, overhead

Who it is for

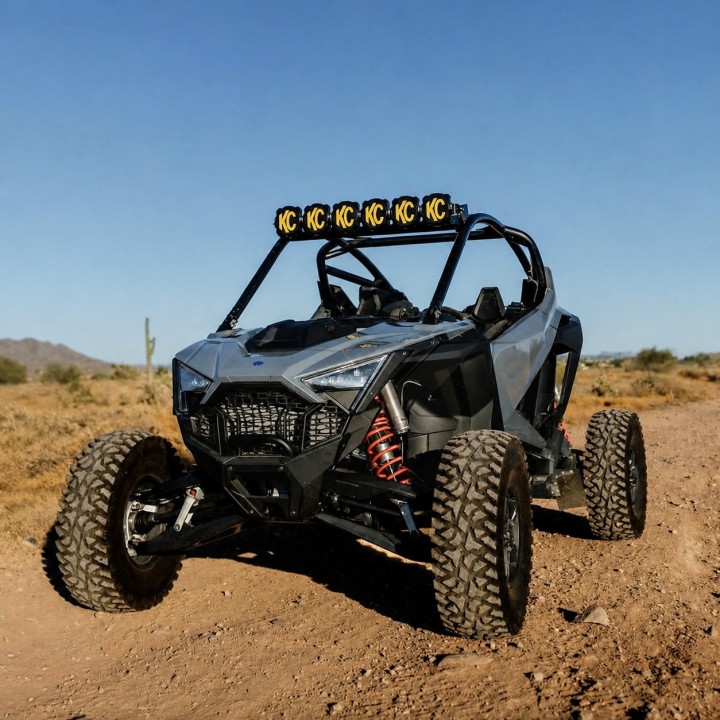

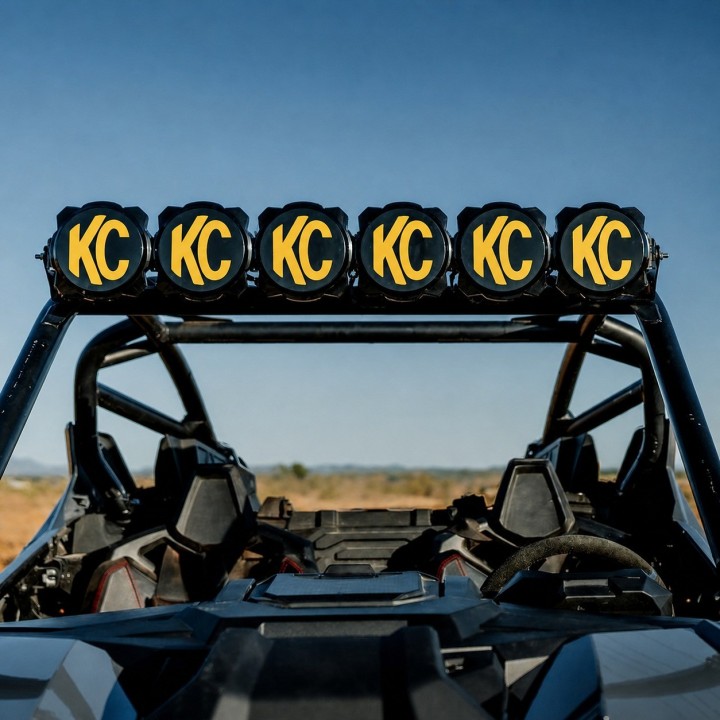

For someone who drives fast after dark and away from tarmac - desert trails, night runs in a convoy, racing. Six lights across 39 inches is a size made for a UTV roof or the bumper of a larger off-road vehicle. KC lists this bar as the light in its overhead package for the Polaris RZR Pro R 2022-2025, in 2 and 4 seat versions. If you want to confirm the size will work on your vehicle, message us - we also run a workshop and fit this kind of equipment ourselves.

Installation and notes

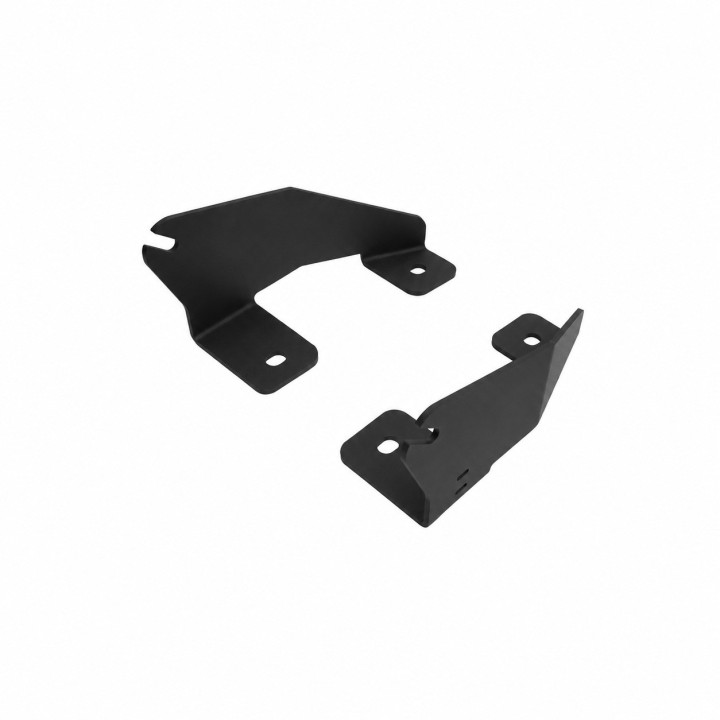

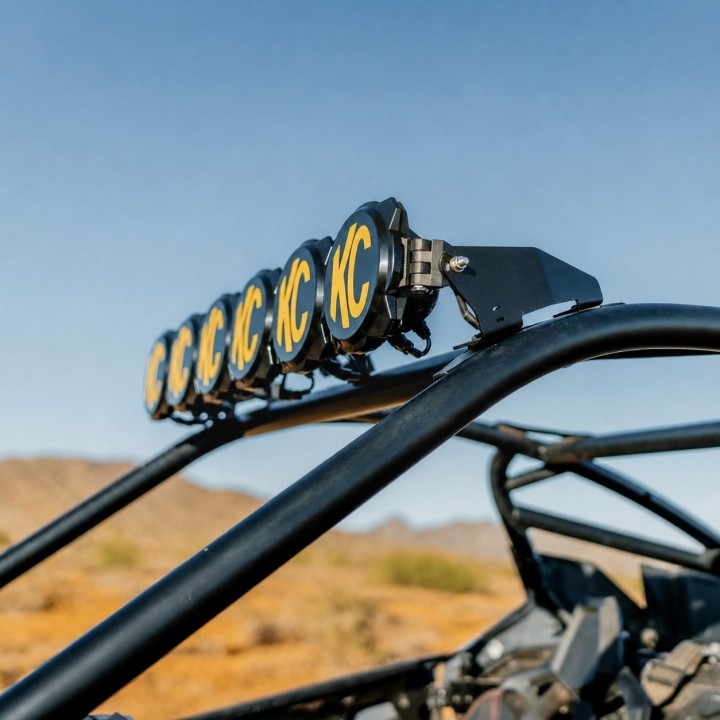

KC lists two mounting positions for this bar: bumper and overhead. The dedicated overhead bracket for the Polaris RZR Pro R 2022-2025 is a separate KC part, number 73427 - stainless steel with a black powder coat, 100% bolt-on with no modifications. KC sells the bar and that bracket together as the "Polaris RZR Pro R Gravity LED Light Bar Bundle". The manufacturer does not state any road homologation for this bar - no SAE, no ECE and no DOT - so in this form it is off-road lighting. Warranty: KC states unlimited lifetime coverage for this product under normal use.

Why it is worth it

• A full set of figures published by the manufacturer - lumens, candela, beam distance and current draw, not multipliers against another series.
• Harness, switch and light covers in the box - the bar is ready to wire in.
• IP68 and a 9-36 V supply, so it is built for water, mud and 24 V systems.

Frequently asked questions

Are the Polaris RZR Pro R brackets included?

Under part number 91416 KC lists the bar itself with covers, harness and hardware. The dedicated overhead bracket for the RZR Pro R is a separate KC part number, 73427.

What beam does this bar produce?

A combo beam. KC quotes 17,832 lm, 732,000 cd and 856 m of beam distance for the complete bar.

Is the bar road homologated?

No. The manufacturer states neither SAE, nor European ECE homologation, nor DOT. In this form the bar is intended for off-road use.

Which electrical system does it suit?

9-36 V. The complete bar draws 19.74 A at 237 W.

What exactly comes in the box?

The 39" Gravity Titan LED bar with six lights, six Gravity 6" light covers in black with the yellow KC logo, a complete Plug-N-Play harness with a 3-position switch and mounting hardware.
