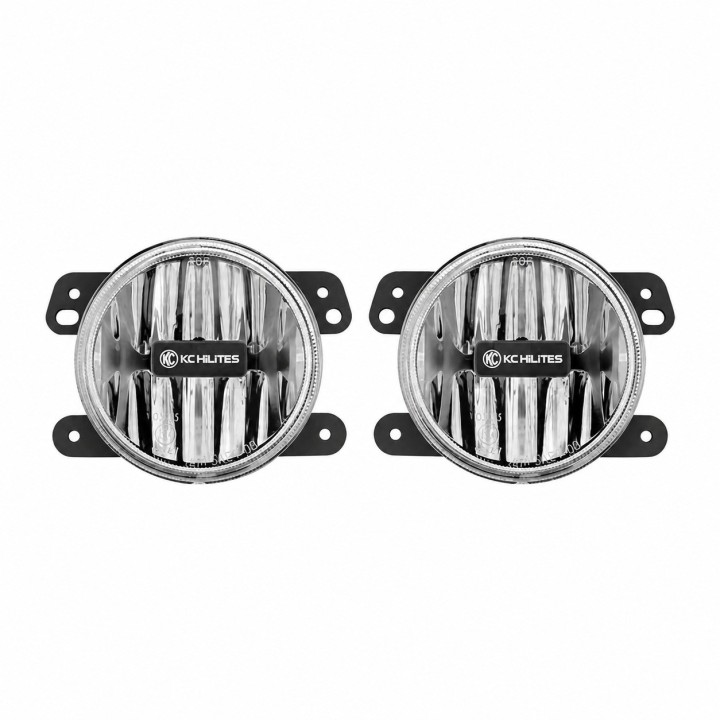

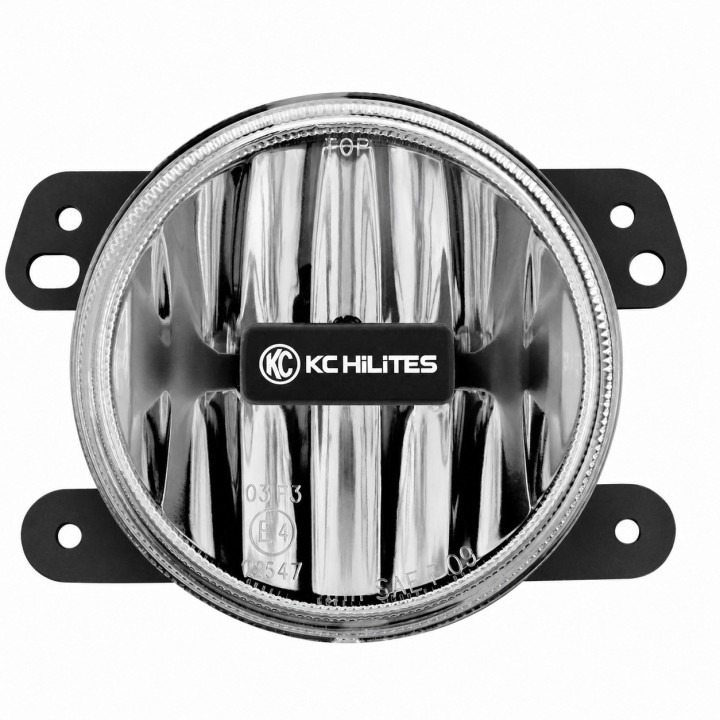

KC HiLiTES Gravity LED G4 4" - Fog Lights for the Jeep Wrangler JK 2010-2018

Fog, kicked up dust and wet snow can kill even a strong driving beam - the higher and further you throw the light, the harder the white wall bounces back at you. A fog beam works the other way round: it lays the light low and wide right in front of the bonnet, so instead of glare you see the edge of the road and whatever is stepping onto it.

This is one of the few KC lights with a dual beam approval: SAE J583 and ECE R19 (Fog). The manufacturer lists both standards in the specification table, and R19 is the UN ECE regulation for front fog lamps - the beam meets European requirements, not just American ones. The kit is made strictly for the Jeep Wrangler JK, model years 2010-2018: the universal adjustable bracket is prepared for the factory location in the JK bumper. KC has separate part numbers for the JL and JT.

Key benefits

• SAE J583 and ECE R19 (Fog) beam approval - the manufacturer lists both standards in the specification table, including the UN ECE regulation for front fog lamps.
• 866 raw lumens per light and 150 lx with a 245 m beam distance - light for the first metres in front of the vehicle, shaped so it does not bounce back off the fog.
• 10 W per light, 20 W for the pair - the Jeep's electrical system will not even notice it.
• Sealed magnesium alloy housing in a black finish - light in weight and effective at moving heat away from the diodes.
• IP68 sealing - fully dust tight and resistant to immersion in water.
• Shatter resistant polycarbonate lens - a stone thrown up by the vehicle ahead is not the end of the light.
• 9-32 V supply range - the lights work properly at cranking and under full alternator load alike.
• Universal adjustable bracket lets you set the aim after the lights are in the factory location in the JK bumper.

What is in the box

• 2 x KC Gravity LED G4 4" fog light, 10 W
• Universal adjustable bracket for factory mounting on the 2010-2018 Jeep JK

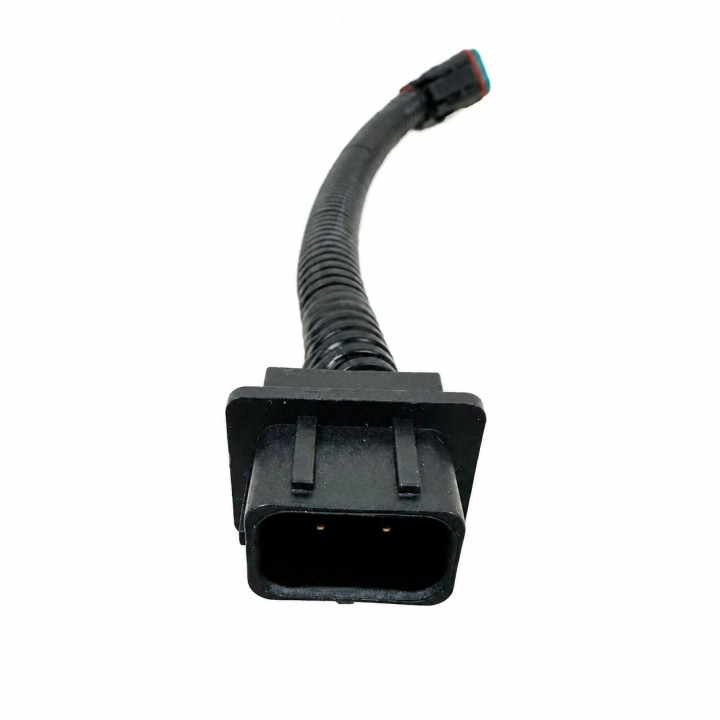

• Deluxe wiring harness with 2-pin weatherproof connectors (per distributor data)
• 30 A LED switch with panel (per distributor data)

Technical data

• Our part number: TXKC 0497
• Manufacturer part number: 0497 (single light version: 1497)
• Series: Gravity LED G4
• Size: 4"
• Beam pattern: fog
• Beam approval: SAE J583 and ECE R19 (Fog)
• Raw lumens: 866 lm per light
• Illuminance: 150 lx per light - the manufacturer does not state the measuring distance
• Beam distance: 245 m
• Power: 10 W per light, 20 W for the pair
• Current draw: 0.74 A per light (per distributor data; the manufacturer states power only)
• Supply voltage: 9-32 V
• Light source: CREE LEDs
• Ingress protection: IP68
• Housing material: magnesium alloy, black finish, sealed housing
• Lens: shatter resistant polycarbonate, clear
• Light dimensions: W 3.94" x H 3.94" x D 3.44" (10.0 x 10.0 x 8.7 cm)
• Mounting location: factory socket in the Jeep Wrangler JK 2010-2018 bumper
• Fitment: Jeep Wrangler JK 2010-2018; does not fit the Jeep Hard Rock Edition bumper

Who it is for

This kit is for the driver of a 2010-2018 Wrangler JK who uses the vehicle all year: morning fog over the fields, dust on gravel behind another car, wet snow hitting the screen. The fog beam fills the area where the low beam is already aimed too high and the driving beam only makes things worse. It also works at low speed off-road when you want to see the rut and the edge of the trail right in front of the bumper.

Installation and notes

The KC bracket bolts into the factory location in the bumper of the 2010-2018 Jeep JK, and the adjustment lets you fine tune the aim after the first night drive. Important: the manufacturer states the kit does not fit the Jeep Hard Rock Edition bumper, and KC has separate part numbers for the Wrangler JL and Gladiator JT - this kit does not fit them. KC HiLiTES covers its products under the Unlimited Lifetime Warranty programme. Per the manufacturer's terms the programme applies to purchases made after 31 August 2025, requires the product to be registered within 60 days of purchase and is fully transferable to the next owner. The manufacturer excludes, among other things, cosmetic damage, incorrect installation, neglect, normal wear and the effects of extreme events, and requires the purchase to come from an authorised sales channel. Statutory rights under Polish consumer law apply on top of the manufacturer's warranty. If you are not sure which bumper your vehicle has, message us or drop by the shop - Szekla4x4.pl is also an off-road workshop, so we can check it on the spot before you buy.

Why it is worth it

• A fog beam approved to SAE J583 and ECE R19 rather than a stopgap for the annual inspection - a rarity among US off-road lights.
• Magnesium housing rated IP68 and a polycarbonate lens - built for mud, pressure washing and winter.
• A complete kit rather than a collection of parts: lights, adjustable bracket, harness and switch in one box.
• 20 W for the pair, so there is no need to rebuild the electrical system or add a heavy duty relay.

Frequently asked questions

Which Jeep does this kit fit?

The Jeep Wrangler JK, model years 2010-2018. The manufacturer states that range unambiguously and the bracket is prepared for the factory location in the JK bumper. KC has separate part numbers for the Wrangler JL and Gladiator JT - this kit does not fit them. It also does not fit the Jeep Hard Rock Edition bumper.

Do these lights carry European approval?

Yes. The manufacturer's specification table reads "SAE J583, ECE R19 (Fog)", so alongside the American standard it lists UN ECE Regulation 19 for front fog lamps. This is the only product in this KC group for which the manufacturer declares compliance with European requirements.

Do I need to buy the harness and switch separately?

Per distributor data no - the kit includes a Deluxe harness with 2-pin weatherproof connectors and a 30 A LED switch with a panel. The manufacturer does not publish a full box contents list for this product, so if the wiring matters to you, confirm it with us before buying.

How much current do these lights draw?

The manufacturer states 10 W per light and 20 W for the pair at a supply voltage of 9-32 V. The distributor additionally states a draw of 0.74 A per light.

Can the aim be adjusted after installation?

Yes. The universal adjustable KC bracket lets you set the lights once they are mounted so both aim evenly.
