KC HiLiTES Overhead Mounts for a 50" Light Bar - Ford Bronco 2021+

Ford left factory mounting points above the Bronco windscreen and these brackets simply use them - you bolt into the spot the engineers planned for, instead of improvising on the roof rails or drilling the windscreen frame.

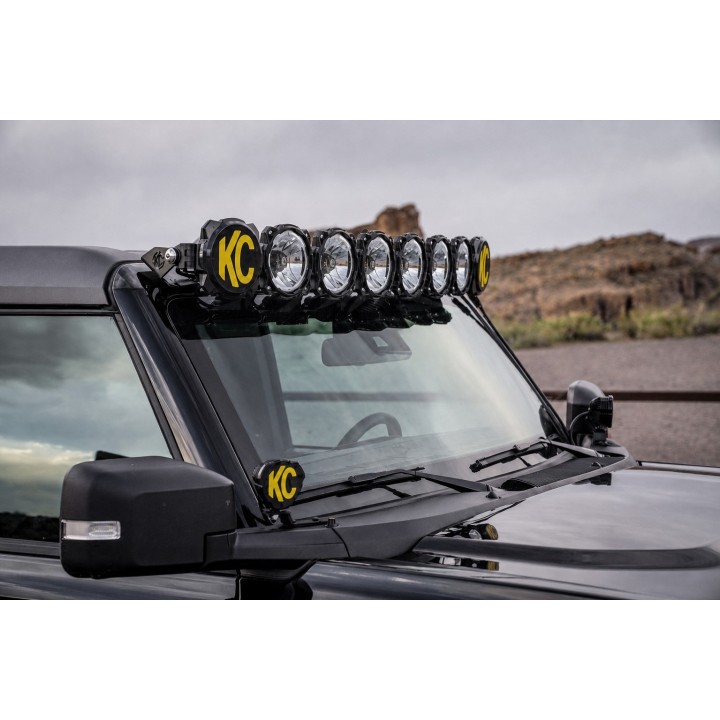

The kit hangs a curved 50" Gravity Titan or Pro6 bar above the windscreen of a 2021 and newer Ford Bronco. The brackets are heavy 5-gauge steel in textured black powder coat, and the install is 100% bolt-on with no drilling and no bodywork modification. They work with the factory hard top and the soft top. These are brackets only - the bar is sold separately.

Key benefits

• 100% bolt-on into the factory bolt location - no drilling and no bodywork modification, stated by KC outright.
• Heavy 5-gauge steel in textured black powder coat - holding a 50-inch bar above the windscreen is a question of bracket stiffness, and the finish lives in a spot permanently exposed to water and road salt.
• Factory hard top and soft top - KC confirms both roof versions, so you do not have to choose between roof and lighting.
• Matched to curved KC bars - the bracket is made for 50" Gravity Titan and Pro6 bars in their curved form.
• Sold as a pair - driver-side and passenger-side bracket plus an installation guide.

What is in the box

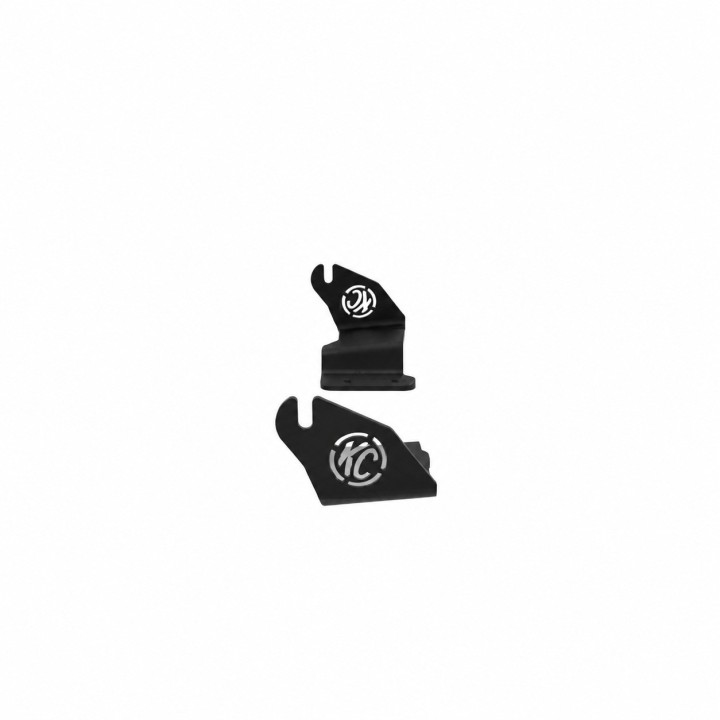

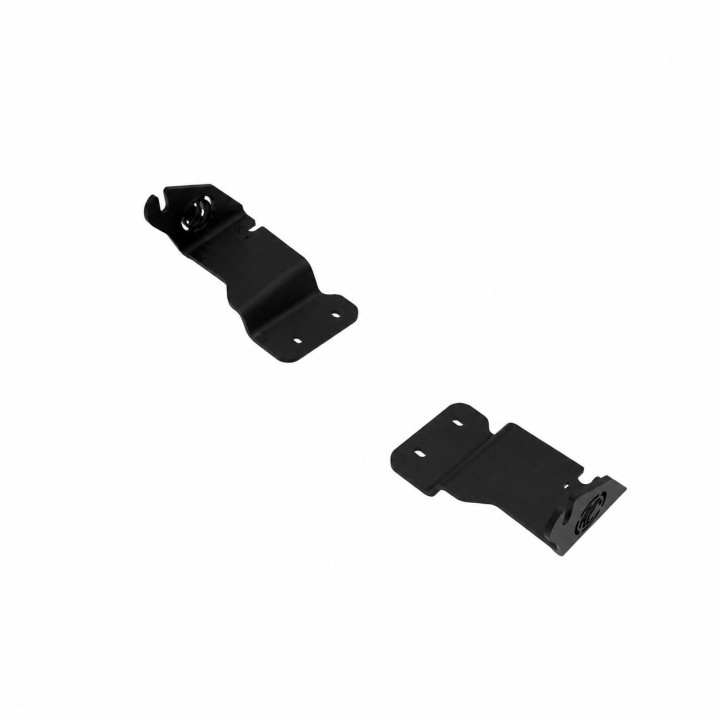

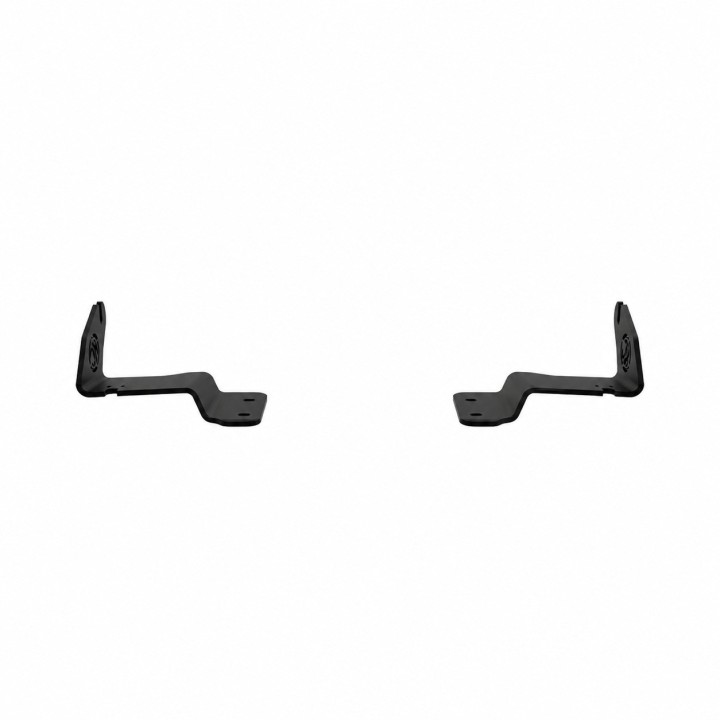

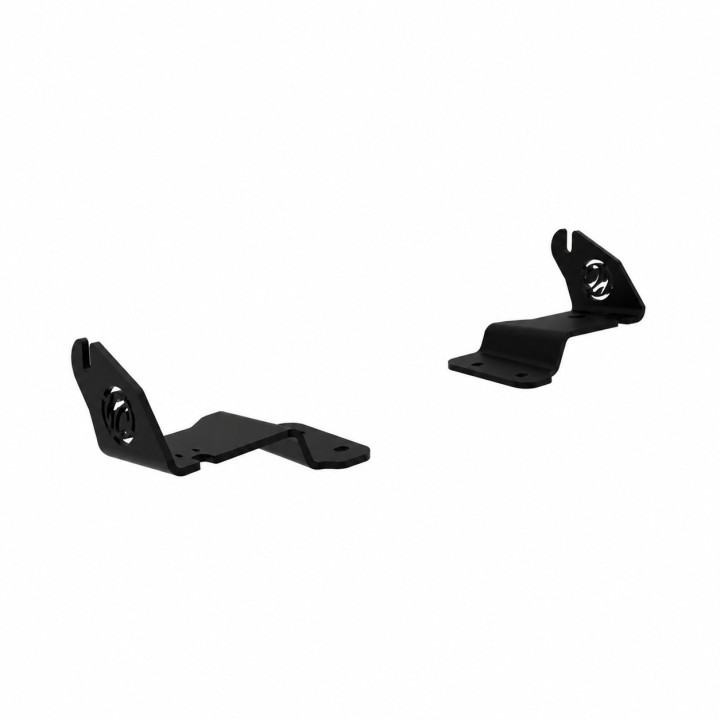

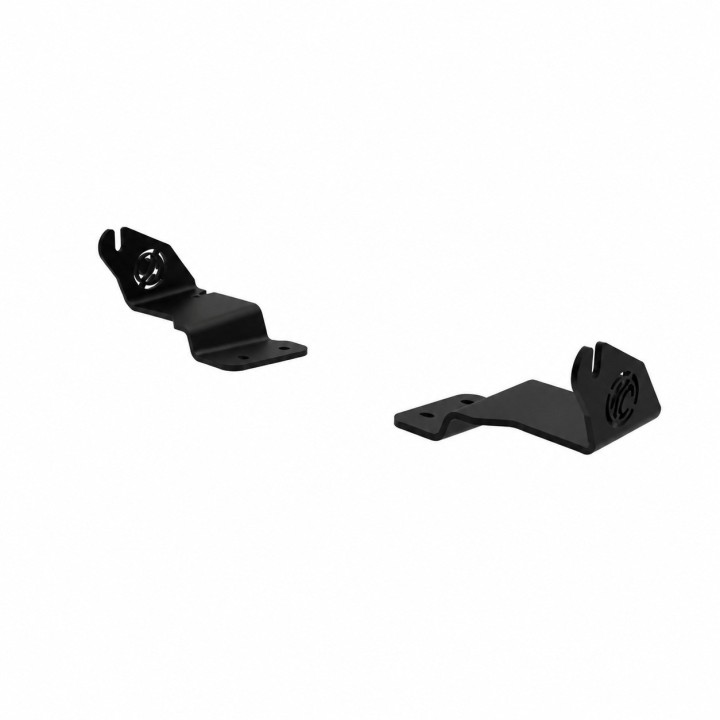

• 1 x pair of Ford Bronco overhead light bar brackets (driver and passenger side)
• Installation guide

Technical data

• Manufacturer part number: 7332 (UPC 084709073329)
• Type: overhead brackets, mounted above the windscreen
• Vehicle: Ford Bronco, 2021 and newer
• Light bar size: 50"
• Material: 5-gauge steel
• Finish: textured black powder coat
• Compatible bars: 50" Gravity Titan / Pro6 LED - curved versions only
• Not compatible: 50" C-Series C50 LED light bar (SKU 338)
• Roof compatibility: factory hard top and soft top
• Installation: 100% bolt-on into the factory bolt location, no drilling or modification
• Supplied: pair of brackets, sold as a set
• Weight: 3.35 lbs (1.5 kg)

Who it is for

For the Bronco owner who wants proper long-range light for night work in the terrain without paying for it with holes in the body. An overhead bar throws light over the bonnet and picks up no shadow from the front of the vehicle, and the whole setup can come off before a sale or a lease return. Wondering which bar to run? Message us - we also run an off-road workshop.

Installation and notes

The brackets bolt directly into the factory bolt locations - no drilling and no bodywork modification; the guide is in the box. KC specifies that the 50" bar must be curved: Gravity Titan and Pro6 bars in curved form work on these brackets, while the C-Series C50 bar (SKU 338) does not. The same brackets form part of KC's ready-made AK-91425 kit together with the 8-light 50" Gravity Titan bar (SKU 91418). This part does not include the lights. KC refers to its Adventure Further lifetime guarantee for this product but does not publish the full terms on the product page.

Why it is worth it

• Uses the factory mounting points instead of a clamp-on improvisation.
• 5-gauge powder-coated steel - built to carry a full-length 50" bar.
• A reversible install, with no new holes in the bodywork.

Frequently asked questions

Are the lights included?

No. The box contains the pair of brackets and an installation guide. The LED bar is bought separately.

Does fitting require drilling?

No. KC states a 100% bolt-on design into the factory bolt location, with no drilling or modification.

Which 50" bar fits these brackets?

50" Gravity Titan and Pro6 LED bars in their curved form. KC states outright that the C-Series C50 bar (SKU 338) does not fit these brackets.

Do they fit a Bronco with a soft top?

Yes. KC lists compatibility with the factory hard top and the soft top.

How much do they weigh?

KC states 3.35 lbs (1.5 kg) for the set.
