8-Circuit Light Control Panel TXALO JC02 — Touch Switches, 12-24 V
A universal lighting control panel for eight independent circuits. Touch switches with blue LED backlighting, 12-24 V DC supply, 60 A maximum total current and 30 A per relay. The kit contains the panel, the relay control box, instructions, switch decals and mounting hardware.
8-Circuit Light Control Panel — TXALO JC02
Once a vehicle gains an LED bar, driving lamps, work lighting and a compressor, the cabin turns into a forest of random switches. A control panel settles that once: eight circuits, one box of relays and fuses, one connection to the battery.
The TXALO JC02 is a touch panel with blue backlighting, working on both 12 V and 24 V systems. Control is separated from power — the buttons switch relays in a separate box.
Circuits 8, each with its own relay | Supply 12-24 V DC | Current up to 60 A total, 30 A per relay |
Key features
- Eight independent circuits with relays and fuses
- Touch On/Off panel with blue LED backlighting
- Switch decals included — you label the circuits your own way

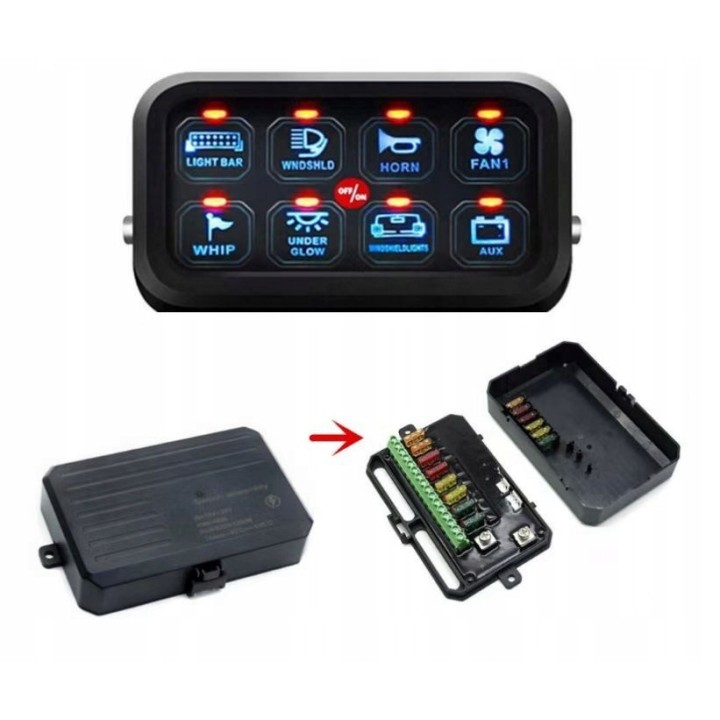

- In the photo: the box with a terminal strip, relays and colour-coded blade fuses
Technical data
- Supplier catalogue number: TXALO JC02
- Input voltage: 12-24 V DC
- Circuits and relays: 8
- Maximum power: 600-1200 W
- Maximum total current: 60 A; per relay: 30 A (20 A fuse fitted)
- Panel dimensions: 115 x 15 x 66 mm; control box: 190 x 34 x 105 mm
- Contents: panel, control box, wiring instructions, switch decals, mounting hardware
Fitting and notes
The control box mounts close to the battery, the panel within the driver's reach, with a thin control lead between them. The supplier includes instructions and mounting hardware.
Mind the loads. Each circuit has a 30 A relay with a 20 A fuse, and the panel takes up to 60 A in total. The supplier gives neither the supply cable cross-section nor an ingress rating for the box.
Frequently asked questions
Does the panel work on a 24 V system?
Yes. The supplier states an input voltage of 12-24 V DC.
Can the buttons be labelled with my own symbols?
Yes — switch decals are included so you can label the circuits to suit your own layout.
What ingress rating does the control box have?
The supplier gives no IP rating. For an engine bay installation, ask the seller.
