Windshield Mount for a 50-inch LED Bar with Spotlight Tabs - Jeep Wrangler TJ 1997-2006
A pair of steel brackets for a 50-inch LED light bar above the windscreen of a Jeep Wrangler TJ, 1997-2006, with additional lower mounting tabs for spotlights. Textured powder coating in black, bolted into the factory holes in the cowl. The spacing suits the TX-CM 51288, THLB 2288 and THBCS 1240 bars and similar.
Windshield Mount for a 50-inch LED Bar with Spotlight Tabs - Jeep Wrangler TJ 1997-2006
A pair of steel brackets for a 50-inch LED light bar above the windscreen of a Jeep Wrangler TJ. This is the extended version: besides the console for the long bar it has additional mounting points lower down where spotlights can be hung. One mount therefore serves both the bar and two smaller lights.

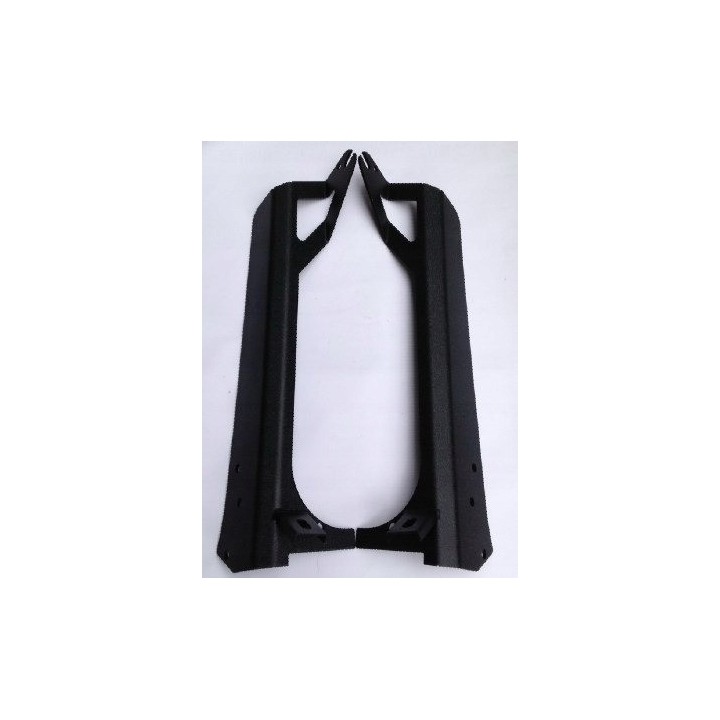

The photo shows the pair facing each other: narrow consoles with light bar holes at the top, side arms with mounting holes, and flat tabs with rectangular cut-outs at the bottom - those are the spotlight points. The surface is black and matt with the texture of powder coating.
Model Jeep Wrangler TJ, 1997-2006 | Lights 50-inch bar plus spotlights | Material steel, powder coated |
Key features
- Two mounting levels - the 50-inch bar on top, spotlights on the lower tabs.
- Bolts into factory cowl holes - no drilling in the bodywork.
- Textured powder coating, black.
- Spacing for 50-inch bars named by the supplier: TX-CM 51288, THLB 2288, THBCS 1240.
Technical data
- Part number: TXJ 128
- Application: Jeep Wrangler TJ, 1997-2006
- Material: steel
- Finish: textured powder coating, black
- The supplier states no hole spacing in millimetres, no bracket dimensions and no weight
Fitting and notes
The brackets bolt into the factory holes in the cowl, with no drilling in the bodywork. Neither the bar nor the spotlights are part of the set. The supplier does not say whether bolts are included and gives no dimensions for the lower tabs, so with specific spotlights it pays to check the hole spacing first. The 6 kg figure on the listing is the distributor's shipping weight, not the weight of the set.
Frequently asked questions
Are the lights included?
No. This is the mount only - neither the bar nor the spotlights are part of the set.
Which spotlights fit the lower tabs?
The supplier does not specify. It only states that the lower mounts are intended for spotlights, with no hole dimensions.
Do I have to drill?
No, the brackets go into the factory holes in the cowl.
