DRL Grille Ford Ranger T9 2022+ — ABS, Gloss Black, DRL with Indicator
A radiator grille with built-in DRL lighting for the Ford Ranger T9 from 2022. Made from ABS in gloss black. The lights in the grille's end sections run white and switch to amber when the indicator is used. The Ford badge is carried over from the original grille.
DRL Grille — Ford Ranger T9 2022+
A radiator grille with integrated lighting for the Ford Ranger T9. It swaps the factory grille for a gloss black mesh and adds two light strips in the outer ends.
The supplier lists the Wildtrak, Limited, XLT, XL and Platinum trims. The grille does not fit the Wildtrak X, which has factory lamps at the sides of the grille. Check your front end before ordering.
Fits Ford Ranger T9 2022+ (Wildtrak, Limited, XLT, XL, Platinum) | Material and colour ABS, gloss black | Lighting White DRL, amber with the indicator |
Key features
- Daytime running lights in both end sections, wired to the indicator — they turn amber when it flashes
- ABS construction, gloss black finish

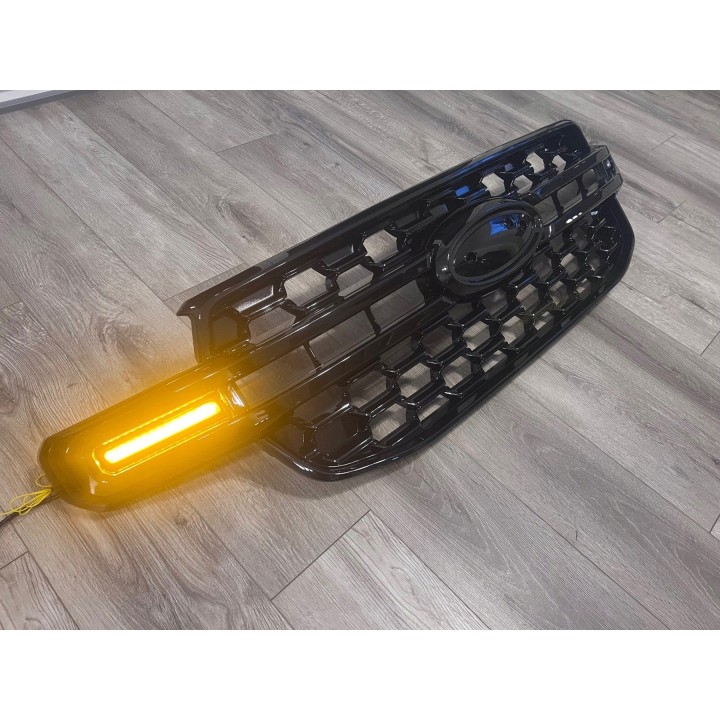

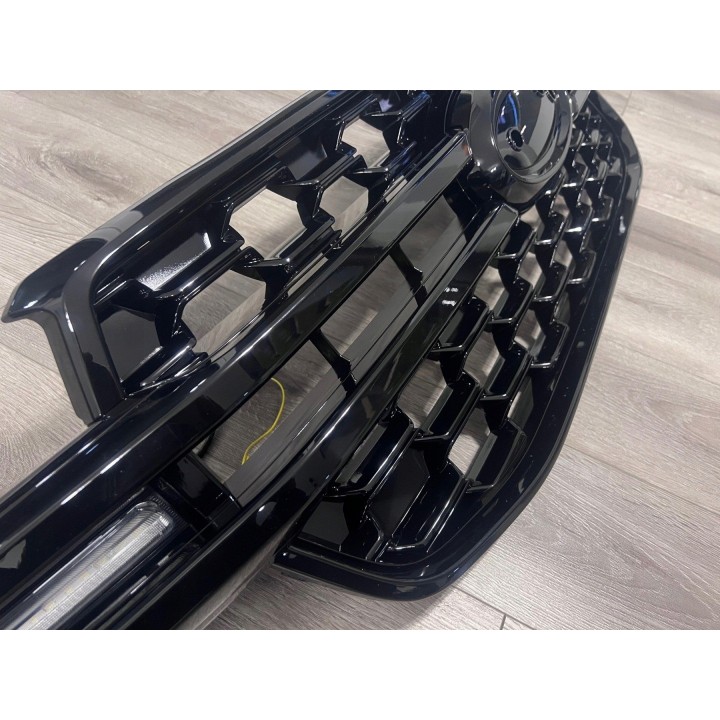

- In the photo: a dense honeycomb mesh, a ready recess for the Ford badge and a power lead routed out on the lamp side
- The manufacturer badge is not included — carry it over from the original grille
Technical data
- Supplier catalogue number: TXT9 001-0
- Application: Ford Ranger T9, model years 2022+
- Material: ABS plastic
- Colour: gloss black
- Lighting: white DRL with an amber indicator function
Fitting and notes
Swapping the grille means removing the factory panel and carrying the badge over. The lighting adds a step: the DRL needs a power feed and the indicator function needs a signal from the vehicle wiring. The supplier provides no wiring diagram, so plan this with an auto electrician — the Ranger T9 runs on a CAN bus.
The supplier does not state any E/ECE approval for the lighting in this grille. Before registration or a roadworthiness test, establish whether the vehicle will pass with it fitted — ask about this before you install it.
Frequently asked questions
Does it fit the Wildtrak X?
No. The supplier explicitly excludes the Wildtrak X with lamps at the sides of the grille.
Is the Ford badge included?
No. It has to be carried over from the factory grille.
Is the lighting road-approved?
The supplier states no E/ECE approval. That has to be established before a roadworthiness test — do not treat this grille as an approved lighting part.
