Rear Lamps
LED Combination Lamp — Tail, Brake, Indicator, 10–30 V
LED rear combination lamp with three functions: tail, brake and indicator. It runs 10 red and 7 amber SMD LEDs on a 10–30 V supply, covering both 12 V and 24 V systems. IP69 rated, operating range -30 to +65 °C, dimensions 94.5 x 94.5 x 31.3 mm. The supplier declares E4 approval.
LED Combination Lamp — Tail, Brake, Indicator, 10–30 V
A rear combination lamp with three functions in one housing: tail light, brake light and indicator. The supplier classes it with lamps for machinery, forklifts and trailers, and the 10–30 V supply range covers both 12 V and 24 V systems.
Inside it runs 10 red and 7 amber SMD LEDs. The photo shows a round clear lens with evenly spaced LEDs and two mounting holes at the sides of the housing — the light colour comes from the LED itself, not from a tinted lens.
Functions Tail, brake, indicator | Supply voltage 10–30 V | Ingress protection IP69 |
Key features
- Three lighting functions in one lamp
- 10 red and 7 amber SMD LEDs
- IP69 rating — covers cleaning with a high-pressure water jet
- Operating temperature range from -30 to +65 °C
- The supplier declares E4 road approval
Specifications
- LEDs: 10 x red SMD, 7 x amber SMD
- Supply voltage: 10–30 V
- Operating temperature: -30 to +65 °C

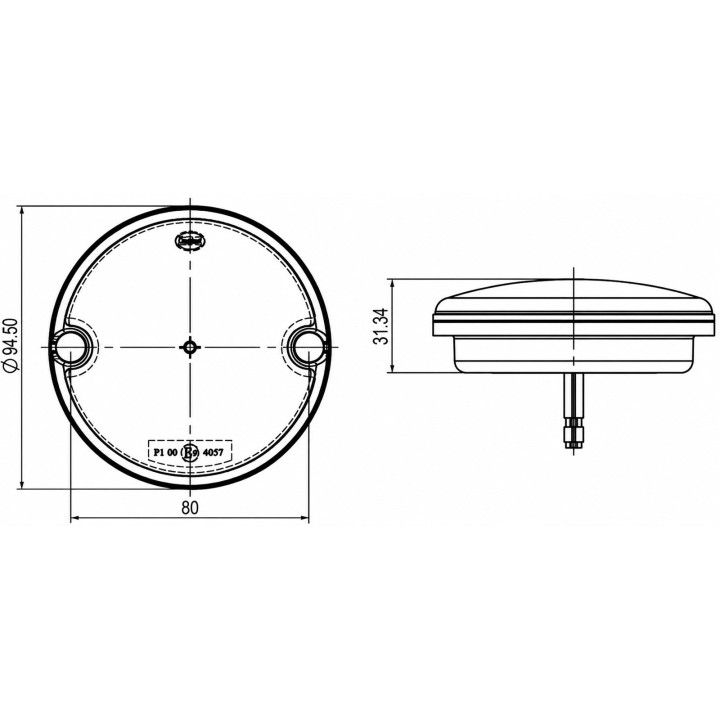

- Dimensions: 94.5 x 94.5 x 31.3 mm
- Ingress protection: IP69
- Approval per supplier: E4
- Supplier part number: TXE 40C2-RA
Fitting and notes
In the photo the housing has two mounting holes at the sides of the lens, so the lamp bolts straight to a frame or panel. The supplier does not state how it is wired — whether it has flying leads or a connector — nor the cable length. It declares E4 approval but without an approval number; for a road-registered vehicle, contact us and we will ask the supplier for the document. Bear in mind too that a combination lamp on its own does not replace a number plate light or reflectors where the regulations require them.
Frequently asked questions
Will the lamp work on a 24 V system?
Yes. The 10–30 V range covers both 12 V and 24 V, so it suits a trailer, a forklift and a machine.
Why is the lens clear?
Because the colour comes from the LEDs, not the lens: ten LEDs shine red (tail and brake), seven amber (indicator).
Are leads and a gasket included?
The supplier does not state what is in the box. Contact us before ordering — we will check exactly what is supplied.
