LED Driving Light 23 W with DRL and indicator
Square LED light with a driving beam and a second 8 W circuit that the supplier intends as a white DRL or an amber indicator. Rated 23 W, 1600 lm of real output, 6000 K colour temperature and a 10-30 V supply. Aluminium housing, mineral glass and IP69K sealing, mounted on a U-bracket with a stud.
LED Driving Light 23 W with DRL and indicator
The variant of the TXCM 2033 family whose secondary circuit works differently from the others: instead of a red parking light the supplier intends a white DRL. Plus, as across the whole family, an amber indicator.

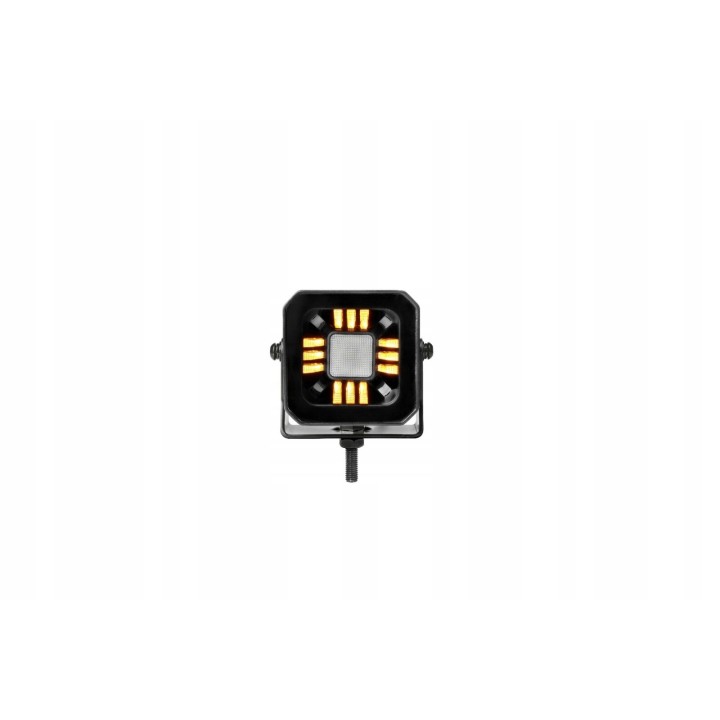

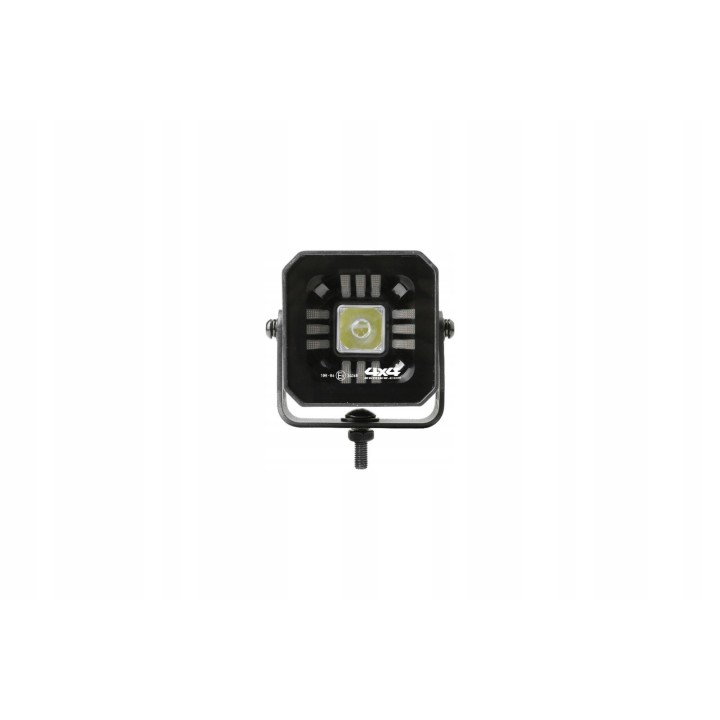

The photo shows a square housing with a central lens surrounded by secondary light segments, a U-bracket with a stud, and the marking 10R-06 E9 24068 applied to the bezel.
Power 23 W + 8 W | Output 1600 lm real | Secondary function DRL or indicator |
Key features
- Driving beam as the main function
- Second 8 W circuit: white DRL or amber indicator
- Aluminium housing and mineral glass instead of plastic
- U-bracket mount with a stud (as pictured)
Technical data
- Power: 23 W (main beam) + 8 W (secondary function)
- LED: SMD
- Supply: 10-30 V
- Output: 1600 lm real, 2000 lm effective
- Colour temperature: 6000 K
- Housing: aluminium, lens: mineral glass
- Protection: IP69K
Approval — read this carefully
The supplier quotes "E9 / ECE-R10 approval", and the photo shows the marking 10R-06 E9 24068 on the bezel. ECE Regulation 10 covers the electromagnetic compatibility of the device, not the approval of a lighting function. No approval of the lighting function itself — driving beam, DRL or indicator — is stated. That has to be settled before registration or a technical inspection. We do not claim the light is road legal, nor that it is not.
Frequently asked questions
How does it differ from the WFL and SP versions?
In the secondary function. Here the second circuit is a white DRL; on WFL and SP it is a red parking light. The indicator is on every version.
Is this a long-range light?
The supplier classes the beam as a driving beam but states no reach and no lux figure. If you need numbers, ask us and we will clarify with the supplier.
What does 10R-06 E9 24068 on the housing mean?
It is an approval mark under Regulation 10 (electromagnetic compatibility) granted by Spain (E9). It is not an approval of a lighting function.
