LED Flood Light 23 W with parking light and indicator

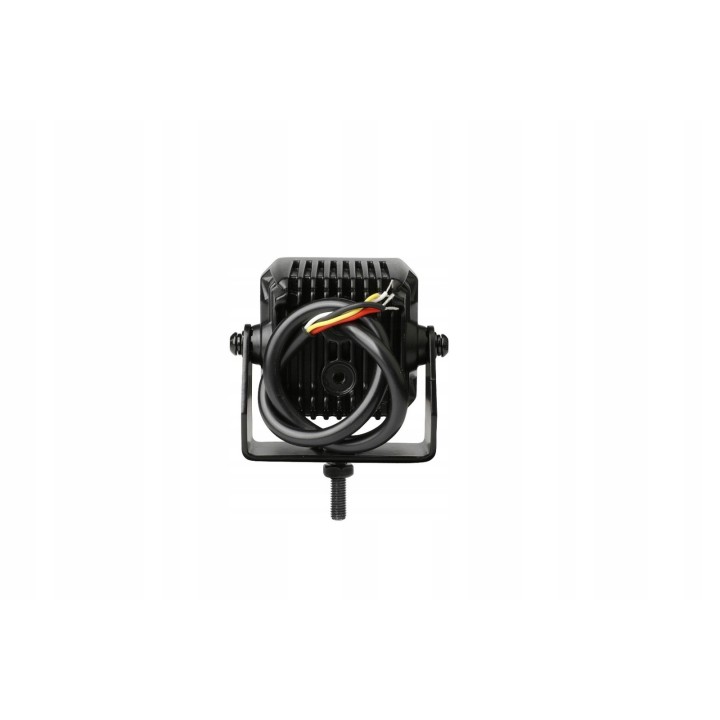

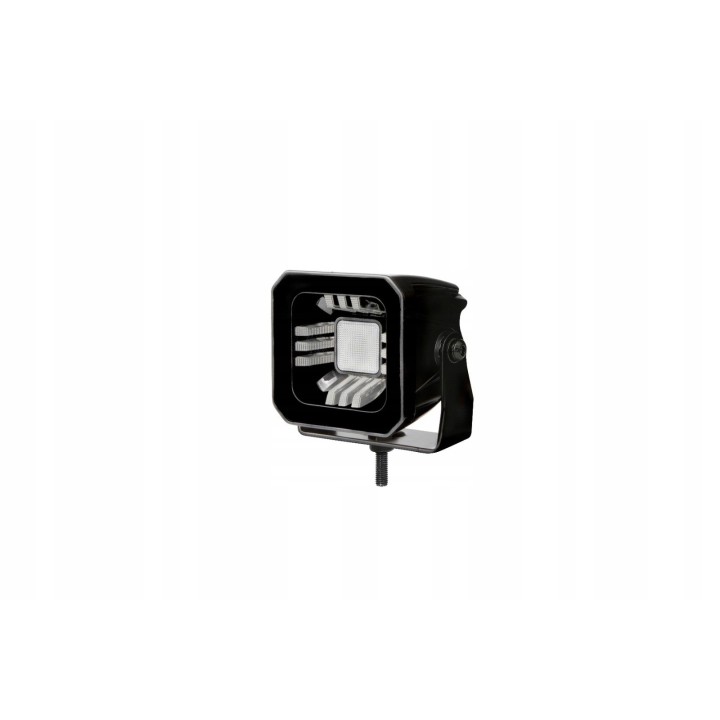

The basic version of the TXCM 2033 family: a flood beam on a classic bracket. The photo shows a U-shaped mount with a threaded stud underneath — you bolt it to a hoop, bumper or rack, with no hole to cut in the panel.

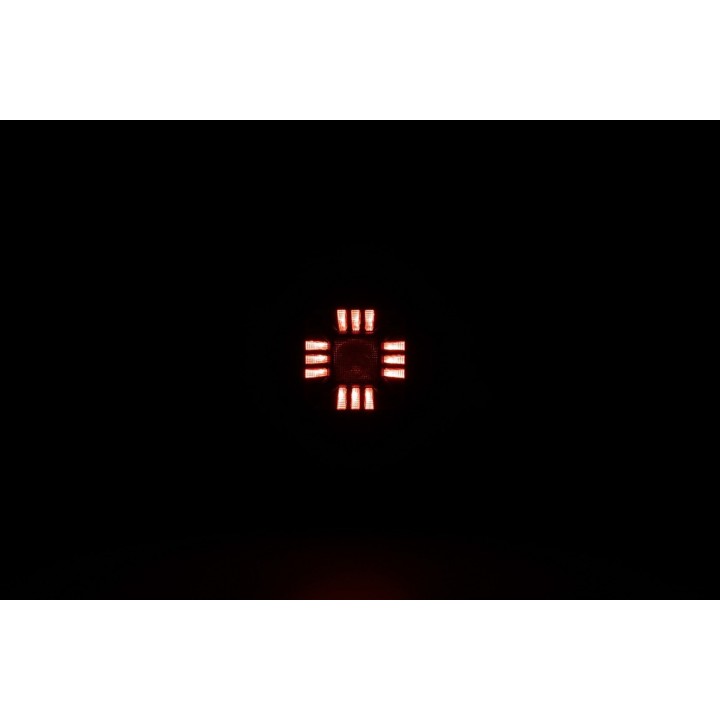

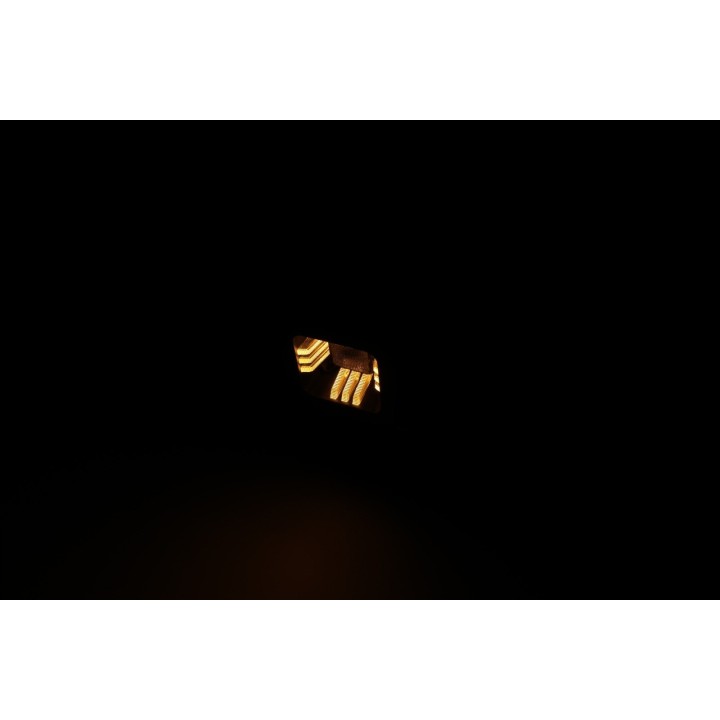

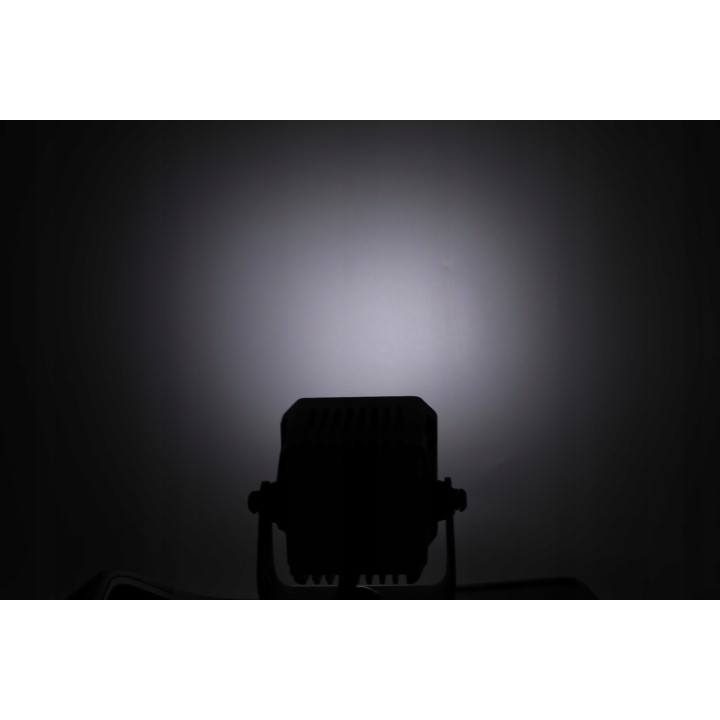

Flood means wide and close: the light lays down beside the vehicle instead of reaching into the distance. The supplier intends the second 8 W circuit as a red parking light or an amber indicator.

Key features

• Flood beam: wide spread light close to the vehicle
• Second 8 W circuit: red parking light or amber indicator
• Aluminium housing and mineral glass instead of plastic
• U-bracket mount with a stud (as pictured)

Technical data

• Power: 23 W (main beam) + 8 W (secondary function)
• LED: SMD
• Supply: 10-30 V
• Output: 1600 lm real, 2000 lm effective
• Colour temperature: 6000 K
• Housing: aluminium, lens: mineral glass
• Protection: IP69K

Approval — read this carefully

The supplier quotes "E9 / ECE-R10 approval". ECE Regulation 10 covers the electromagnetic compatibility of the device, not the approval of a lighting function. No approval of the lighting function itself is stated — neither for the main beam nor for the secondary one. That has to be settled before registration or a technical inspection. We do not claim the light is road legal, nor that it is not.

Frequently asked questions

How does it differ from the WZFL version?

In the mount. WFL has a U-bracket, WZFL is the flush mount version. The flood pattern and the electrical data are the same.

And how does it differ from the SP version?

In the beam pattern. SP throws a narrow beam far ahead, WFL throws wide and close.

Does IP69K matter in practice?

It does if you pressure wash the vehicle or wade. It is the highest sealing class the supplier quotes.
