LED Corner Marker Light 15 W, Aluminium, IP67/IP69K
A compact 15 W LED light in a corner housing, for mounting in the corner of a canopy, trailer or roof rack. The SMD diode gives a flood beam, the housing is aluminium, and sealing is declared at IP67 and IP69K. The 10–30 V supply covers both 12 V and 24 V systems.
LED Corner Marker Light 15 W, Aluminium Housing
A compact light in a corner-shaped housing, designed to sit in the corner of a canopy, trailer or roof rack. The supplier lists the applications: trailers, campers, roof racks and canopies, plus builds for emergency and rescue services.

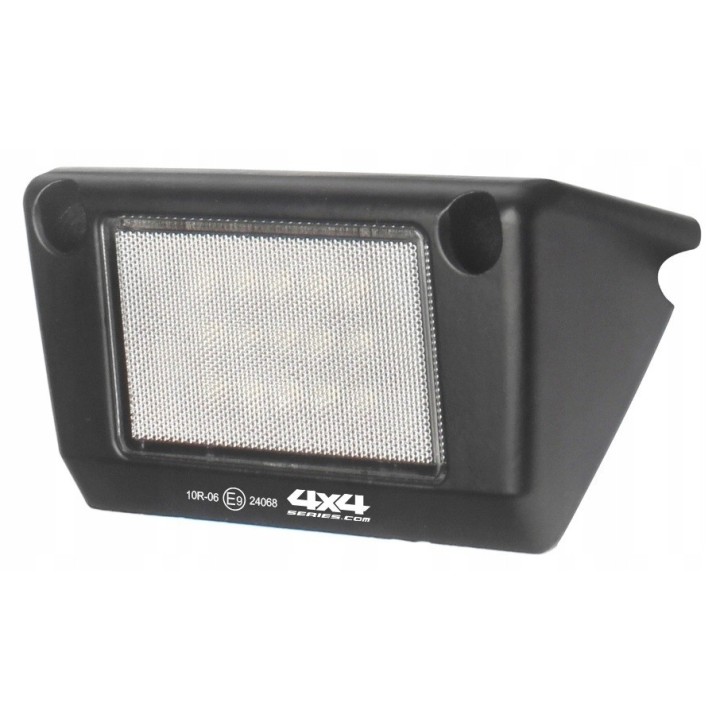

The SMD diode gives flood light rather than a spot beam — it lights the space around the vehicle, not the road ahead. The housing is aluminium with a gasket under the mount, and sealing is declared at IP67 and IP69K. The photo shows the marking 10R-06 E9 24068 on the housing.
Power 15 W | Voltage 10–30 V | Sealing IP67 / IP69K |
Key features
- Corner housing — fits into the corner of a canopy, trailer or rack
- Flood light from an SMD diode
- Aluminium housing, gasket under the mount
- IP67 and IP69K sealing — including pressure washing
- Wide 10–30 V range (12 V and 24 V systems)
Technical data
- Power: 15 W
- Light source: SMD diode, flood beam
- Supply voltage: 10–30 V
- Housing material: aluminium
- Mounting: gasket
- Sealing: IP67, IP69K
- Approval quoted by the supplier: ECE-R10
Fitting and notes
A warning about approval: the supplier writes E8, while the housing in the photo is marked E9 with number 10R-06. On top of that, ECE-R10 covers electromagnetic compatibility, not a lighting function — the supplier does not state which lighting regulation (R23, R65 or other) this lamp falls under, nor what function it performs under road rules. Clear this up before registration or a roadworthiness test if the lamp is to be used on public roads. The supplier also refers to a dimension drawing on the "last photo", which was not supplied.
Frequently asked questions
Is this a road-approved lamp?
The supplier quotes ECE-R10, which is EMC, and an E8 approval — while the housing photo shows E9. No lighting regulation is given. This has to be cleared up before road use.
Will it work on a 24 V system?
Yes, the supply range is 10–30 V, which covers both 12 V and 24 V.
What are its dimensions?
The supplier refers to a dimension photo that is not in the material provided. Dimensions to be confirmed.
