KC HiLiTES SlimLite 8" Light Kit — Dodge Ram 1500 Rebel / TRX 2019+

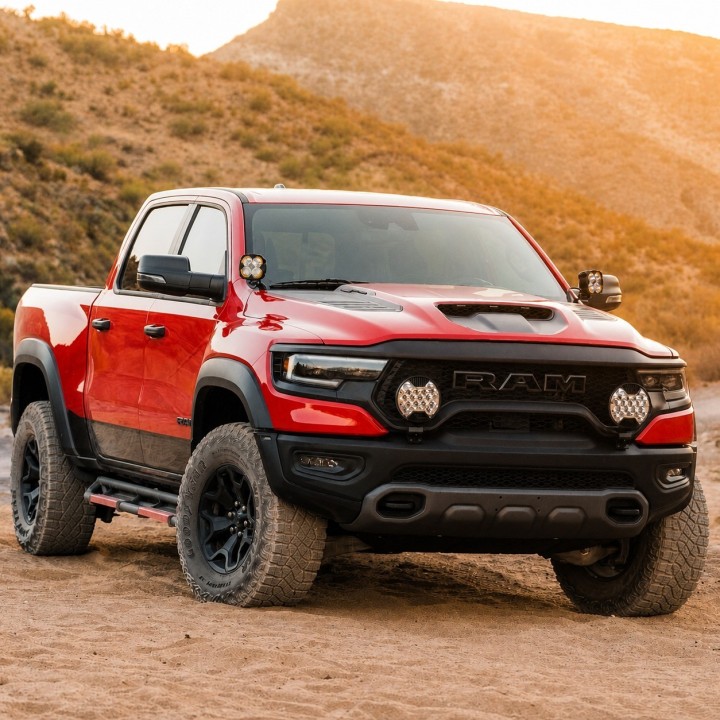

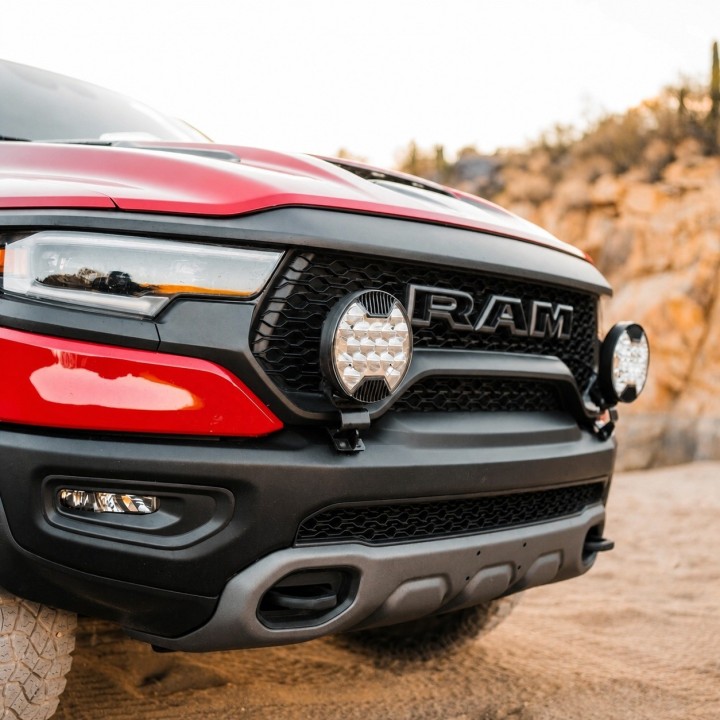

A pair of round KC HiLiTES SlimLite 8" long-range lights with mounting matched to the bumper of the Dodge Ram 1500 Rebel and TRX from 2019 on. No improvising with universal brackets — the kit arrives with mounts for that specific bumper.

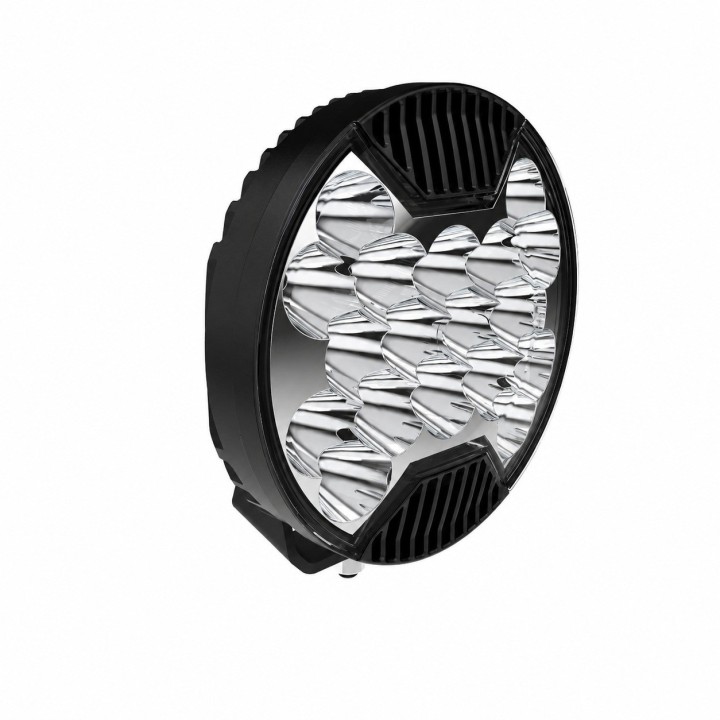

SlimLite is the series in which KC packed full-size output into a very shallow housing. The photo shows a black cast aluminium body with deep fins at the back and a clear lens with reflector chambers across its whole face. The connector is built into the housing and sealed with MoistureBlock technology.

Key features

• Mounting matched to the Ram 1500 Rebel / TRX 2019+ bumper
• Long-range spot beam, 5000 K colour
• Shallow cast aluminium housing with a deep heat sink
• Polycarbonate lens and a MoistureBlock connector
• KC logo covers included

Technical data

• Series: KC HiLiTES SlimLite, 8" size
• Total power: 138 W
• Output: 12,384 lm (the supplier does not say whether per light or per pair)
• Illuminance: 6200 lx; beam distance: 787.4 m
• Voltage: 10.5–36 V
• Colour temperature: 5000 K, white light, clear lens
• Light dimensions: 8.00 x 8.46 x 3.67 in
• Material: aluminium alloy, black
• Ingress protection: IP66
• SAE/ECE approval: none (per supplier data)

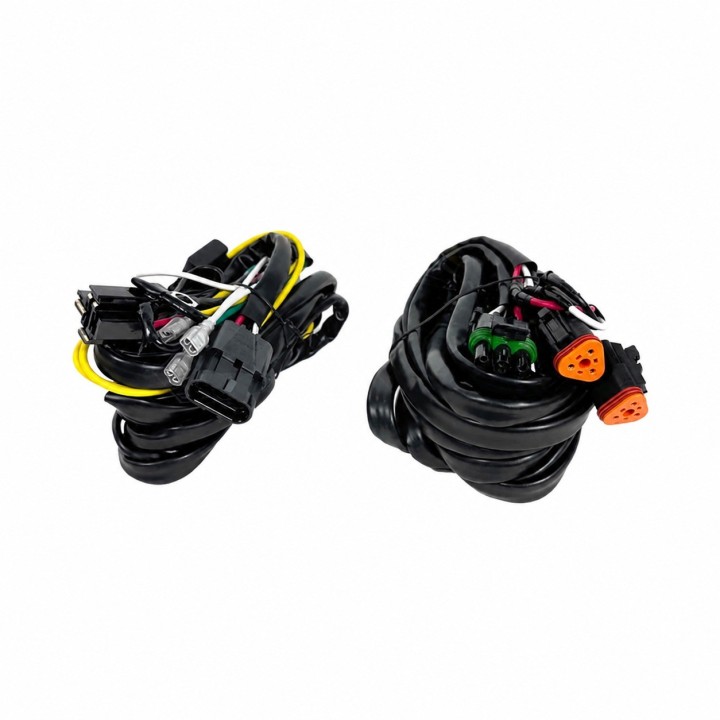

• In the box: 2 x SlimLite 8" lights, 2 x covers, mounting hardware, bumper mount, KC 6321 harness

Fitting and notes

The supplier states plainly that these lights carry no SAE or ECE approval — before registration and technical inspection you must establish whether and how they may be used on public roads. Watch the harness too: the description lists the KC 6321 cable in the kit, then says it is sold separately. Confirm it with us.

Frequently asked questions

Does the kit fit a standard Ram 1500 rather than a Rebel?

The supplier lists fitment for the Ram 1500 Rebel and TRX from 2019. For other bumper versions the mount has to be checked — ask us before ordering.

Are the lights 24 V ready?

Yes, the 10.5–36 V range covers 12 V and 24 V systems.
