Escape
Reference: ESCAPE18000ES
ELECTRIC WINCHES

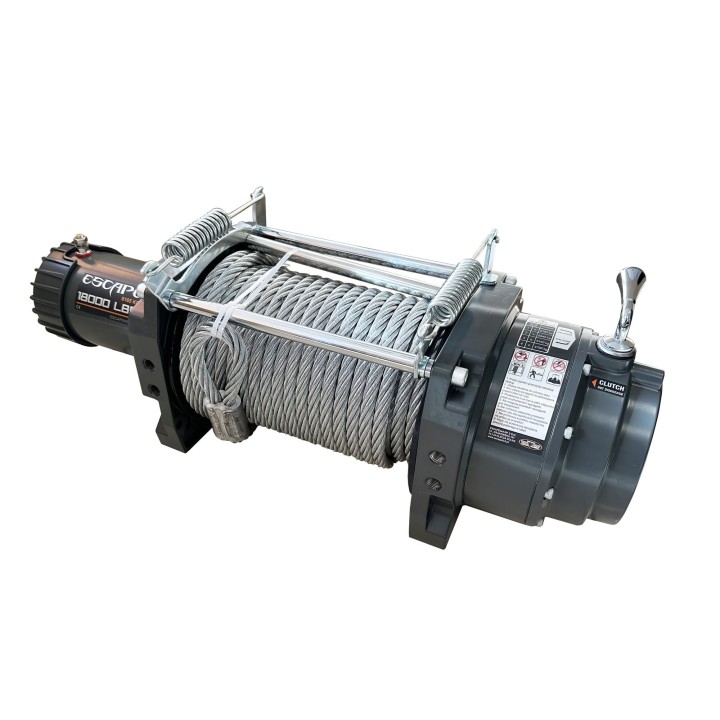

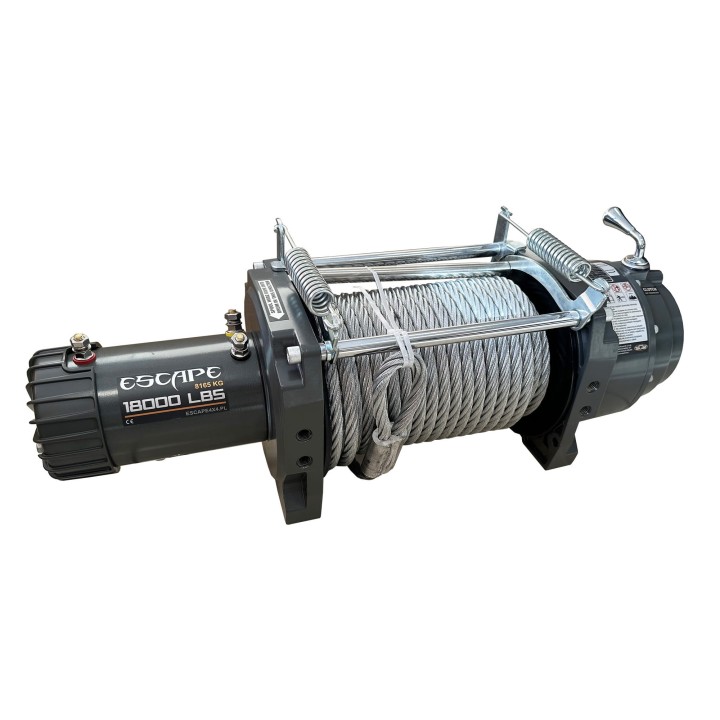

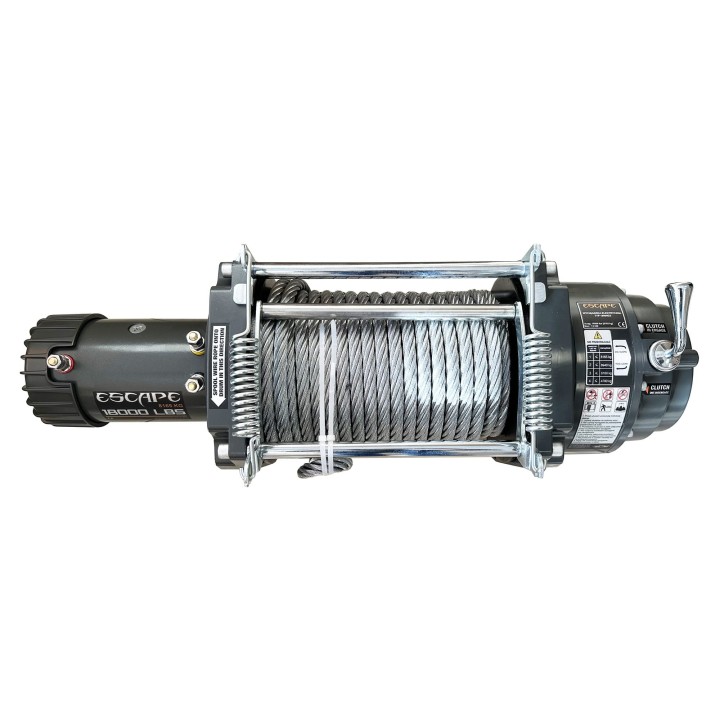

Escape 18000ES Winch 18000 lbs [8165 kg] with Steel Cable
Escape 18000ES winch rated at 18000 lbs (8165 kg) for the heaviest jobs. 11.5 mm × 26 m steel cable with roller fairlead, drum level wind, reinforced end brackets and a 500 A solenoid. Wired and wireless remotes included.
Escape 18000ES Winch 18000 lbs [8165 kg] with Steel Cable
The Escape 18000ES is an 8165 kg winch built for the heaviest jobs. Its end brackets are significantly reinforced compared with standard designs, which clearly improves the strength of the whole unit.

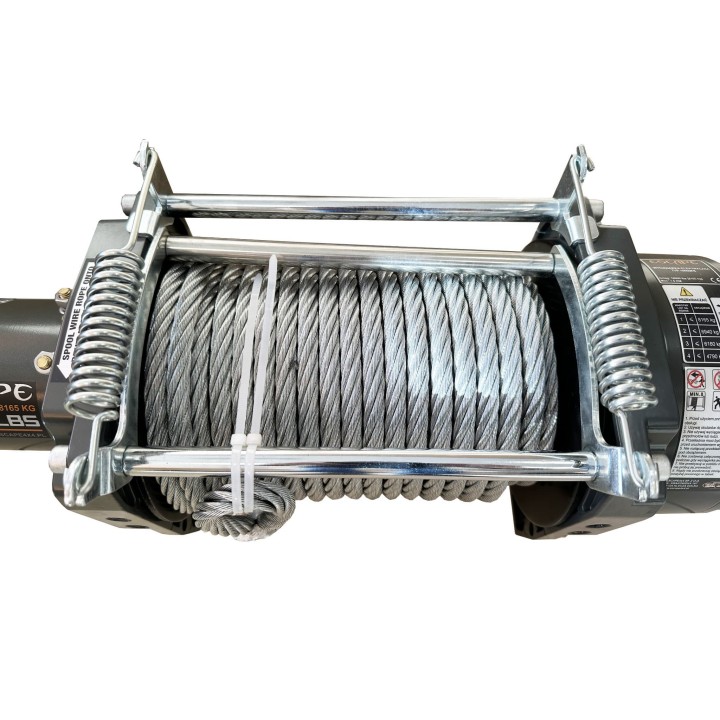

It is fitted with a level wind on the drum that helps spool the cable evenly. There are no plastic mechanical parts. Power is switched by a 500 A solenoid in a sturdy housing that can be removed from the winch and mounted anywhere on the vehicle.
The winch is CE safety certified.
![Escape 18000ES Winch 18000 lbs [8165 kg] with Steel Cable](https://szekla4x4.pl/330396-large_default/wyciagarka-escape-18000es-18000-lbs-8165-kg-lina-stalowa.jpg)
Specifications
| Rated line pull | 18000 lbs (8165 kg) |
| Motor | 7.5 HP / 5.6 kW |
| Gear ratio | 337:1 |
| Gearbox | planetary, 3-stage |
| Brake | friction |
| Drum | 101.6 × 254 mm |
| Rope | steel, 11.5 mm × 26 m |
| Fairlead | roller fairlead |
| Control | wired and wireless |
| Recommended battery | min. 650 CCA |
| Mounting | 8 bolts |
| Weight | 76 kg |
| Dimensions (L × W × H) | 683 × 214 × 254 mm |
| Warranty | 2 years, door-to-door |
Performance
| Load lbs (kg) | Line speed (m/min) | Current draw (A) |
| 0 | 6.24 | 83 |
| 3000 (1360) | 3.72 | 165 |
| 6000 (2722) | 2.83 | 220 |
| 9000 (4082) | 2.28 | 290 |
| 12000 (5443) | 1.95 | 330 |
| 15000 (6800) | 1.58 | 390 |
| 18000 (8165) | 1.28 | 460 |
| Rope layer | Pull on layer (kg) | Rope on drum (m) |
| 1 | 8165 | 5.4 |
| 2 | 6940 | 11.4 |
| 3 | 6160 | 19.4 |
| 4 | 4790 | 26.0 |
Maximum pull is reached on the first rope layer – the more rope on the drum, the lower the force.

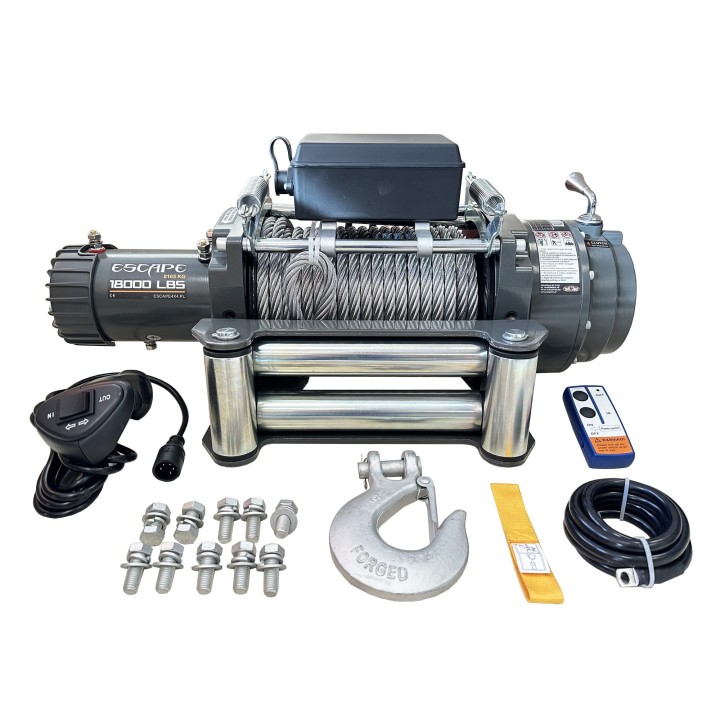

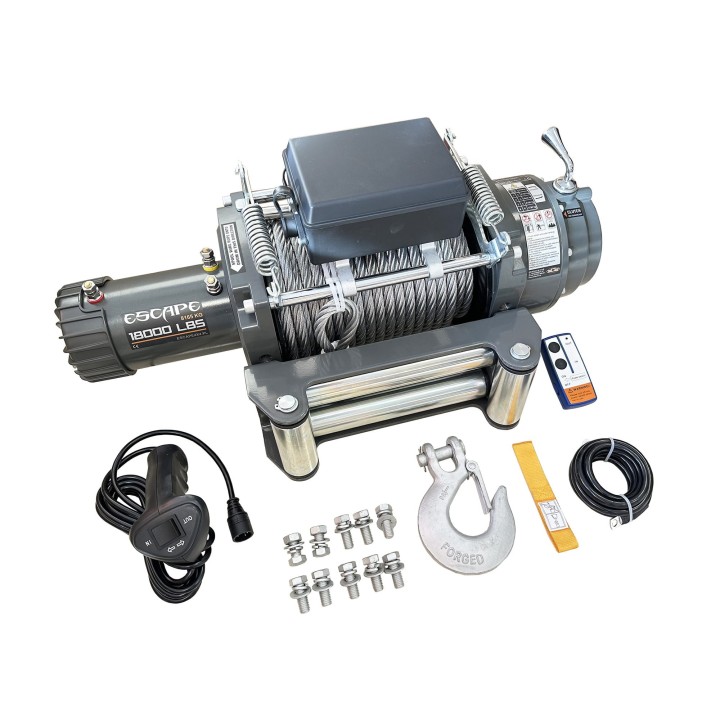

What is in the box
- winch with steel cable
- roller fairlead
- wired remote
- wireless remote
- plastic relay box with cables
- hook
- mounting bolts
- instruction manual in Polish
- warranty card
![Escape 18000ES Winch 18000 lbs [8165 kg] with Steel Cable](https://szekla4x4.pl/330397-large_default/wyciagarka-escape-18000es-18000-lbs-8165-kg-lina-stalowa.jpg)
The Escape 18000ES is offered at Szekla4x4.pl with a steel cable only.
Frequently asked questions
What rope is on the drum?
Steel, 11.5 mm × 26 m.
Are remotes included?
Yes – a wired and a wireless remote.
What battery is recommended?
At least 650 CCA cranking current.
What is the warranty?
2 years, door-to-door. For service the winch is collected by courier at Escape’s cost.
