Escape
Reference: ESCAPE12000ESSR
ELECTRIC WINCHES

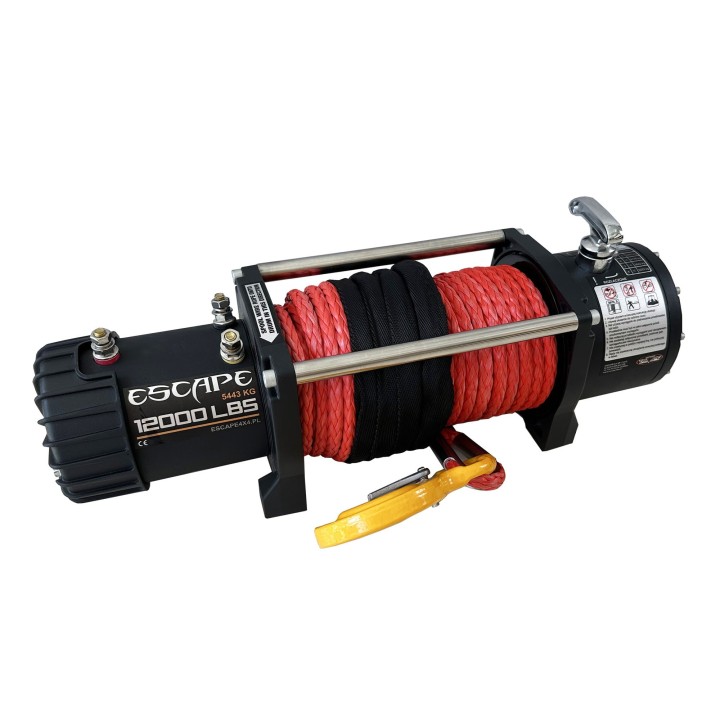

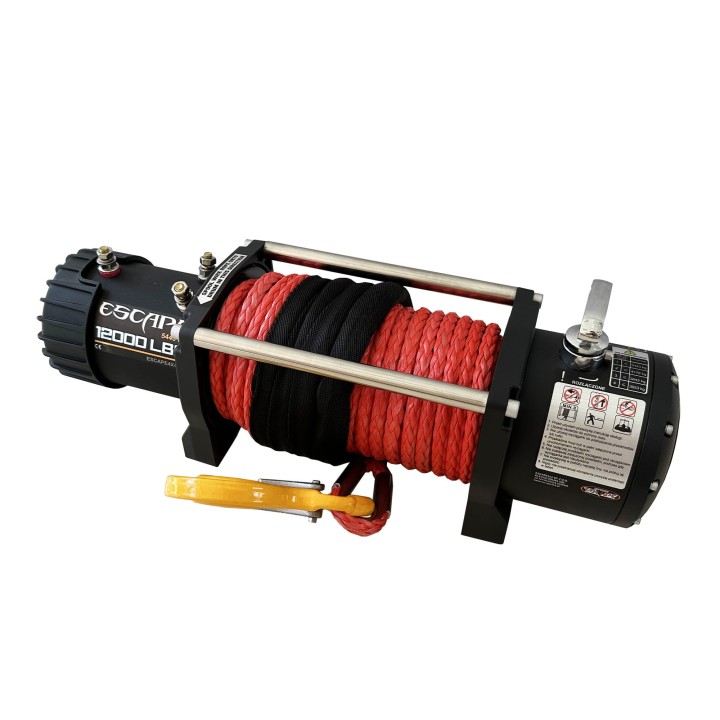

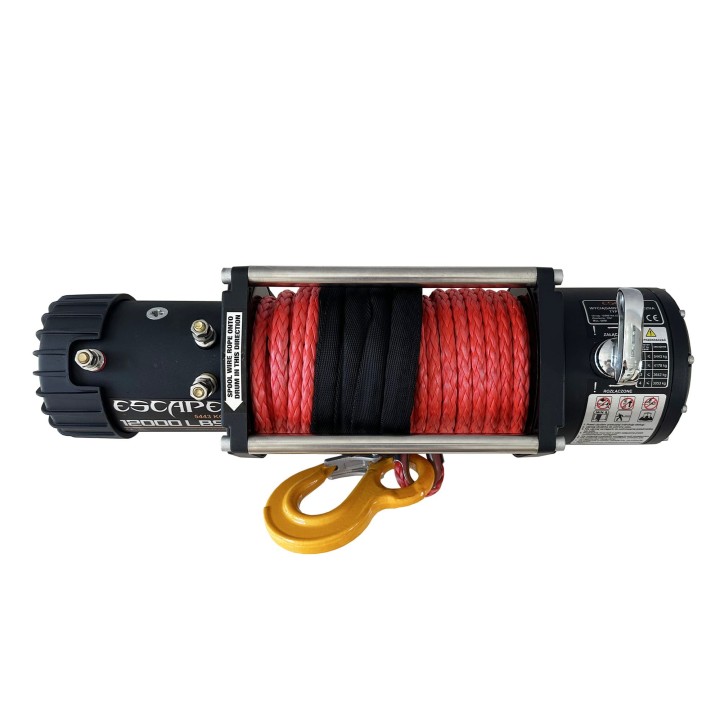

Escape 12000ES Winch 12000 lbs [5443 kg] with Red Synthetic Rope
Escape 12000ES 12V winch rated at 12000 lbs (5443 kg) with a red 10 mm × 25 m synthetic rope and aluminium hawse fairlead. Waterproof solenoid and in-drum friction brake. Wired and wireless remotes plus a fuse included.
Escape 12000ES Winch 12000 lbs [5443 kg] with Red Synthetic Rope
The Escape 12000ES is a new 5443 kg winch model, a good choice for off-road vehicles as well as recovery trucks.
It is powered through a strong waterproof solenoid in a durable housing that can sit above the drum or be moved, for example, under the bonnet. There are no plastic drive components.
It uses an automatic in-drum friction brake with linings – a proven design known for example from Warn winches. A fuse for the power cable is included. The winch is CE safety certified.
![Escape 12000ES Winch 12000 lbs [5443 kg] with Red Synthetic Rope](https://szekla4x4.pl/330415-large_default/wyciagarka-escape-12000es-12000-lbs-5443-kg-lina-syntetyczna-czerwona.jpg)
Specifications
| Rated line pull | 12000 lbs (5443 kg) |
| Voltage | 12V |
| Motor | 6.0 HP |
| Gear ratio | 265:1 |
| Gearbox | planetary, 3-stage |
| Brake | friction, in-drum |
| Drum | 63 × 223 mm |
| Rope | synthetic, 10 mm × 25 m, red |
| Fairlead | aluminium hawse fairlead |
| Control | wired and wireless |
| Recommended battery | min. 650 CCA |
| Mounting bolt pattern | 254 × 114.3 mm |
| Dimensions (W × D × H) | 530 × 160 × 198 mm (incl. clutch lever) |
| Warranty | 24 months, door-to-door |
Performance
| Load lbs (kg) | Line speed (m/min) | Current draw (A) |
| 0 | 5.4 | 80 |
| 4000 (1818) | 3.5 | 170 |
| 6000 (2722) | 3.0 | 210 |
| 10000 (4545) | 2.5 | 300 |
| 12000 (5443) | 1.5 | 360 |
| Rope layer | Pull on layer (kg) | Rope on drum (m) |
| 1 | 5443 | 6 |
| 2 | 4332 | 13 |
| 3 | 3600 | 22 |
| 4 | 3077 | 26 |
Maximum pull is reached on the first rope layer – the more rope on the drum, the lower the force.

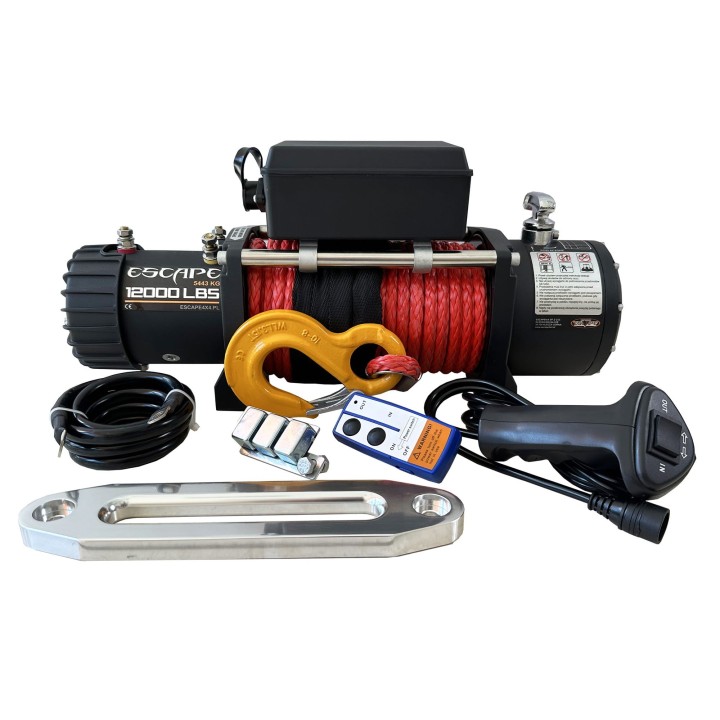

What is in the box
- winch with 10 mm × 25 m synthetic rope
- aluminium hawse fairlead
- wired remote
- wireless remote
- plastic relay box with cables
- hook
- fuse for the power cable
- mounting bolts
- instruction manual in Polish
- warranty card
![Escape 12000ES Winch 12000 lbs [5443 kg] with Red Synthetic Rope](https://szekla4x4.pl/330416-large_default/wyciagarka-escape-12000es-12000-lbs-5443-kg-lina-syntetyczna-czerwona.jpg)
The Escape 12000ES is also available with a steel cable and with a grey synthetic rope, as separate products.
Frequently asked questions
What rope is on the drum?
Synthetic, 10 mm × 25 m, red.
Are remotes included?
Yes – a wired and a wireless remote.
What battery is recommended?
At least 650 CCA cranking current.
What is the warranty?
24 months, door-to-door. For service the winch is collected by courier at Escape’s cost.
