Winch Mounting Plates

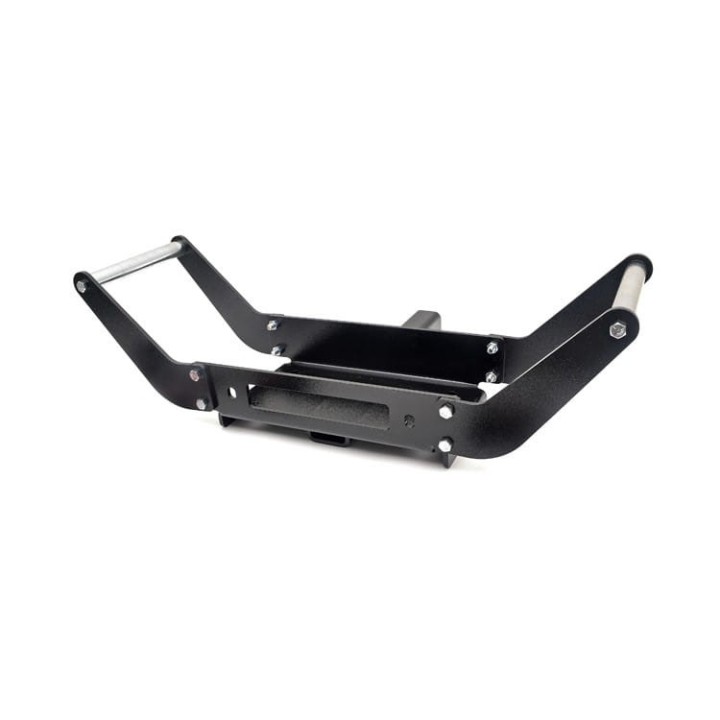

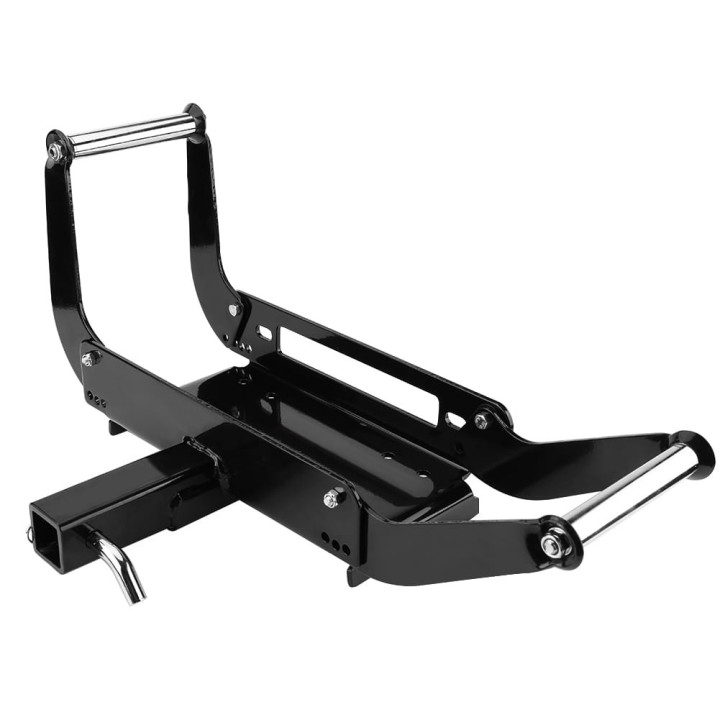

Portable Winch Mounting Plate 5000-13000 lbs for 2" Receiver
A portable, universal, reinforced mounting plate for 5000-13000 lbs winches. Made of 5 mm structural steel sheet, shot-blasted and powder coated in two layers with a textured finish. Some American-made vehicles have a 2" × 2" (internal) receiver tube welded in at the front and rear. For a recovery you slide the plate into it and secure it with a pin. The same system can be used on other vehicles by welding a suitable tube to the frame.
Portable Winch Mounting Plate 5000-13000 lbs for 2" Receiver
A portable, universal, reinforced mounting plate for 5000-13000 lbs winches. Made of 5 mm structural steel sheet, shot-blasted and powder coated in two layers with a textured finish.

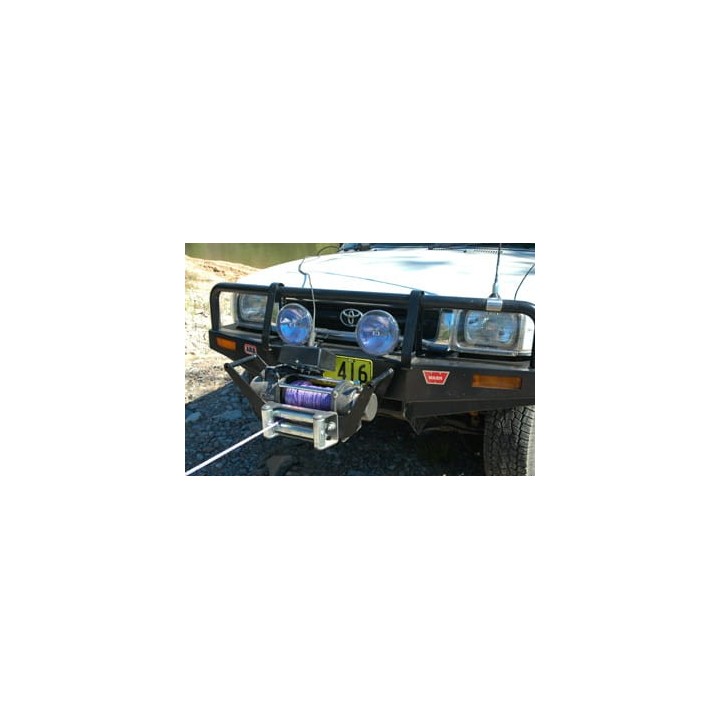

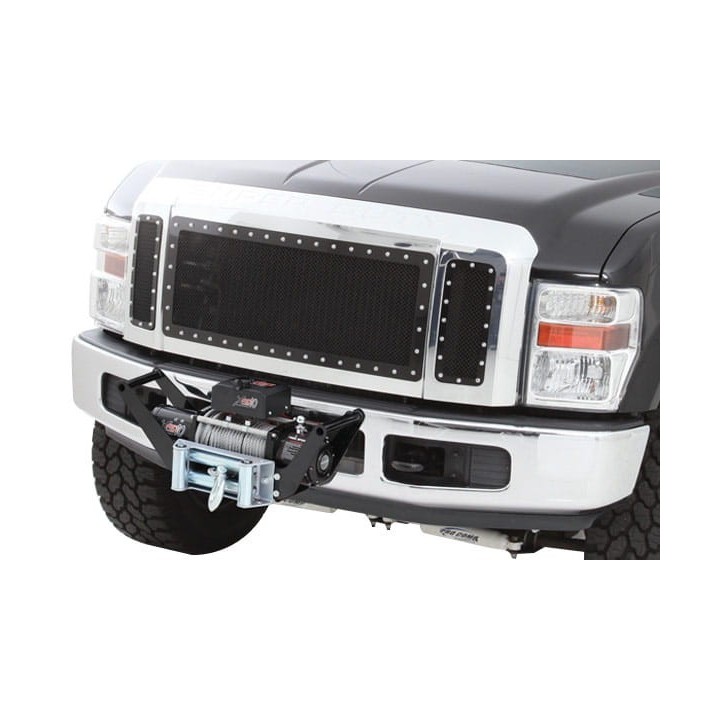

Some American-made vehicles have a 2" × 2" (internal) receiver tube welded in at the front and rear. For a recovery you slide the plate into it and secure it with a pin. The same system can be used on other vehicles by welding a suitable tube to the frame.
The winch is best connected to the wiring with a quick connector. With this mounting method it is best to pull in a straight line.
Specifications
| For winches | 5000-13000 lbs |
| Material | structural steel, 5 mm |
| Finish | shot-blasted, two-layer textured powder coat |
| Mounting | 2" receiver (2" × 2" tube) |
 |  |  |
Frequently asked questions
Which winches does the plate fit?
Winches rated 5000-13000 lbs.
How is it attached to the vehicle?
It slides into a 2" × 2" receiver tube at the front or rear and is secured with a pin.
Which pulling direction is best?
With this mounting method it is best to pull in a straight line.
