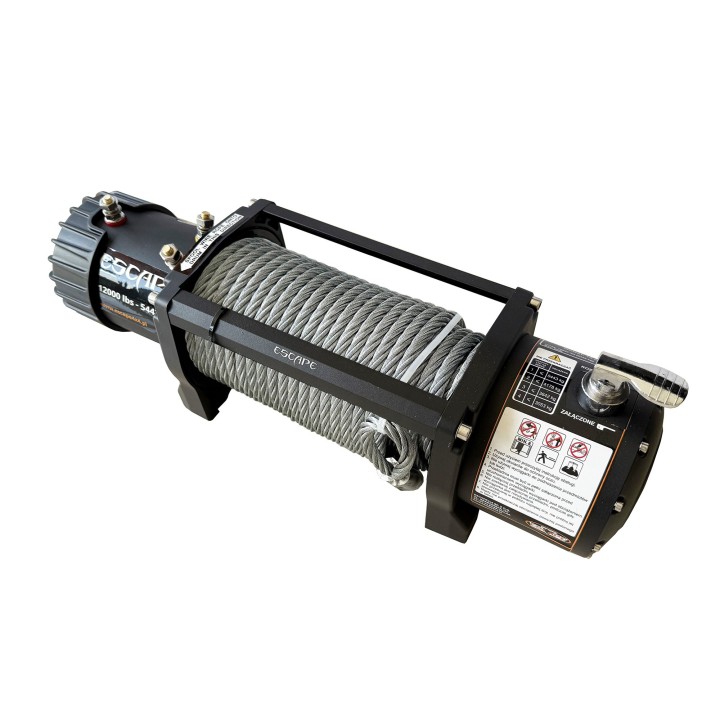

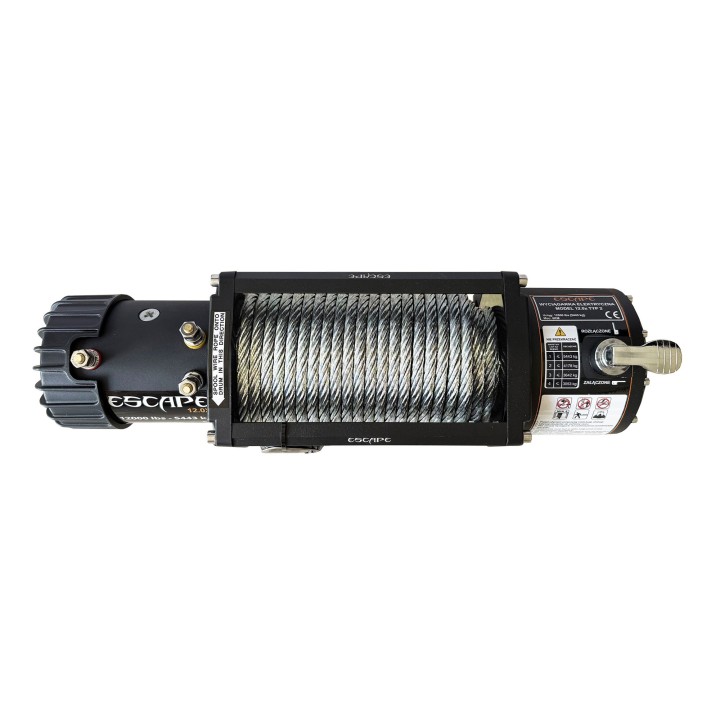

Escape 12.0x Type 2 Winch 12000 lbs [5443 kg] with Steel Cable

The Escape 12.0x type 2 is a proven, solid 5443 kg winch, now with a semi-automatic clutch lever: lift it to disengage the drive, lower it to engage. Handy in hard-to-reach places, e.g. when the winch is hidden behind the bumper.

All drive components are metal – the gears are strong enough to handle loads matching the rated pull. The waterproof relay box mounts above the drum (bracket included) or, after extending the cables, anywhere on the vehicle.

The automatic in-drum friction brake is very reliable, and servicing or replacing it is simple. The winch is CE safety certified.

Specifications

Performance

Maximum pull is reached on the first rope layer – the more rope on the drum, the lower the force.

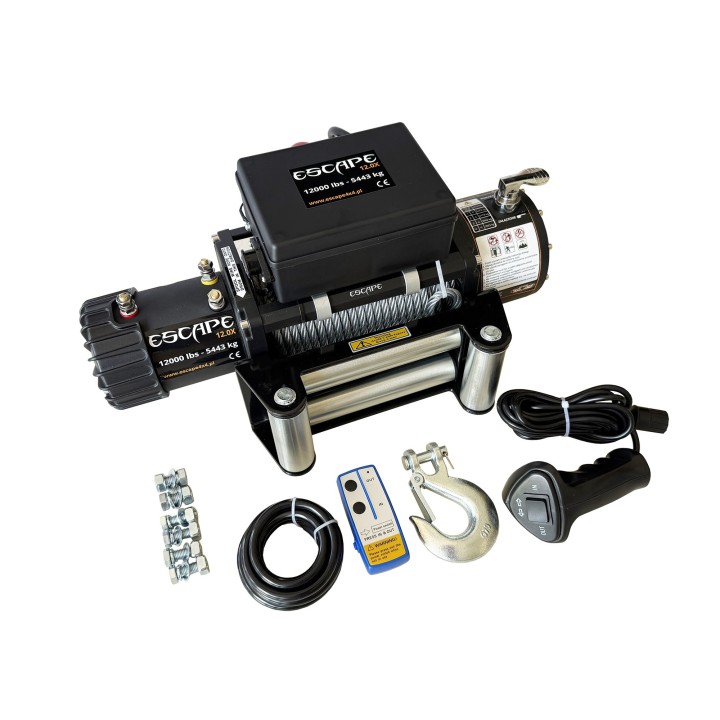

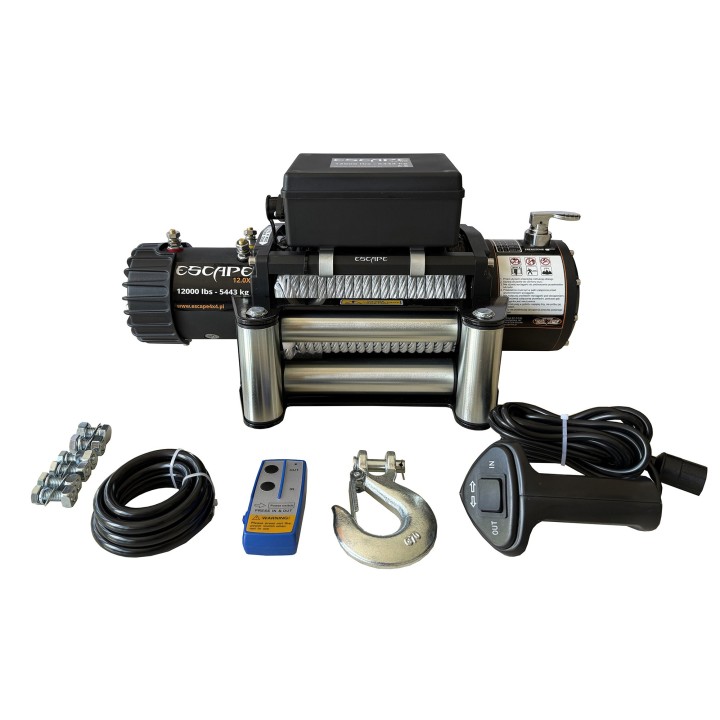

What is in the box

• winch with steel cable
• roller fairlead
• wired remote
• wireless remote
• relay box with wiring
• hook
• mounting bolts

The Escape 12.0x type 2 is also available with a grey synthetic rope, as a separate product.

Frequently asked questions

What rope is on the drum?

Steel, 9.5 mm × 26 m.

Are remotes included?

Yes – a wired and a wireless remote.

What battery is recommended?

At least 650 CCA cranking current.

What is the warranty?

24 months, door-to-door. For service the winch is collected by courier at Escape’s cost.
