XG Cargo Platform A – Cargo Tray for Jeep Wrangler JK / JL 4-Door

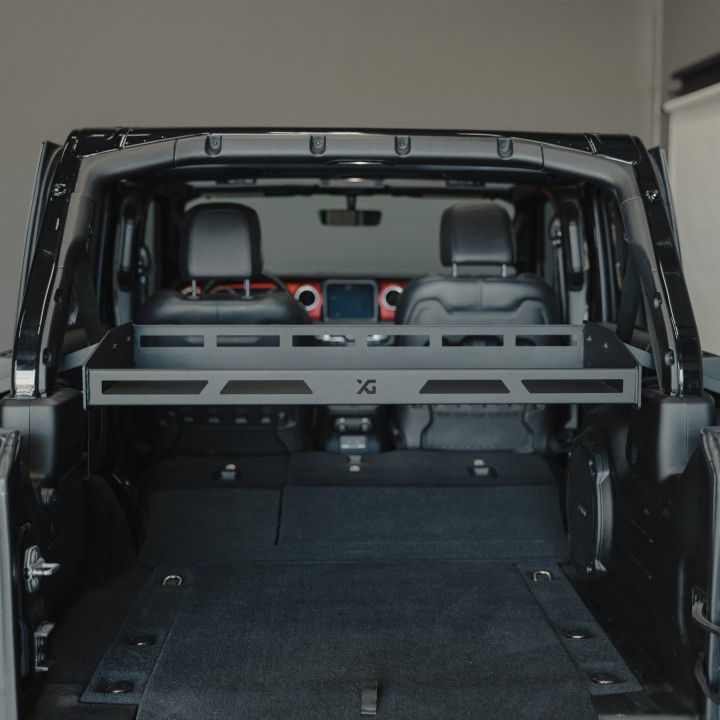

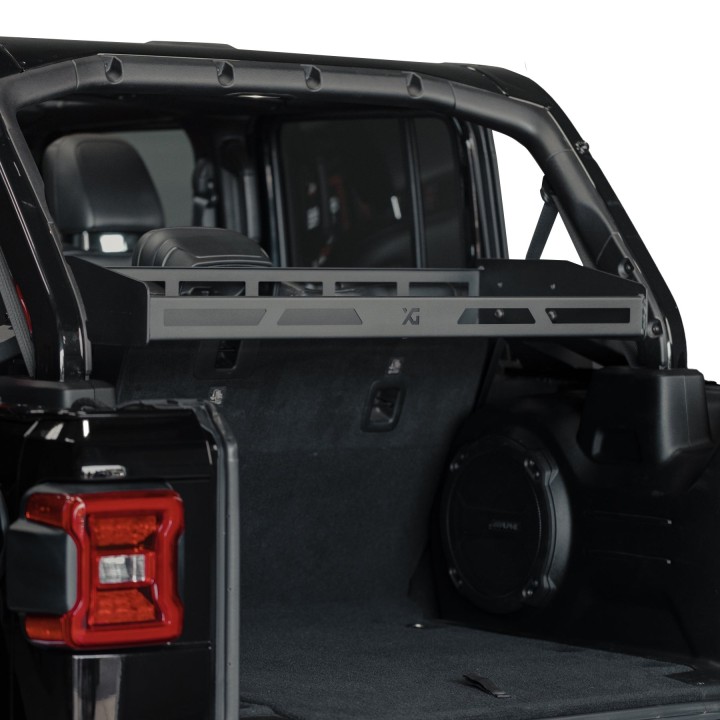

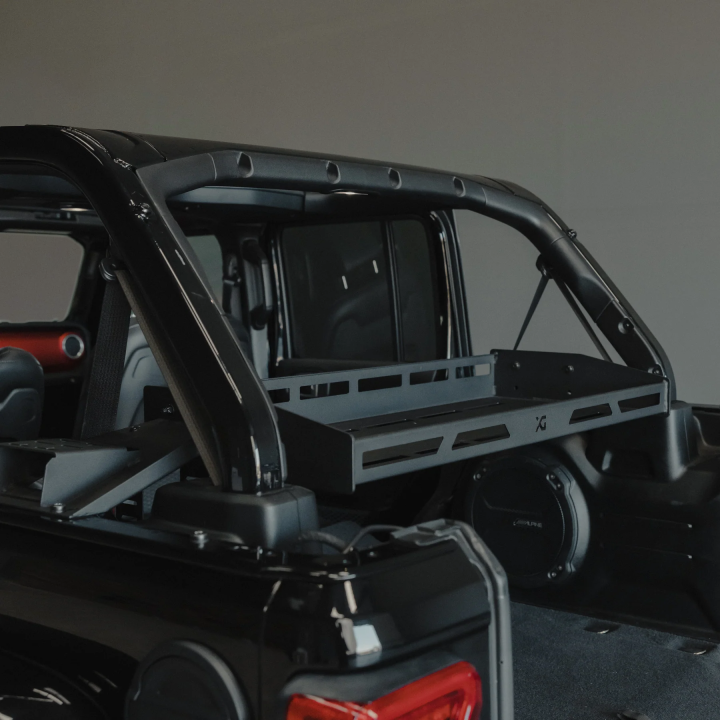

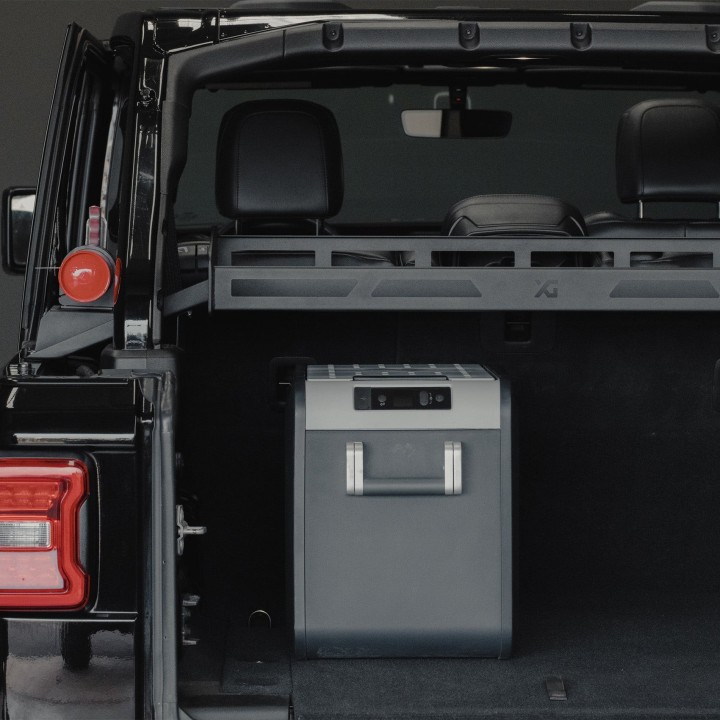

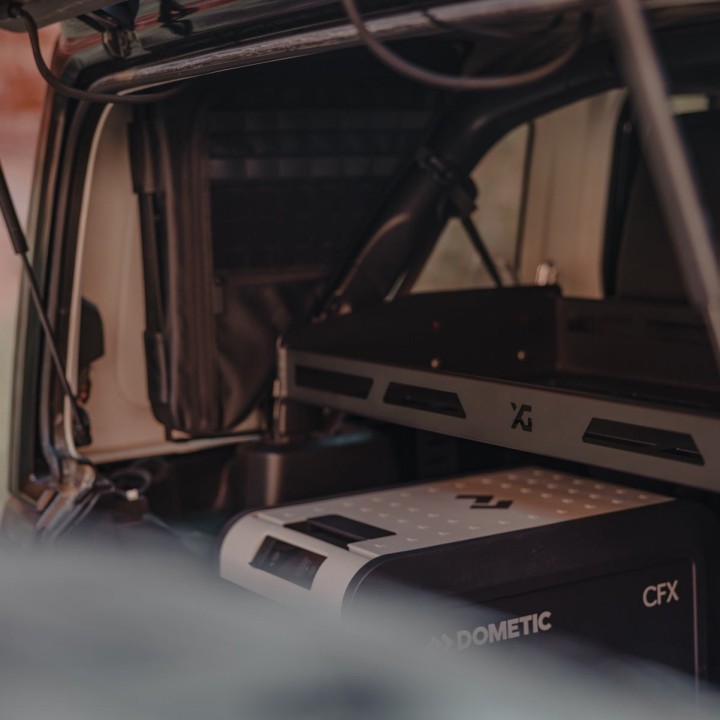

The space above the Wrangler's rear seatback is the most wasted part of the cargo area. Platform A turns it into a second level: a steel deck at seatback height, with the floor below left free for a fridge, a storage box or recovery gear.

Platform A is designed and built in the USA by California-based XG Cargo. It bolts to factory mounting points at the roof, above the rear seat – no drilling, no body modifications.

Key benefits

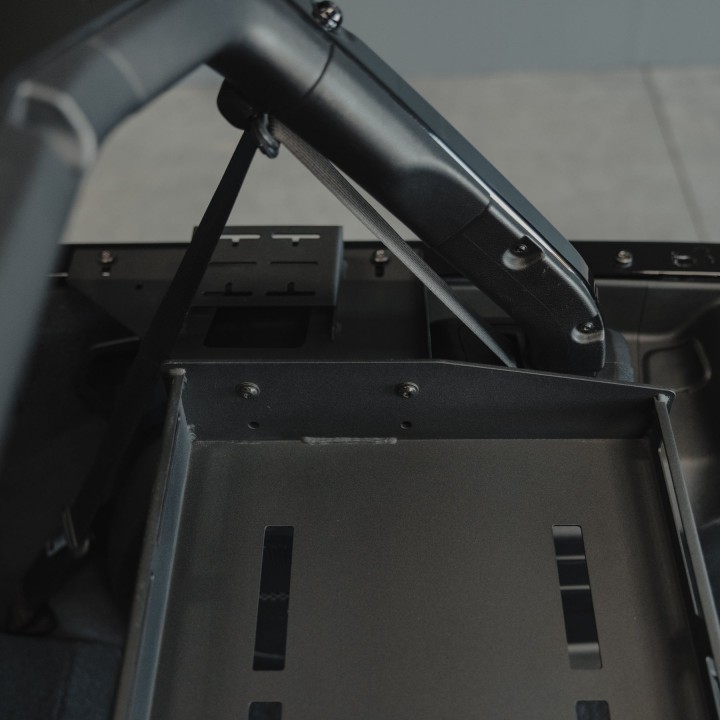

• 16″ × 38″ deck – room for a camp kitchen, bags or storage boxes, with laser-cut slots for strapping the load down.
• 150 lb capacity – with evenly distributed cargo. Enough for a loaded camping fridge or a full set of camp gear.
• Height-adjustable deck – raise it for a tall fridge or drop it for a flat load floor.

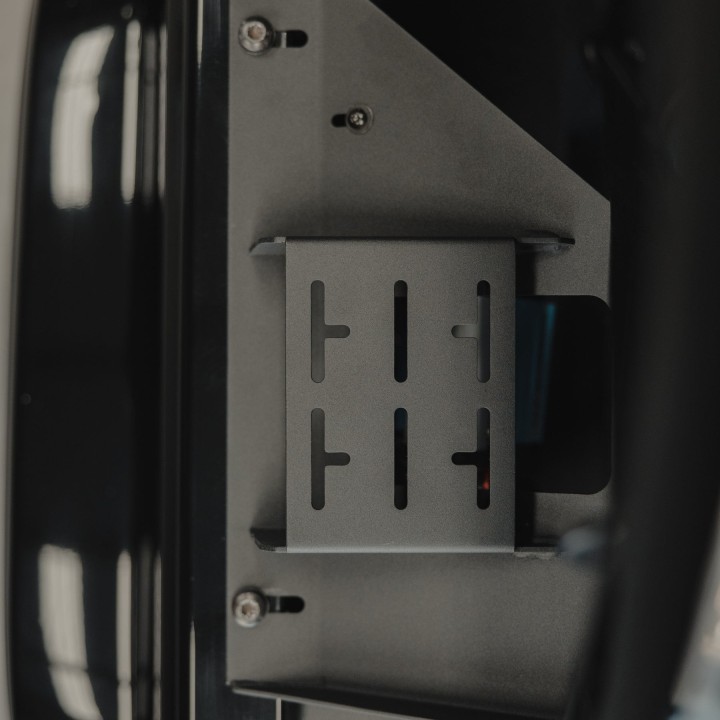

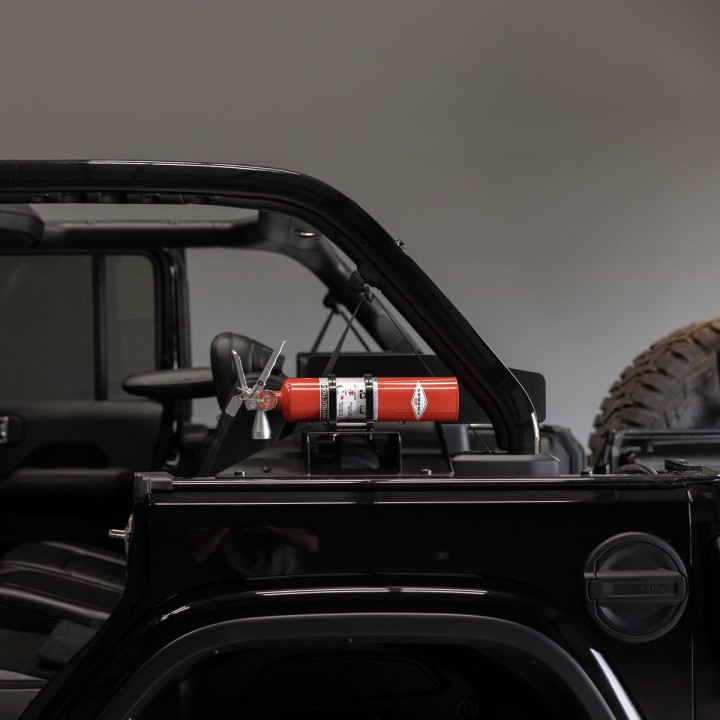

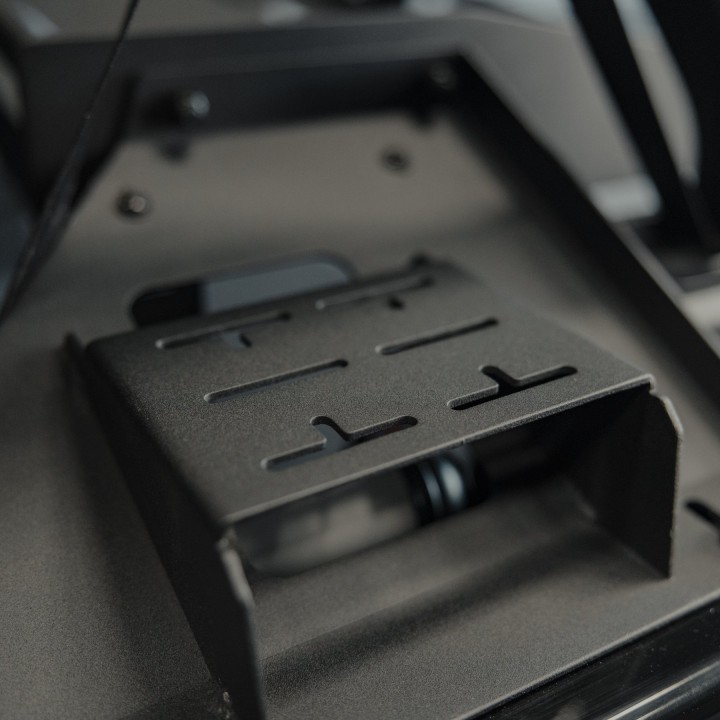

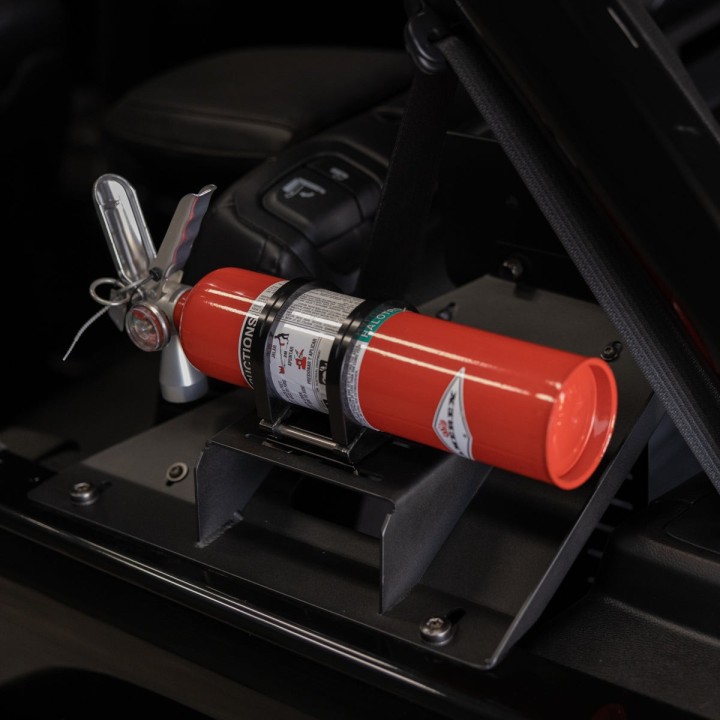

• Two side mount plates – patented plates that adjust on two axes, for an extinguisher, lights or tools. Your gear is bolted to steel instead of rolling around the cargo floor.

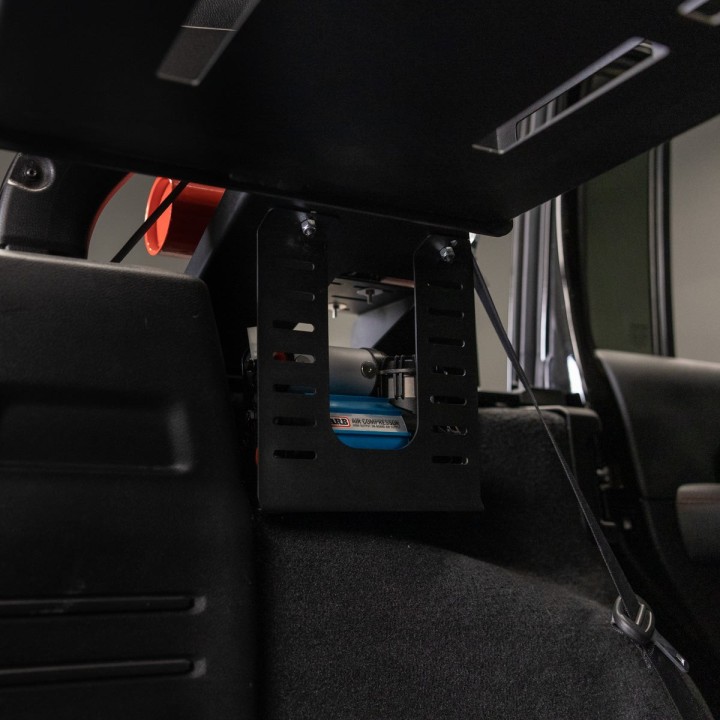

• Under-tray accessory mount – at the driver-side wheel well, e.g. for a compressor.
• No-drill installation – uses factory mounting points.
• Works with Gama bags – XG Cargo designed Platform A to work together with its Gama roll bar bags.

What's in the box

• tray deck,
• two side mounts – driver and passenger side (marked DS and PS),
• under-tray accessory mount,
• full set of bolts, washers and nylon lock nuts.

Specifications

• Manufacturer part number: XG-326
• Deck size: 16″ × 38″ (approx. 41 × 97 cm), 4.25 sq ft (approx. 0.39 m²)
• Capacity: 150 lb (approx. 68 kg), evenly distributed
• Material: A-36 hot-rolled steel, 12 gauge (approx. 2.7 mm)
• Finish: polyester powder coat, matte black
• Height adjustment: the manufacturer states a 3″ range; the installation manual gives two deck positions
• Mounting: factory mounting points, no drilling
• Country of manufacture: USA

Who it is for

For owners of a 4-door Wrangler JK, JL or 4xe who carry a fridge, a camp kitchen or storage boxes and want to use the space above the rear seat instead of stacking everything on the floor. Suited to weekend camping trips and longer expeditions where every inch of cargo space counts.

Fitment

4-door Jeep Wrangler JK (manufacturer lists 2006–2018 model years) and 4-door Wrangler JL and JL 4xe (manufacturer lists 2018–2022). Not compatible with 2-door models or with Wranglers fitted with the Sky One-Touch power top – its side windows block the mounting points.

Installation

According to the manufacturer's manual, installation takes 15–20 minutes and requires no experience. Remove the rear roof mounting bolts on both sides (the ones closest to the rear seat), fit the side mounts, bolt the deck to them and tighten the roof bolts last. The roof bolts need a Torx wrench – the size depends on the vehicle version. If you install it alone, support the deck while you bolt it up, e.g. with a box.

Do not level the deck with a spirit level: the Wrangler body sits higher on the driver side from the factory. The deck should be centred and aligned with the top of the rear seatbacks.

The manufacturer states that the tray must not be used to carry flammable liquids or materials, the load must not block the view in the rear-view mirror, and the tray is not intended to be used as a bed.

Buy and install at Szekla4x4

You can buy Platform A from us online or at our shop in Warsaw. If you prefer, we will install it in our workshop, together with Gama bags and the rest of your cargo setup.

Why choose it

• A second level in the cargo area: 150 lb on the deck, with the floor below left free.
• Bolts to factory mounting points with no drilling, in 15–20 minutes per the manual.
• Side plates for an extinguisher or light and an under-tray accessory mount.

Not sure it fits your vehicle? Get in touch before you order and we will check the fitment.

Frequently asked questions

Does it fit a 2-door Wrangler?

No. Platform A is designed only for 4-door Wrangler JK and JL / 4xe models.

I have a Sky One-Touch power top. Can I fit Platform A?

No. The side windows of the Sky One-Touch top block the tray's mounting points.

Do I need to drill the body?

No. The tray mounts to factory mounting points at the roof, above the rear seat.

How much weight can the tray carry?

Up to 150 lb (approx. 68 kg), as long as the load is evenly distributed and strapped down.
