XG Cargo Platform A – Cargo Tray for Ford Bronco 4-Door

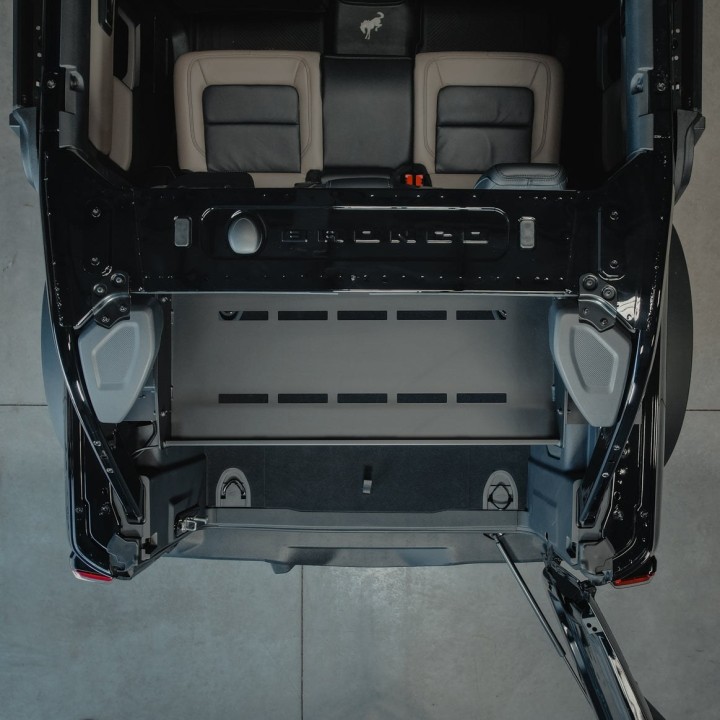

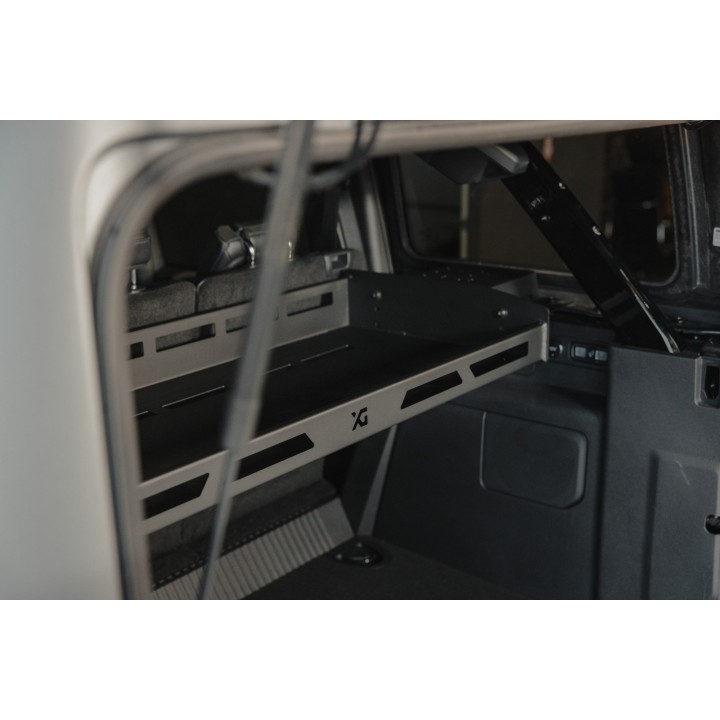

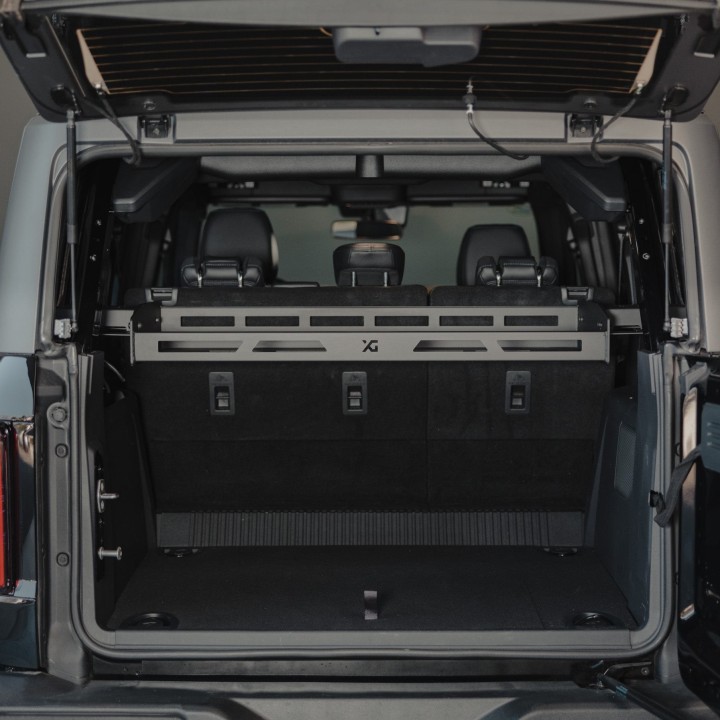

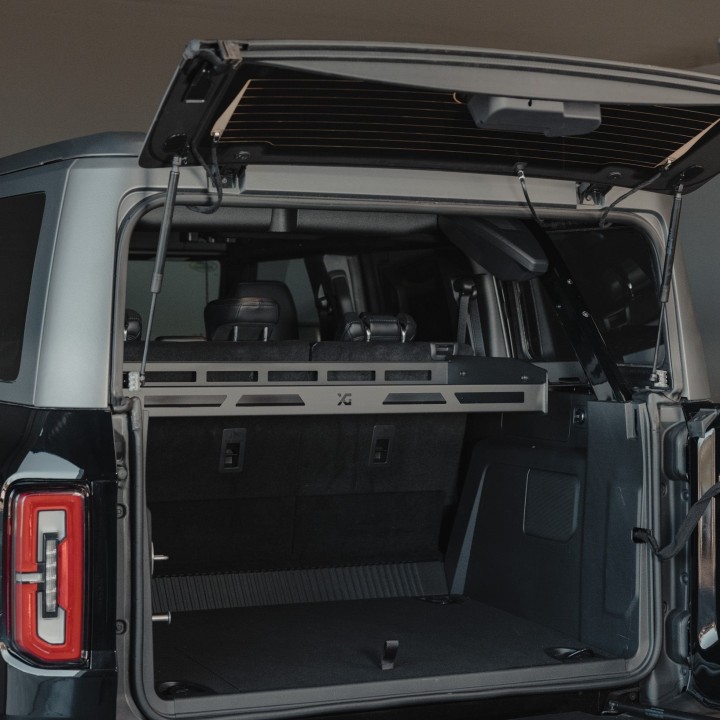

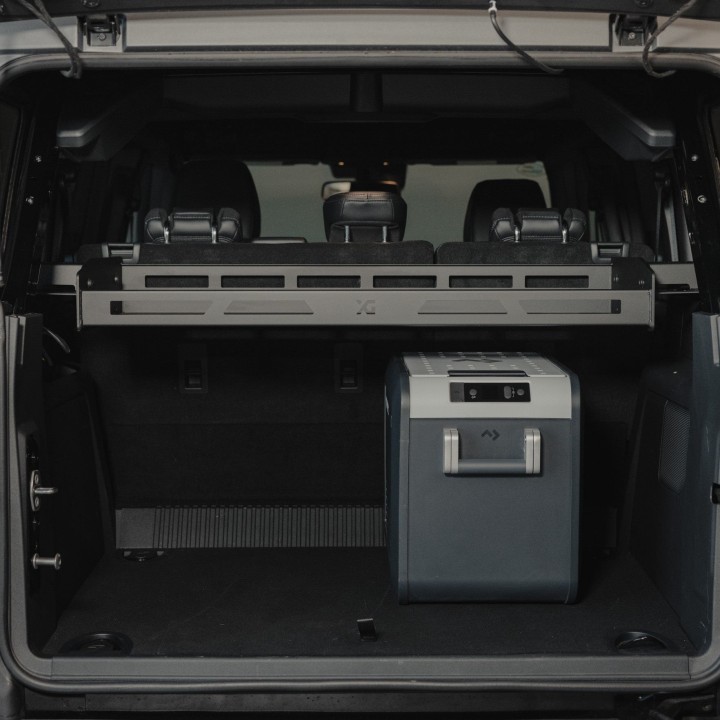

The space above the Bronco's rear seatback is the most wasted part of the cargo area. Platform A turns it into a second level: a steel deck at seatback height, with the floor below left free for a fridge, a storage box or recovery gear.

Platform A is designed and built in the USA by California-based XG Cargo. It bolts to the factory hardtop mounting points above the rear seat – no drilling, no modifications.

Key benefits

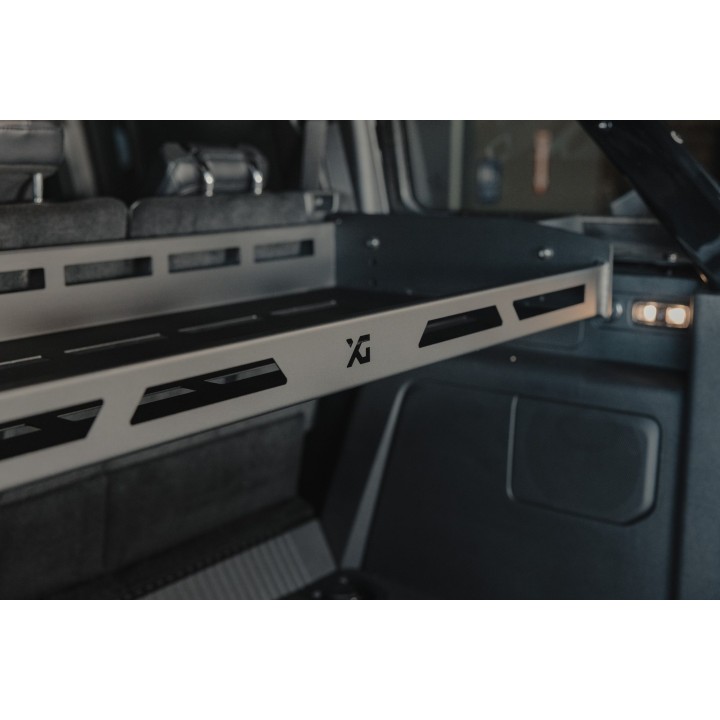

• 16″ × 38″ deck – room for a camp kitchen, bags or storage boxes, with laser-cut slots for strapping the load down.
• 150 lb capacity – with evenly distributed cargo.
• Height-adjustable deck – raise it for a tall fridge or drop it for a flat load floor.

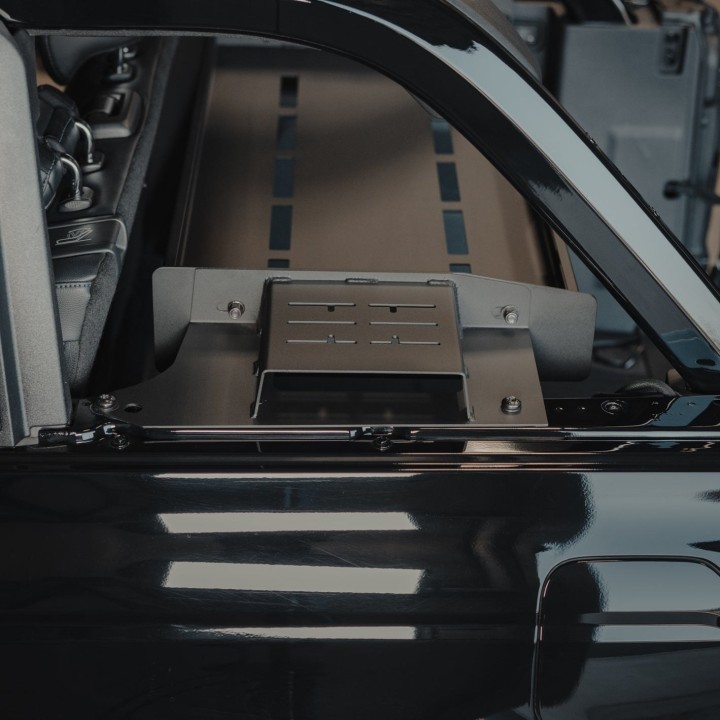

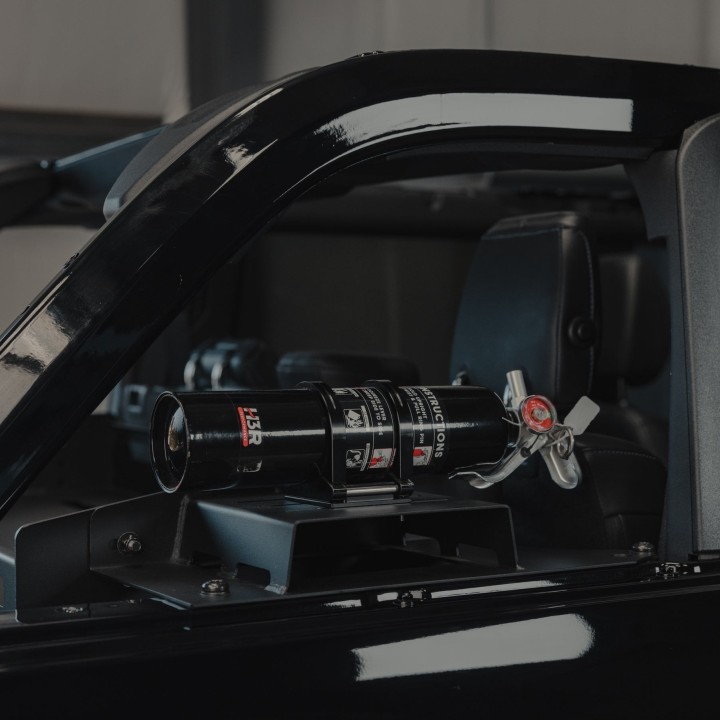

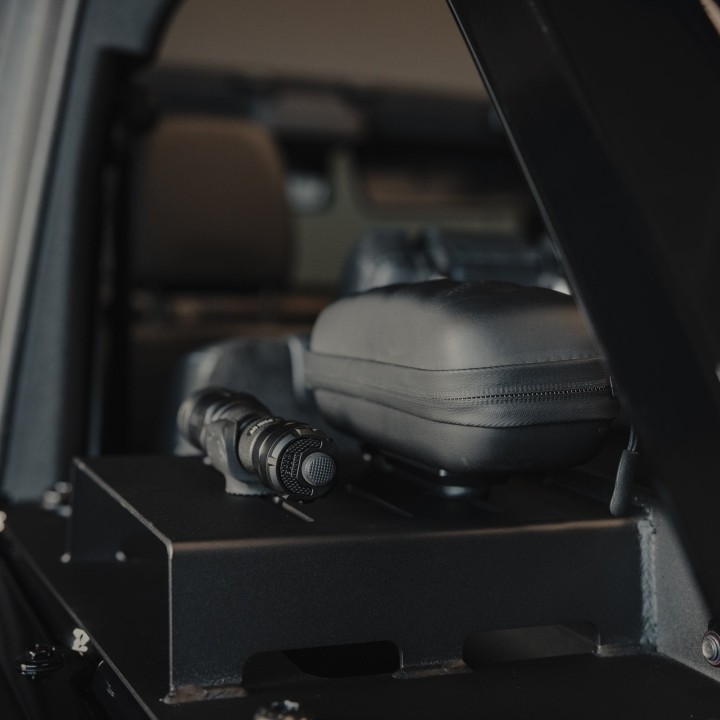

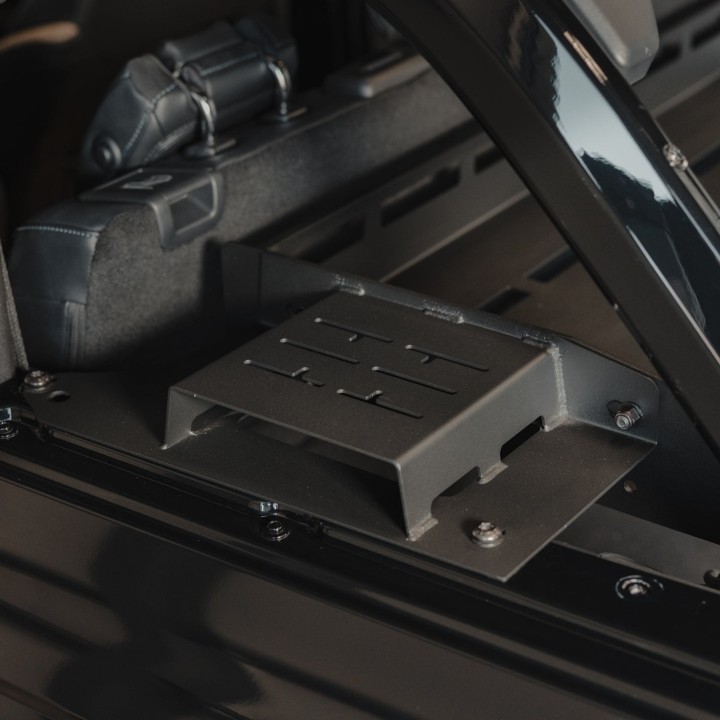

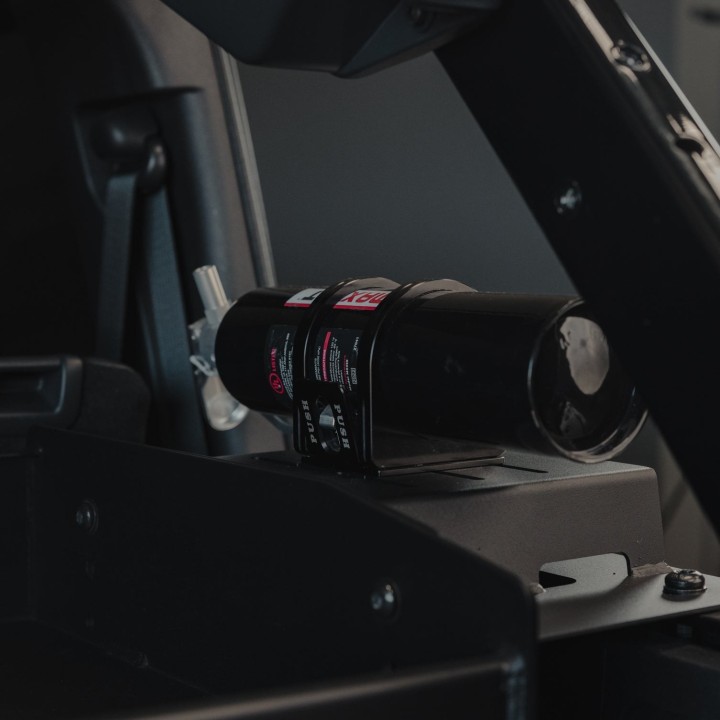

• Two side mount plates – patented plates that adjust on two axes, for an extinguisher, lights or tools.
• No-drill installation – uses factory mounting points.
• Works with Gama bags – XG Cargo designed Platform A to work together with its Bronco Stealth Gama bags.

What's in the box

• tray deck,
• two side mounts – driver and passenger side (marked DS and PS),
• under-tray accessory mount,
• full set of bolts, washers (including rubber washers) and nylon lock nuts.

Specifications

• Manufacturer part number: XG-509
• Deck size: 16″ × 38″ (approx. 41 × 97 cm), approx. 0.39 m²
• Capacity: 150 lb (approx. 68 kg), evenly distributed
• Material: A-36 hot-rolled steel, 12 gauge (approx. 2.7 mm)
• Finish: polyester powder coat, matte black
• Height adjustment: the manufacturer states a 3″ range; the installation manual gives two deck positions
• Installation time per manual: 15–20 minutes
• Country of manufacture: USA

Who it is for

For owners of a 4-door Ford Bronco who carry a fridge, a camp kitchen or storage boxes and want to use the space above the rear seat. Suited to camping trips and expeditions, and together with the Bronco Stealth Gama bags it forms a complete cargo setup.

Installation

According to the manual, remove the two hardtop mounting bolts closest to the rear seat on each side (leave the smaller bolt in place), fit the side plates with rubber washers underneath, bolt the deck to them and tighten the roof bolts last. The roof bolts need a Torx wrench. If you install it alone, support the deck while you bolt it up. The deck should be centred and aligned with the top of the rear seatbacks.

The manufacturer states that the tray must not be used to carry flammable liquids or materials, the load must not block the view in the rear-view mirror, and the tray is not intended to be used as a bed.

Buy and install at Szekla4x4

You can buy Platform A from us online or at our shop in Warsaw. If you prefer, we will install it in our workshop alongside other work on your vehicle.

Why choose it

• A second level in the cargo area: 150 lb on the deck, with the floor below left free.
• Bolts to the factory hardtop mounting points with no drilling.
• Side plates for an extinguisher or light and an under-tray accessory mount.

Not sure it fits your vehicle? Get in touch before you order and we will check the fitment.

Frequently asked questions

Does it fit a 2-door Bronco?

No. This version is designed for the 4-door Ford Bronco from 2021.

Do I need to drill?

No. The tray mounts to the factory hardtop mounting points.

How much weight can the tray carry?

Up to 150 lb (approx. 68 kg), as long as the load is evenly distributed and strapped down.
