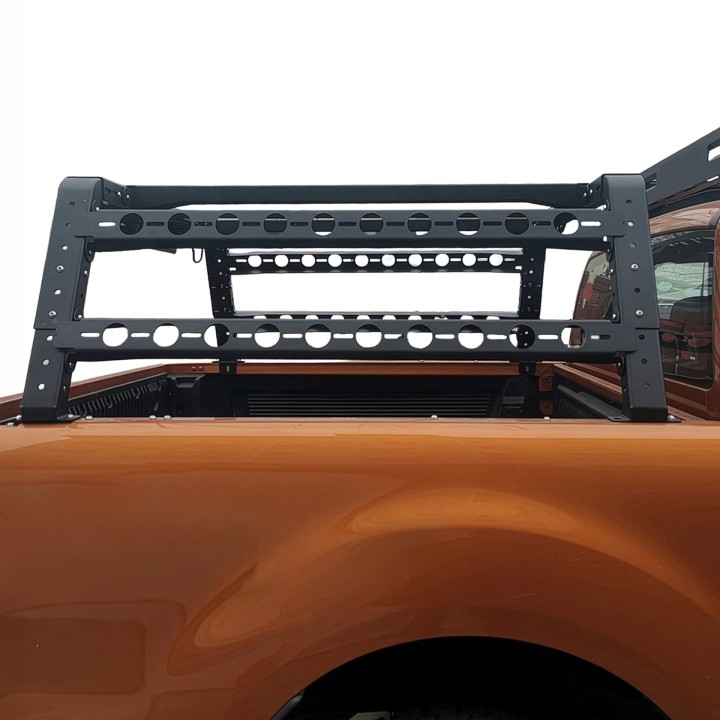

Wild Camp 130 cm bed rack with LED lamps - pickup bed frame

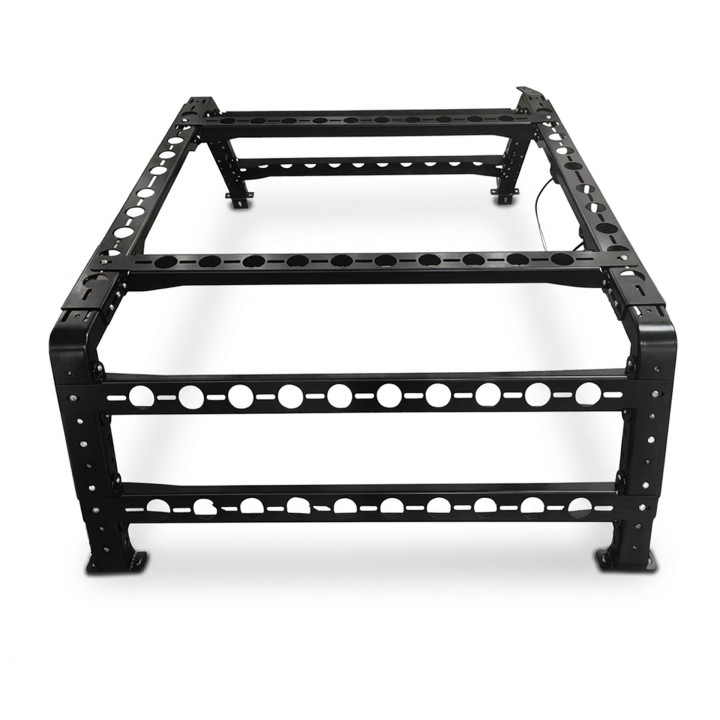

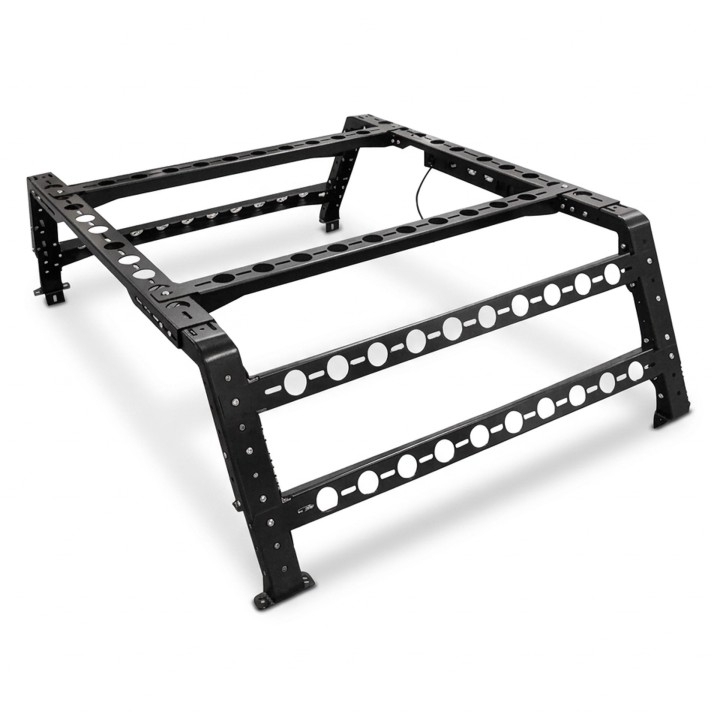

A steel pickup bed frame, 1300 mm long, supplied with two LED lamps on the rear bar. Width adjusts from 1300 to 1700 mm. It carries a roof top tent, boxes, recovery boards or jerry cans - 150 kg while driving and 250 kg when parked - and leaves the bed below free.
Wild Camp 130 cm bed rack with LED lamps - pickup bed frame

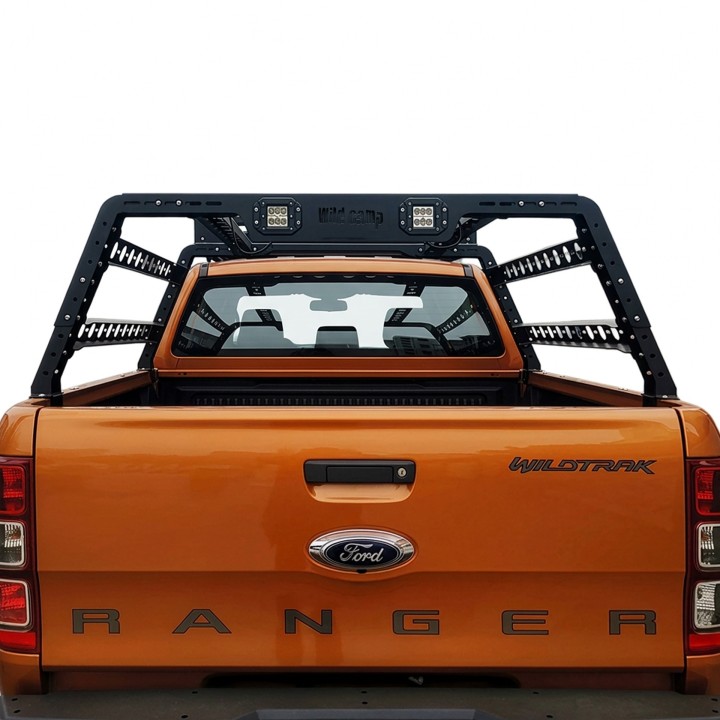

When you set up camp after dark or reverse in a forest car park, light behind the vehicle is worth more than one more mount. This bed rack has it from the start - two LED lamps sit on the rear bar.
The frame itself lifts a roof top tent and overland gear above the bed, so the load space stays free for luggage, tools and daily work.

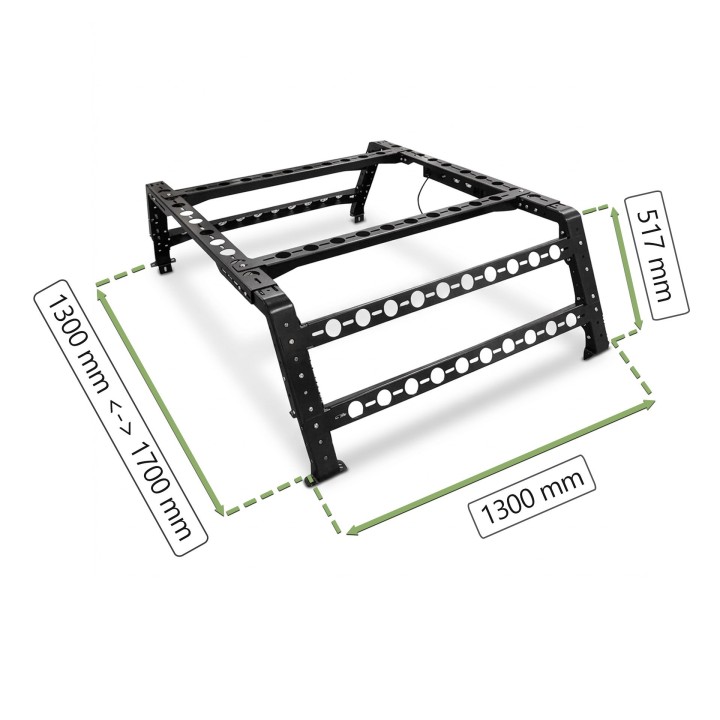

Length 1300 mm | Width 1300-1700 mm (adjustable) | LED lamps 2 on the rear bar, included | Load capacity 150 kg driving / 250 kg parked |
Key benefits

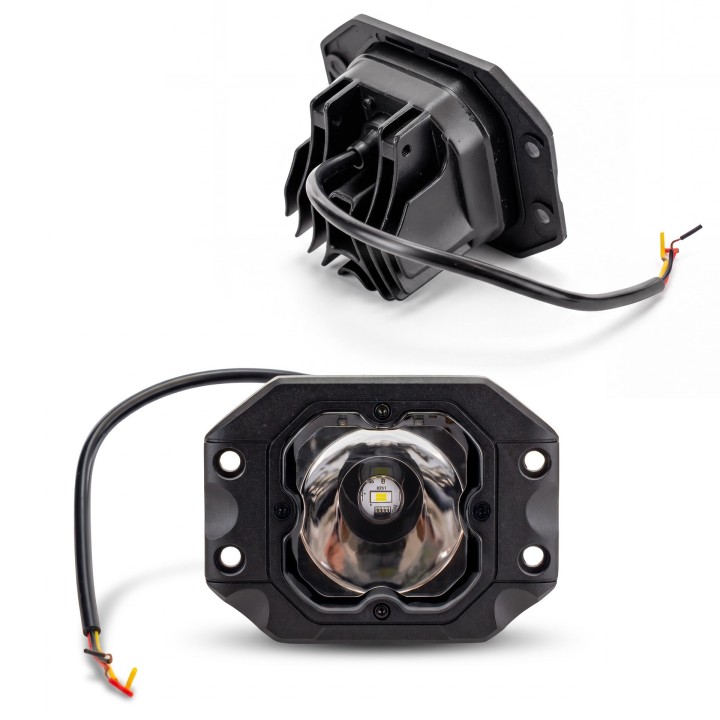

- Two LED lamps included - fitted to the rear bar, they light up the area behind the vehicle - when reversing or as work lights.
- Adjustable width - from 1300 to 1700 mm to match the width of your bed.
- Welded and bolted steel - with a powder-coat finish.
- For tents and boxes - rated at 150 kg while driving and 250 kg parked with the load evenly spread.

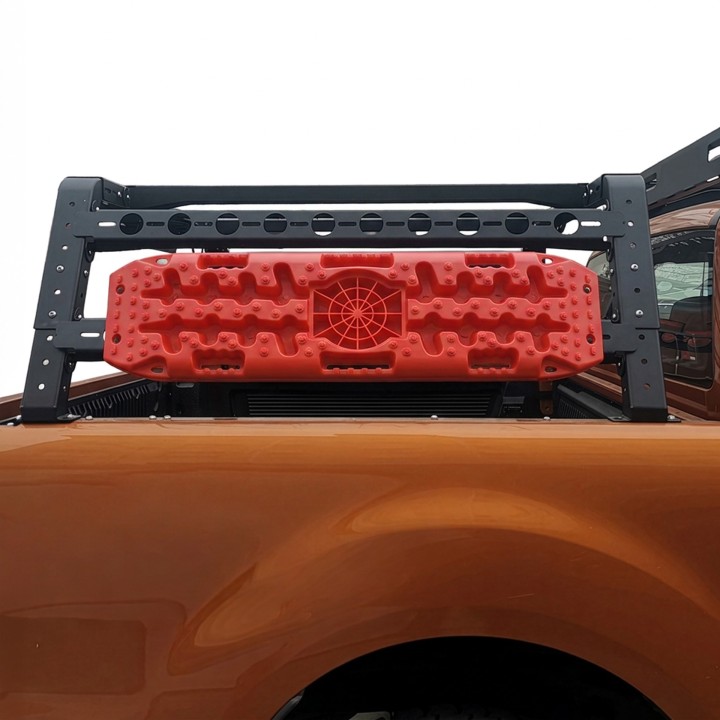

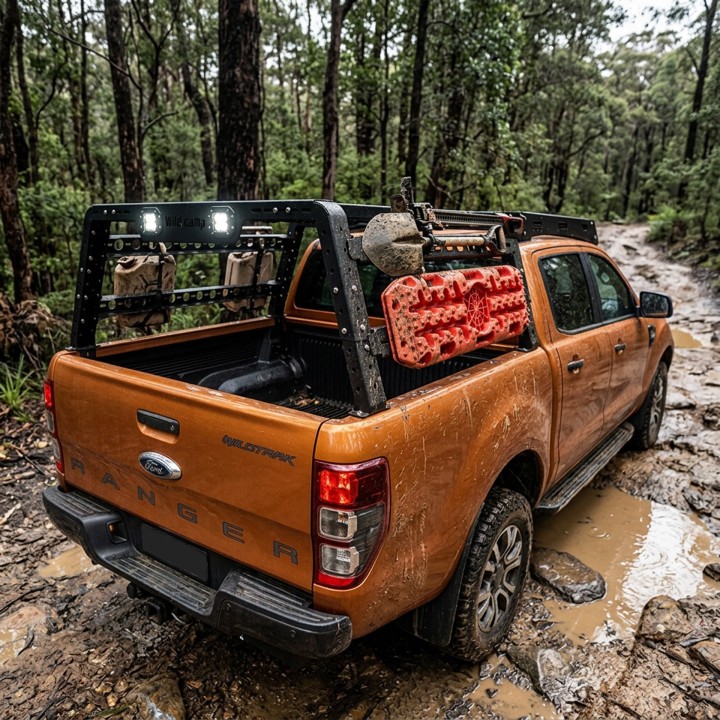

- Room for off-road gear - recovery boards, jerry cans, a shovel, hi-lift jack, bikes, skis or a kayak ride above the bed, not in it.
 |  |
Specifications
| Manufacturer | Wild Camp |
| Type | bed rack - pickup bed frame with LED lighting |
| Manufacturer code | HFTM-BRR-001 |
| Length | 1300 mm |
| Width (adjustable) | 1300-1700 mm |
| Height | 517 mm |

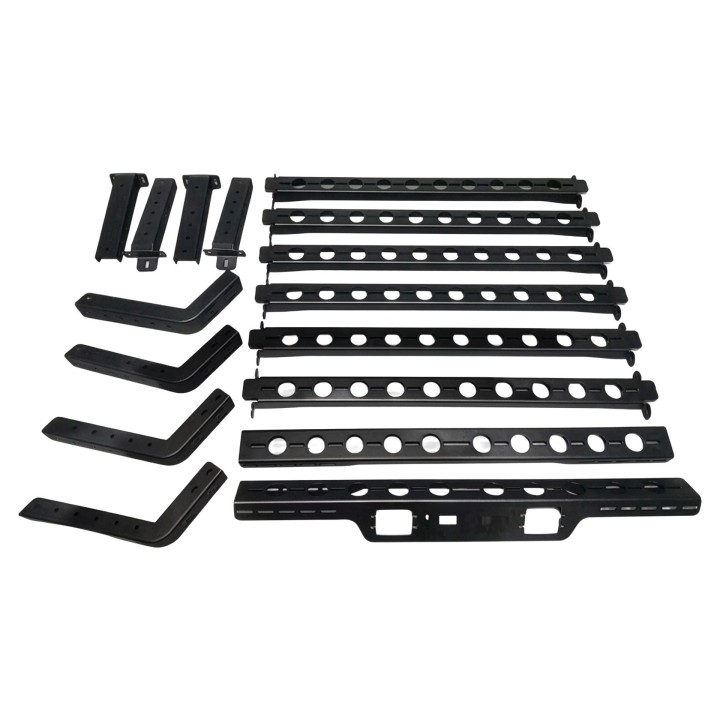

| Material and construction | steel, welded and bolted |
| Finish | powder coat |
| LED lamps (rear) | 2, included |
| Load capacity while driving | up to 150 kg |
| Load capacity when parked | up to 250 kg |
| Gross weight | 48 kg |
| Box dimensions | 1280 x 450 x 220 mm |
| Fits tonneau cover rails (T-slot) | no - bolts to the bed body |
Who it is for
For pickup drivers who want to carry a roof top tent and overland gear above the bed and also get extra light behind the vehicle at camp or when working after dark.
 |  |
Mounting and notes

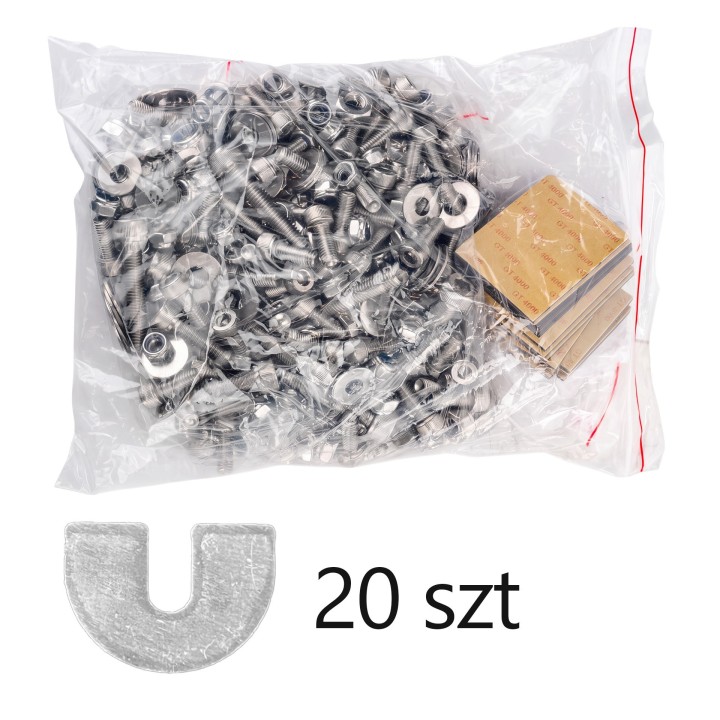

- The frame bolts to the bed body - it does not fit tonneau cover rails (T-slot).
- Measure your bed and check the mounting method before buying. The manufacturer gives examples such as Toyota Hilux, Ford Ranger, Volkswagen Amarok, Isuzu D-Max, Nissan Navara, Mitsubishi L200 and Jeep Gladiator - always after checking the bed size.
- The 150 kg driving and 250 kg parked limits apply to an evenly distributed load.
Why choose it
- Bed rack and rear LED lighting in one kit.
- Overland gear above the bed, load space free for everyday use.
At Szekla4x4.pl - shop and workshop - we will measure your bed, match a tent and accessories for the rack and help with fitting.
Frequently asked questions
Are the LED lamps included?
Yes, two LED lamps mounted on the rear bar come with the rack.
Is the length adjustable?
No, the frame is 1300 mm long. The width adjusts from 1300 to 1700 mm.
How is it mounted?
It bolts to the bed body - it does not fit tonneau cover rails (T-slot).
How much load can it take?
Up to 150 kg while driving and up to 250 kg when parked, with the load evenly spread.
