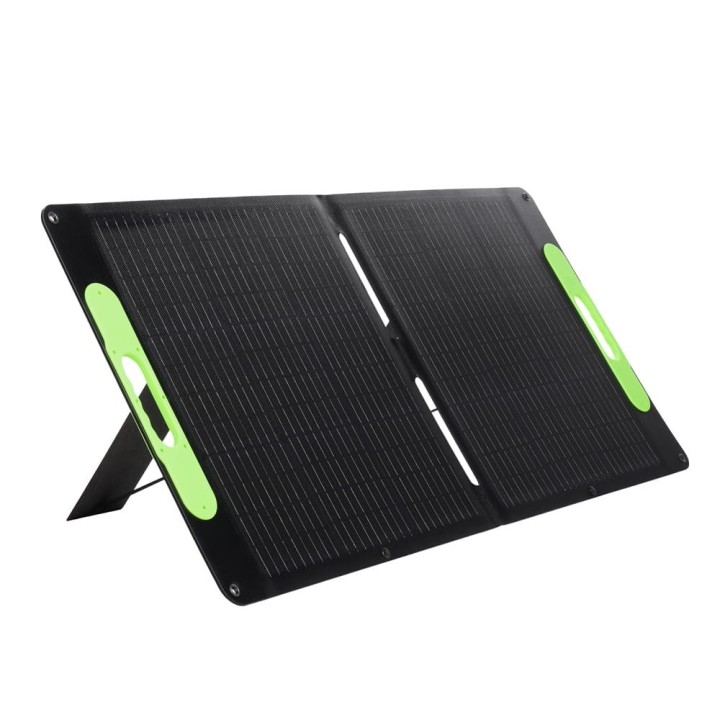

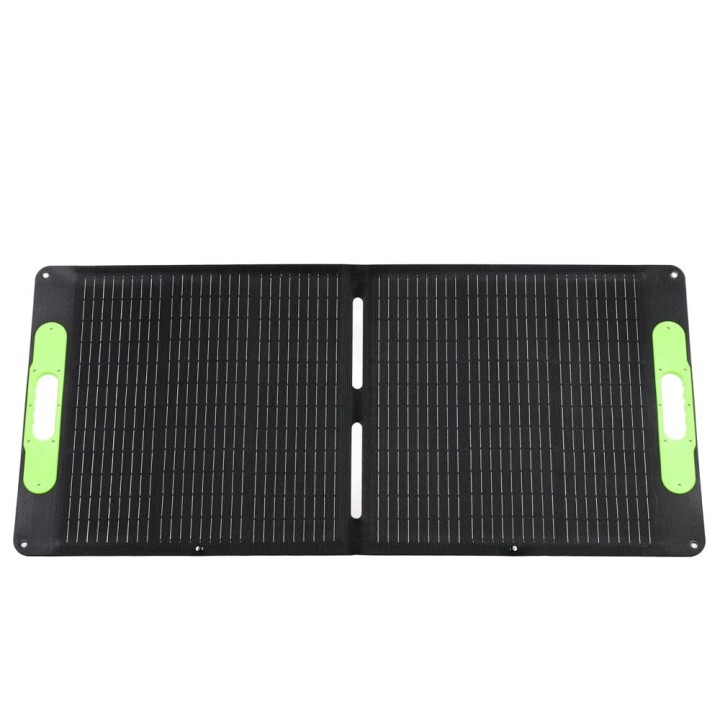

Yolco ZS100W portable solar panel, 100 W, USB-A and USB-C

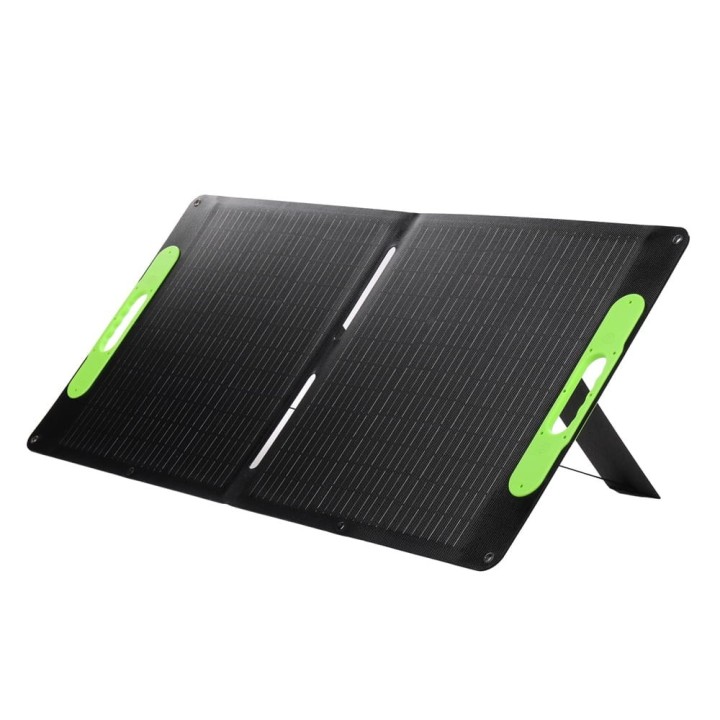

The Yolco ZS100W folding solar panel delivers 100 W to Yolco portable fridges with a solar charging input and charges devices via 2 USB-A ports and a USB-C port up to 65 W. Monocrystalline cells reach up to 24% efficiency. Integrated stands angle the panel to the sun and a cover protects it in transport.
Yolco ZS100W portable solar panel
Several days in one spot, the fridge runs non-stop and you do not want to start the engine just to top up the battery. The ZS100W panel turns sunlight into power for the fridge and small electronics.
The panel is rated at 100 W with 18 monocrystalline cells of up to 24% efficiency. Integrated stands let you set it perpendicular to the sun, and built-in 2x USB-A and USB-C ports (up to 65 W) charge a phone, tablet or power bank straight from the panel.
Rated power 100 W | Cell efficiency up to 24% | Net weight 5.1 kg |
Key features
- 18 monocrystalline cells, up to 24% efficiency

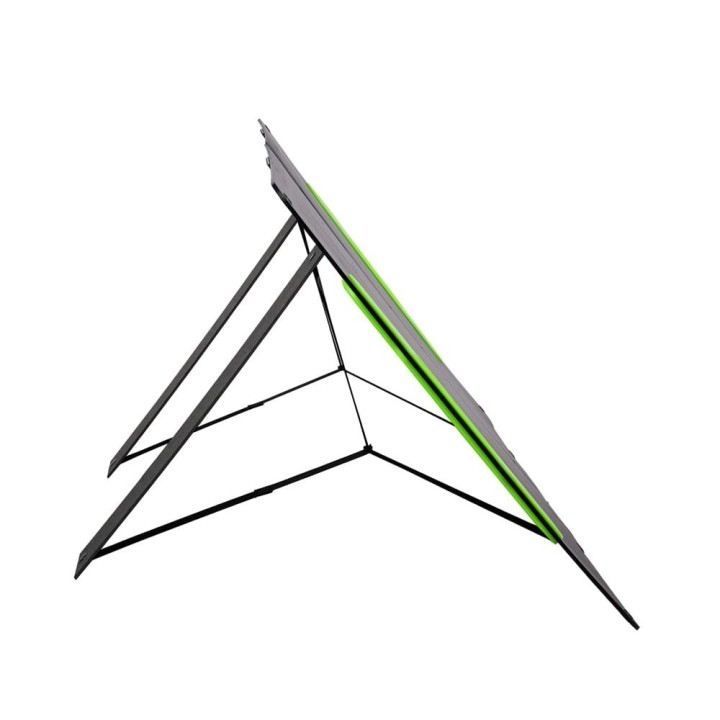

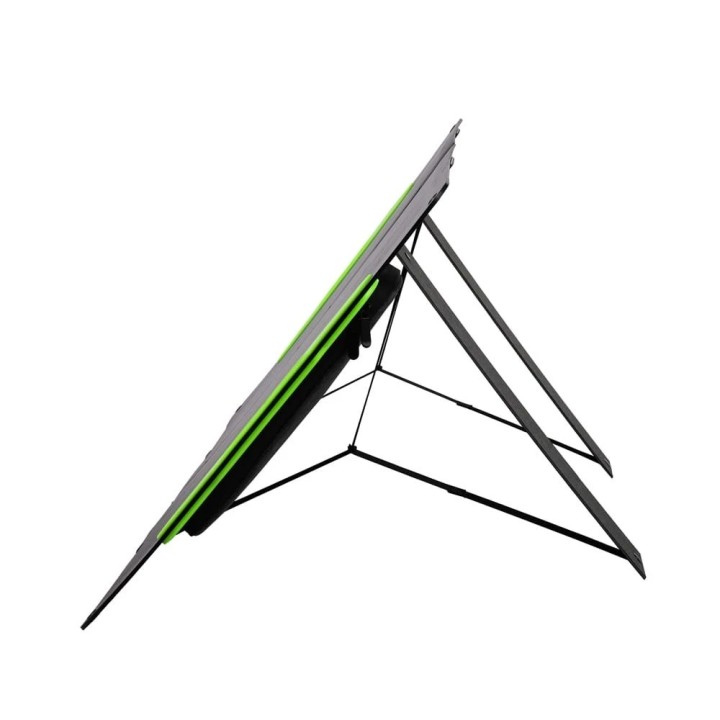

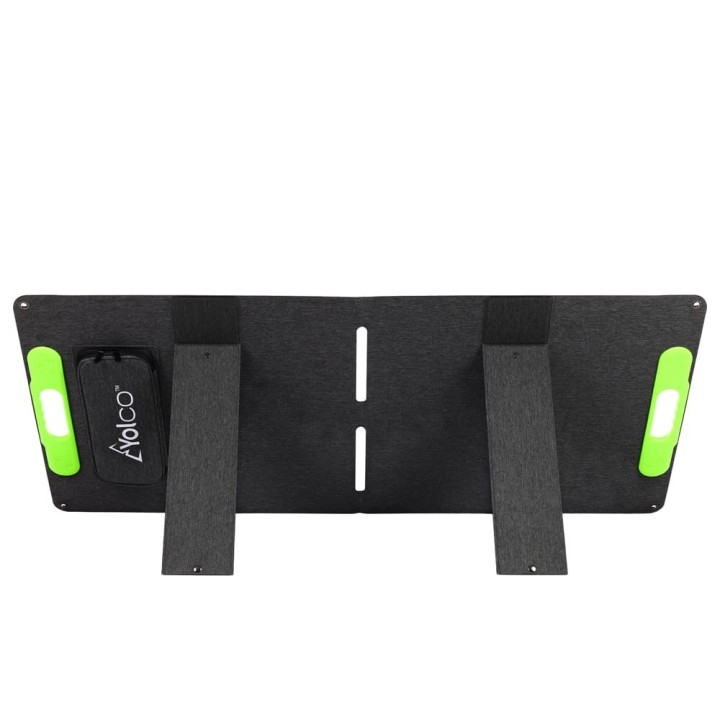

- Integrated stands for tilt adjustment
- Ports: 2x USB-A (up to 12 V/1.5 A) and USB-C (up to 65 W)

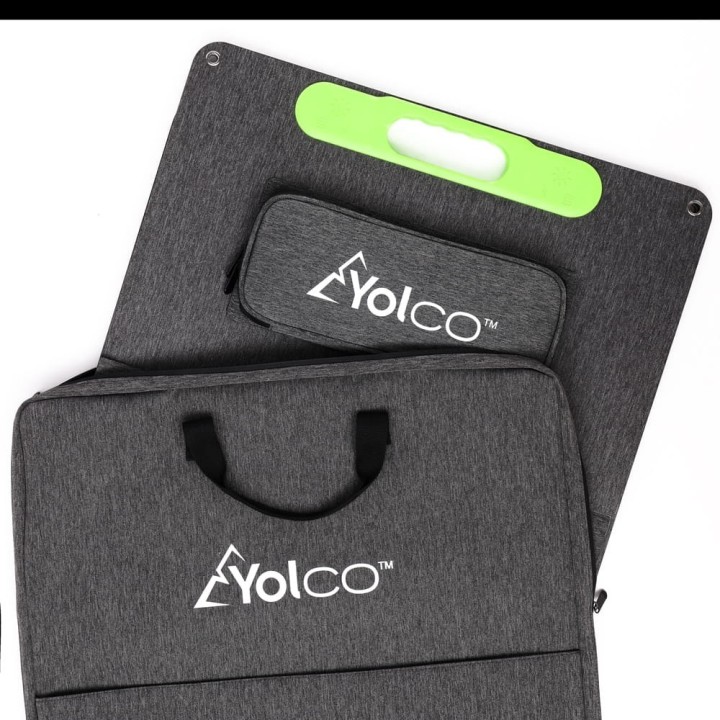

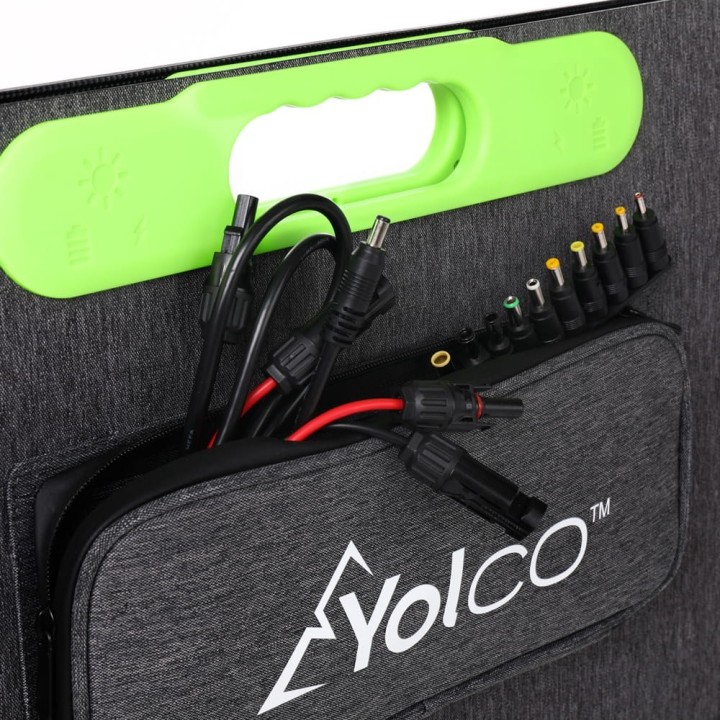

- Splash-resistant cover with handle and cable pocket
- Laminated surface resistant to dust, scratches and accidental splashes
- MC4 connectors
What's in the box
- Solar panel
- Connection cables
- Protective cover
- User manual
Technical data
| Parameter | Value |
|---|---|
| Cell type | monocrystalline |
| Number of cells | 18 |
| Efficiency | up to 24% (STC) |
| Rated power | 100 Wp |
| Power tolerance | +/-5% |
| Rated voltage | 18 V |
| Rated current | 5.55 A |
| Open circuit voltage | 21.6 V |
| Short circuit current (Isc) | 6.11 A |
| Max system voltage (DC) | 700 V |
| USB-A (x2) | 5 V/3.4 A; 9 V/2.0 A; 12 V/1.5 A |
| USB-C (x1) | 5-20 V, max 65 W (20 V/3.25 A) |
| Operating temperature | -20°C to +75°C |
| Dimensions folded / unfolded | 610 x 560 mm / 1227 x 560 mm |
| Net weight | 5.1 kg |
| Manufacturer index | ZS100W |
Use cases

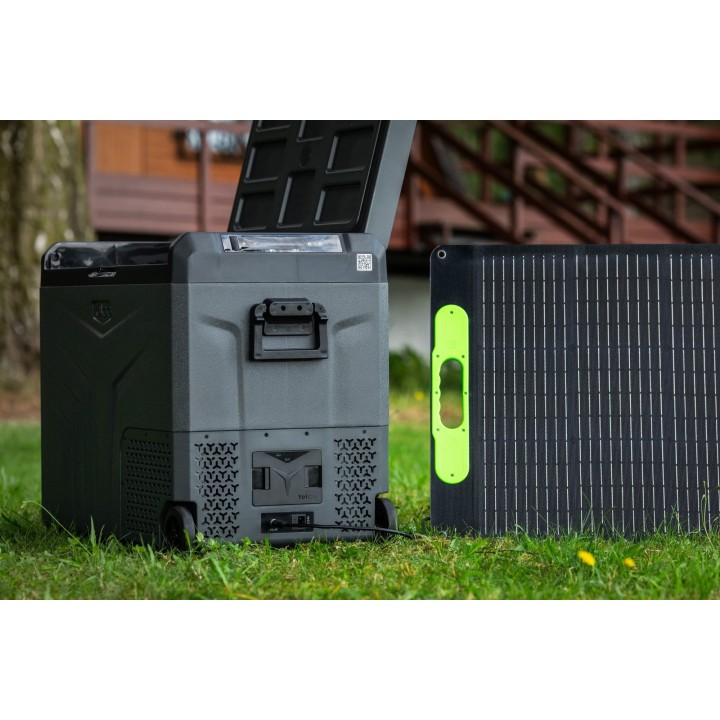

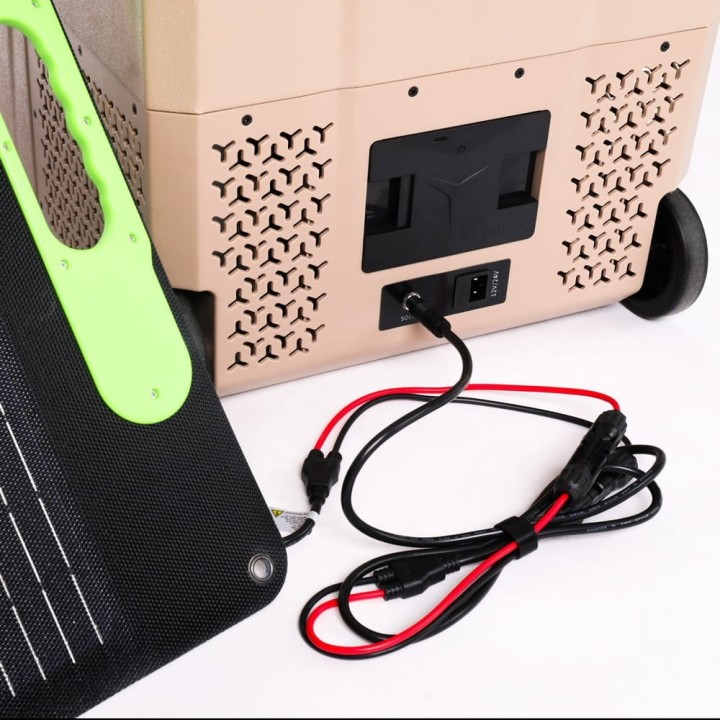

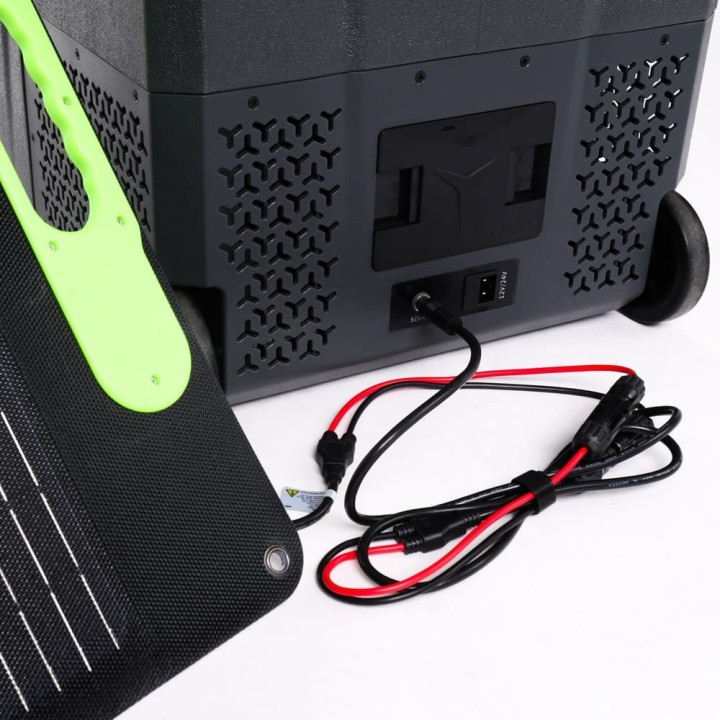

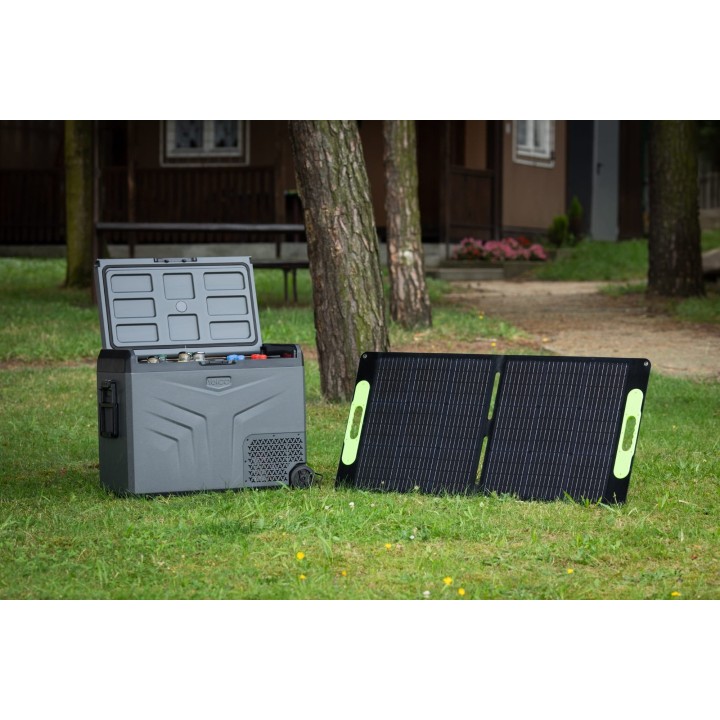

The panel is designed for Yolco portable fridges with a solar charging input. It powers a fridge running on a battery (including a modular one) - in that case the panel input is on the fridge. Fridges without a modular battery slot can be powered from the panel via the Yolco RSX6 external battery. The USB ports are handy at camp for charging a phone, tablet or power bank.
The junction box and cables are not waterproof - protect them from rain and do not use the panel during rainfall. Do not connect or disconnect the MC4 connectors while the panel is in sunlight, and disconnect it from the device after each use.
The panel works with Yolco fridges that have a solar charging input, or via the RSX6 external battery. If you are not sure whether your fridge has such an input, ask us.
Frequently asked questions
Is the panel waterproof?
The laminated surface resists dust, scratches and accidental splashes, but the junction box and cables are not waterproof. The manufacturer does not recommend use in rain.
How do I get the most energy from the panel?
Set it perpendicular to the sun using the built-in stands, and keep the surface clean and free from shade.
Why choose it
- Solar power for the fridge during longer stays
- USB ports right on the panel
- Folding design with a transport cover
Order the ZS100W together with a Yolco fridge or the RSX6 battery - we are happy to help you build the set.
