Iron Baltic guards for ATVs
Iron Baltic Skid Plate Full Set Can-Am Outlander G2 650/850/1000 (2019+) - aluminium

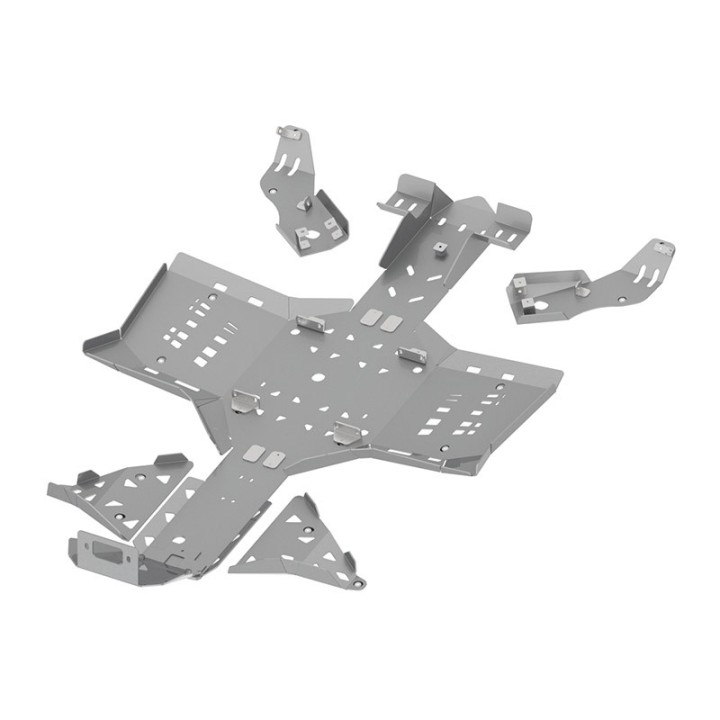

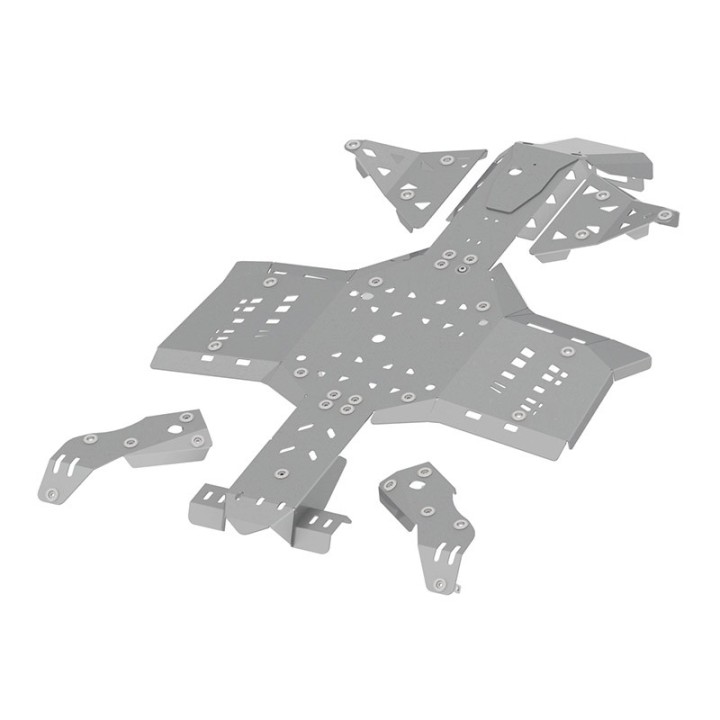

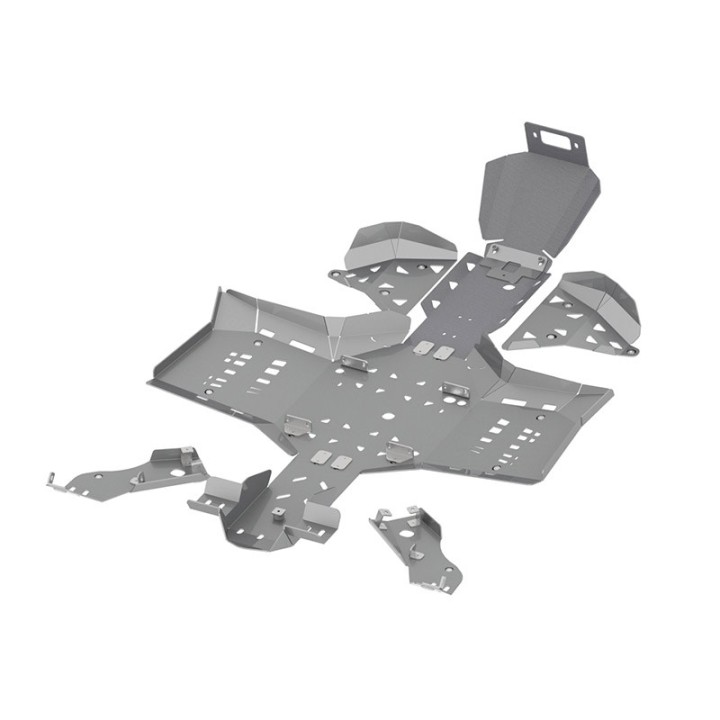

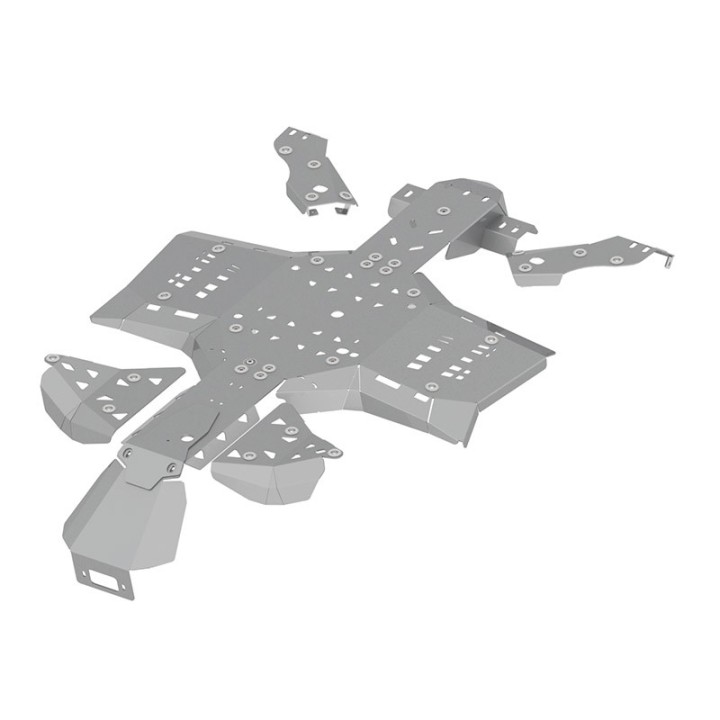

Iron Baltic skid plate full set for the Can-Am Outlander G2 650/850/1000 (2019+), made from A5754 aluminium in 4 mm. It covers the whole underside and front of the ATV. Oil change holes are provided. Holes for the Iron Baltic Mid-mount adapter are pre-made. Detailed installation instructions included.
Iron Baltic Skid Plate Full Set Can-Am Outlander G2 650/850/1000 (2019+) - aluminium
Rocks, roots and frozen ruts hit the underside of an ATV first, so your Can-Am Outlander G2 650/850/1000 (2019+) deserves skid plates designed for that exact model. This Iron Baltic kit is built from A5754 aluminium in 4 mm and covers the full underside and front of the ATV.
Fits Can-Am Outlander G2 650/850/1000 (2019+) / Outlander XXC (2023+) | Material A5754 aluminium | Thickness 4 mm |
Key features
- Fits model years 2019-2024.
- Protects the full underside and front of the frame plus the front and rear A-arms.
- Designed for the best possible protection while keeping maximum ground clearance; the skid plate follows the frame / body shape as closely as possible.
- Additional welded reinforcement plate for the front section.
- Holes for easier washing and mud drainage.
- Mounting bolts with special protective dish washers allow repeated removal and refitting, making servicing quicker and easier.
- Holes for the Iron Baltic Mid-mount adapter, plus pre-cuts to open holes for the Mid-mount adapter for the Can-Am Alpine plow (03.4900).
- Service holes for oil changes.
- Full mounting hardware and detailed installation instructions included.
- Also fits 2023+ Outlander XXC 1000 models.
- Only fits 2019-2024 models with the revised A-arm design.
Fitment
Aluminium full skid plate kit including arm guards for 2019-2024 model year Outlander (short, 1-up) vehicles (excluding small cc Outlander L and 2024+ Outlander 500/700/PRO models). Also fits the 2023+ Outlander 1000 XXC, but the front part of the Iron Baltic skid plate must be cut to fit. Includes two front parts: up to MY2022 and from MY2023.
Specifications
- Manufacturer: Iron Baltic
- Part number: 02.23100
- Vehicle: Can-Am Outlander G2 650/850/1000 (2019+) / Outlander XXC (2023+)
- Material: A5754 aluminium
- Thickness: 4 mm
- Kit weight (manufacturer): 22.4 kg
- Packed dimensions: 1200 x 700 x 230 mm
Before you order
Check fitment against your ATV model and model year. If in doubt, send us the VIN or the exact vehicle version and we will confirm that this kit fits.
