Iron Baltic
Reference: 02.34300
Iron Baltic guards for ATVs
Iron Baltic Skid Plate Full Set Segway Snarler AT10 L - HDPE
Iron Baltic skid plate full set for the Segway Snarler AT10 L, made from HDPE plastic in 10 mm. It covers the whole underside and front of the ATV. Oil change holes are provided. Holes for the Iron Baltic Mid-mount adapter are pre-made. Detailed installation instructions included.
Iron Baltic Skid Plate Full Set Segway Snarler AT10 L - HDPE
Rocks, roots and frozen ruts hit the underside of an ATV first, so your Segway Snarler AT10 L deserves skid plates designed for that exact model. This Iron Baltic kit is built from HDPE plastic in 10 mm and covers the full underside and front of the ATV.
Fits Segway Snarler AT10 L | Material HDPE plastic | Thickness 10 mm |
Key features
- Covers the entire underside and the front of the ATV.
- Service holes for oil changes.
- Holes for the Iron Baltic Mid-mount adapter; compatible with the Iron Baltic Front-mount adapter.
- Additional bolt-on reinforcement plate on the nose section.
- Detailed installation instructions and full mounting hardware included.
Fitment

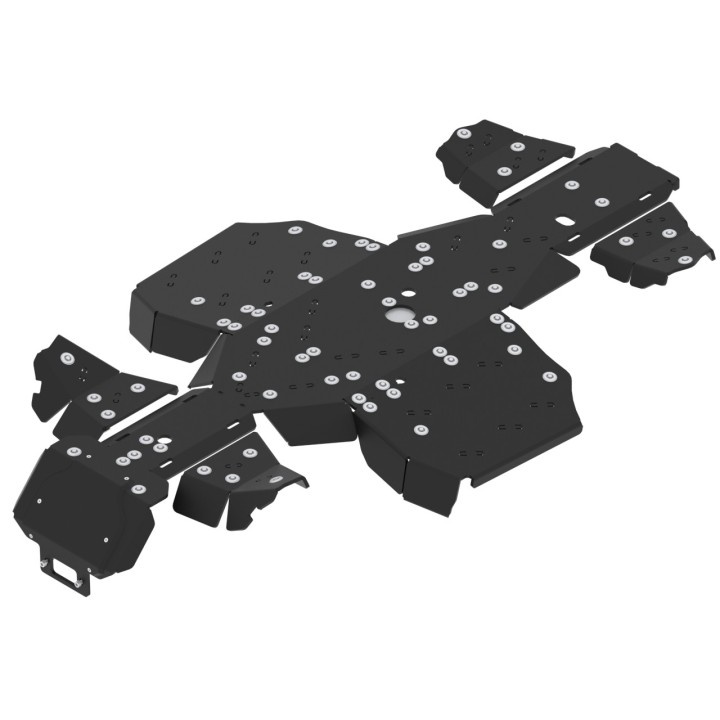

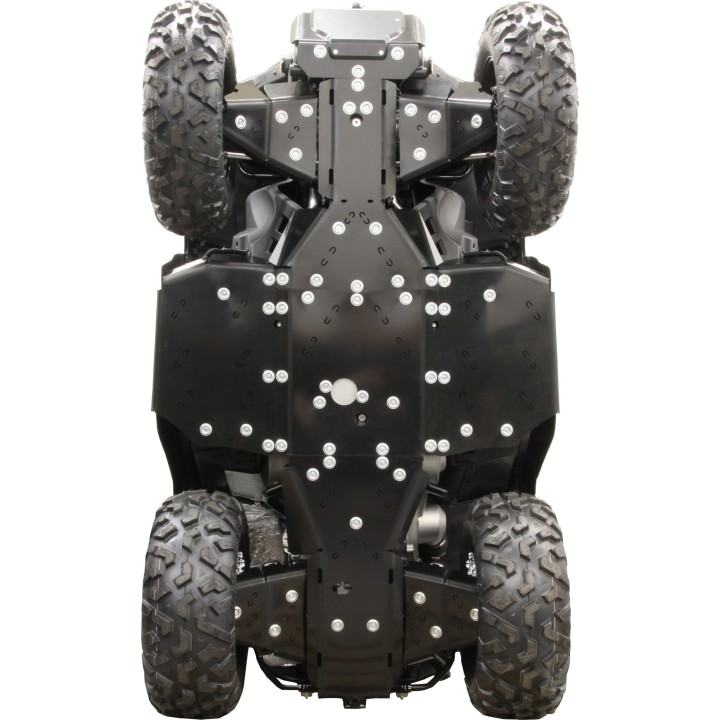

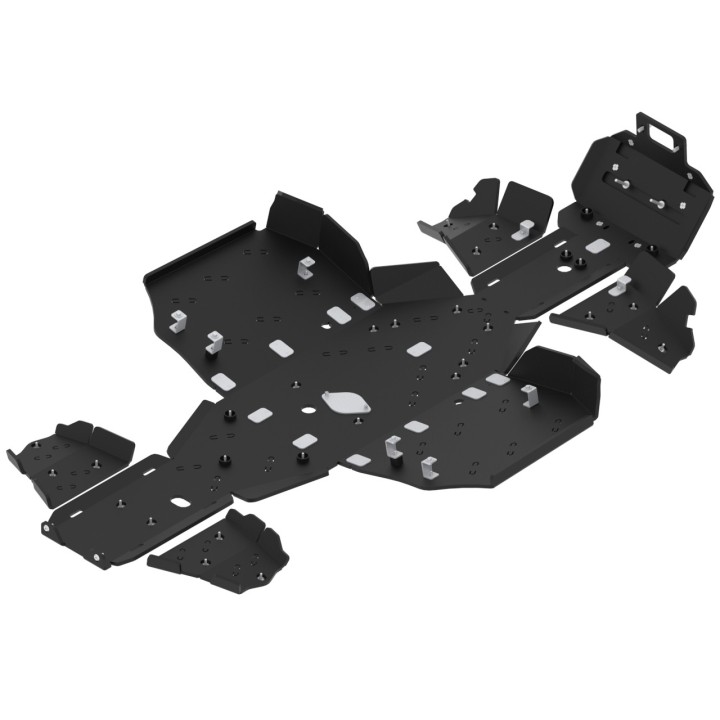

Full skid plate set (10 mm HDPE plastic) for Segway Snarler AT10 L. Protects the whole underside and front of the chassis, plus the front and rear A-arms. Designed for the best possible protection while keeping maximum ground clearance - the skid plate follows the frame and body shape as closely as possible.
Specifications
- Manufacturer: Iron Baltic
- Part number: 02.34300
- Vehicle: Segway Snarler AT10 L
- Material: HDPE plastic
- Thickness: 10 mm
- Kit weight (manufacturer): 20.6 kg
- Packed dimensions: 780 x 620 x 200 mm
Before you order
Check fitment against your ATV model and model year. If in doubt, send us the VIN or the exact vehicle version and we will confirm that this kit fits.
