Iron Baltic Skid Plate Full Set Trapper Guardian 450L/550L/750L - HDPE

Rocks, roots and frozen ruts hit the underside of an ATV first, so your Trapper Guardian 450L/550L/750L deserves skid plates designed for that exact model. This Iron Baltic kit is built from HDPE plastic in 10 mm and covers the full underside and front of the ATV.

Key features

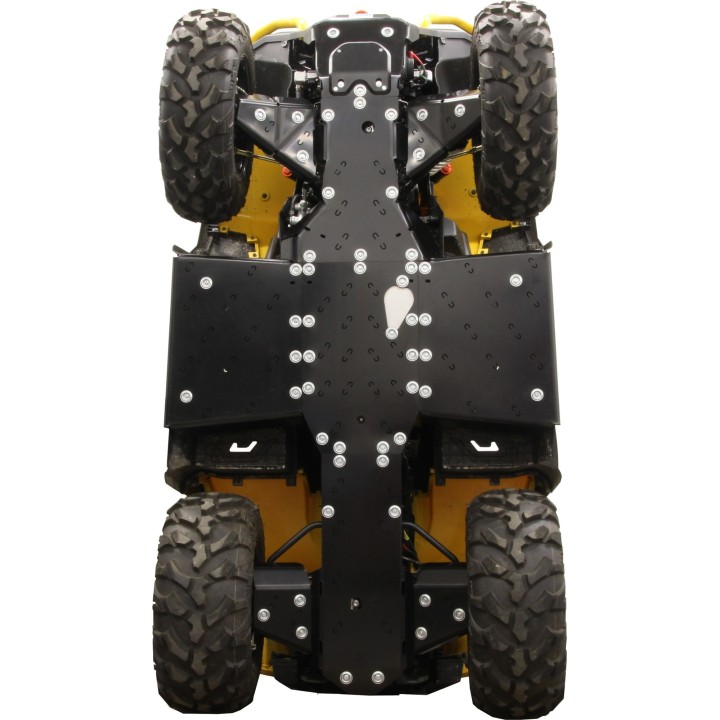

• Covers the entire underside and the front of the ATV.
• Optional openings for mud draining and easier washing.
• Service holes for oil changes.
• Holes for the Iron Baltic Mid-mount adapter (e.g. for a plow).
• The skid plate kit is compatible with the Iron Baltic Mid-mount and Front-mount adapters (03.17900 / 03.18000) for installing a plow, bucket, broom and other accessories.
• Detailed installation instructions included.
• Full mounting hardware included.

Fitment

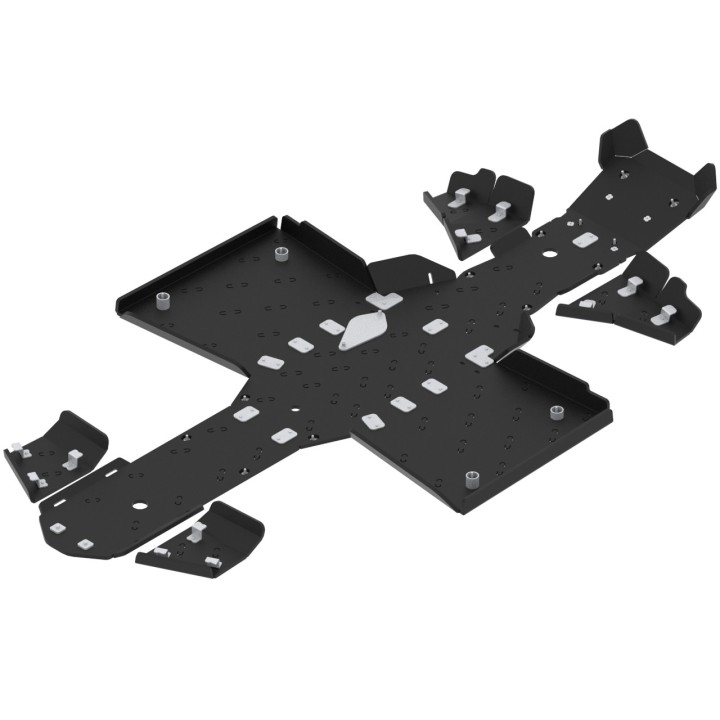

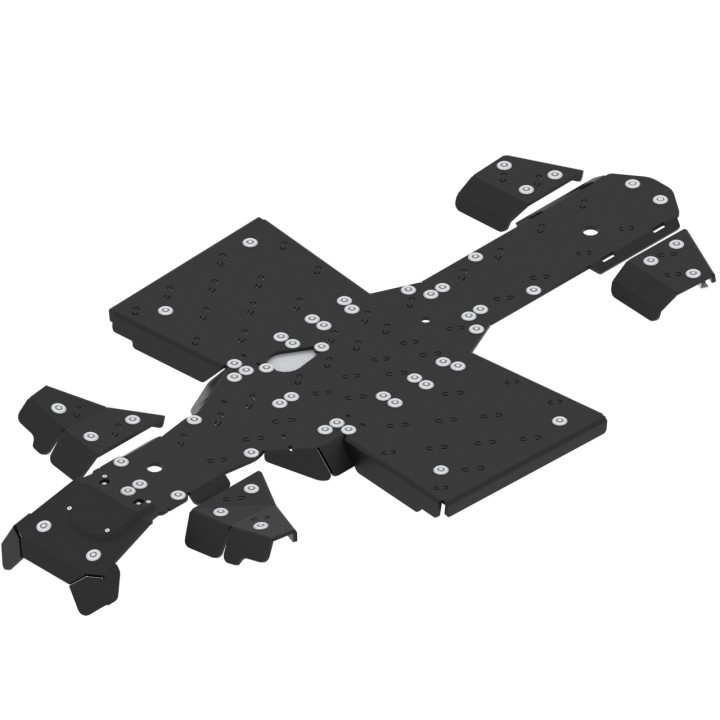

Plastic full skid plate kit for: Trapper Guardian 450L / 550L / 750L (2025+) and HISUN Guardian 400 / 550 / 650. Full protection of the underside and front of the vehicle. Optional mud drain openings. Oil change access holes. Holes for the Iron Baltic Mid-mount adapter, compatible with the Iron Baltic Front-mount adapter. Detailed installation instructions and full mounting hardware included. Designed for the best possible protection while keeping maximum ground clearance. The kit consists of the main skid plates (plastic), front A-arm guards (plastic) and rear A-arm guards (plastic).

Specifications

• Manufacturer: Iron Baltic
• Part number: 02.35600
• Vehicle: Trapper Guardian 450L/550L/750L
• Material: HDPE plastic
• Thickness: 10 mm
• Kit weight (manufacturer): 17.1 kg
• Packed dimensions: 770 x 610 x 190 mm

Before you order

Check fitment against your ATV model and model year. If in doubt, send us the VIN or the exact vehicle version and we will confirm that this kit fits.
