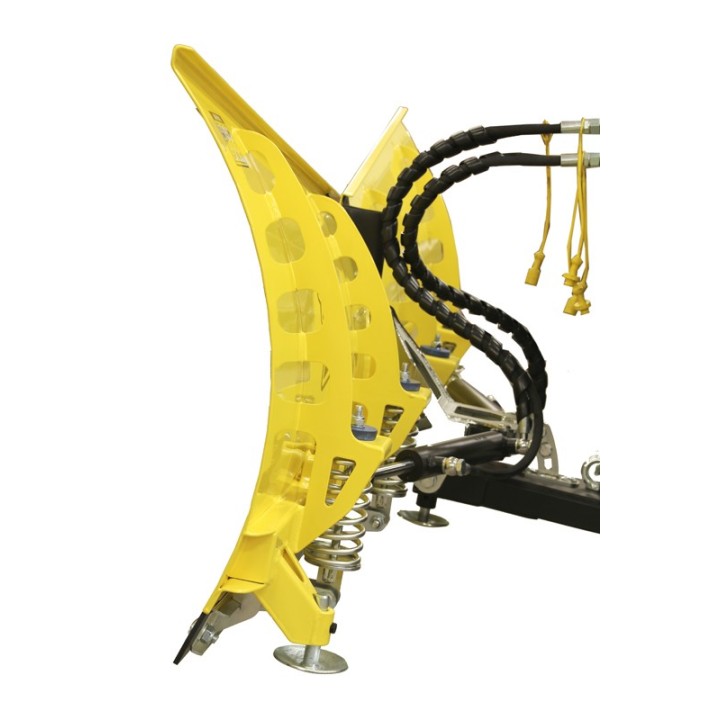

Iron Baltic V-Plow 1500 G2 Narrow Quick Attach Front-Mount, Hydraulic Turning

The V-Plow 1500 G2 Narrow Quick Attach Front-Mount, Hydraulic Turning is part of the Iron Baltic plow system for ATVs and UTVs.

Key features

• Quick and easy plow turning and side angle adjustment via hydraulic cylinders.
• Working width (track) in max turned reversed V position: 1350 mm.
• Working width (track) in max turned V position: 1380 mm.
• Working width (track) in straight position: 1500 mm.
• Working height adjustment via sliding shoes.
• Blade dampening springs let the plow move over fixed obstacles without damaging the plow or the vehicle.
• Curved design provides better snow and dirt roll-off at any angle.
• Raised and lowered using the vehicle winch.
• Complete illustrated user guide and CE safety instructions included.
• A model specific mounting kit is required for installation (see the front-mount adapters section).

Use and compatibility

Heavy-duty steel construction. Suitable for clearing snow or pushing sand, dirt, gravel, etc. A model-specific mounting kit is required to install the push tubes (see Front-mount adapters). The kit contains the narrow quick attach front-mount Gen 2 V-Plow 1500 kit (p/n 34.3500 & 34.3600) and the hydraulic kit with Hydraulic Power Unit (p/n 71.0000) plus hydraulic turning cylinders with 1400 mm hoses (2 x p/n 71.10000).

Specifications

• Manufacturer: Iron Baltic
• Part number: 34.4200S
• Material: steel
• Finish: powder coated
• Working width: 1500 mm
• Weight (manufacturer): 70 kg
• Packed dimensions: 1210 x 800 x 550 mm

Before you order

Check compatibility with your vehicle model and your Iron Baltic equipment. If in doubt, contact us and we will help you choose the right kit.
