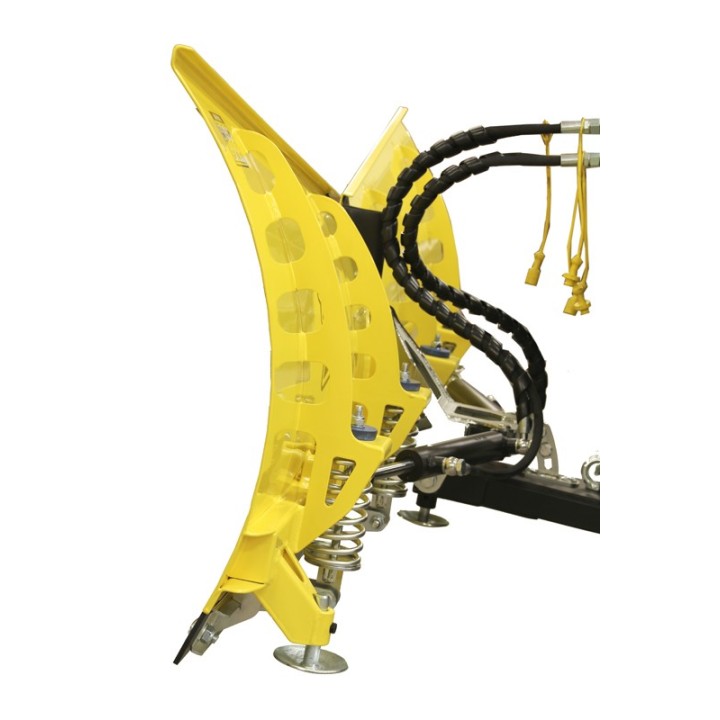

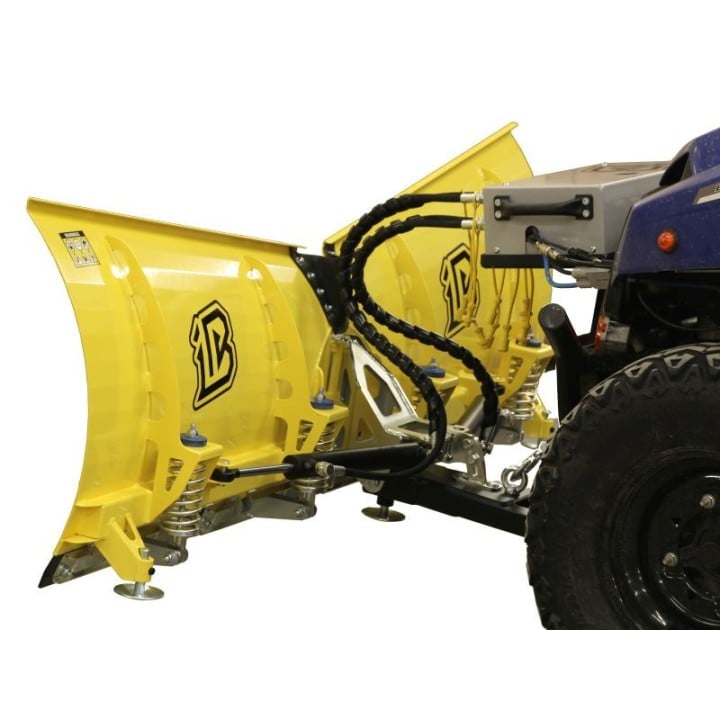

Iron Baltic UTV V-Plow 1800 G2 Front-Mount, Hydraulic Turning Version

The UTV V-Plow 1800 G2 Front-Mount, Hydraulic Turning Version is part of the Iron Baltic plow system for ATVs and UTVs.

Key features

• Quick and easy plow turning and side angle adjustment via hydraulic cylinders.
• Working width (track) in max reversed V position: 1530 mm.
• Working width (track) in max V position: 1560 mm.
• Working height adjustment via sliding shoes.
• Blade dampening springs let the plow move over fixed obstacles without damaging the plow or the vehicle.
• Curved design provides better snow and dirt roll-off at any angle.
• Raised and lowered using the vehicle winch.
• Also available for tracks fitted vehicles.
• Complete illustrated user guide and CE safety instructions included.
• A model specific mounting kit is required for installation (see the front-mount adapters section).
• Mounting brackets 71.7000 and 71.7030 are required for Polaris Ranger models.
• Packed in a transport safe wooden crate (stackable).

Use and compatibility

Heavy-duty steel construction. Suitable for clearing snow or pushing sand, dirt, gravel, etc. A model-specific mounting kit is required to install the push tubes (see the front-mount adapters section). The kit consists of the Gen 2 front-mount V-Plow 1800 (p/n 34.4000S) and the hydraulic kit with a hydraulic power unit (71.0000) and hydraulic cylinders with hoses (2 x 71.3100).

Specifications

• Manufacturer: Iron Baltic
• Part number: 34.4000H
• Material: steel
• Finish: powder coated
• Working width: 1800 mm
• Weight (manufacturer): 85 kg
• Packed dimensions: 1210 x 500 x 650 mm

Before you order

Check compatibility with your vehicle model and your Iron Baltic equipment. If in doubt, contact us and we will help you choose the right kit.
