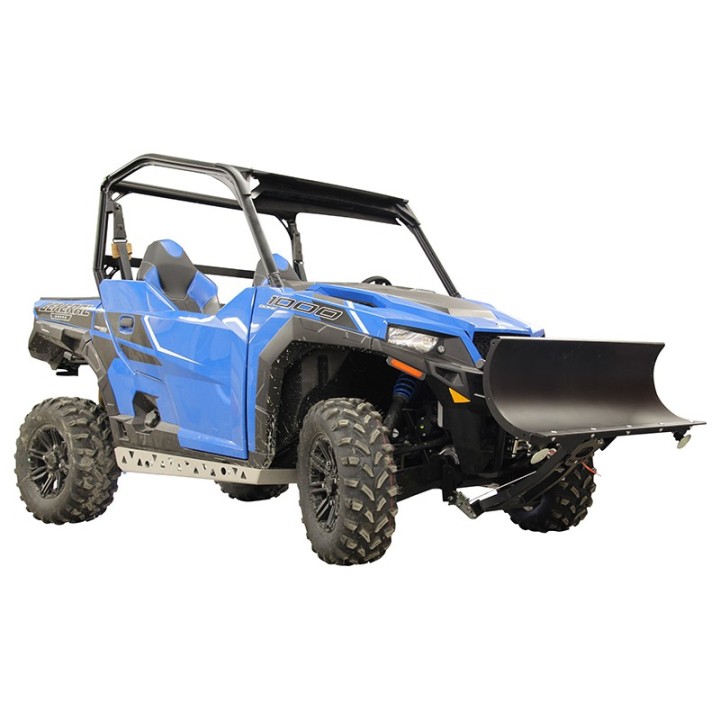

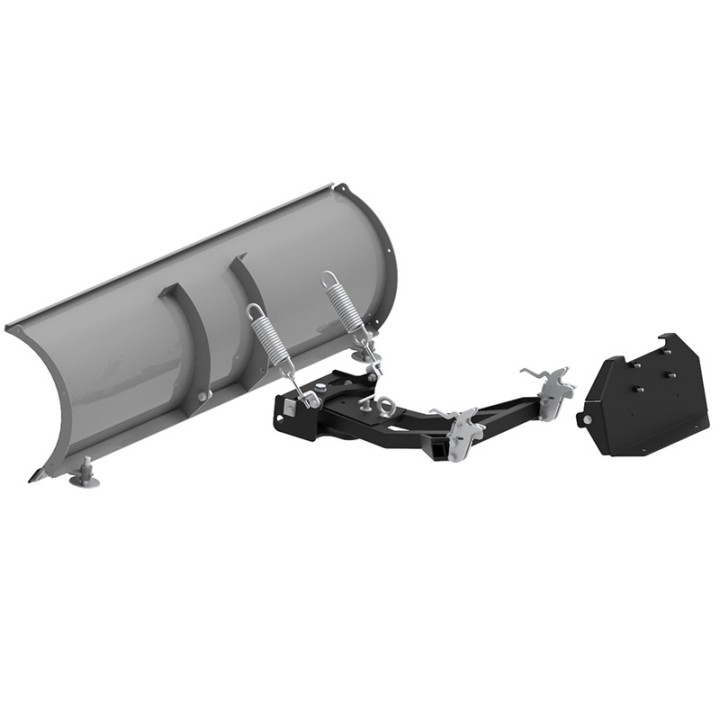

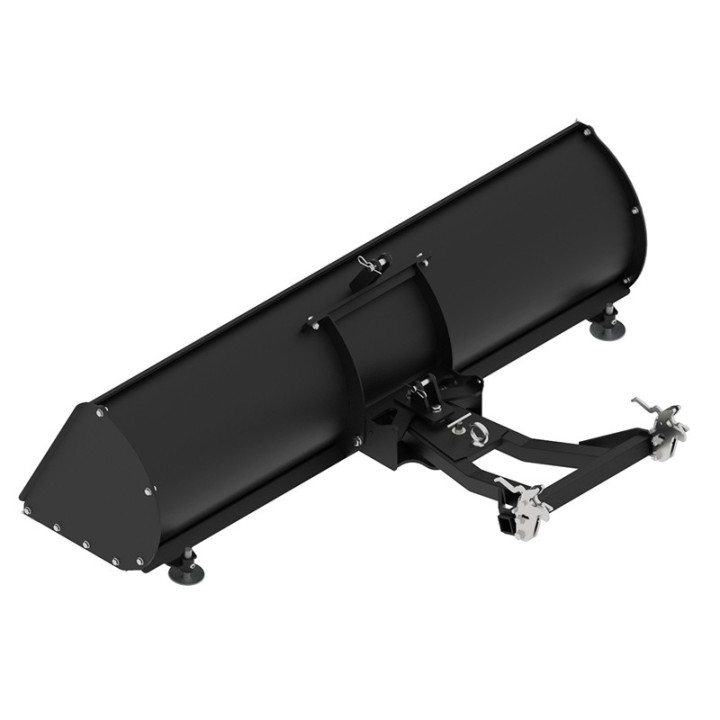

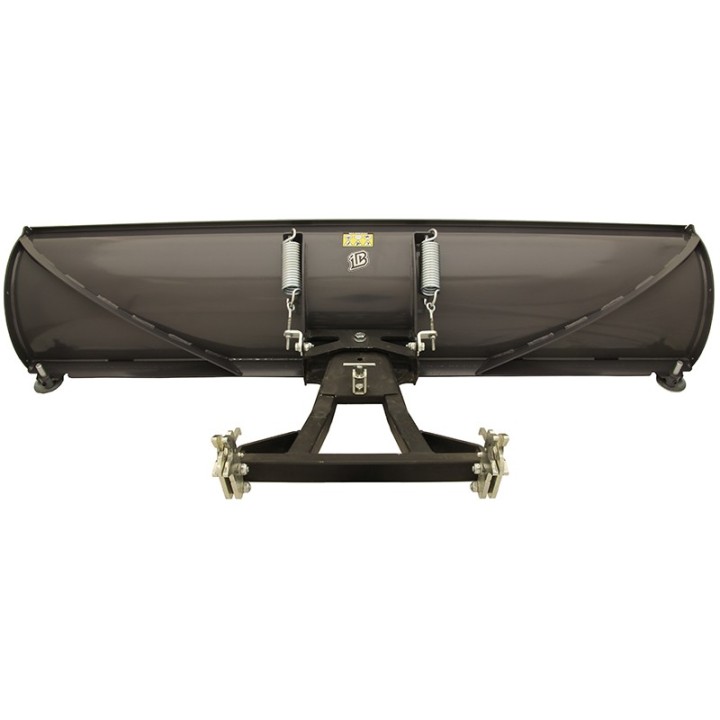

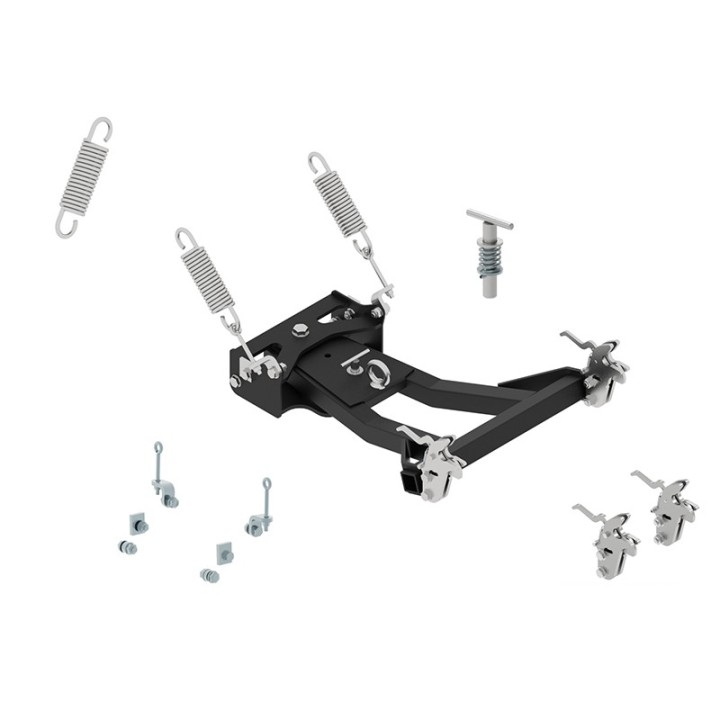

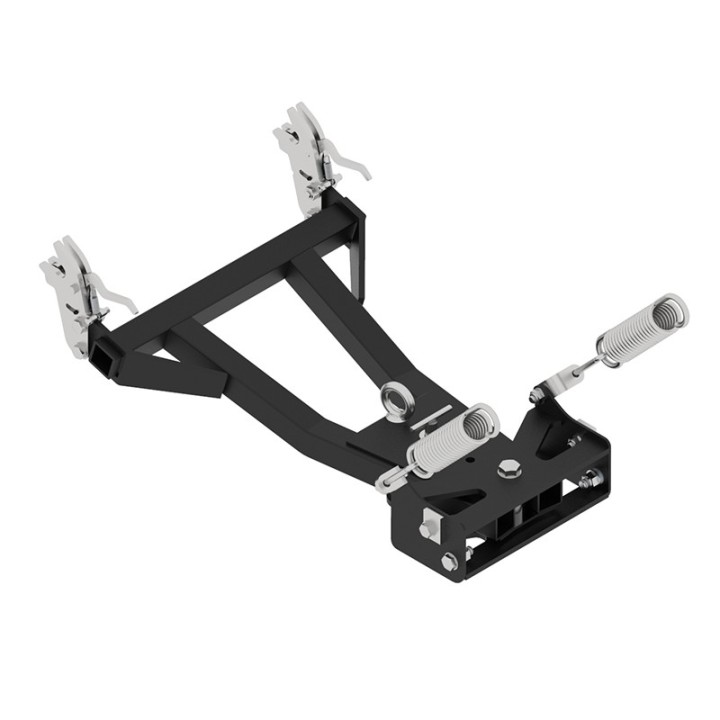

Iron Baltic UTV Front-Mount Quick Attach Push Tubes

The UTV Front-Mount Quick Attach Push Tubes is part of the Iron Baltic plow system for ATVs and UTVs.

Key features

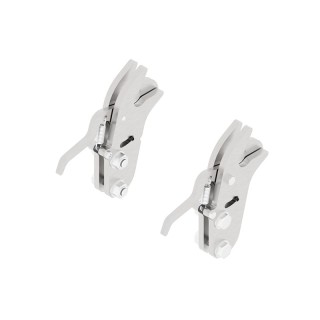

• Simple installation with quick attach: easy on, easy off.
• No reduction in ground clearance.
• Improved lift height.
• Impact reducing springs.
• 5 working angle positions (quick and easy adjustment).
• Blade angle adjustment.
• The mount is at the front of the vehicle, no need to crawl under the ATV.

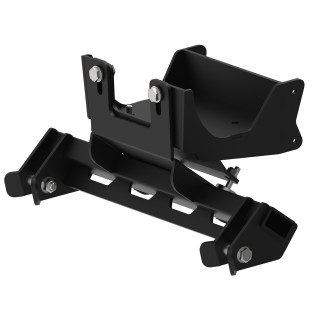

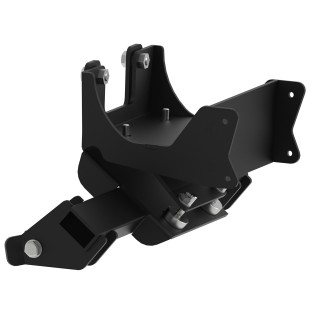

• Requires the specific heavy duty UTV front-mount adapter for installation.
• Will not fit the normal / ATV front-mount adapters.
• Detailed user manual included.

Use and compatibility

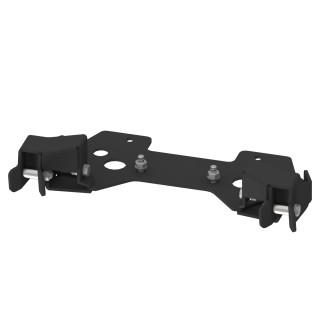

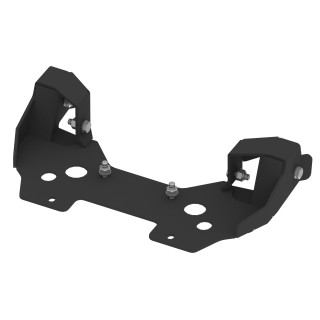

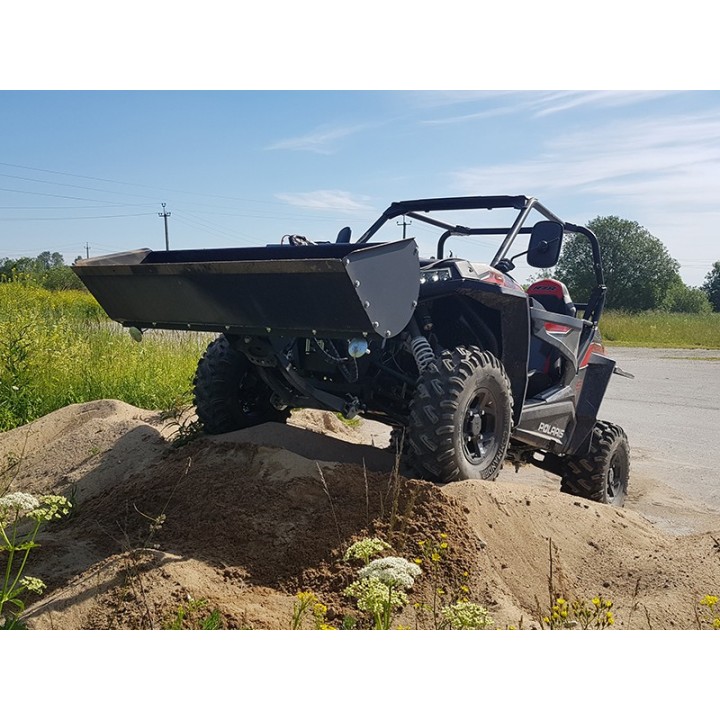

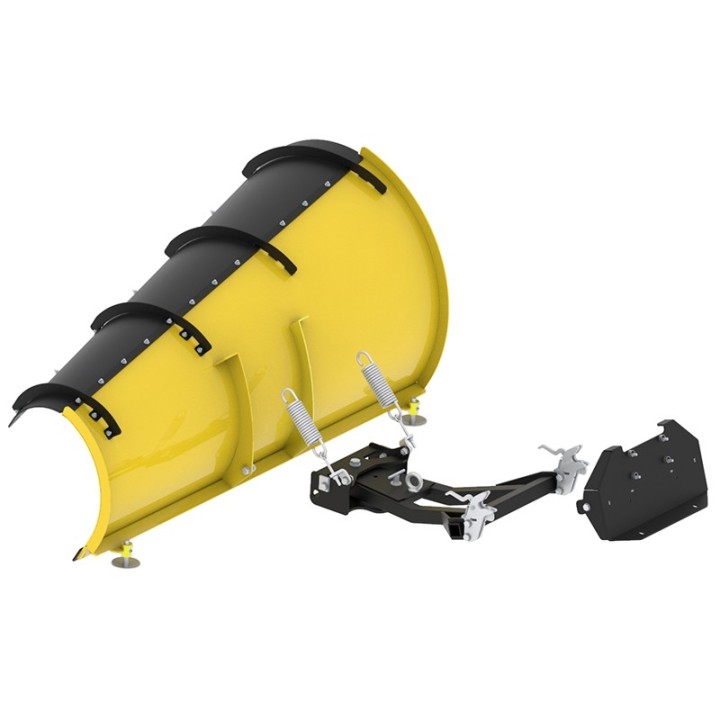

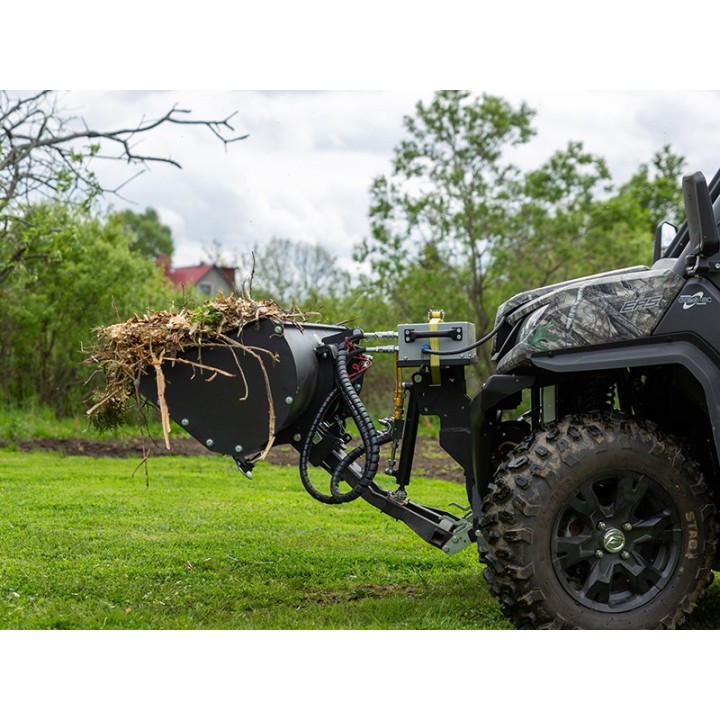

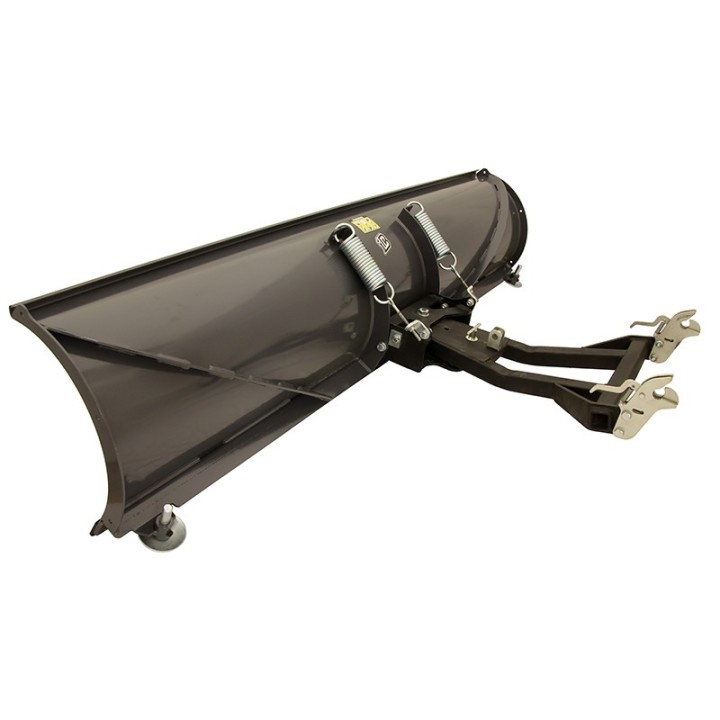

Iron Baltic quick-attach push tube. Works with: 04.100 straight plow blade 1280 mm (also as a bucket / with the bucket conversion kit), 04.300 straight plow blade 1500 mm, 20.7700 plastic plow blade 1500 mm, 04.800 straight plow blade 1800 mm, 20.7200 high-throw blade 1500 mm, 20.7300 high-throw blade 1800 mm, 20.7600 modular 2-in-1 bucket, 20.1000 push broom 1500 mm. For UTV V-Plows use push tube p/n 34.4000. A model-specific, reinforced UTV mounting adapter is required to install the UTV push tubes (standard front-mount adapters are not compatible with UTV push tubes). Compatible mounting adapters: 03.7000, 03.7900, 03.9800, 03.10600, 03.11800, 03.12100, 03.12700, 03.13000, 03.13200, 03.13400.

Specifications

• Manufacturer: Iron Baltic
• Part number: 20.7400
• Material: steel
• Finish: powder coated
• Product dimensions: 700 x 450 x 200 mm
• Weight (manufacturer): 20.1 kg
• Packed dimensions: 760 x 490 x 220 mm

Before you order

Check compatibility with your vehicle model and your Iron Baltic equipment. If in doubt, contact us and we will help you choose the right kit.
