LED bar Purelux Panther S300 Gen4 30 cm 144 W Ref. 30
A 30 cm LED bar with two power modes: 9 335 lm and 541 m of reach at 1 lux in PowerBoost, 4 773 lm and 384 m in the approved road mode. 9-36 V DC supply, IP69K sealing, a DT-2 connector. ECE R10, R148, R149 approval, reference number 30. Manufacturer warranty 24 months.

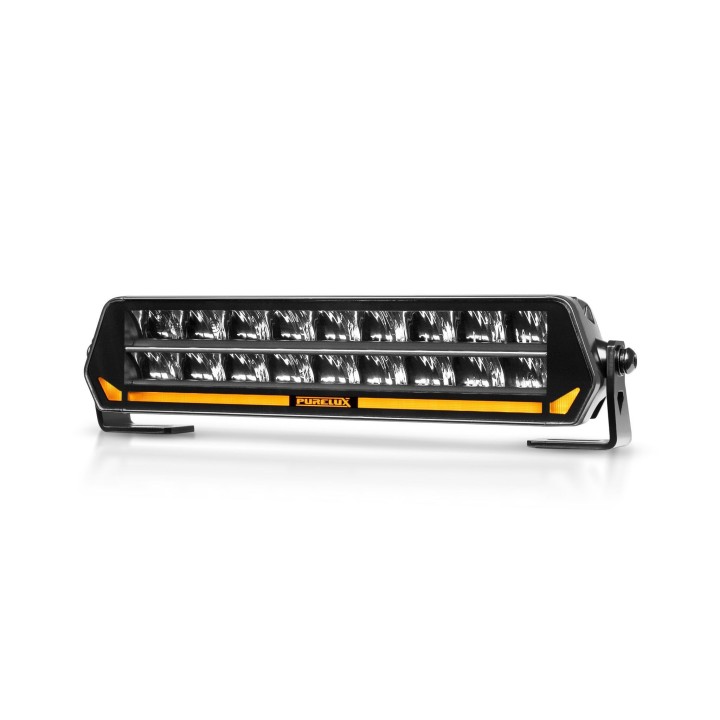

Purelux Panther S300 — LED bar, 30 cm, 144 W, Ref. 30
Two power modes in one bar: off the road PowerBoost gives 9 335 lm and 541 m of reach at 1 lux, while the approved mode runs at 4 773 lm and 384 m. A button on the housing switches between them, with no wiring to change.
Purelux publishes the catalogue figures and Valostore adds its own laboratory measurements, separately for both modes. You do not have to take one number on the box on trust: both sets are below, side by side.
PowerBoost mode 9 335 lm / 541 m | Approved mode 4 773 lm / 384 m | Approvals ECE R10, R148, R149 |
Key benefits
- Two power modes - 136 W @ 24 V in PowerBoost and 53 W @ 24 V in road mode. One bar covers public roads and work off them.
- 541 m of reach at 1 lux, and 1 082 m at 0.25 lux - the level at which the eye still picks out an obstacle. Road mode gives 384 m.
- Measured, not just declared - the maker states 10 500 lm, the Valostore measurement is 9 335 lm.
- 18 x 6 W LEDs - a calculated rating of 144 W.
- 3 W position light in the lower strip, in white and amber.
- 9-36 V DC supply - one version for 12 V and 24 V systems.
- IP69K - rated for high-pressure, high-temperature washing, not just rain.
- DT-2 connector with a 50 cm lead.
- Reference number 30 - the lower it is, the more lamps fit within the permitted total for the vehicle.
- 24 months manufacturer warranty.
Two modes, two sets of figures
| Parameter | PowerBoost | Approved mode |
| Luminous flux | 9 335 lm | 4 773 lm |
| Measured power | 136 W @ 24 V | 53 W @ 24 V |
| Current draw | 5.66 A @ 24 V | 2.2 A @ 24 V |
| Reach at 1 lux | 541 m | 384 m |
| Reach at 0.25 lux | 1 082 m | 768 m |
The manufacturer states plainly that road approval does not cover PowerBoost mode. Treat it as an off-road mode and check the rules where you drive.
Technical data
- Model: Purelux Panther S300
- Intended use: auxiliary lighting for cars, off-road vehicles and construction machinery
- LEDs: 18 x 6 W
- Supply voltage: 9-36 V DC
- Calculated power: 144 W
- Measured power: 136 W @ 24 V (PowerBoost) / 53 W @ 24 V (approved mode)
- Current draw: 5.66 A @ 24 V (PowerBoost) / 2.2 A @ 24 V (approved mode)
- Position light: 3 W
- Luminous flux declared by the manufacturer: 10 500 lm (PowerBoost)
- Luminous flux measured by Valostore: 9 335 lm (PowerBoost) / 4 773 lm (approved mode)
- Reach: 541 m at 1 lux and 1 082 m at 0.25 lux (PowerBoost); 384 m at 1 lux and 768 m at 0.25 lux (approved mode)
- Colour temperature: 5 000 K declared, 4 773 K measured

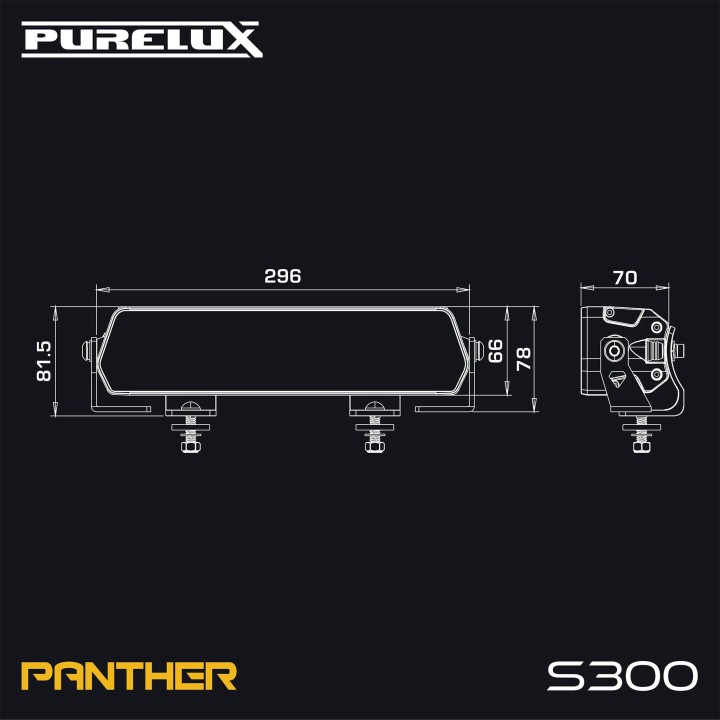

- Dimensions: 296 x 66 x 70 mm (width x height x depth)
- Height with end legs: 78 mm
- Height with lower legs: 81.5 mm
- Weight: 1 327 g
- Mounting: end brackets or width-adjustable bottom brackets
- Connector: DT-2, 50 cm cable
- Ingress protection: IP69K
- Approvals: ECE R10, R148, R149; reference number 30
- Pre-drilled mounting points for support bars
- Manufacturer warranty: 24 months
What is in the box
- Purelux Panther S300 bar
- 2 x width-adjustable bottom brackets
- 2 x end brackets
- connection and installation instructions
Before you order
The measured colour temperature (4 773 K) on the source page is identical to the road-mode lumen figure (4 773 lm), which looks like an error in the supplier's material, so the feature list keeps the manufacturer's declared value.
Who it is for

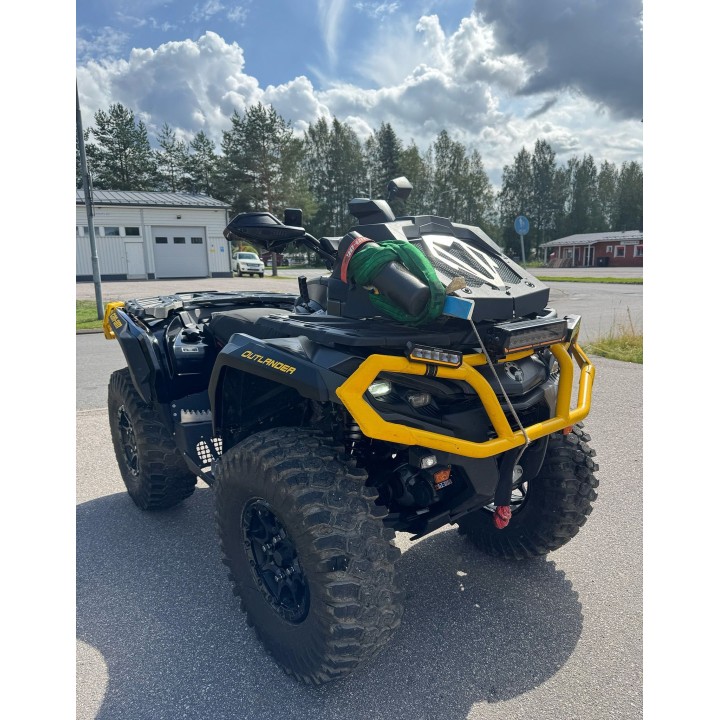

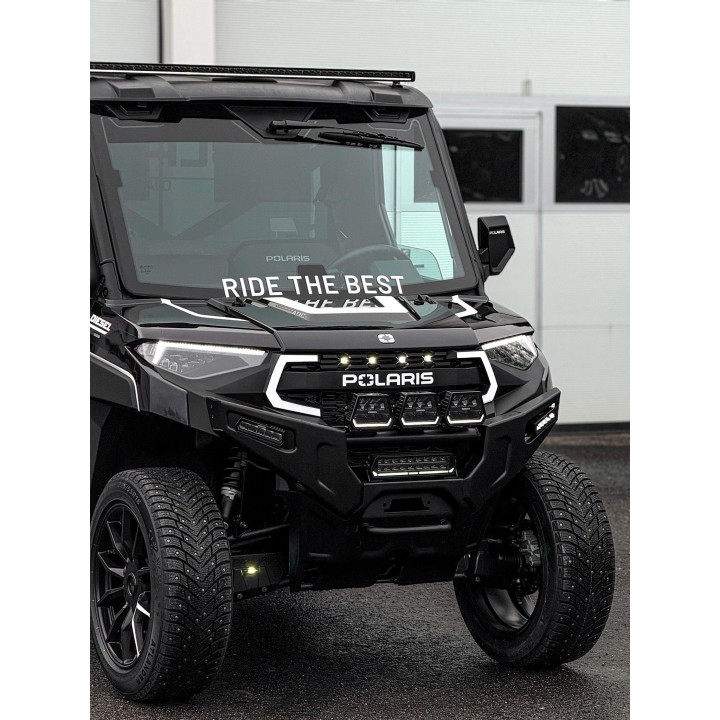

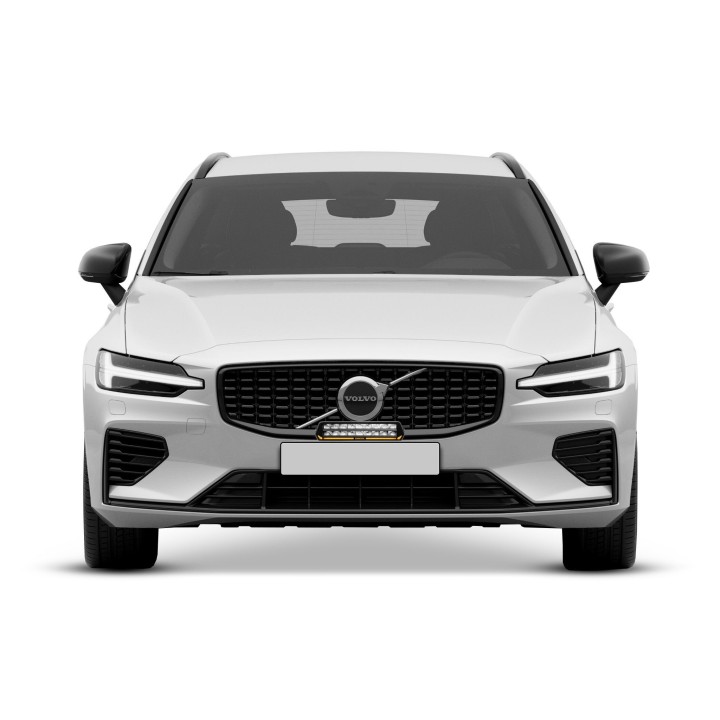

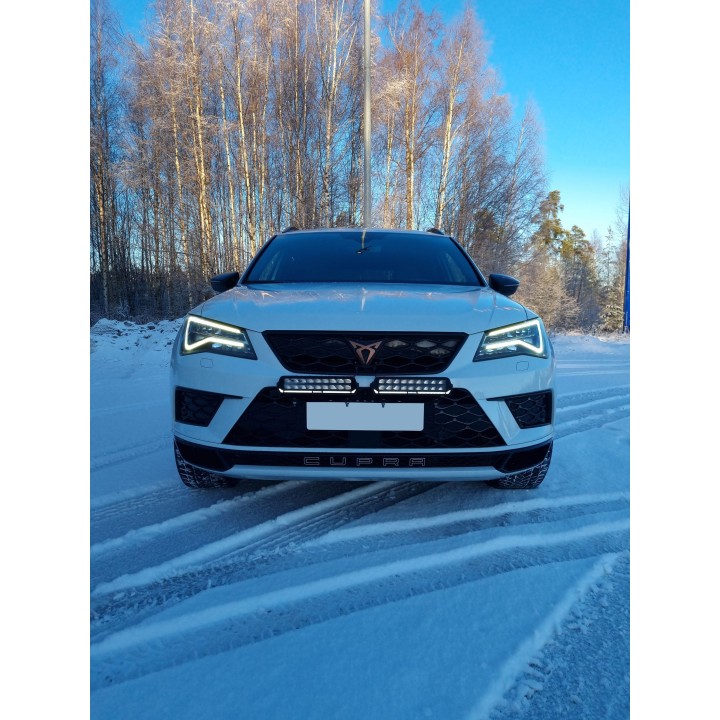

For 4x4s, pickups and expedition builds where the bar has to work every day. At 29.6 cm wide and 1 327 g it fits a typical bull bar or roof bar. Reference number 30 decides how many lamps fit within the permitted total for the vehicle - tell us what is already on the front and we will add it up. Fitting, loom routing and aiming are jobs our workshop in Warsaw does routinely.
Why it is worth it
- One bar for public roads and off them, with no covers to swap.
- Measured figures next to catalogue ones, so comparison is honest.
- IP69K sealing and a DT-2 connector - built for daily use.
Not sure it fits your bull bar? Tell us the vehicle and we will check.
Frequently asked questions
Can I use this bar on public roads?
Yes, in the approved mode. The manufacturer states ECE R10, R148, R149 approval and reference number 30. PowerBoost mode is explicitly outside the road approval.
What is the difference between PowerBoost and road mode?
Power, flux and reach: 136 W @ 24 V and 541 m against 53 W @ 24 V and 384 m. Everything else stays the same.
Does it work on a 24 V system?
Yes, the supply range is 9-36 V DC.
What connector does the cable use?
Dt-2, with a 50 cm lead.
What is the warranty?
The manufacturer states 24 months.
