LED bar Purelux Panther S540 EasyConnect 54 cm 216 W Ref. 30
A 54 cm LED bar with two power modes: 16 492 lm and 764 m of reach at 1 lux in PowerBoost, 3 443 lm and 350 m in the approved road mode. 9-32 V DC supply, IP69K sealing, bare wires with no connector. CE, RoHS, ECE R10, R148, R149 approval, reference number 30. Manufacturer warranty 24 months.

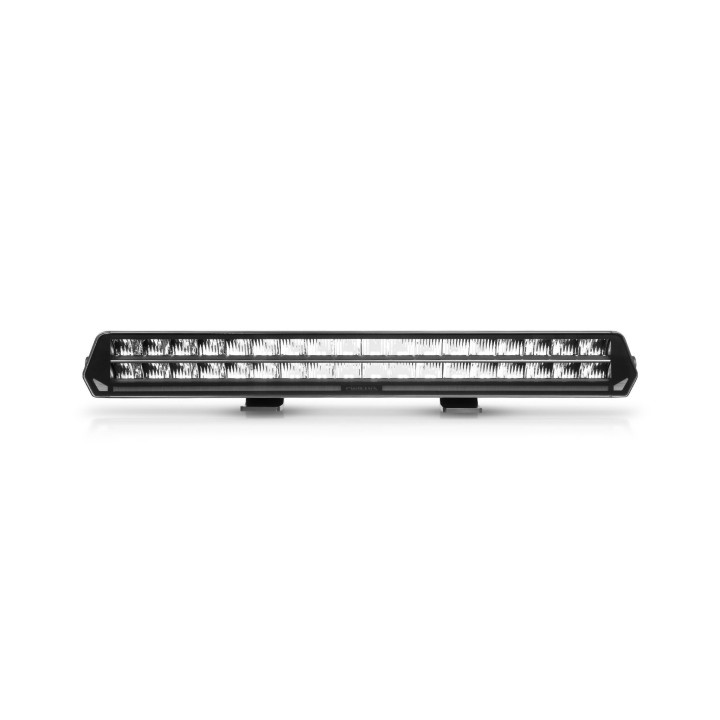

Purelux Panther S540 EasyConnect — LED bar, 54 cm, 216 W, Ref. 30
Two power modes in one bar: off the road PowerBoost gives 16 492 lm and 764 m of reach at 1 lux, while the approved mode runs at 3 443 lm and 350 m. A button on the housing switches between them, with no wiring to change.
Purelux publishes the catalogue figures and Valostore adds its own laboratory measurements, separately for both modes. You do not have to take one number on the box on trust: both sets are below, side by side.
PowerBoost mode 16 492 lm / 764 m | Approved mode 3 443 lm / 350 m | Approvals CE, RoHS, ECE R10, R148, R149 |
Key benefits
- Two power modes - 187 W @ 24 V in PowerBoost and 30 W @ 24 V in road mode. One bar covers public roads and work off them.
- 764 m of reach at 1 lux, and 1 528 m at 0.25 lux - the level at which the eye still picks out an obstacle. Road mode gives 350 m.
- Measured, not just declared - the maker states 17 500 lm, the Valostore measurement is 16 492 lm.
- 36 x 6 W LEDs - a calculated rating of 216 W.

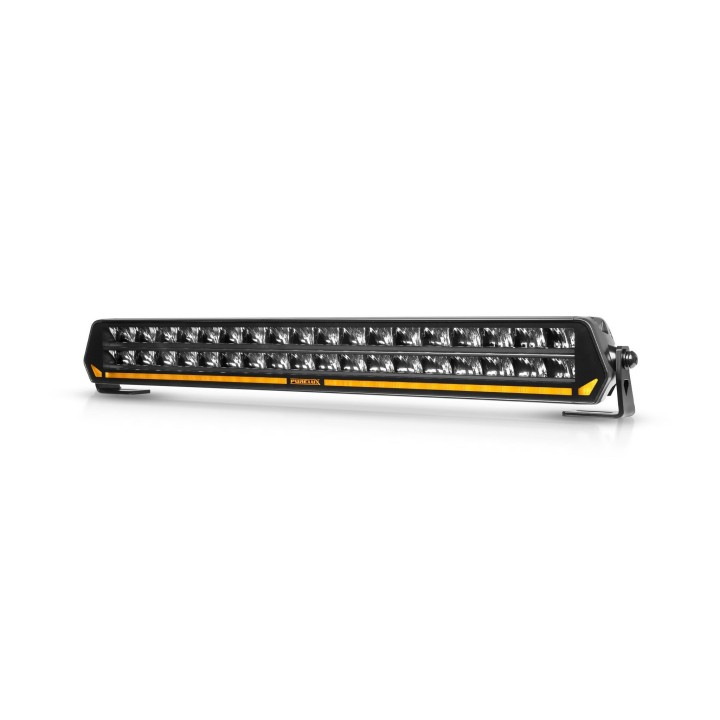

- 6 W position light in the lower strip, in white and amber.
- 9-32 V DC supply - one version for 12 V and 24 V systems.
- IP69K - rated for high-pressure, high-temperature washing, not just rain.
- bare wires, no connector connector with a 250 cm lead.
- Reference number 30 - the lower it is, the more lamps fit within the permitted total for the vehicle.
- 24 months manufacturer warranty.
Two modes, two sets of figures
| Parameter | PowerBoost | Approved mode |
| Luminous flux | 16 492 lm | 3 443 lm |
| Measured power | 187 W @ 24 V | 30 W @ 24 V |
| Current draw | 7.79 A @ 24 V | 1.25 A @ 24 V |
| Reach at 1 lux | 764 m | 350 m |
| Reach at 0.25 lux | 1 528 m | 700 m |
The manufacturer states plainly that road approval does not cover PowerBoost mode. Treat it as an off-road mode and check the rules where you drive.
Technical data
- Model: Purelux Panther S540 EasyConnect
- Intended use: auxiliary lighting for cars, off-road vehicles and construction machinery
- LEDs: 36 x 6 W
- Supply voltage: 9-32 V DC
- Calculated power: 216 W
- Measured power: 187 W @ 24 V (PowerBoost) / 30 W @ 24 V (approved mode)
- Current draw: 7.79 A @ 24 V (PowerBoost) / 1.25 A @ 24 V (approved mode)
- Position light: 6 W
- Luminous flux declared by the manufacturer: 17 500 lm (PowerBoost)
- Luminous flux measured by Valostore: 16 492 lm (PowerBoost) / 3 443 lm (approved mode)
- Reach: 764 m at 1 lux and 1 528 m at 0.25 lux (PowerBoost); 350 m at 1 lux and 700 m at 0.25 lux (approved mode)
- Colour temperature: 5 000 K declared, 5 035 K measured
- Dimensions: 546 x 66 x 75 mm (width x height x depth)
- Height with end legs: 78 mm
- Height with lower legs: 81.5 mm
- Weight: 2 790 g
- Mounting: end legs and width-adjustable bottom legs
- Connector: bare wires, no connector, 250 cm cable
- Ingress protection: IP69K
- Approvals: CE, RoHS, ECE R10, R148, R149; reference number 30
- The panel has ready-made points for support bars
- Manufacturer warranty: 24 months
What is in the box
- Purelux Panther S540 EasyConnect bar
- 2 x width-adjustable lower legs
- 2 x end legs
- power cable counterpart
- XBB Dongle control unit
- connection and installation instructions (FI/SE/NO/DK/EN)
Who it is for

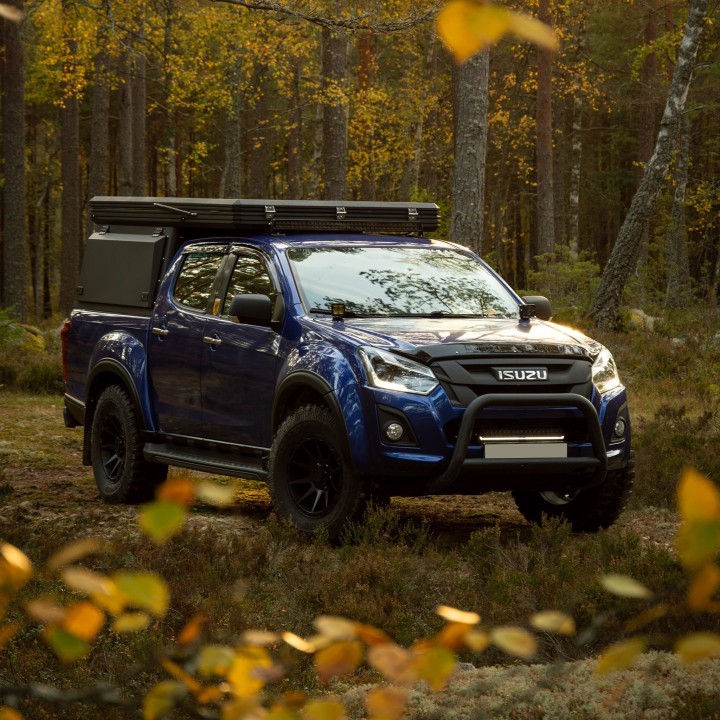

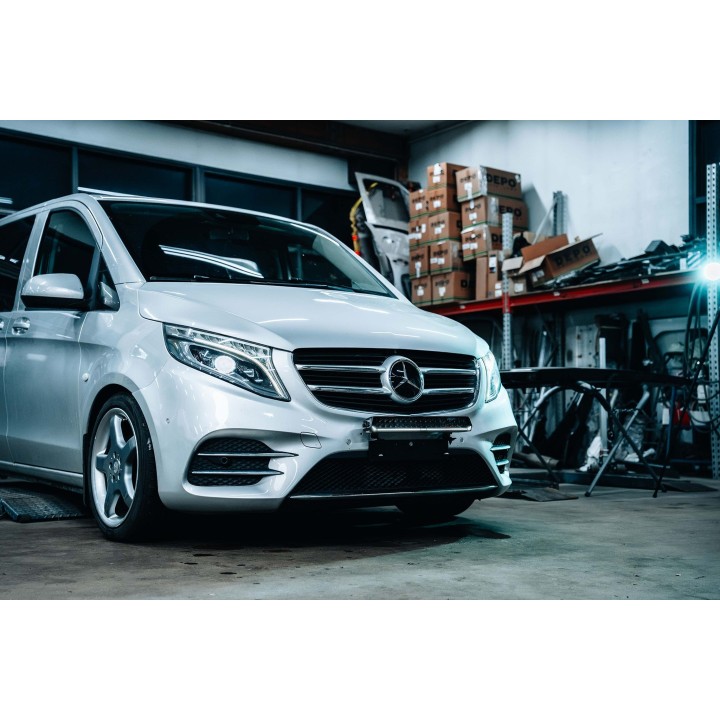

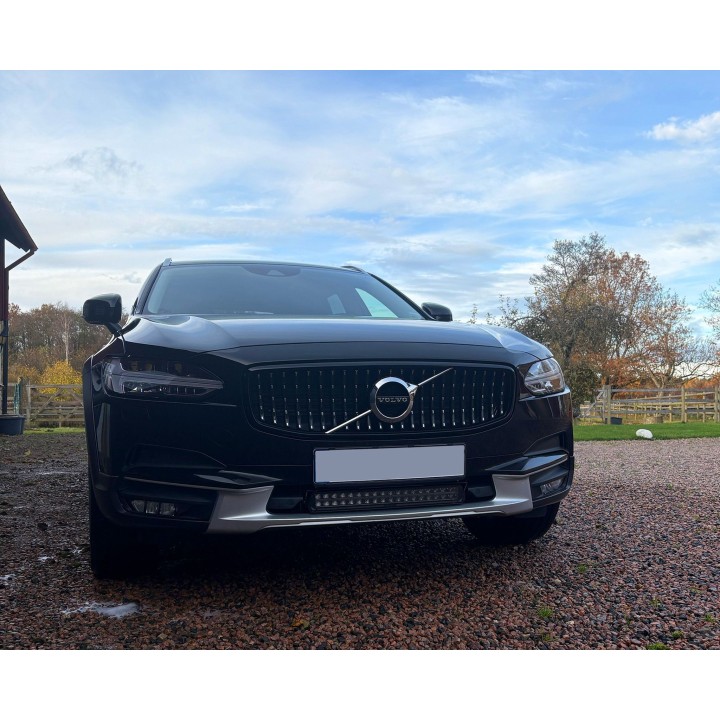

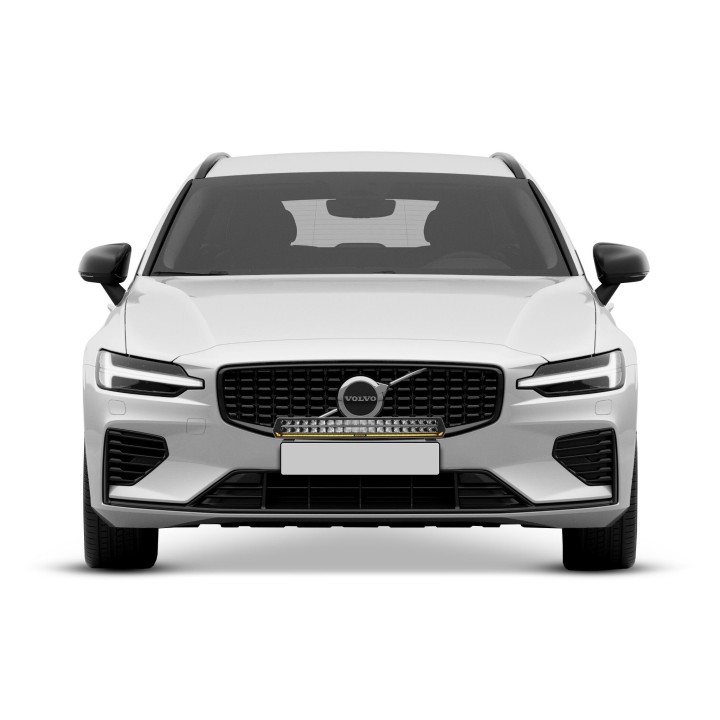

For 4x4s, pickups and expedition builds where the bar has to work every day. At 54.6 cm wide and 2 790 g it fits a typical bull bar or roof bar. Reference number 30 decides how many lamps fit within the permitted total for the vehicle - tell us what is already on the front and we will add it up. Fitting, loom routing and aiming are jobs our workshop in Warsaw does routinely.
Why it is worth it
- One bar for public roads and off them, with no covers to swap.
- Measured figures next to catalogue ones, so comparison is honest.
- IP69K sealing and a bare wires, no connector connector - built for daily use.
Not sure it fits your bull bar? Tell us the vehicle and we will check.
Frequently asked questions
Can I use this bar on public roads?
Yes, in the approved mode. The manufacturer states CE, RoHS, ECE R10, R148, R149 approval and reference number 30. PowerBoost mode is explicitly outside the road approval.
What is the difference between PowerBoost and road mode?
Power, flux and reach: 187 W @ 24 V and 764 m against 30 W @ 24 V and 350 m. Everything else stays the same.
Does it work on a 24 V system?
Yes, the supply range is 9-32 V DC.
What connector does the cable use?
Bare wires, no connector, with a 250 cm lead.
What is the warranty?
The manufacturer states 24 months.
