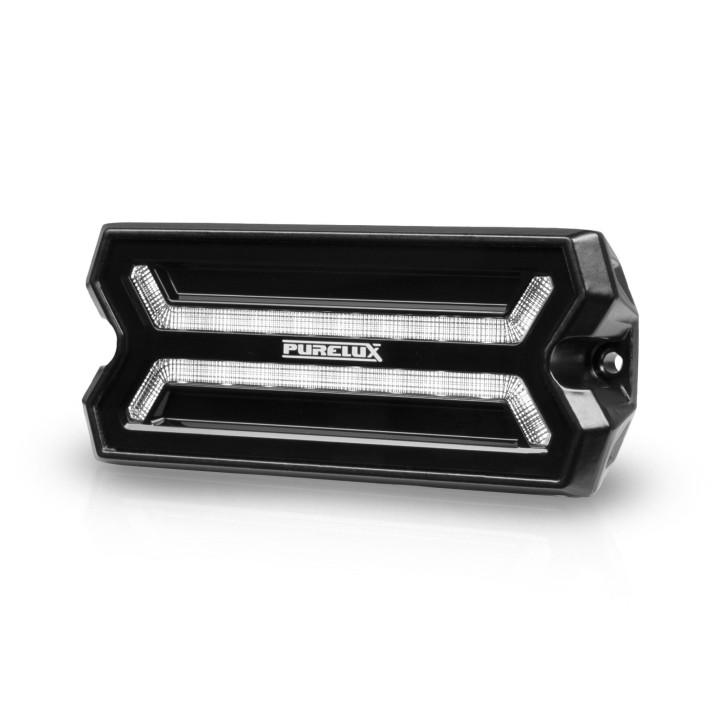

LED reversing light Purelux Panther Core-S 105 mm 14 W
A 105 mm LED reversing light, a 9-36 V DC supply, IP69K ingress protection, red and white light, 115 g in weight. Standards: EMC: ECE R10, R7, R23, R148, CE, RoHS. Manufacturer warranty 36 months. Fitting is a job our workshop in Warsaw does routinely.
Purelux Panther Core-S - LED reversing light, 105 mm, 14 W
Reversing in the dark is where factory lighting runs out first. The Purelux Panther Core-S LED reversing light shines red and white. A 9-36 V DC supply, IP69K ingress protection.
Purelux publishes the catalogue figures and Valostore adds its own measurements. The data below carries both, with no rounding.
| Approval ECE R7, R23, R148 | Ingress protection IP69K | Supply 9-36 V DC |
Key benefits
- ECE R23 approval - a reversing light approved for that function.
- Red and white light.
- 680 lm of luminous flux measured by Valostore.
- IP69K - a housing made for washing, mud, dust and rain.
- -40°C - +60°C operating range.
- bare wires, no connector connector with a 300 mm lead.
- 36-month manufacturer warranty.
Technical data
- Model: Purelux Panther Core-S
- Intended use: reversing and side marker light for work machines and vehicles
- Functions: reversing light and a red marker light

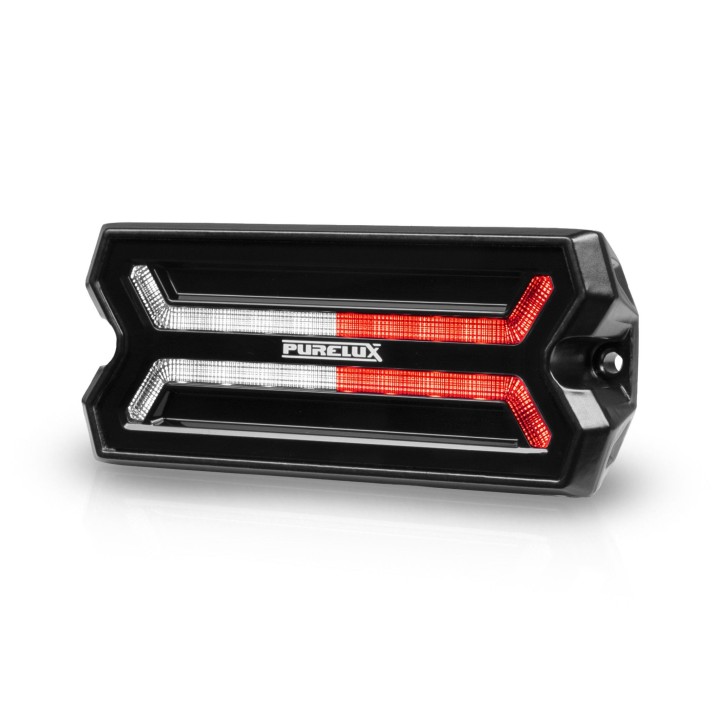

- Light colour: red and white
- Supply voltage: 9-36 V DC
- Reversing light: 14 W
- Marker light: 2.5 W
- Luminous flux declared by the manufacturer: 980 lm
- Luminous flux measured by Valostore: 680 lm
- Reach: 21 m at 1 lux
- Colour temperature: 5 000 K declared, 5 016 K measured
- Dimensions: width 105 mm, height 44 mm, depth 21 mm
- Thickness with mounting foot: 25 mm
- Weight: 115 g
- Connector: bare wires, no connector, 300 mm cable
- Ingress protection: IP69K
- Operating temperature: -40°C - +60°C
- Standards and approvals: EMC: ECE R10, R7, R23, R148, CE, RoHS
- Manufacturer warranty: 36 months
Before you order
This lamp carries UNECE approval for: R7 (position and stop lamps), R23 (reversing light), R148 (light-signalling devices). It is not a driving lamp - the manufacturer states no driving or passing-beam approval.
Who it is for

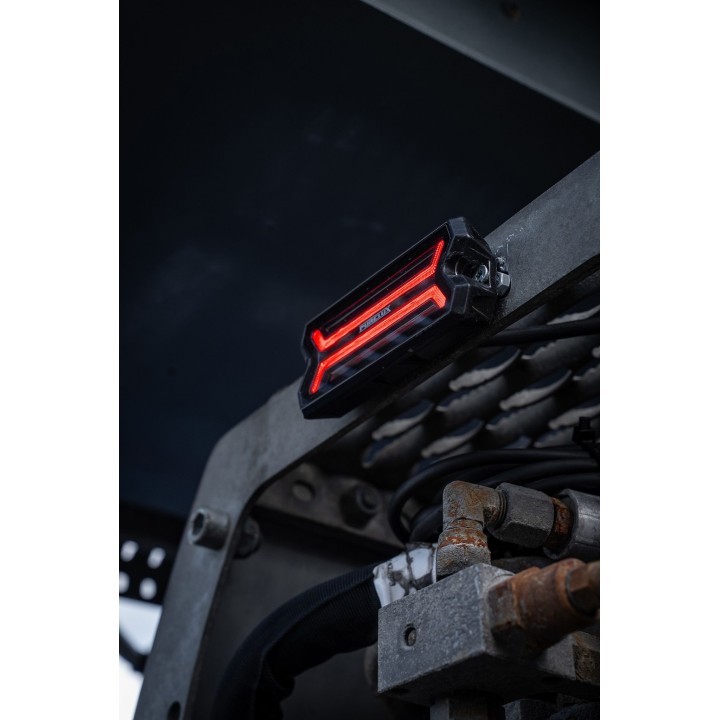

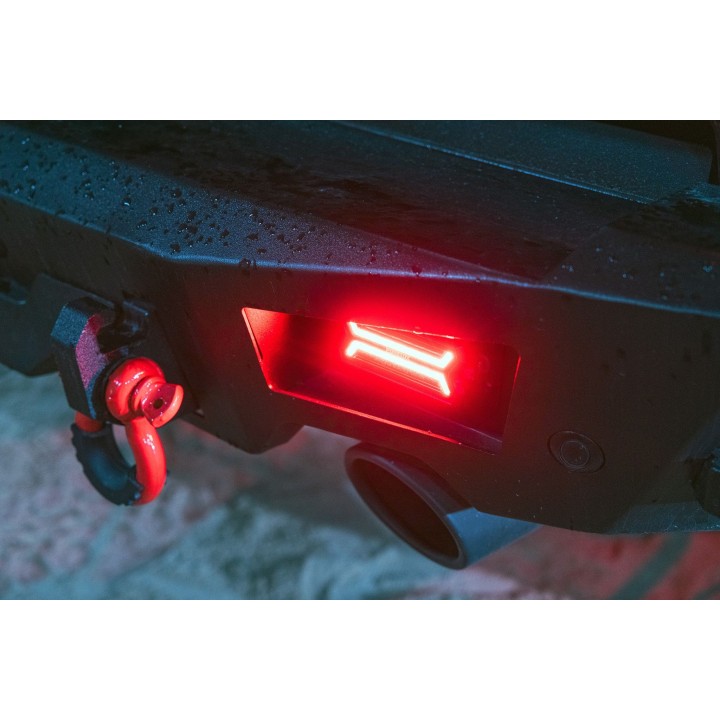

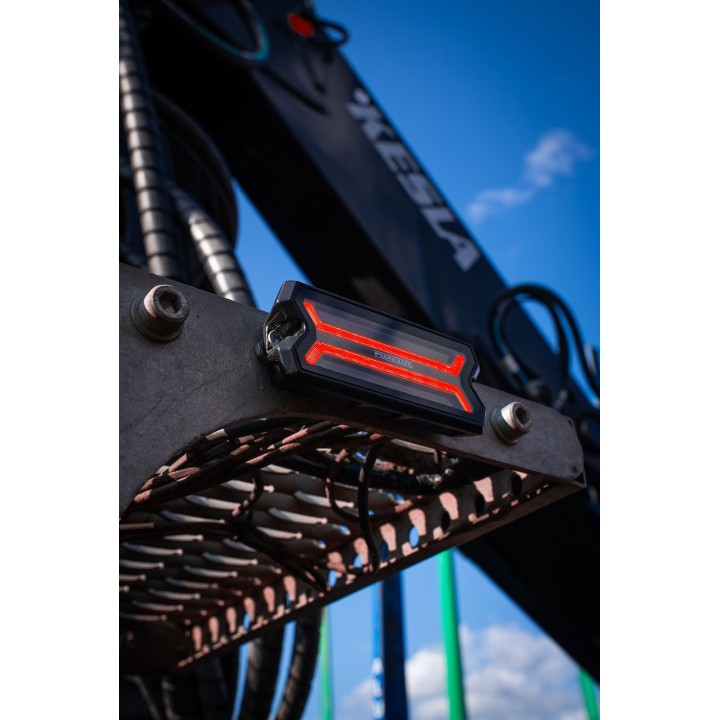

For car transporters, work machines, trailers, campers and vans - anywhere the factory reversing light runs out. At width 105 mm, height 44 mm, depth 21 mm it fits the usual mounting spots. Fitting, loom routing and switch wiring are jobs our workshop in Warsaw does routinely.
Why it is worth it
- The full list of standards, stated outright: EMC: ECE R10, R7, R23, R148, CE, RoHS.
- The manufacturer's full data table, with no rounding.
- A 9-36 V DC supply, so one version covers 12 V and 24 V.
Not sure it suits your vehicle and the rules that apply to it? Ask us and we will help.
Frequently asked questions
Is this lamp approved?
The manufacturer states ECE R7 (position and stop lamps), ECE R23 (reversing light), ECE R148 (light-signalling devices). That is approval for the function the lamp is made for - it is not a driving lamp.
Does it work on a 24 V system?
Yes, the supply range is 9-36 V DC.
What is the ingress rating?
IP69K - a housing made for washing, mud and dust.
What temperatures does it work at?
The manufacturer states -40°C - +60°C.
What is the warranty?
The manufacturer states 36 months.
