PURELUX - Superior Light Performance
Reference: PLX-RADAR
LED lamps - small and built-in
LED reversing light Purelux Radar 9 cm 32 W
A 9 cm LED reversing light, 32 W of power, a 9-36 V DC supply, IP69K ingress protection, 120 g in weight. Standards: EMC ECE R10, R23, R148, CE, RoHS. Manufacturer warranty 24 months. Fitting is a job our workshop in Warsaw does routinely. Ask us about the choice and the rules that apply.

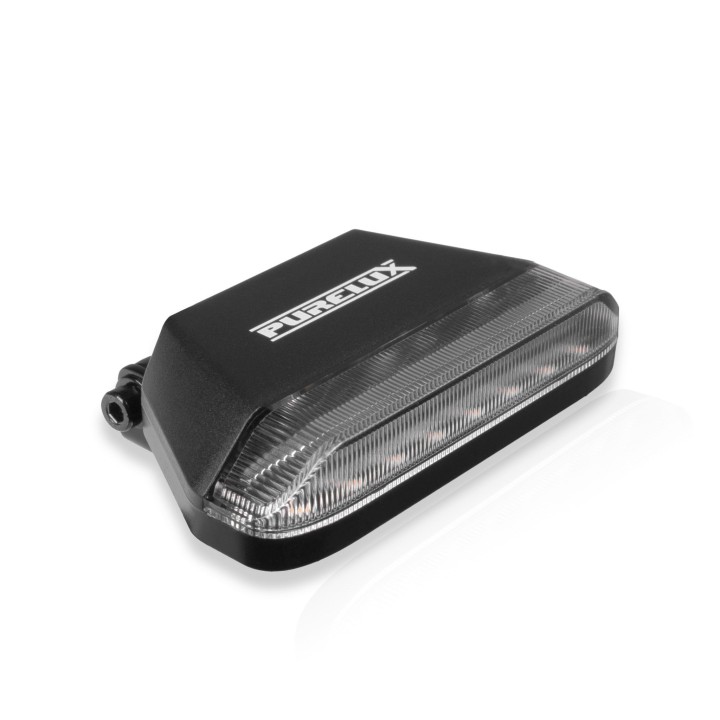

Purelux Radar - LED reversing light, 9 cm, 32 W
Reversing in the dark is where factory lighting runs out first. The Purelux Radar LED reversing light works in a single colour. A 9-36 V DC supply, IP69K ingress protection.
Purelux publishes the catalogue figures and Valostore adds its own measurements. The data below carries both, with no rounding.
| Approval ECE R23, R148 | Power 32 W | Ingress protection IP69K |
Key benefits
- ECE R23 approval - a reversing light approved for that function.
- 2 232 lm of luminous flux measured by Valostore.
- 32 W on a 9-36 V DC supply - one version for 12 V and 24 V systems.
- IP69K - a housing made for washing, mud, dust and rain.
- -40°C - +60°C operating range.
- DT-2 connector with a approx. 350 mm lead.
- 24-month manufacturer warranty.
Technical data
- Model: Reverse light Purelux Radar
- Intended use: reversing and work light for vehicles and machinery
- Beam: wide
- Supply voltage: 9-36 V DC
- Measured power: 32 W
- Current draw: 2 A @ 12 V / 1 A @ 24 V
- Luminous flux declared by the manufacturer: 2 100 lm
- Luminous flux measured by Valostore: 2 232 lm
- Reach: 47 m at 1 lux
- Colour temperature: 5 000 K declared, 5 315 K measured

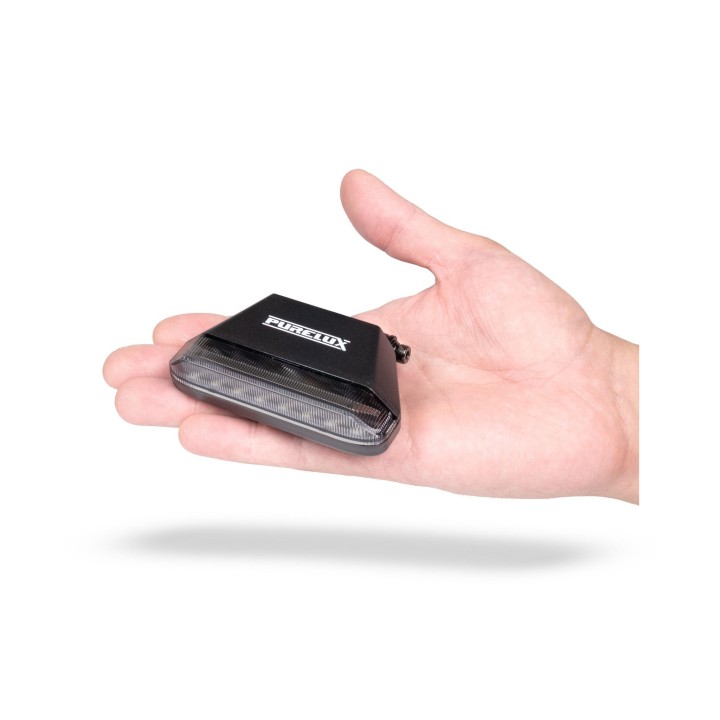

- Dimensions: width 86 mm, height 18 mm, depth 56 mm
- Height with mounting foot: 29 mm
- Weight: 120 g
- Mounting: mounting bracket
- Connector: DT-2, approx. 350 mm cable
- Ingress protection: IP69K
- Operating temperature: -40°C - +60°C
- Standards and approvals: EMC ECE R10, R23, R148, CE, RoHS
- Manufacturer warranty: 24 months
Before you order
This lamp carries UNECE approval for: R23 (reversing light), R148 (light-signalling devices). It is not a driving lamp - the manufacturer states no driving or passing-beam approval.
Who it is for

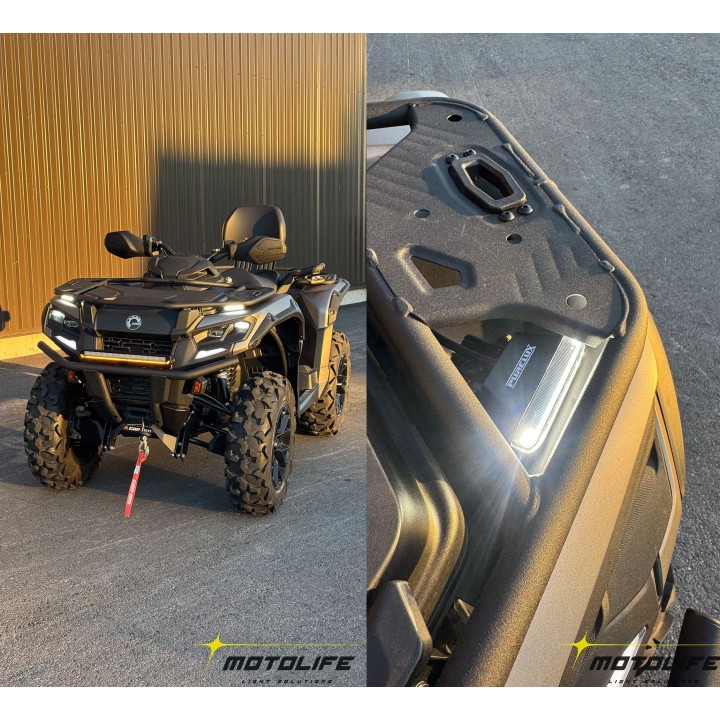

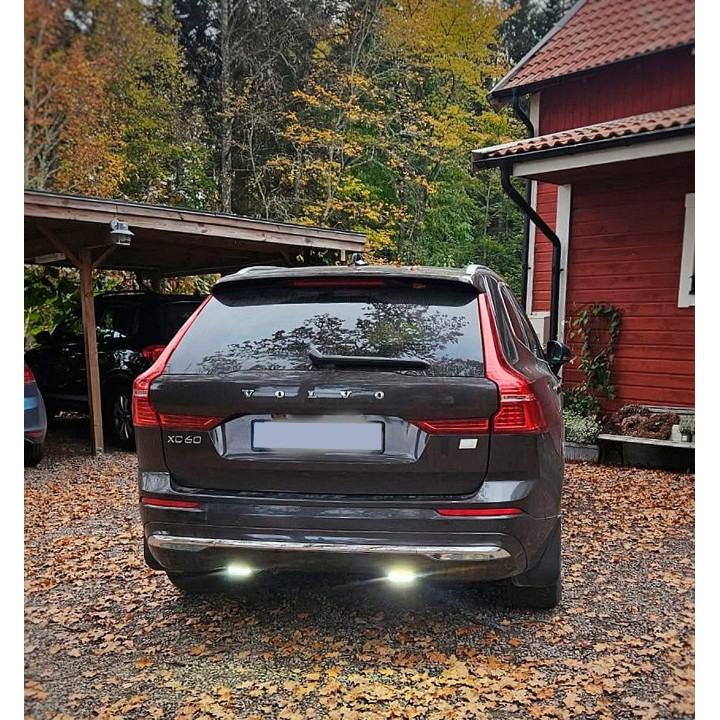

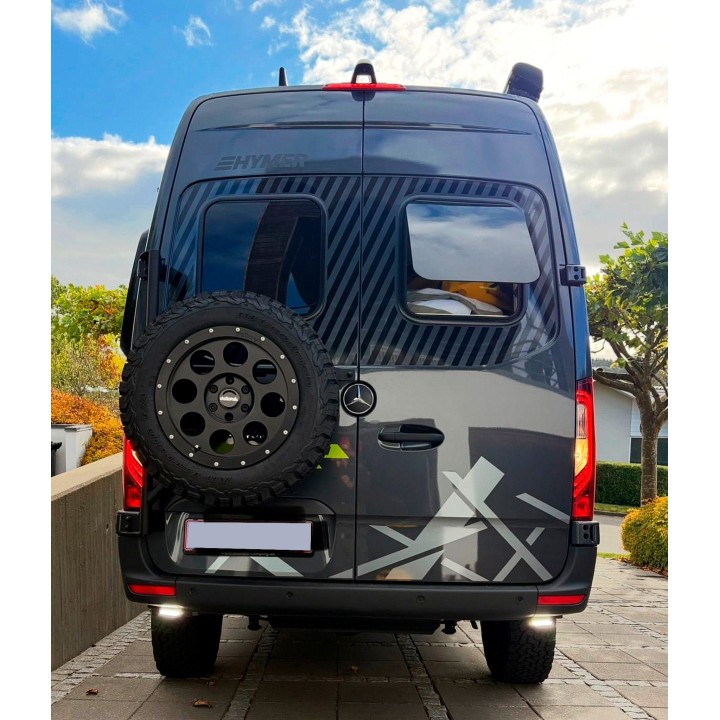

For car transporters, work machines, trailers, campers and vans - anywhere the factory reversing light runs out. At width 86 mm, height 18 mm, depth 56 mm it fits the usual mounting spots. Fitting, loom routing and switch wiring are jobs our workshop in Warsaw does routinely.
Why it is worth it
- The full list of standards, stated outright: EMC ECE R10, R23, R148, CE, RoHS.
- The manufacturer's full data table, with no rounding.
- A 9-36 V DC supply, so one version covers 12 V and 24 V.
Not sure it suits your vehicle and the rules that apply to it? Ask us and we will help.
Frequently asked questions
Is this lamp approved?
The manufacturer states ECE R23 (reversing light), ECE R148 (light-signalling devices). That is approval for the function the lamp is made for - it is not a driving lamp.
Does it work on a 24 V system?
Yes, the supply range is 9-36 V DC.
What is the ingress rating?
IP69K - a housing made for washing, mud and dust.
What temperatures does it work at?
The manufacturer states -40°C - +60°C.
What is the warranty?
The manufacturer states 24 months.
