PURELUX - Superior Light Performance
Reference: PLX-BUCKLER
LED lamps - small and built-in
LED work light Purelux Buckler 7 cm 7 W
A 7 cm LED work light, 7 W of power, 945 lm of flux. 9-36 V DC supply, IP68 ingress protection, bare wires with no connector. Standards: EMC: ECE: R10. Manufacturer warranty 24 months. This is a work light - the manufacturer states no approval for driving on public roads.

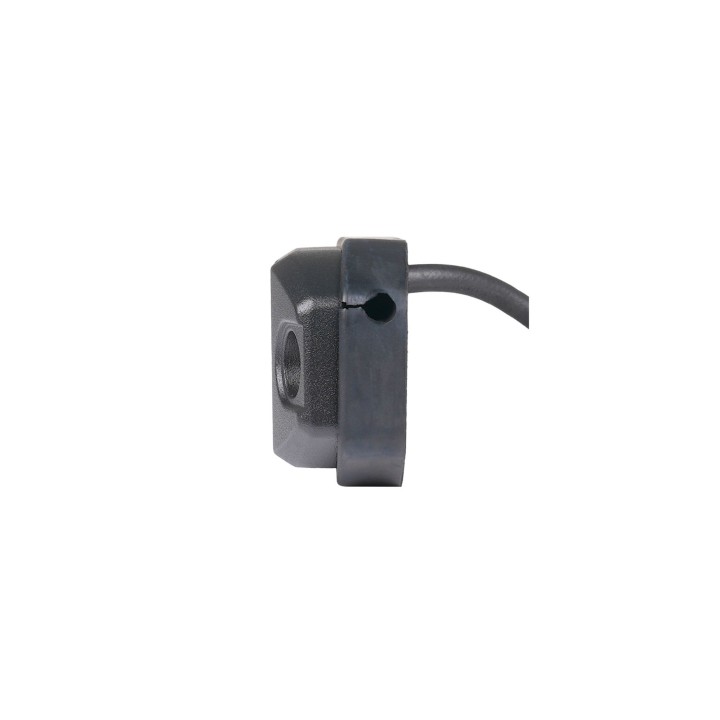

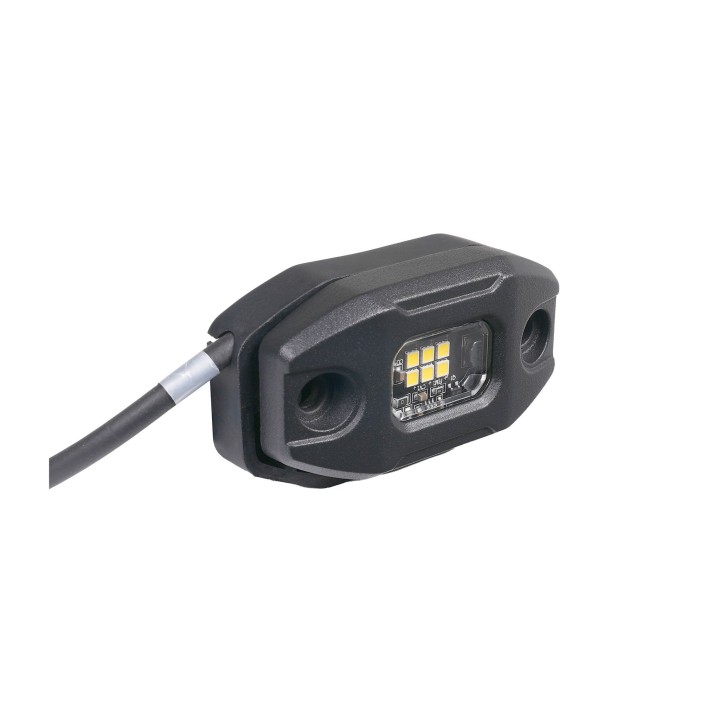

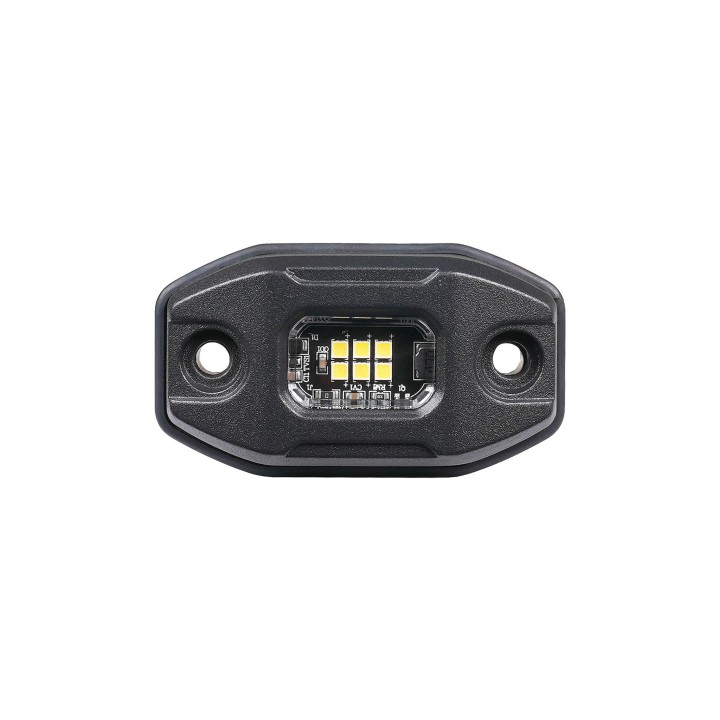

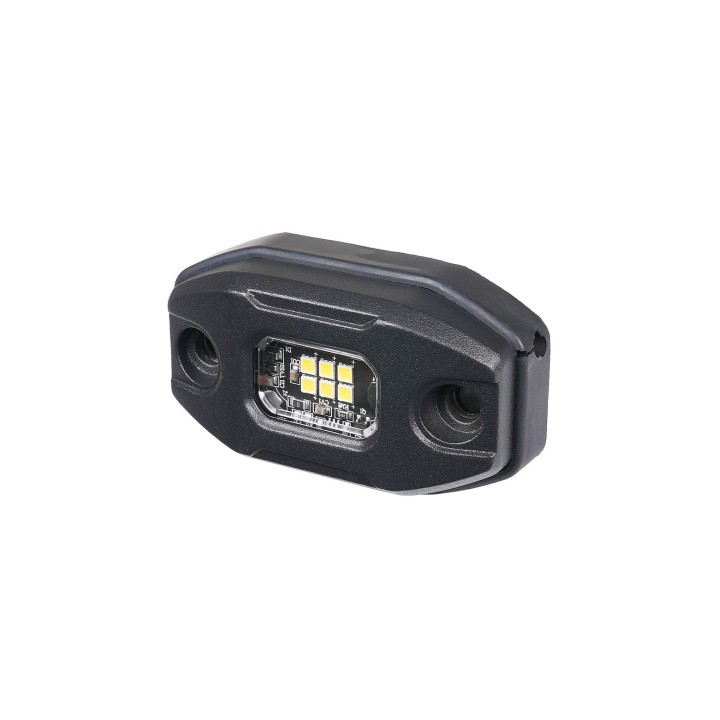

Purelux Buckler — LED work light, 7 cm, 7 W
A LED work light for machines and work vehicles: 945 lm of flux, a housing built for hard conditions. 9-36 V DC supply, IP68 ingress protection.
Purelux publishes the catalogue figures and Valostore adds measurements from its own laboratory. The data below carries both, with no marketing rounding.
| Luminous flux 945 lm | Power 7 W | Ingress protection IP68 |
Key benefits
- 945 lm of luminous flux per the manufacturer's data.
- 7 W on a 9-36 V DC supply - one version for 12 V and 24 V systems.
- IP68 - a housing made for washing and for work in mud, dust and rain.
- -40°C to +80°C operating range - it holds up in frost and next to a hot engine alike.
- bare wires, no connector connector with a approx. 500 mm lead.
- 24-month manufacturer warranty.
Technical data
- Model: Purelux Buckler
- Intended use: work lighting for work machines, heavy equipment and cars
- LEDs: 6 x 1.5 W
- Supply voltage: 9-36 V DC
- Power declared by the manufacturer: 7 W
- Luminous flux declared by the manufacturer: 945 lm
- Colour temperature: 5 000 K declared
- Dimensions: 72 x 39 x 13 mm
- Weight: 75 g
- Mounting: surface mounting
- Connector: bare wires, no connector, approx. 500 mm cable
- Ingress protection: IP68
- Operating temperature: -40°C to +80°C
- Dimensions without frame: 72 x 39 x 13 mm
- Standards and approvals: EMC: ECE: R10
- Manufacturer warranty: 24 months
Before you order
This is a work light, not a driving lamp - the manufacturer states no road-driving approval for it. It lights the working area at a standstill or at low working speed and must be switched off in road traffic.
Who it is for

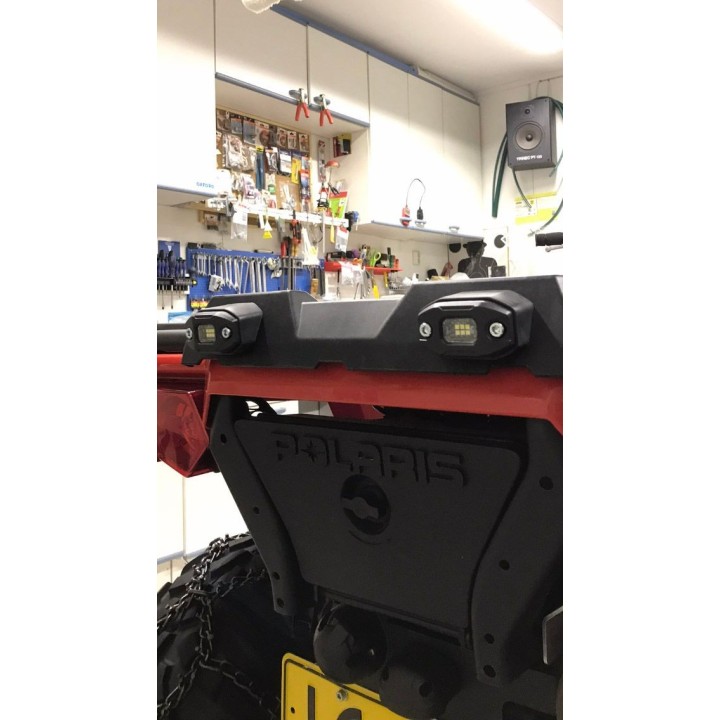

For work machines, tractors, quads, recovery trucks and service vehicles - anywhere the job is to light the working area rather than the road ahead. At 72 x 39 x 13 mm it fits the usual mounting spots. Fitting and loom routing are jobs our workshop in Warsaw does routinely.
Why it is worth it
- 945 lm of flux in an IP68 housing.
- The manufacturer's full data table, with no rounding.
- A 9-36 V DC supply, so one version covers 12 V and 24 V.
Not sure it fits your mounting spot? Tell us the machine and we will check.
Frequently asked questions
Can this lamp be used in road traffic?
No. It is a work light - the manufacturer states no approval for driving on public roads. It lights the working area and must be switched off in traffic.
Does it work on a 24 V system?
Yes, the supply range is 9-36 V DC.
What is the ingress rating?
IP68 - a housing made for washing, mud and dust.
What temperatures does it work at?
The manufacturer states -40°C to +80°C.
What is the warranty?
The manufacturer states 24 months.
