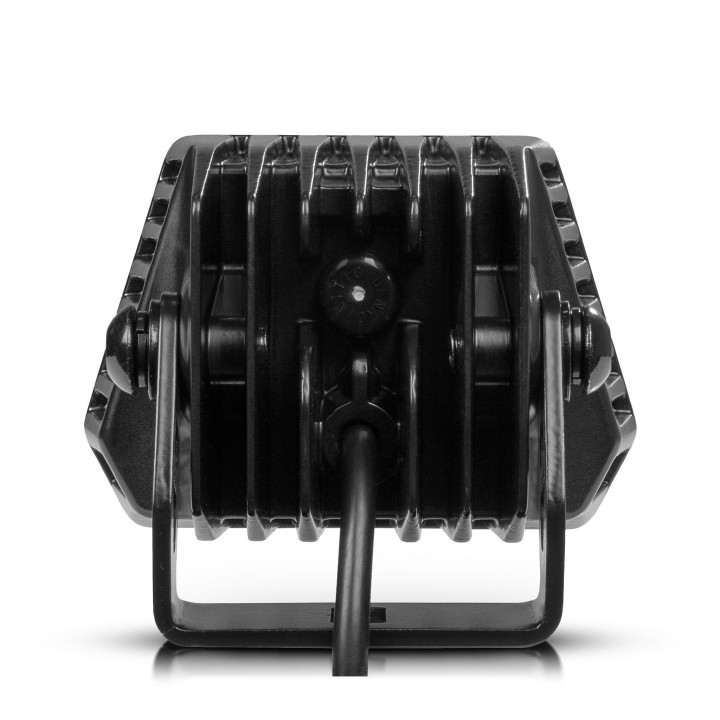

LED work light Purelux Panther Alpha 90 15 cm 90 W
A 15 cm LED work light, 78 W of power, 6 332 lm of flux. 9-36 V DC supply, IP69K ingress protection, a DT-4 connector. Standards: EMC: ECE: R10, CISPR25 Class 3, CE, RoHS. Manufacturer warranty 36 months. This is a work light - the manufacturer states no approval for driving on public roads.
Purelux Panther Alpha 90 — LED work light, 15 cm, 90 W
A LED work light for machines and work vehicles: 6 332 lm of flux, a wide beam, 92 m of reach at 1 lux. 9-36 V DC supply, IP69K ingress protection.
Purelux publishes the catalogue figures and Valostore adds measurements from its own laboratory. The data below carries both, with no marketing rounding.
Luminous flux 6 332 lm | Power 78 W | Ingress protection IP69K |
Key benefits
- 6 332 lm of luminous flux measured in the Valostore laboratory.

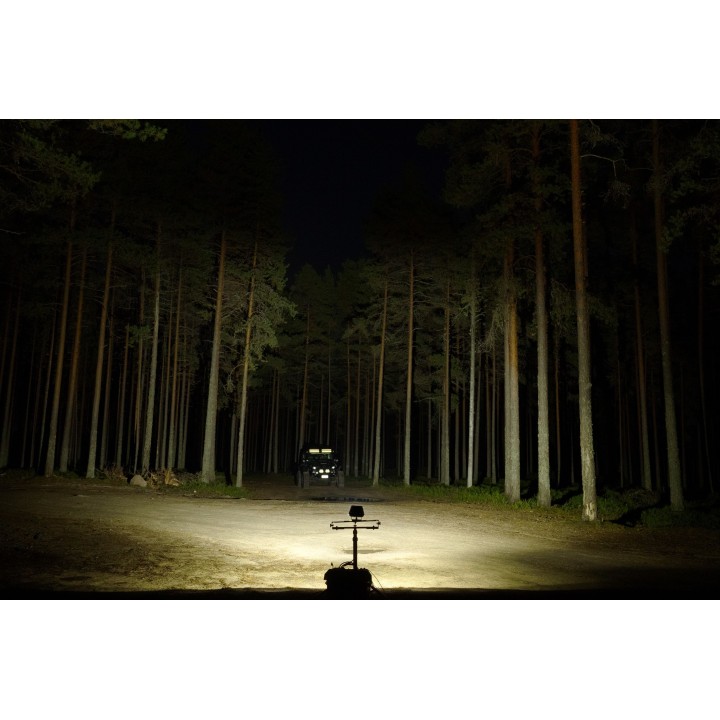

- A wide beam - it lights a wide area right next to the machine.
- 78 W on a 9-36 V DC supply - one version for 12 V and 24 V systems.
- IP69K - a housing made for washing and for work in mud, dust and rain.
- -40°C to +60°C operating range - it holds up in frost and next to a hot engine alike.

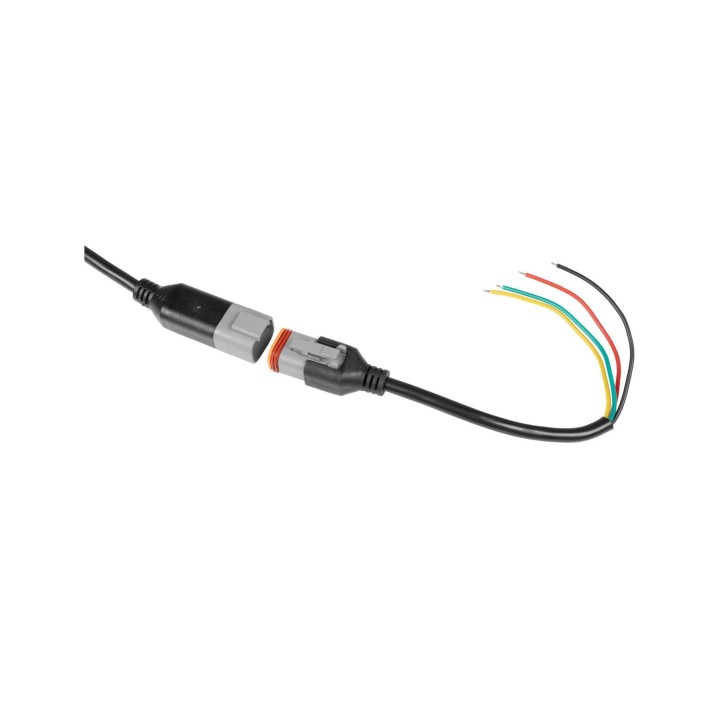

- DT-4 connector with a 50 cm lead.
- 36-month manufacturer warranty.
Technical data
- Model: Purelux Panther Alpha 90
- Intended use: work lighting for work machines, heavy equipment and cars
- Beam: wide
- Supply voltage: 9-36 V DC
- Power declared by the manufacturer: 90 W
- Measured power: 78 W
- Current draw: 3.25 A @ 24 V
- Luminous flux declared by the manufacturer: 6 400 lm
- Luminous flux measured by Valostore: 6 332 lm
- Reach: 92 m at 1 lux
- Colour temperature: 4 000 K / 5 000 K declared, - / 5 010 K measured

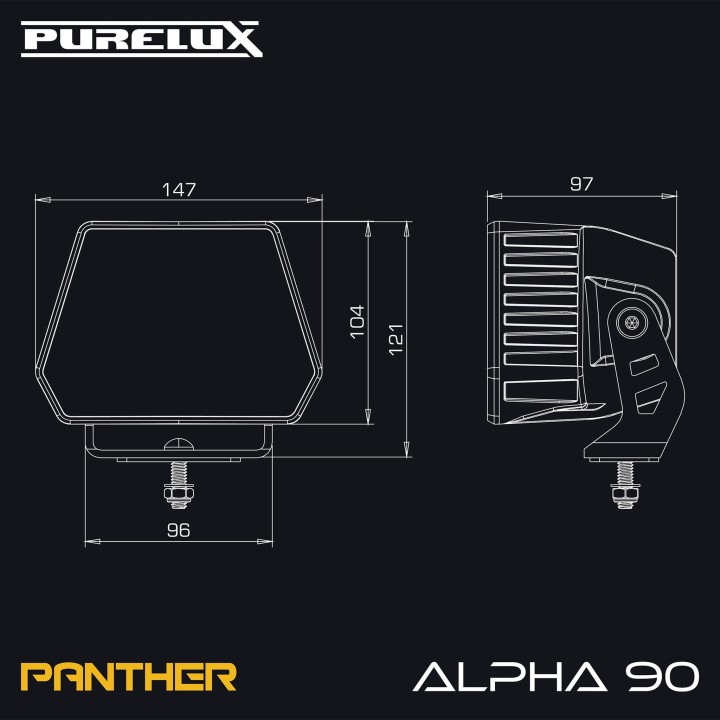

- Dimensions: 147 x 104 x 97 mm
- Height with mounting foot: 121 mm
- Weight: 1 222 g
- Mounting: mounting base
- Connector: DT-4, 50 cm cable
- Ingress protection: IP69K
- Operating temperature: -40°C to +60°C
- Standards and approvals: EMC: ECE: R10, CISPR25 Class 3, CE, RoHS
- Manufacturer warranty: 36 months
Before you order
This is a work light, not a driving lamp - the manufacturer states no road-driving approval for it. It lights the working area at a standstill or at low working speed and must be switched off in road traffic.
Who it is for
For work machines, tractors, quads, recovery trucks and service vehicles - anywhere the job is to light the working area rather than the road ahead. At 147 x 104 x 97 mm it fits the usual mounting spots. A wide beam suits close work around the machine. Fitting and loom routing are jobs our workshop in Warsaw does routinely.
Why it is worth it
- 6 332 lm of flux in an IP69K housing.
- Manufacturer data next to Valostore measurements - you can see what the lamp really delivers.
- A 9-36 V DC supply, so one version covers 12 V and 24 V.
Not sure it fits your mounting spot? Tell us the machine and we will check.
Frequently asked questions
Can this lamp be used in road traffic?
No. It is a work light - the manufacturer states no approval for driving on public roads. It lights the working area and must be switched off in traffic.
Does it work on a 24 V system?
Yes, the supply range is 9-36 V DC.
What is the ingress rating?
IP69K - a housing made for washing, mud and dust.
What temperatures does it work at?
The manufacturer states -40°C to +60°C.
What is the warranty?
The manufacturer states 36 months.
