Purelux Multi-Switch Dashboard Controller, 4 Buttons, 10-30V
Four lights or devices behind one panel the size of your palm, with backlit symbols and a master off in the middle. Every button can be set as a latching switch, a momentary one or a strobe - no separate flasher relay needed. The set includes the fuse box, a 40 A residual current device and a full cable kit, so you are not splicing into the factory loom.
Purelux Multi-Switch Dashboard Controller, 4 Buttons, 10-30V
Four added lights usually mean four switches glued wherever there was room - and a blind hunt for the right one. The four-button Purelux Multi-Switch gathers them into one panel the size of your palm, with backlit symbols and a master off in the middle.
Behind the panel sits its own controller with a fuse box and a 40 A residual current device, so you are not splicing into the factory loom. The cable between the panel and the controller is 3.5 m long, which leaves room to choose where each part goes.
| Outputs 4, each fused | Rating 480 W @12 V / 960 W @24 V | Button modes latching, momentary, strobe |
Key benefits
- Four circuits, each fused - 30 A, 20 A, 10 A and 5 A, with a red LED next to each fuse showing which one has blown.
- Every button in three modes - latching, momentary (on while held) or strobe, with no separate flasher relay.
- Master off in the middle of the panel - one press kills everything behind it.
- Memory function - after the power is cut, the panel comes back in the mode it was working in.
- RGB backlight with an ambient light sensor - it does not dazzle at night and the symbol stays readable. 45 printed stickers and 5 blank black ones are included.
- Compact 95 x 67 mm panel - it fits where a full-size one will not, and the cable to the controller gives you 3.5 m of slack.
- IP65 and -40 to +105 degrees C - built for a work machine cab, not just a passenger car.
- 12-month manufacturer warranty.

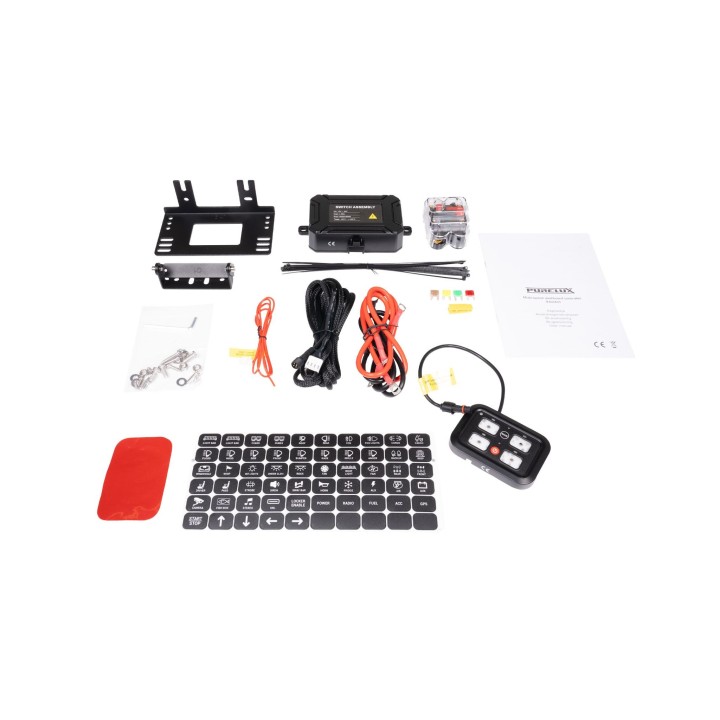

What is in the set
- Switch panel with 4 switches
- Fuse box
- Residual current device 40 A
- 4-pole cable
- 2-pole cable
- Power cable

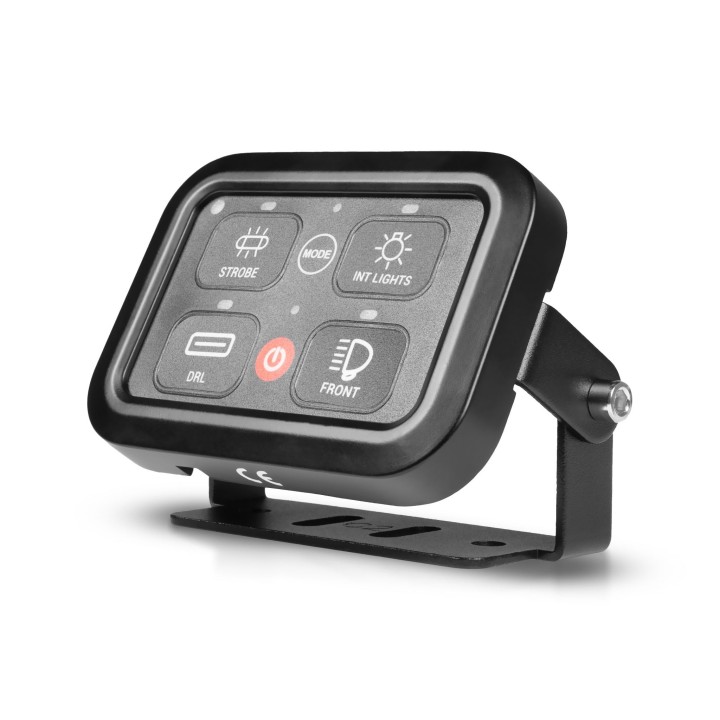

- Two mounting brackets for the panel
- Fuse box mounting bracket
- 50 marking stickers
- Screw set
- Cable ties
- User manual
Technical data
| Purpose | controlling up to 4 devices from one panel |
| Supply voltage | 10-30 V DC |
| Power rating | 480 W at 12 V, 960 W at 24 V |
| Maximum current | 40 A |
| Circuit 1 | max. 30 A |
| Circuit 2 | max. 20 A |
| Circuit 3 | max. 10 A |
| Circuit 4 | max. 5 A |
| Panel size | 95 x 67 x 12 mm |
| Panel to controller cable | 3500 mm |
| Protection rating | IP65 |
| Operating temperature | -40 to +105 degrees C |
| Backlight | RGB, adjusts automatically to ambient brightness |
| Memory function | yes |
| Certification | CE |
| Manufacturer warranty | 12 months |
| EAN | 6430042695867 |
Wiring and control
Power. Run the main cable (red) from the battery or another permanent power point to the residual current device, and from there to the fuse box terminal marked in red. Take the ground (black) to the frame or another solid ground point and to the terminal marked in black.
The panel. Connect it to the fuse box with the supplied 4-pole cable, into the marked socket on the box.
Trigger current. This decides whether the devices work with the vehicle off. Taken from the ignition switch or the lighter socket, they only work with the ignition on. Taken straight from the battery positive, they always work. The 2-pole plug goes into the fuse box.
Loads. Connect the lights to outputs 1-4, watching each circuit rating. If the load exceeds what the panel can pass, an output can drive a relay instead - the working current then runs through the relay harness and the panel only supplies the trigger.
Button mode. Two quick presses of the Mode button in the middle of the panel start programming - the LEDs above the buttons begin to flash. Then press the button whose function you want to change. A single press of Mode turns the backlight off.
Routing the loom and tying it into the vehicle wiring is workshop work - we can do that for you if you would rather not.
Who it is for

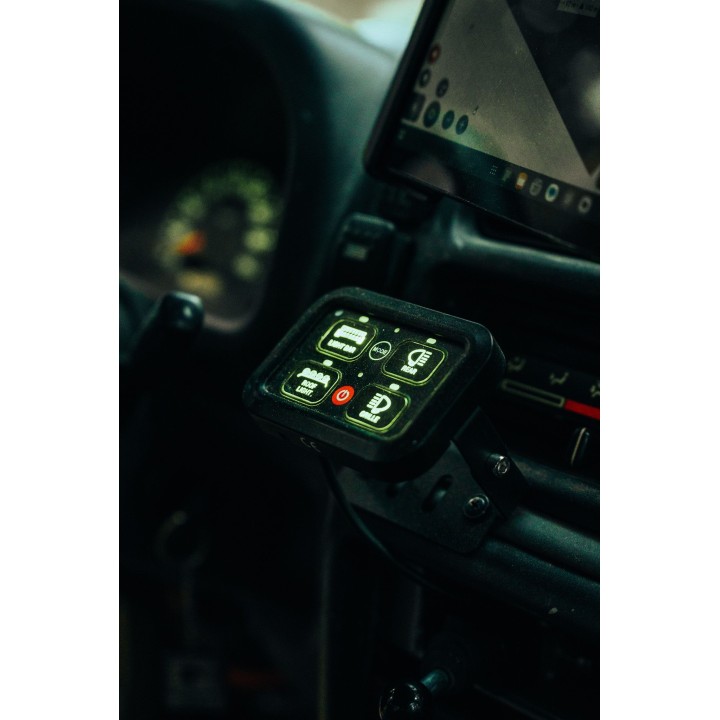

For off-road vehicles and quads running one or two sets of lights, for trucks and machines where a work light and a beacon need separate switching, and for any cab that simply has no room for a bigger panel.
Why it is worth it
- One panel instead of four switches and a separate flasher relay.
- Its own controller with fuses and a residual current device - no splicing into the factory loom.
- A small housing and 3.5 m of cable, so the panel goes where it suits you.
Frequently asked questions
How many devices can I connect?
Four - one per button. Circuit 1 takes 30 A, circuit 2 takes 20 A, circuit 3 takes 10 A and circuit 4 takes 5 A.
What if my lights draw more current than the panel can pass?
A panel output can drive a relay instead: the working current then runs through the relay harness and the panel only supplies the trigger. Total load switched directly through the panel is 480 W at 12 V and 960 W at 24 V.
Will it work on a 24 V system?
Yes, the supply range is 10-30 V DC, so both 12 V and 24 V are within spec.
Will the devices work with the engine off?
That depends on where the trigger wire is fed from. Taken from the ignition switch or the lighter socket, the panel works only with the ignition on. Taken straight from the battery positive, it always works.
Does the set include a remote or phone control?
No. This version works from the panel only. The RF remote and the Bluetooth app come with the larger eight-button Multi-Switch model.
Can the cable between the panel and the controller be extended?
The factory cable is 3500 mm and the supplier does not offer a ready-made extension - a longer run has to be made up yourself.
Summary
- 4-switch panel with its own fuse box and a 40 A residual current device.
- 10-30 V DC supply, 480 W at 12 V and 960 W at 24 V, 40 A maximum current.
- Each button as a latching, momentary or strobe switch; RGB backlight and a memory function.
- Panel 95 x 67 x 12 mm, 3.5 m cable, IP65, CE, 12-month warranty.
