Purelux Mini Dashboard Controller Switch Panel, 4 Buttons, 10-30V
A 62 x 62 mm block that replaces four switches drilled into the dash. Each button runs one output, and the Master Switch function turns a whole group of lights on with a single press. 10-30 V supply, 240 W at 12 V and four colour-coded output wires - it installs without a fuse box and without reworking the loom.
Purelux Mini Dashboard Controller Switch Panel, 4 Buttons, 10-30V

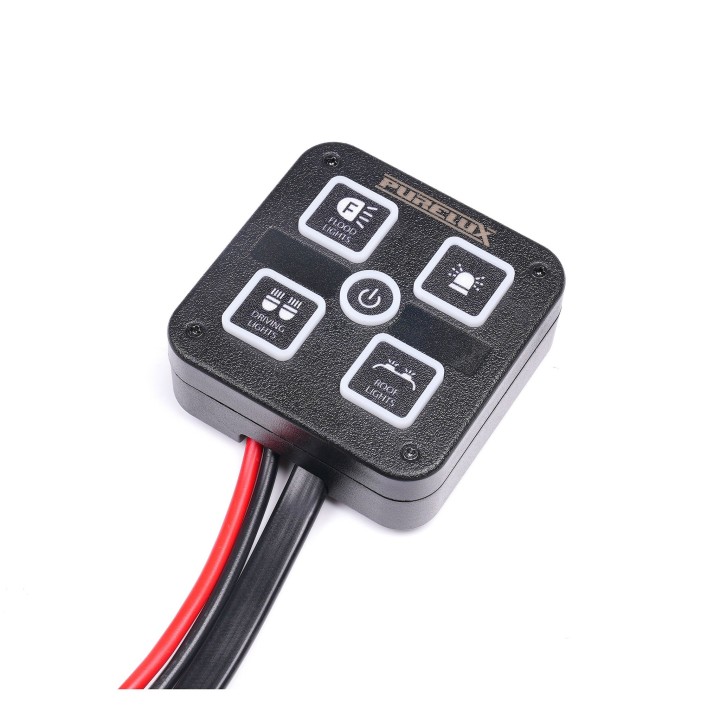

Not every dashboard takes kindly to four holes drilled for switches, and on a quad or a small machine there is simply no room for them. The Purelux Mini Dashboard Controller is a 62 x 62 mm block you stick or screw wherever it suits you, running four independent circuits from one place.
Six wires come out of the panel: power, ground and four colour-coded outputs. There is no fuse box and no separate controller - this is the answer for simple installations where size and fitting time are what matter.
Outputs 4 (P1-P4) | Rating 240 W @12 V / 480 W @24 V | Dimensions 62 x 62 x 25 mm |
Key benefits
- Four outputs in a 62 x 62 x 25 mm housing - it fits on the tunnel, on a pillar or on a quad frame, where a full-size panel is out of the question.
- Master Switch function - assign one button as the master and a single press turns on the group behind it. One click instead of three.
- Two button modes - latching (On/Off) or momentary (on while held); the mode is set from the panel itself, with no programmer.
- Colour-coded output wires - blue, red, green and white map to the buttons in order, so you do not have to trace the loom to work out which is which.
- 10-30 V supply - one version for 12 V and 24 V systems, rated 240 W at 12 V and 480 W at 24 V.
- Backlit symbols and 18 decals - in the dark you still know which button runs which light.
- 24-month manufacturer warranty.
Technical data
| Purpose | controlling up to 4 devices from one panel |
| Supply voltage | 10-30 V DC |
| Power rating | 240 W at 12 V, 480 W at 24 V |
| Maximum current | 20 A |
| Dimensions | 62 x 62 x 25 mm |
| Weight | 110 g |
| Cable length | approx. 30 cm |
| Output P1 | blue wire (upper left button) |
| Output P2 | red wire (upper right button) |
| Output P3 | green wire (lower left button) |
| Output P4 | white wire (lower right button) |

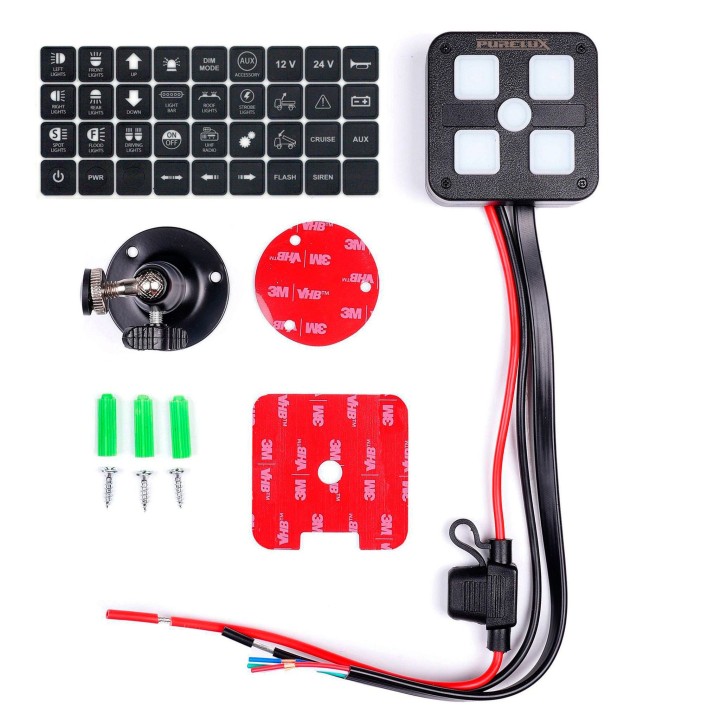

| Marking decals | 18 included |
| Standards | EMC: ECE R10 |
| Manufacturer warranty | 24 months |
| EAN | 6430042685851 |
Wiring

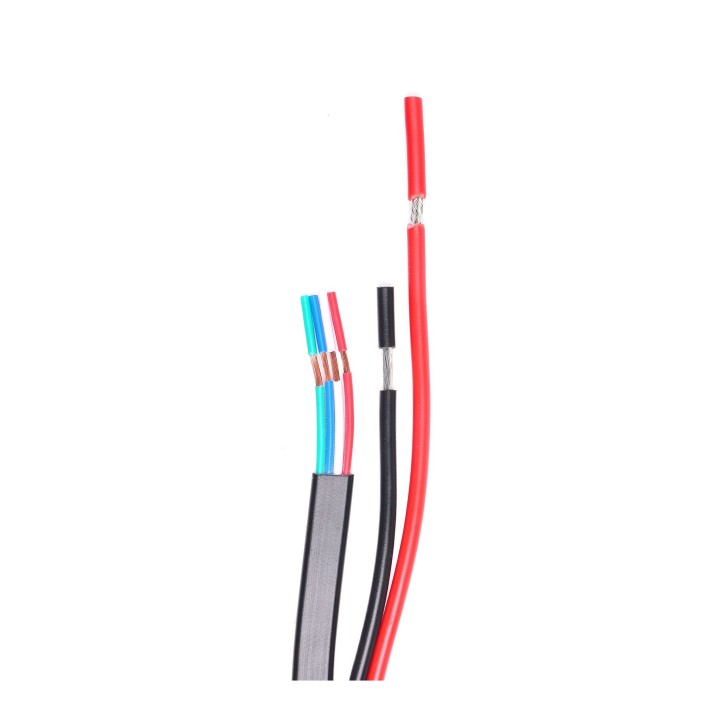

The thick red wire is power (+) and the black one is ground (-). The outputs go by colour: blue P1 (upper left button), red P2 (upper right), green P3 (lower left), white P4 (lower right). The lead is about 30 cm, so mount the panel close to where the loom carries on.
Button mode. To change a button from latching to momentary, switch the panel off with the power button, then hold the power button together with the chosen button until you hear a click.
Master Switch. Hold the chosen button until it clicks - it becomes the master. Then press the buttons that should follow it. From then on one press of the master switches the whole group. The same procedure turns it off.
You fuse the circuits on your side - there are no fuses in the panel. Routing the loom and tying it into the vehicle wiring is workshop work if you would rather not do it yourself.
Who it is for

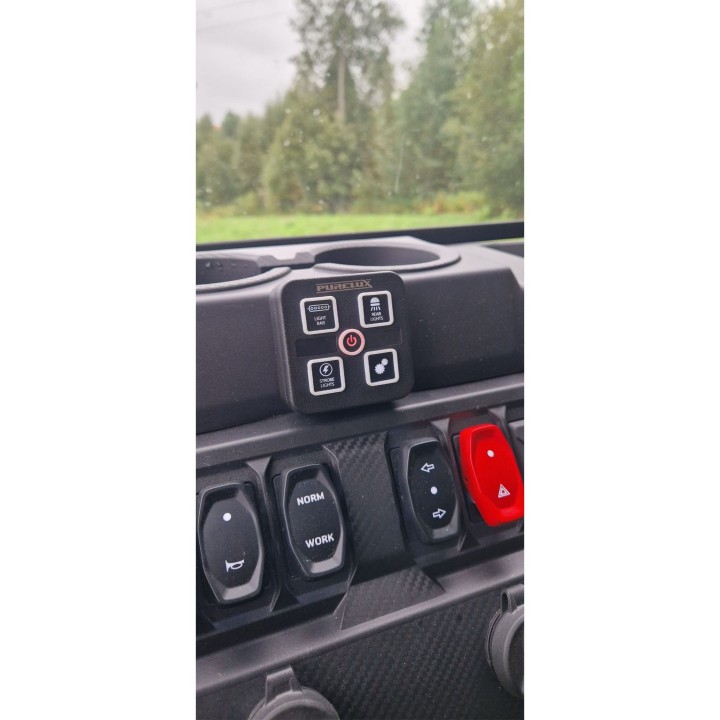

For quads, UTVs, small machines and off-road vehicles running one or two sets of lights, where a small housing and quick fitting matter. If you need eight outputs, fuses included or remote control, look at the larger Purelux Multi-Switch panels.
Why it is worth it
- Four circuits in a block the size of a matchbox - fitted without reworking the dash.
- Master Switch, so a whole group of lights comes on with one button.
- Two years of manufacturer warranty.
Frequently asked questions
How many devices can I connect?
Four - one per button, on outputs P1-P4. Total rating is 240 W at 12 V and 480 W at 24 V, with 20 A maximum current.
How do I tell which wire belongs to which button?
By colour: blue is P1 (upper left), red is P2 (upper right), green is P3 (lower left), white is P4 (lower right). The thick red lead is power and the black one is ground.
What does the Master Switch function do?
A chosen button becomes the master: pressing it also switches the buttons assigned to it. You set it by holding the chosen button until it clicks, then pressing the ones that should follow it. The same procedure switches the function off.
How do I change a button from latching to momentary?
Switch the panel off with the power button, then hold the power button together with the chosen button until you hear a click.
Does the set include a fuse box?
No. The Mini Dashboard Controller is the panel with its leads - you fuse the circuits on your side. The larger Multi-Switch panels come with their own fuse box and outputs.
Summary
- 4-button panel, 62 x 62 x 25 mm, 10-30 V DC supply.
- Rated 240 W at 12 V and 480 W at 24 V, 20 A maximum current.
- Outputs P1-P4 on colour-coded wires, about 30 cm of lead, 18 marking decals.
- Master Switch function, latching and momentary modes, EMC: ECE R10, 24-month warranty.
