Purelux Remote-Controlled Wiring Harness 12/24V, 2 Outputs
You add a light and the real work turns out to be pulling a switch wire into the cab. This harness solves that: the relay stays by the battery and you switch the lights with a remote that works from 60-80 m. Two outputs, 300 W of load and six flash patterns, so an ordinary work light can double as an attention light.
Purelux Remote-Controlled Wiring Harness 12/24V, 2 Outputs
Fitting a work light rarely stalls on the light itself. It stalls on the switch wire that has to go through the bulkhead, and on finding somewhere in the dash for the switch. This harness skips that stage: the relay stays by the battery and the controls live on a remote the size of a key fob.
Two outputs take one or two lights up to 300 W in total. Besides plain on and off, the remote offers six flash patterns, so a light with no strobe function of its own starts working as an attention light - with no extra flasher relay.
Outputs 2 lights, 300 W total | Remote 60-80 m range | Flash patterns 6 |
Key benefits
- No switch in the cab - no wire pulled through the bulkhead and no hole drilled in the dash. The relay stays in the engine bay and the remote lives on your keyring.
- Two outputs - run one or two lights; the remote switches them together or separately.
- Six flash patterns - an ordinary work light with no flash function starts working as an attention light. You cycle the patterns with the lights on, so you see the result straight away.
- 60-80 m range - you can kill the lights while standing at the trailer or walking round the machine.
- 300 W of load and a 25 A fuse included - enough for a pair of strong work lights.
- Abiko connectors fitted - the harness is ready to connect, and four spare flat connectors are in the box.
- IP65 remote and module - the module can live in the engine bay.
- Works with any brand of light - the manufacturer states this explicitly; it is not a Purelux-only harness.
- 12-month manufacturer warranty.

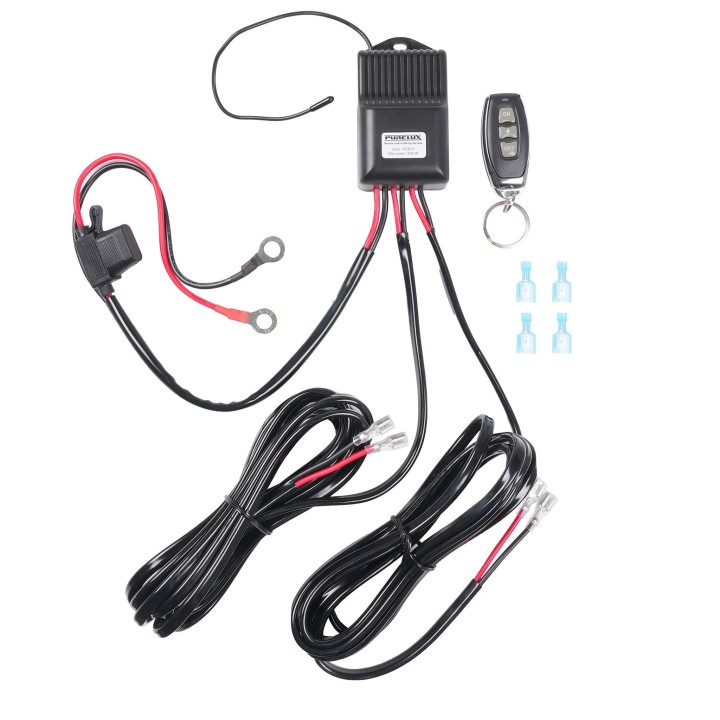

What is in the set
- Relay wiring harness with a 25 A fuse
- RF remote with a CR2032 battery
- Four flat connectors
- Installation and connection instructions
Technical data
| Purpose | remote control of auxiliary, work and warning lights |
| Supply voltage | 10-30 V DC (12 V and 24 V systems) |
| Maximum load | 300 W in total |
| Outputs | 2 |
| Fuse | 25 A |
| Output connectors | 2 x Abiko (flat connectors) |
| Relay to light cable | 300 cm |
| Battery to relay cable | 50 cm |
| Remote control | RF, 60-80 m range |
| Remote battery | CR2032 |
| Flash patterns | 6, cycled with a button on the remote |
| Protection rating | IP65 (remote and control box) |
| Manufacturer warranty | 12 months |
| EAN | 6430042686841 |
Wiring

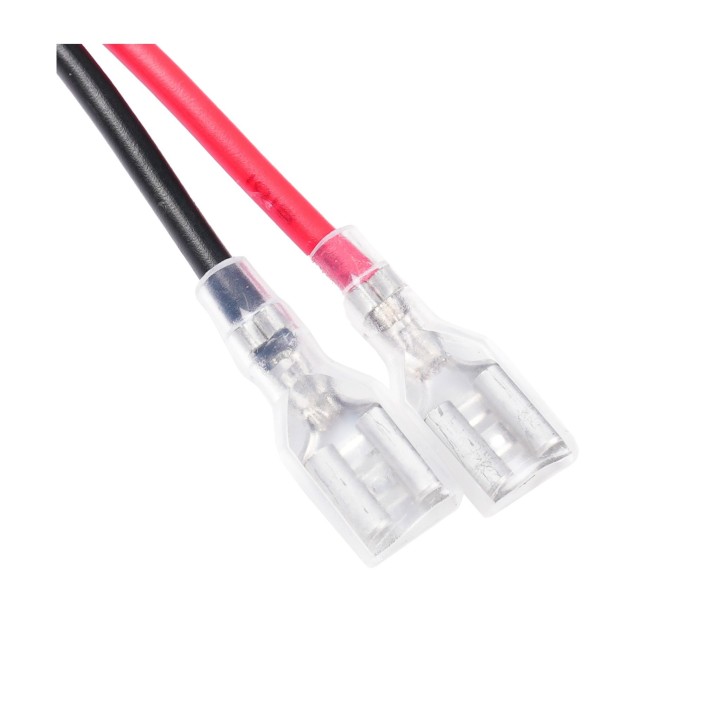

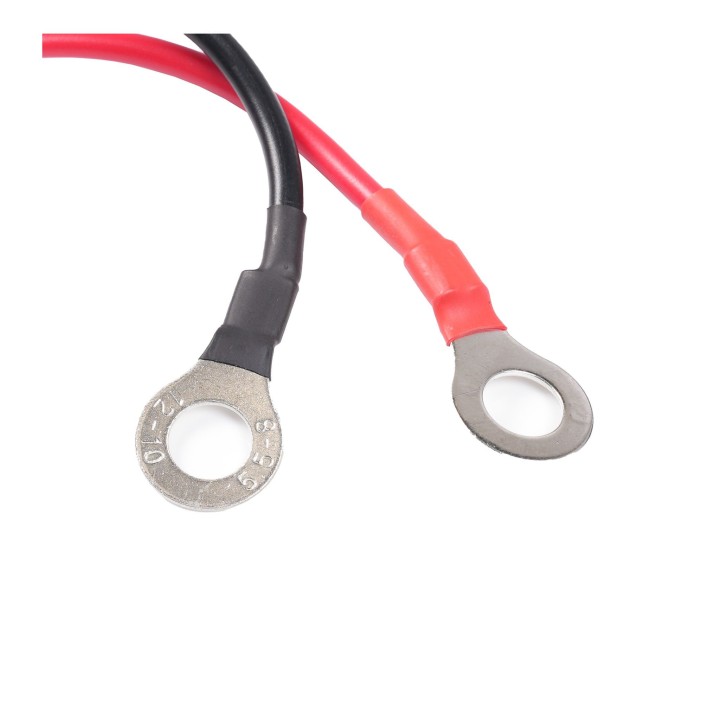

The supply lead with its 25 A fuse goes straight to the battery - it is 50 cm long, so the relay module mounts right next to it. Two 300 cm output leads come out of the other side, ending in Abiko connectors that plug into the light wiring. The four spare flat connectors are there for lights with different terminals.

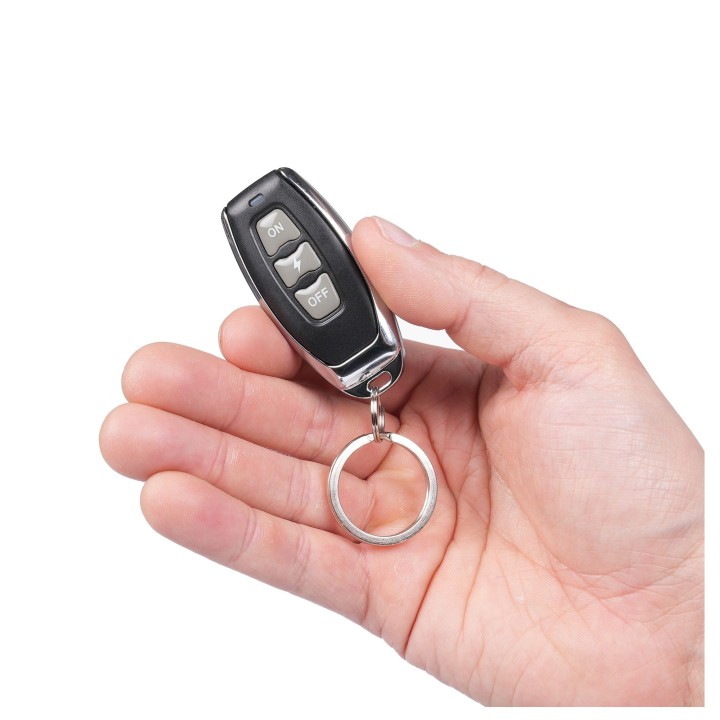

The remote works from 60-80 m and runs on a CR2032 battery. Both the module and the remote are IP65 rated, so the module can stay in the engine bay - just keep it out of the spray thrown up by a wheel.
If you would rather not do it yourself, we can route the harness and connect the lights in the workshop.
Who it is for
For anyone adding a work light to an off-road vehicle, a quad, a trailer or a machine who does not want to pull a switch wire into the cab. It also suits cases where the light has to be switched from outside the vehicle - working around a machine or setting up camp.
Before you order
Check the total wattage of your lights - the harness carries 300 W. A heavier set needs a separate relay or a split across two harnesses. Remember too that the ability to flash does not turn a work light into a road-legal warning light - that is decided by the rules on emergency and special-purpose vehicles.
Why it is worth it
- Fitted without pulling a wire through the bulkhead or drilling the dash.
- Six flash patterns with no extra flasher relay.
- Works with any brand of light, not only Purelux.
Frequently asked questions
Does the harness only fit Purelux lights?
No. The manufacturer states plainly that the kit also suits other brands - what matters is the system voltage and the load.
How many lights can I run, and at what power?
One or two, up to 300 W in total. The circuit is protected by the 25 A fuse supplied with the harness.
Will it work on a 24 V system?
Yes, the supply range is 10-30 V DC, so both 12 V and 24 V are within spec.
How do I switch to a flash pattern?
With the button on the remote. The six patterns cycle with each press, and you do it with the lights on, so you can see which one is active.
Where should the relay module go?
The battery lead is 50 cm and the lead to the light is 300 cm, so the module stays by the battery. It is IP65 rated, but it is still worth mounting it out of the spray thrown up by a wheel.
Can I use the flashing mode on public roads?
Whether a vehicle may use a warning light, and in which colour, is decided by the rules on emergency and special-purpose vehicles. The harness itself does not give a light that status.
Summary
- Relay wiring harness with an RF remote for one or two auxiliary lights.
- 10-30 V DC supply, up to 300 W of load, 25 A fuse, Abiko connectors.
- Remote with 60-80 m range on a CR2032 battery, six flash patterns.
- IP65 remote and module, 12-month manufacturer warranty.
